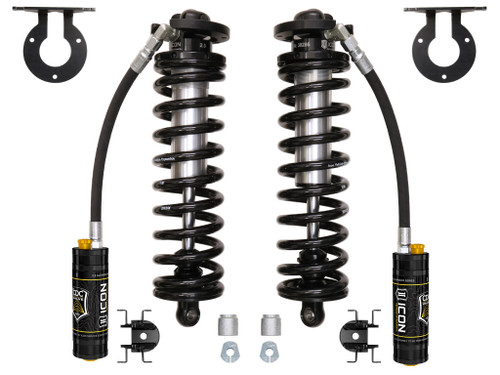

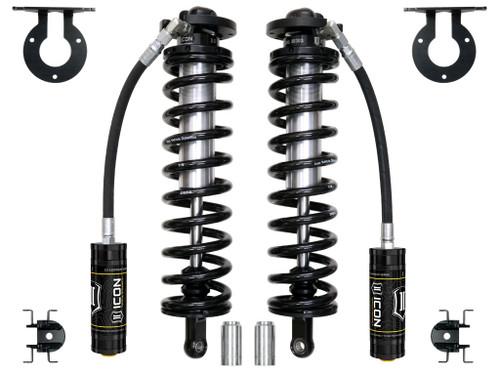

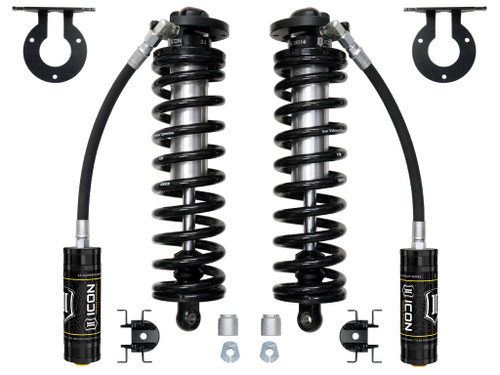

Icon 61720E - 2017+ Ford F-250/F-350 SD 4WD 2.5-3in 2.5 Series Shocks VS RR CDEV Bolt-In Conversion Kit

MSRP: $3,477.51
$3,311.91
( saved $165.60 )
Write a Review
  • Icon 61720E - 2017+ Ford F-250/F-350 SD 4WD 2.5-3in 2.5 Series Shocks VS RR CDEV Bolt-In Conversion Kit
  • Icon 61720E - 2017+ Ford F-250/F-350 SD 4WD 2.5-3in 2.5 Series Shocks VS RR CDEV Bolt-In Conversion Kit
  • Icon 61720E - 2017+ Ford F-250/F-350 SD 4WD 2.5-3in 2.5 Series Shocks VS RR CDEV Bolt-In Conversion Kit
  • Icon 61720E - 2017+ Ford F-250/F-350 SD 4WD 2.5-3in 2.5 Series Shocks VS RR CDEV Bolt-In Conversion Kit
  • Icon 61720E - 2017+ Ford F-250/F-350 SD 4WD 2.5-3in 2.5 Series Shocks VS RR CDEV Bolt-In Conversion Kit
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.
Adding to cart… The item has been added
SKU:
ICON-61720E
UPC:
840103414430
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

Icon - 61720E

17-23 F250/F350 4WD 2.5-3" 2.5 VS RR CDEV BOLT IN CO CONVERSION KIT W/ CAMS

ICON's 2.5 Series Remote Reservoir CDEV Bolt-In Coilover Kit will add a new level of performance and adjustability to the 05-23 Ford Super Duty. Increasing the overall damping ability while allowing for user-defined ride height adjustment.

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2023 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-tuned as necessary. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

  • Bolt-in system fits in OE coil bucket location
  • Ride height adjustable coilovers (2.5-3" or 3.25-3.75” depending on year of vehicle)
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • Decreased body roll and improved on and off-road ride dynamics
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • Coilover conversion allows for addition of optional secondary shocks
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • ICON engineered coil springs guaranteed for life against sagging or breakage
  • FK Rod End bearings for extended longevity and minimal deflection
  • Fully rebuildable and re-tunable

AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 67800P - 05-24 FSD 4WD 0-2.5" FRONT 2.5 VS RR PAIR
Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Add-On Part: 67800EP - 17-24 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDEV PAIR
Add-On Part: 611003 - 2.5 RESI DOUBLER MOUNT 7.5" KIT
Add-On Part: 93502 - 23-24 FSD IIC INSTALL KIT
Add-On Part: 67800CP - 05-24 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR
Add-On Part: 66512 - 05-24 FSD 4WD 2.5" FRONT 2.0 VS IR
Add-On Part: 93500 - 15-23 F150 & 17-22 FSD IIC INSTALL KIT
Add-On Part: 191207 - IIC CONTROLER ALT FUNCTION PLUG KIT
Add-On Part: 66512R - 05-24 FSD 4WD 2.5" FRONT 2.0 VS RR
Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
Adjustable Damping: Yes
Adjustable Height: Yes
Body Diameter: 2.5
Boot Included: No
Coil Over Springs Included: Yes
Damping Adjustment Type: Electronic
Damping Type: Oil
Dust Shield: No
Dust Shield Included: No
Gas Charged: Yes
Grade Type: Performance
Lower Mount Type: Eyelet
Material: Aluminum
Material: Steel
Maximum Lift: 3.75
Minimum Lift: 0
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Remote Reservoir: Yes
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
Shaft Diameter: 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Upper Mount Type: Mounting Plate
