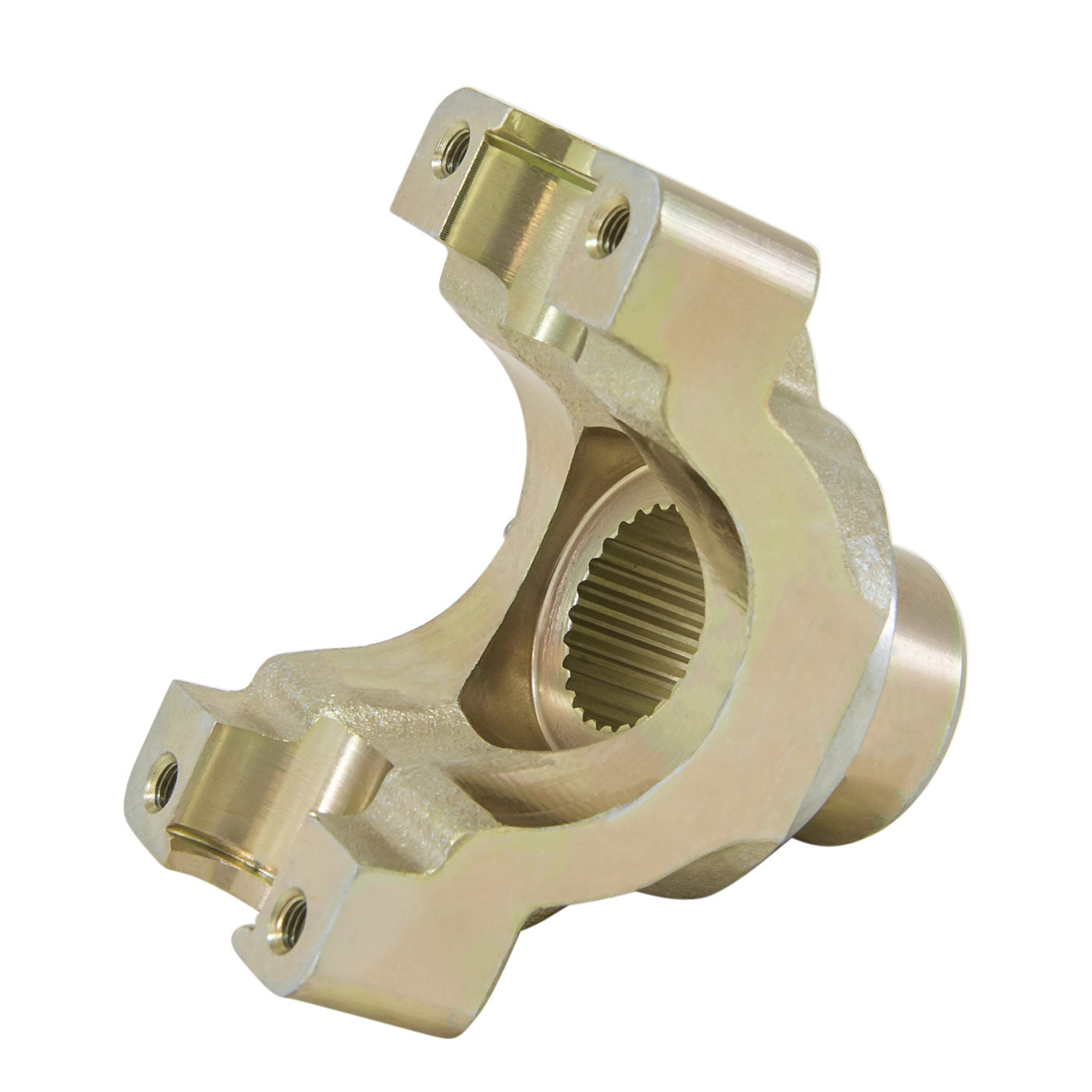

Yukon Gear YY D44-1330-26S - Replacement Yoke For Dana 30 44 50 And 300 26 Spline 1330 U-Joint D30 D44 &D50 Strap(1330 1-1/16 Inch cap)Pinion Yoke Fine 26 Spline 3.000 Inch Tall

Yukon Gear YY D44-1330-26S - Replacement Yoke For Dana 30 44 50 And 300 26 Spline 1330 U-Joint D30 D44 &D50 Strap(1330 1-1/16 Inch cap)Pinion Yoke Fine 26 Spline 3.000 Inch Tall

Yukon Gear and Axle manufactures a complete line of general replacement and performance series of pinion yokes for many street, racing, and heavy-duty off-road applications.

Features:

Fits Dana Spicer 30 and 44 26 spline 1330 u-joint size Outside snap ring design 3.625 inch snap ring span 1.062 inch cap diameter Strap style

Details:

• AAP Selling Package Quantity UOM: EA
• Aap uda 12: EA
• Aap uda 22: 1
• Material: Steel
• Spline Quantity: 26

3.000 inch tall yoke, 1.552 inch hub diameter, Strap style yoke - Strap kit YY STR-004 inch sold separately. Verify height, 2003-2006 TJ Rubicon uses a 3.750 inch tall 1330 yoke.

YY D44-1330-26L.

Fitment Notes:

• Dana 30
• Pinion yoke
• 26 Spline
• For Use with 1330 U-Joint
• strap Style
• 3.00 inch. tall
• 1.552 inch. Hub Diameter, Dana 44
• Pinion yoke
• 26 Spline
• For Use with 1330 U-Joint
• strap Style
• 3.00 inch. tall
• 1.552 inch. Hub Diameter, Dana 50
• Pinion yoke
• 26 Spline
• For Use with 1330 U-Joint
• strap Style
• 3.00 inch. tall
• 1.552 inch. Hub Diameter
