Yukon Gear - YK GM8.6-A
Differential Installation Kit - Bearings / Crush Sleeve / Gaskets / Hardware / Seals / Shims / Thread Locker - 8.625 in - GM 10-Bolt - Kit

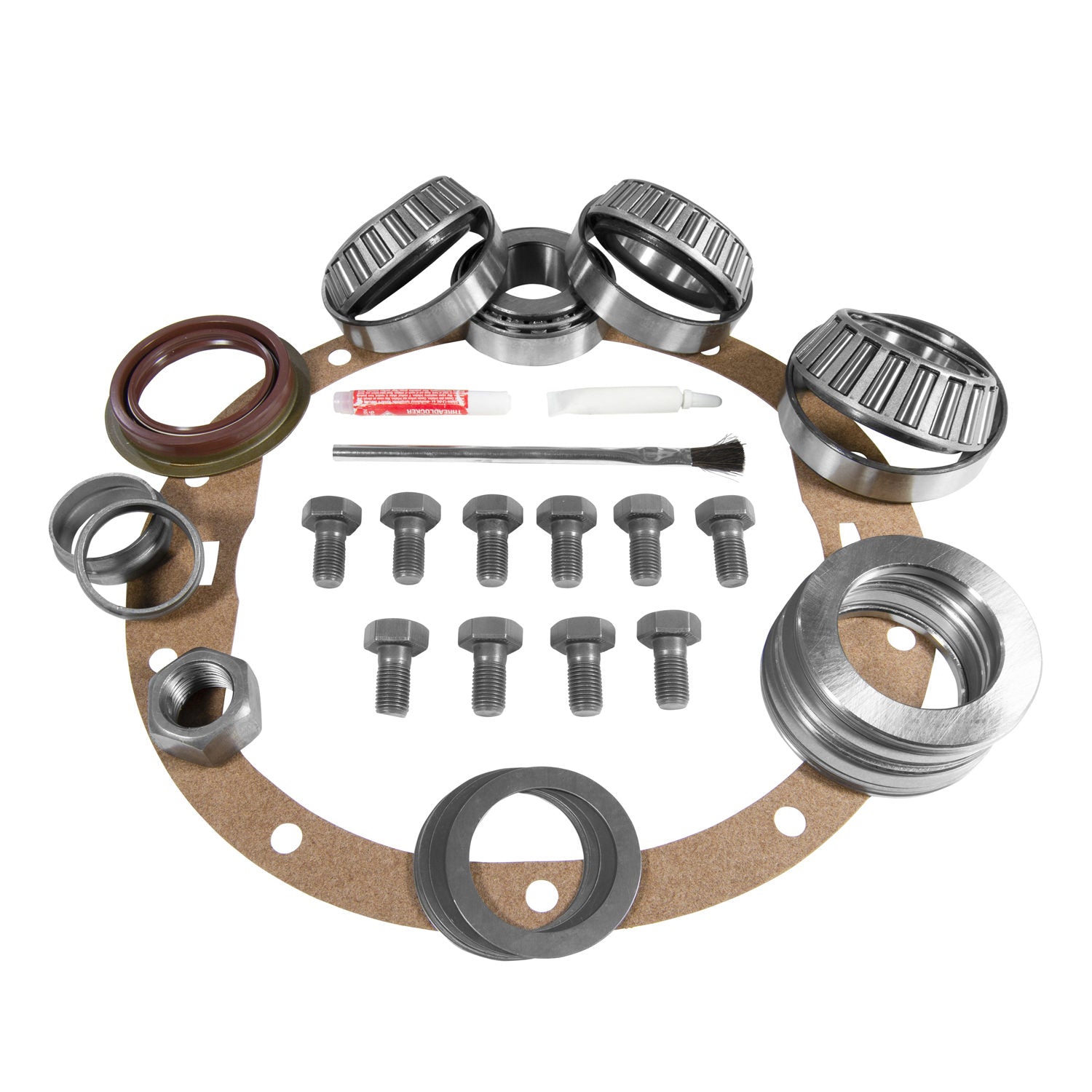

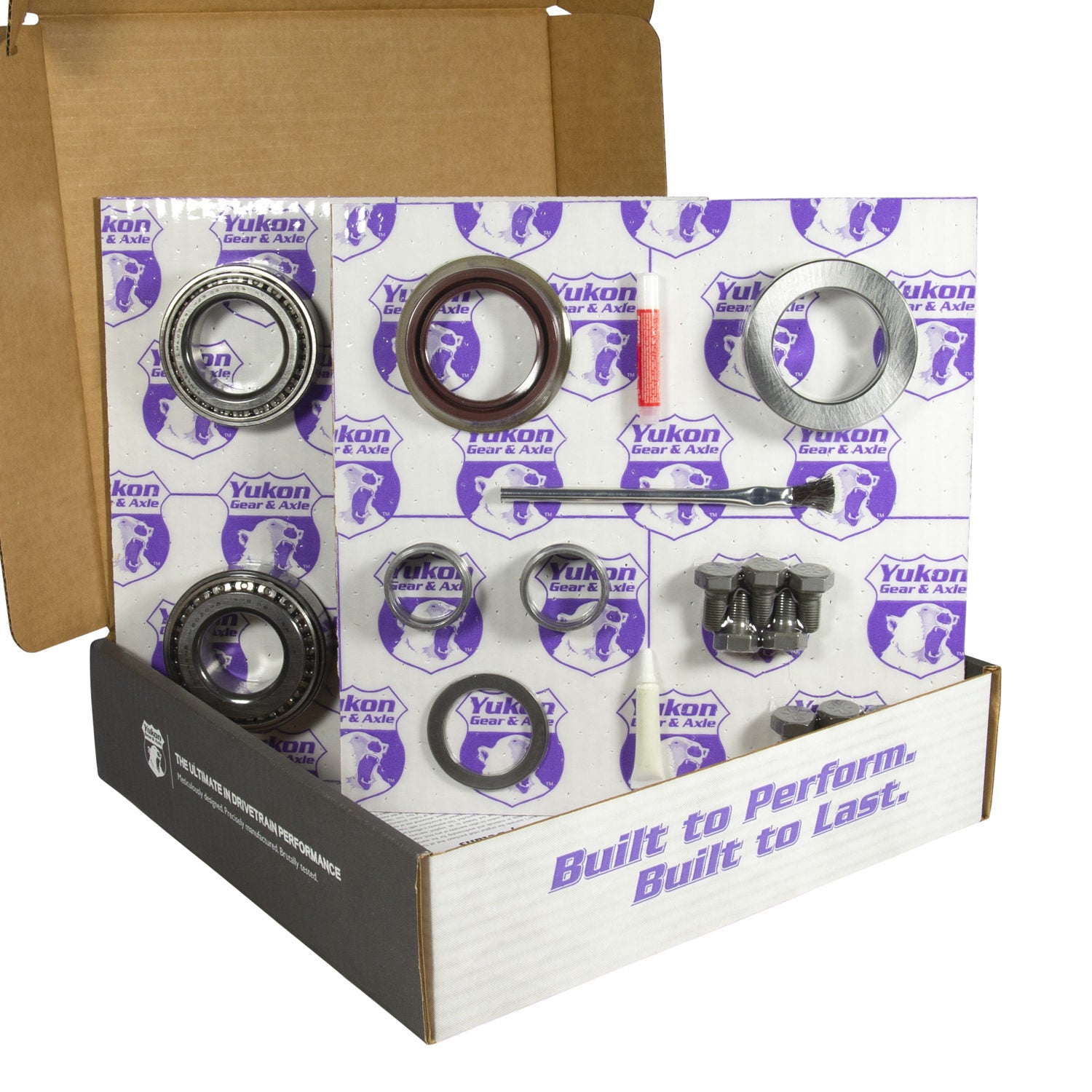

Yukon Master Overhaul Kits give you all the high-quality parts you need to start and finish every differential job. Yukon offers more tailor-made kits than any other manufacturer in the industry to meet your specific installation needs. This kit uses Timken bearings and races along with high quality seals and small parts. Yukon Master Overhaul Kits are the most comprehensive and complete kits on the market because Yukon does extensive research to ensure that every kit has everything you need for your application.
- Fits 1999-2008 GM 8.6 in.

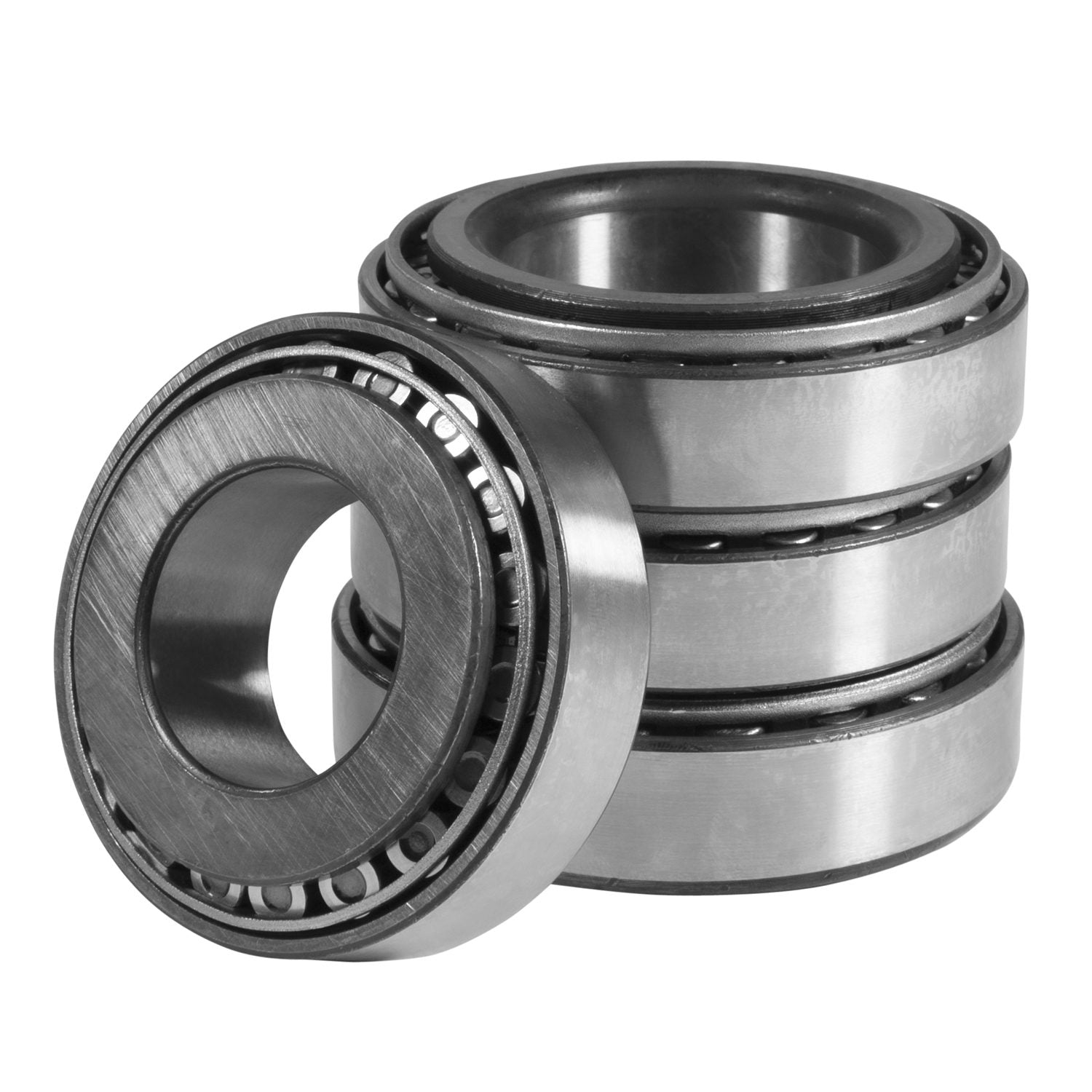

- Incl. Are Timken Bearings And Races Along w/High Quality Seals And Small Parts
- Incl. Carrier Bearings/Races; Pinion Bearings/Races; Pinion Seal; Complete Shim Kit
- Incl. Ring Gear Bolts; Pinion Nut; Crush Sleeve; Thread Locker; Marking Compound w/Brush And Gasket
Bearing Generation: Gen 1
Bearing(s) Included: Yes
Bearing Inside Diameter: 1.3125
Bearing Inside Diameter: 1.625
Bearing Inside Diameter: 1.71
Bearing Maximum Width: 6969
Bearing Outside Diameter: 3.062
Bearing Outside Diameter: 3.250
Bearing Outside Diameter: 2.688
Differential Case Design Type: GM8.6
Gasket Mount Hole Quantity: 10
Gasket Or Seal Included: Yes
Grade Type: Performance
Lock Ring Included: No
Retainers Included: No
Seal Inside Diameter: 2.088
Seal Outside Diameter: 2.777
Seal Type: Triple Lip
Seal Width: 0.496
Sealed: No
Shaft Diameter: 1.626
Spacer Included: No
Width: 13
Year
Make
Model
Submodel
Engine
2004 - 2007
Buick
Rainier
CXL
4.2L
2004 - 2007
Buick
Rainier
CXL
5.3L
2004 - 2005
Buick
Rainier
CXL Plus
4.2L
2004 - 2005
Buick
Rainier
CXL Plus
5.3L
2007
Cadillac
Escalade
2002 - 2005
Cadillac
Escalade
Base
5.3L
1999 - 2000
Cadillac
Escalade
Base
5.7L
2002 - 2006
Cadillac
Escalade
Base
6.0L
2007 - 2008
Cadillac
Escalade
Base
6.2L
2008
Cadillac
Escalade
Platinum
6.2L
2007 - 2008
Chevrolet
Avalanche
Base
5.3L
2007 - 2008
Chevrolet
Avalanche
LS
5.3L
2007 - 2008
Chevrolet
Avalanche
LT
5.3L
2007 - 2008
Chevrolet
Avalanche
LT
6.0L
2007 - 2008
Chevrolet
Avalanche
LTZ
5.3L
2007 - 2008
Chevrolet
Avalanche
LTZ
6.0L
2002 - 2006
Chevrolet
Avalanche 1500
Base
5.3L
2002, 2005 - 2006
Chevrolet
Avalanche 1500
LS
5.3L
2002, 2005 - 2006
Chevrolet
Avalanche 1500
LT
5.3L
