Yukon Gear YC F880502 - Standard Open Carrier Case Ford 8.8 Inch 31 Spline 8.8 Inch 31 Spline Std Case (7/8 X-Pin Hole)

Yukon Gear YC F880502 - Standard Open Carrier Case Ford 8.8 Inch 31 Spline 8.8 Inch 31 Spline Std Case (7/8 X-Pin Hole)

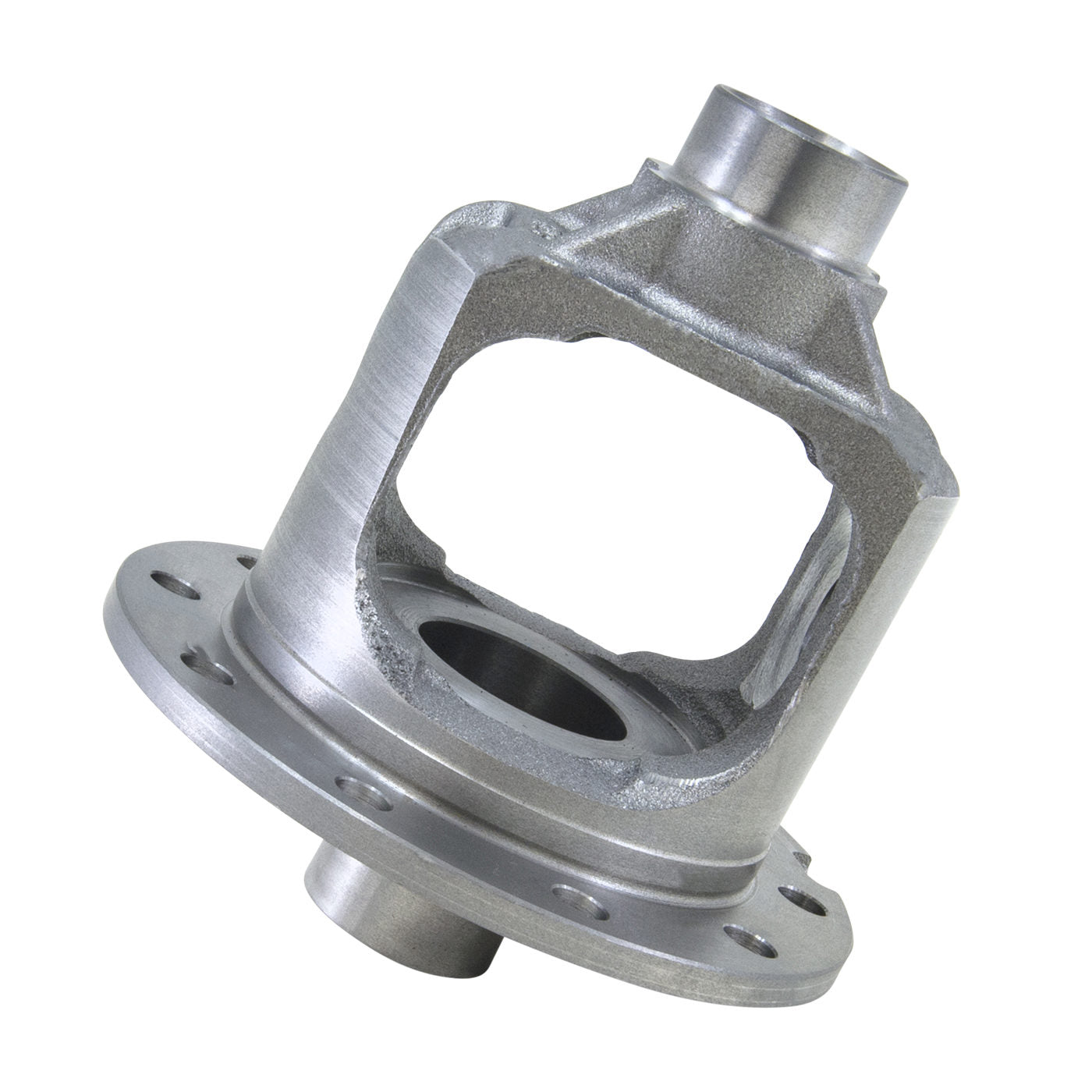

8.8 inch 31 spline standard Open case (7/8 X-PIN Hole). Yukon Gear & Axle manufactures a full line of standard open and positraction limited slip carrier cases for a variety of applications.

Each unit is cast and machined to exacting specifications to produce a carrier that provides both high strength and tight tolerances for a long and reliable service life. This case does not come with spider and side gears.

Features:

Standard open carrier case Fits Ford 8.8 inch with 31 spline axles Does not include spider gears 0.875 inch cross pin shaft diameter

Details:

• AAP Selling Package Quantity UOM: EA
• Aap uda 12: EA
• Aap uda 22: 1
• Axle Shaft Spline Quantity: 31
• Cover Bolt Quantity: 10
• Material: Steel
• Type: Non Locking

This case uses a 7/8 inch diameter cross pin shaft. If you have the older design which used a 3/4 inch cross pin shaft you will also need to purchase spider gear set Ypkf8.8-S-31.

Fitment Notes:

• Ford 8.8 inch.
• Standard
• 31 Spline
• -7/8 inch. Cross Pin Hole, Ford 8.8 inch.
• IRS
• Standard
• 31 Spline
• -7/8 inch. Cross Pin Hole, Ford 8.8 inch.
• 3.250 inch. OD Pinion Bearing
• Standard
• 31 Spline
• -7/8 inch. Cross Pin Hole, Ford 8.8 inch
• IRS
• Standard
• 31 Spline
• -7/8 inch. Cross Pin Hole
