Wiseco K509M925 - Toyota 20R 2.2L 92.50mm Bore .020 Oversized 9.89 CR Piston Build on Demand Kit

Wiseco K509M925 - Toyota 20R 2.2L 92.50mm Bore .020 Oversized 9.89 CR Piston Build on Demand Kit

Wiseco | K509M925
SKU: BJKF-K509M925
Regular price $773.99 USD
Regular price $851.39 USD Sale price $773.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Wiseco K509M925 - Toyota 20R 2.2L 92.50mm Bore .020 Oversized 9.89 CR Piston Build on Demand Kit

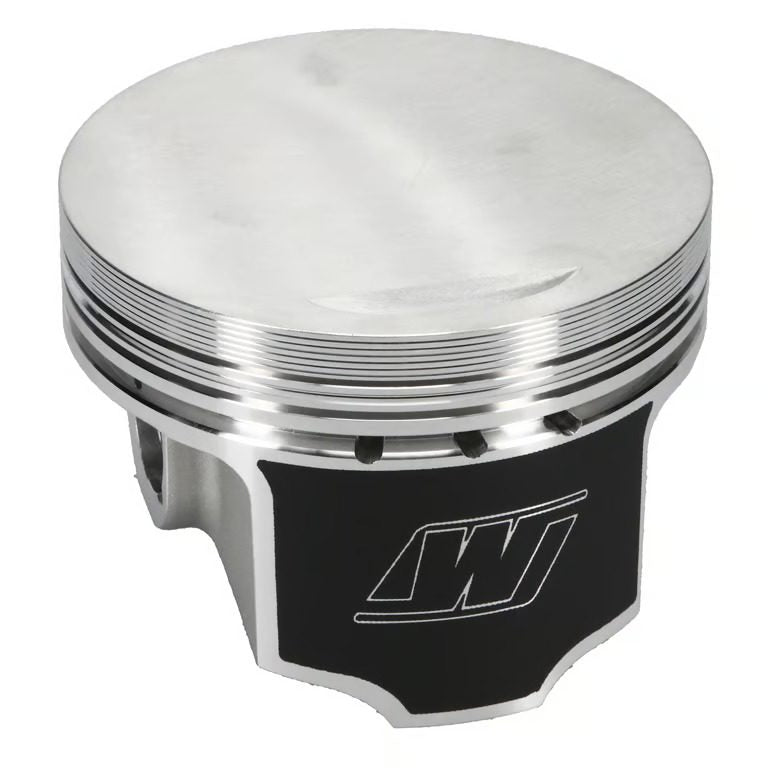

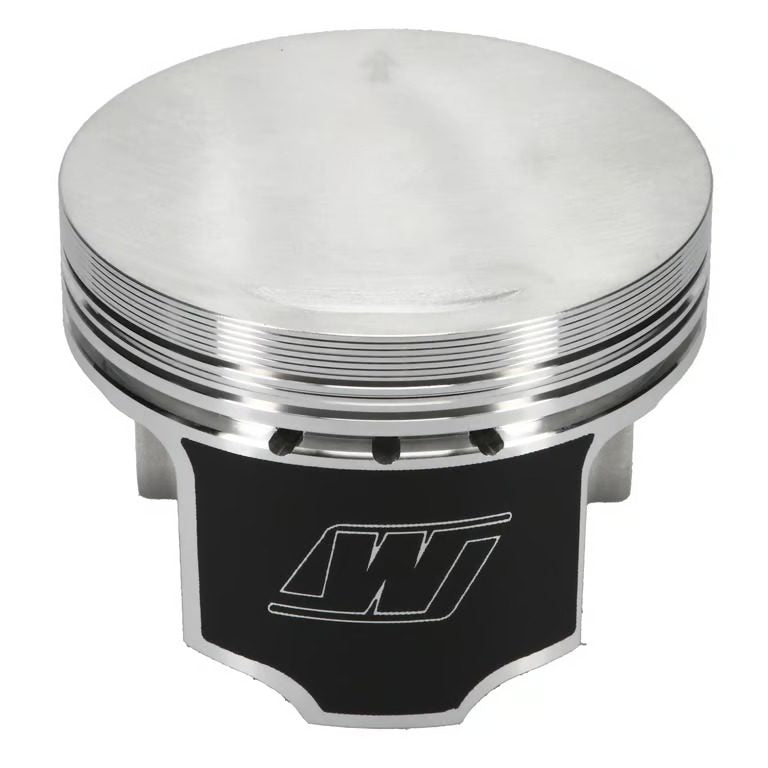

Wiseco Toyota 22R Piston Set, 92.50 mm Bore, 38.95 mm Compression Height, 0.866 in. Pin Diameter, Sport Compact, Set of 4.

Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco?s Professional Series.

  • Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
  • ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
  • Fully machined crown features
  • Precision ring grooves, anti-detonation groove, and additional ring seal improving features
  • Forced pin oiling
  • Designed and built to withstand heavy to severe duty performance applications
Category Hierarchy: Auto>Pistons>Piston Kits>Sport Compact
Out of Stock Message: Estimated Shipped Date 3-4 Weeks
Engine Type: ICE
EBAY Category ID: 33623
Title - Web: Professional Toyota 22R Piston Set of 4 - 92.50 mm Bore - 38.95 mm CH, 24.70 CC
Product Series: Professional
Bore Diameter: 92.50
Compression Height: 38.95
Piston Volume: 24.70
Piston Material: 4032
Skirt Coating: Yes
Forging Type: Full Round
Piston Quantity: 4
Ring Set Included: Yes
Top Compression Ring Thickness: 1.0
Second Compression Ring Thickness: 1.2
Oil Ring Thickness: 2.8
Wrist Pin Included: Yes
Wrist Pin Material: 5115
Wrist Pin Style: Floating
Wrist Pin Outer Diameter: 0.866
Product Type: Engine Piston Set
Engine: 22R
Engine - Web: 22R
Make: Toyota
Make - Web: Toyota
Industry: Automotive
Product Market: Sport Compact
