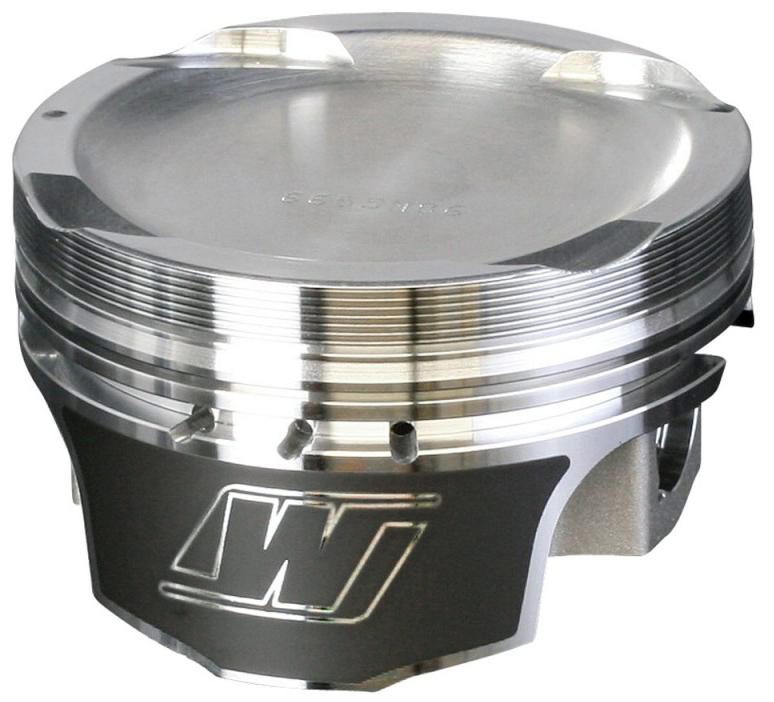

Wiseco 6566M82 - Acura 4v DOME +5cc STRUTTED 82.0MM Piston Shelf Stock

Wiseco 6566M82 - Acura 4v DOME +5cc STRUTTED 82.0MM Piston Shelf Stock

Wiseco | 6566M82
SKU: BJKF-6566M82
$216.99 USD
$238.69 USD $216.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

Wiseco 6566M82 - Acura 4v DOME +5cc STRUTTED 82.0MM Piston Shelf Stock

Wiseco Honda B18 Piston, 3.228 in. Bore, 1.185 in. Compression Height, 0.827 in. Pin Diameter, Professional, Set of 1.

Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco?s Professional Series.

  • Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
  • ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
  • Fully machined crown features
  • Precision ring grooves, anti-detonation groove, and additional ring seal improving features
  • Forced pin oiling
  • Designed and built to withstand heavy to severe duty performance applications
Third Ring Material: Stainless Steel
Wrist Pin Retainer Part Number: CW21
Wrist Pin Retainer Quantity: 2
Product Type: Engine Piston
Engine: B18
Engine - Web: B18
Make: Honda
Wrist Pin Retainer Thickness: 0.049
Wrist Pin Retainer Material: Chrome Silicon
Wrist Pin Retainer Style: Wire Lock
Make - Web: Honda
Industry: Automotive
Product Market: Sport Compact
Category Hierarchy: Auto>Pistons>Individual Pistons>Sport Compact
Out of Stock Message: Estimated Shipped Date 3-4 Weeks
Title - Web: Professional Piston Honda B18 - 3.228 in. Bore - 1.185 in. CH, 5.00 CC
Engine Type: ICE
EBAY Category ID: 33623
Product Series: Professional
Bore Diameter: 3.228
Stroke: 5.287
Rod Length: 3.047
Compression Height: 1.185
Cylinder Head: B18
Piston Volume: 5.00
Piston Material: 2618
Skirt Coating: Yes
Forging Type: Strutted
Piston Quantity: 1
Wrist Pin Quantity: 1
Top Compression Ring Thickness: 1.00
Top Ring Material: Stainless Steel
Second Compression Ring Thickness: 1.20
Second Ring Material: Ductile Iron
Ring Quantity: 1
Ring Set Part Number: 8200XX
Ring Set Included: Yes
Oil Ring Thickness: 2.80
Oil Ring Tension: Standard
Wrist Pin Material: 5115
Wrist Pin Style: Floating
Wrist Pin Outer Diameter: 0.827
Wrist Pin Retainer Included: Yes
Wrist Pin Part Number: S656
Wrist Pin Included: Yes
