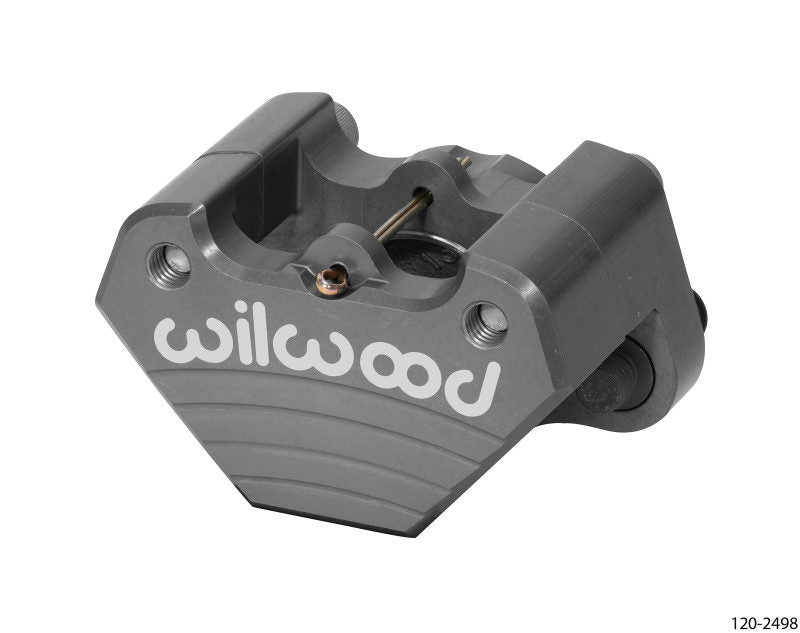

Wilwood 120-2498 - Caliper-Dynalite Single - Floater 1.75in Piston .25in Disc

Wilwood 120-2498 - Caliper-Dynalite Single - Floater 1.75in Piston .25in Disc

Brake Caliper - Dynalite - 1 Piston - Aluminum - Gray Anodized - 13.000 in OD x 0.250 in Thick Rotor - 3.280 in Floating Mount - Each

Wilwood’s Dynalite Single Floater is a single piston billet caliper designed for Open Wheel, Drag Race, Karting and Motorcycle applications. The rigid outboard anvil half’s low profile design allows it to fit in tight clearance situations where opposed piston designs will not. Weighing just 1.40 pounds, the caliper uses the same .49” thick, 1.1 cubic inch Dynalite Single quick change pads. Multiple 1/8-27 NPT inlet and bleed screw locations allow for versatile mounting positions. It comes with precision machined dry lubricated slide pins for bind-free operation. The Dynalite Single Floater is black anodized to resist corrosion and fits rotors from .25” to .38” wide and diameters from 6.00” to 13.00”.
