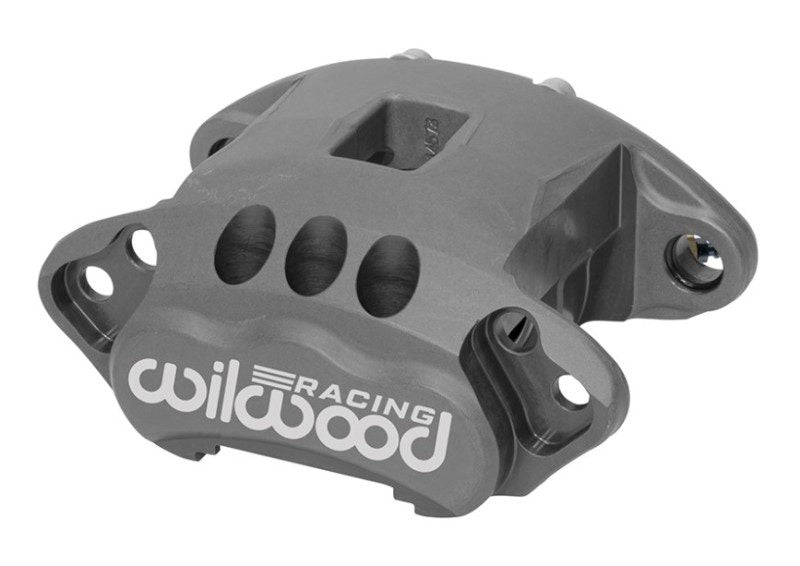

Wilwood 120-14876 - Caliper-GM D154-R 2.00in Piston 1.04in Disc

Wilwood 120-14876 - Caliper-GM D154-R 2.00in Piston 1.04in Disc

Brake Caliper - GM Metric Race - 1 Piston - Aluminum - Gray Anodized - 12.190 in OD x 1.040 in Thick Rotor - 5.460 Floating Mount - Each

Wilwood's newest race caliper, the D154-R starts with a forged aluminum Type III hard anodized body with stainless steel piston. With a choice of 2.50” or 2.00” pistons and covering rotors from .81” to 1.04” thickness up to 12.19” diameter. Caliper fluid inlet port centered directly behind the piston eliminates any interference with slide pins. Lower deflection rate and higher volumetric efficiency than all the competitions’ heavier cast models, D154-R calipers with a 2.50" piston weighs only 3.3 pounds and use standard metric D154 pads. Caliper mounting uses stock height and offset.
