Westin - 46-23555
MAX Winch Tray; Black;
Mounts directly to frame. Max grill guards bolt directly to the tray. Accommodates up to 12000 pound winches. No drill installation.

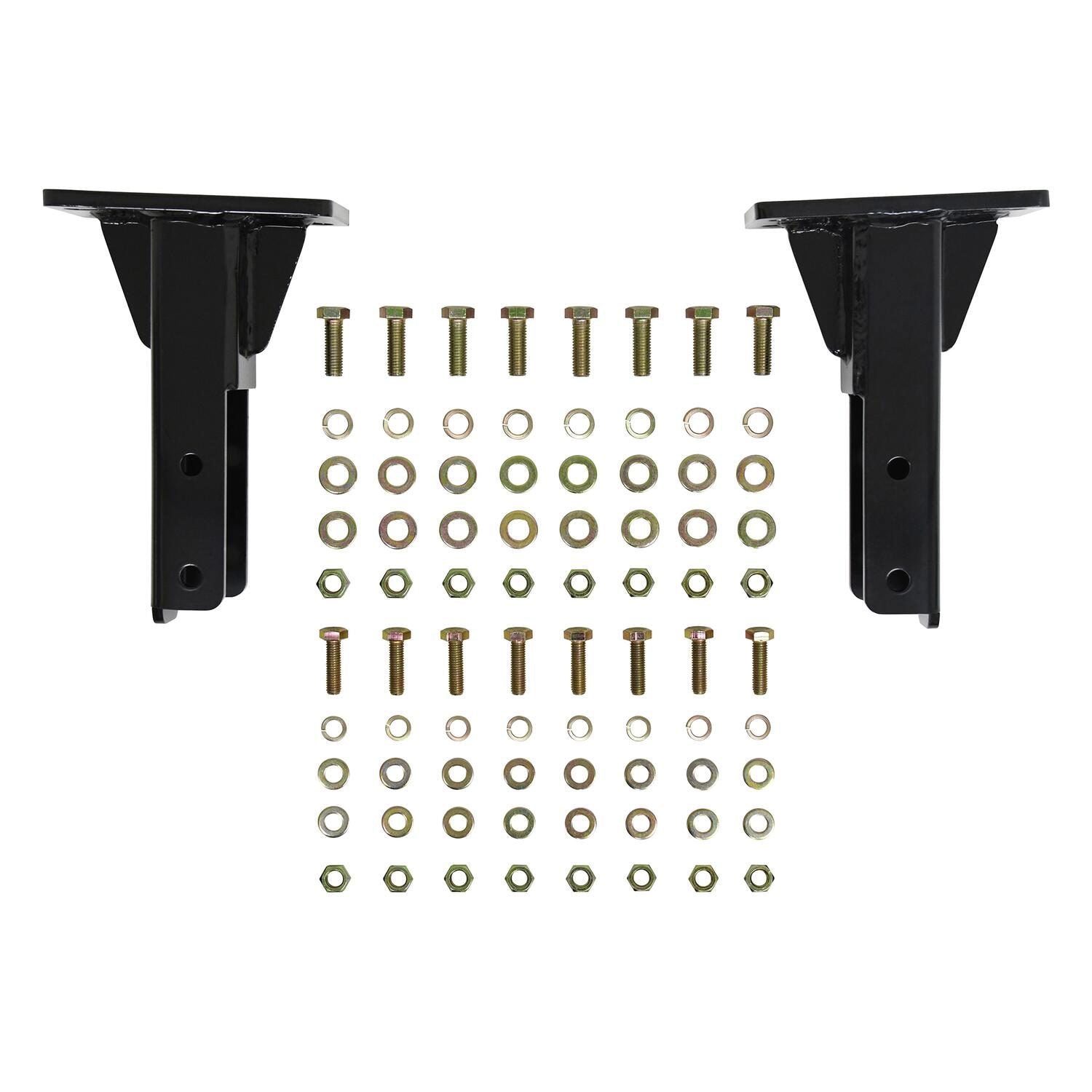

- HD brackets mount directly to vehicle frame
- Winch tray tested to a maximum straight line pull of 16,500 lbs
- Fits most medium frame 8,000-12,000 lbs winches up to 10.25" tall
- Pre-drilled for quick mounting of hawse or roller fairlead
- Optional MAX Bull Bar/Light Bar
- Optional MAX Faceplate
- Optional MAX Tow Hooks (Part No. 46-3005 - 2 needed)
Can Ship By Ground Delivery: Yes
Color: Black
Finish: Powder Coated
Material: Steel
Straight Line Pull Capacity (lbs.): 16,500
Winch Depth (in.): 6.75
