Weiand - 5045WND

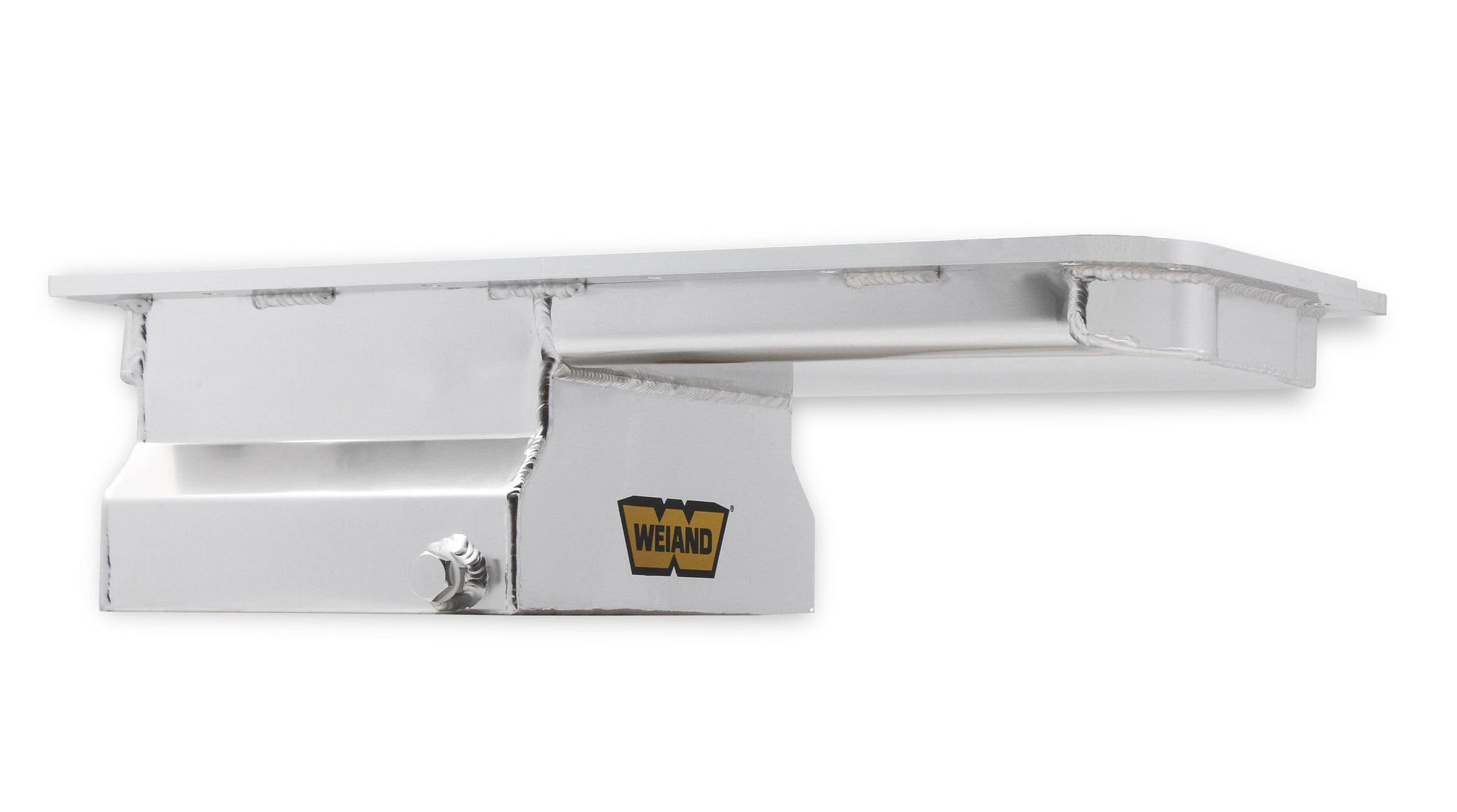

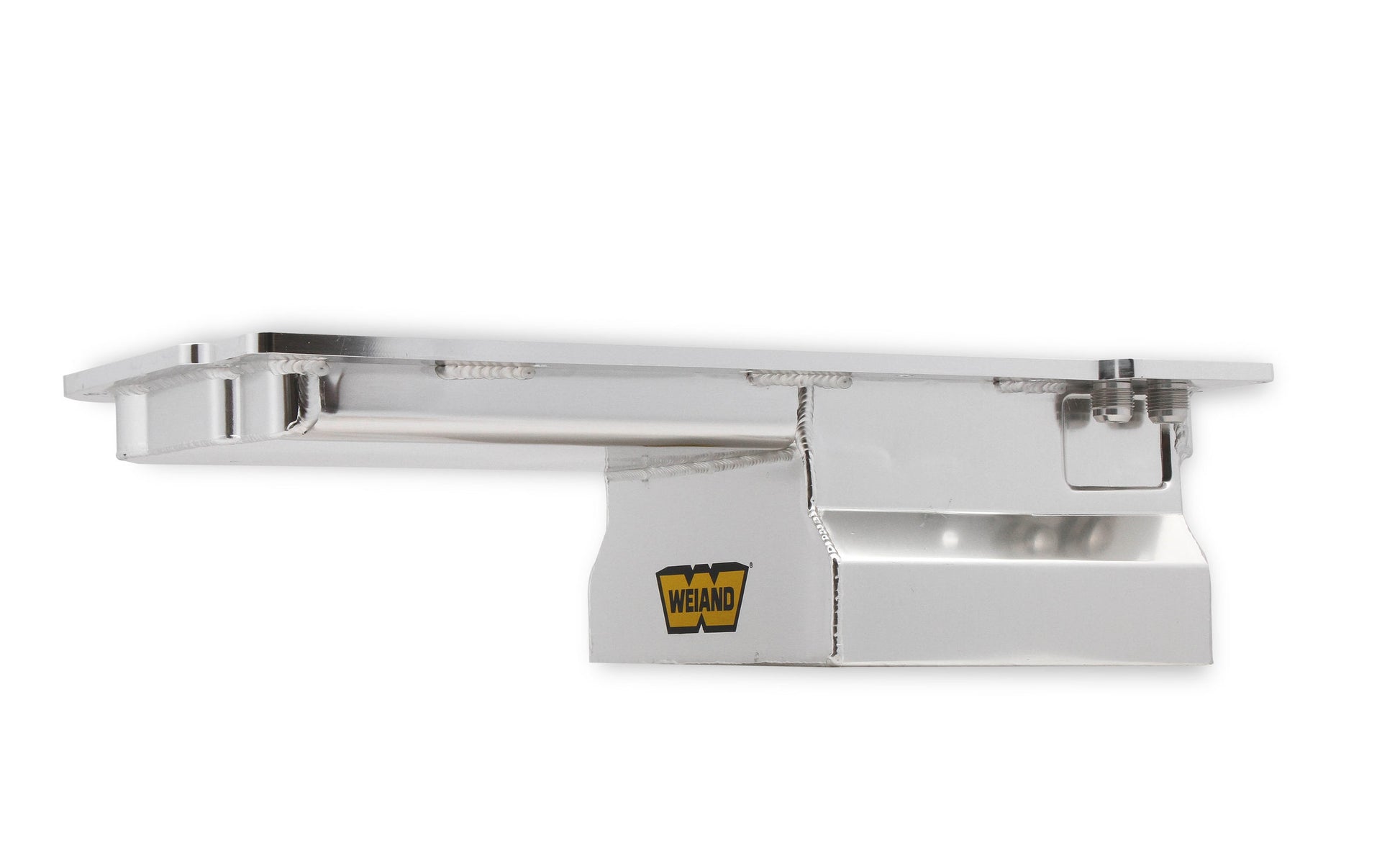

Engine Oil Pan Kit; Fabricated; Aluminum; 3/8 in. Flange; 7 qts.; 6.375 in. Depth; Rear Sump; Incl. Pan/Pan Gasket/Pickup Tube/Mounting Hardware; Silver;
Save time and aggravation with this money saving oil pan kit for GM LS Engines. Each kits comes with everything you need to get the job of changing out your oil pan!
- Increased 7QT oil capacity to keep your high performance engine systems fed properly

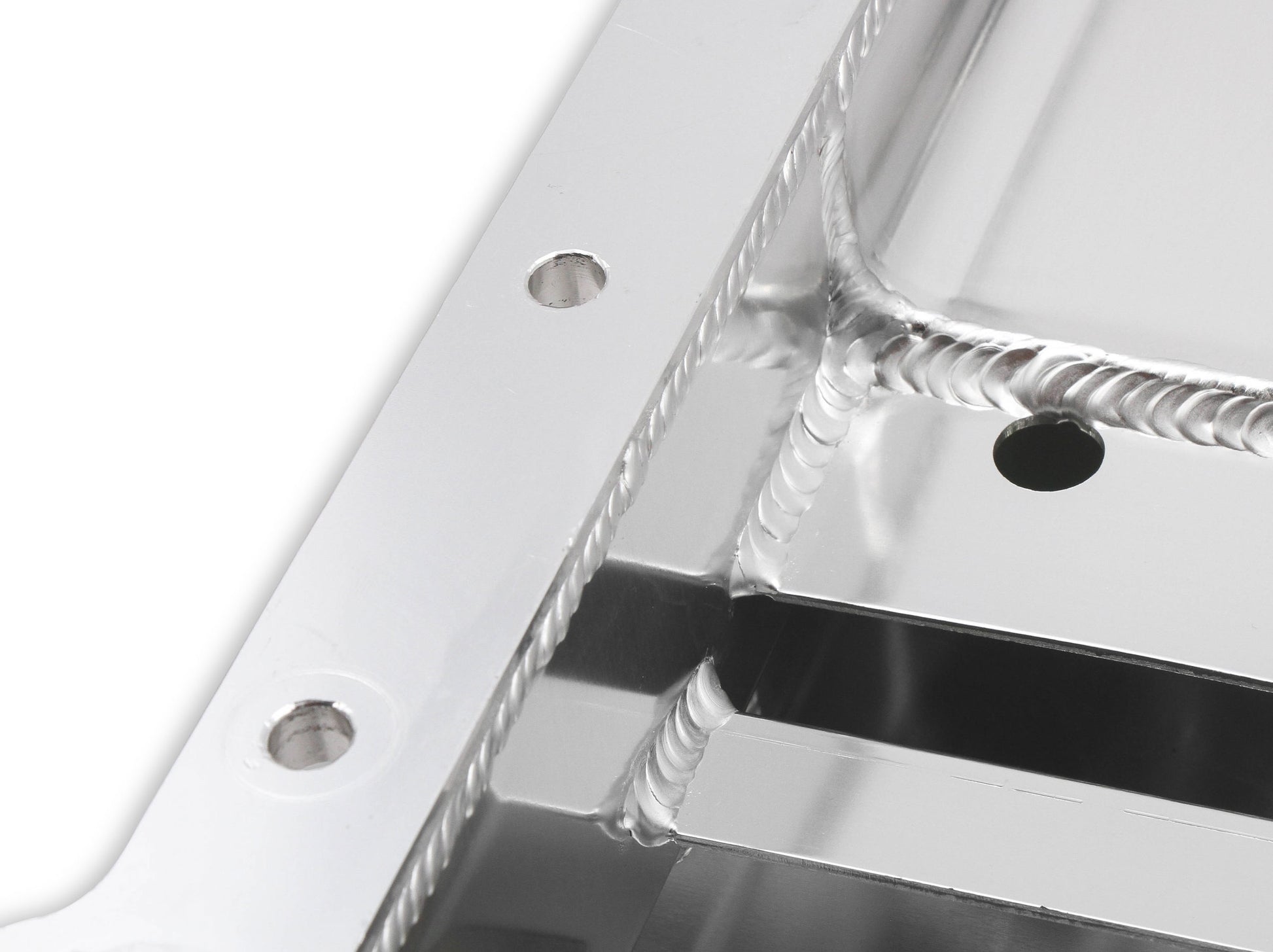

- Featured 3/8" thick pan mounting flange for enhanced strength
- Pan Available in four finishes (Silver, Black, Gold Zinc, and Polished)

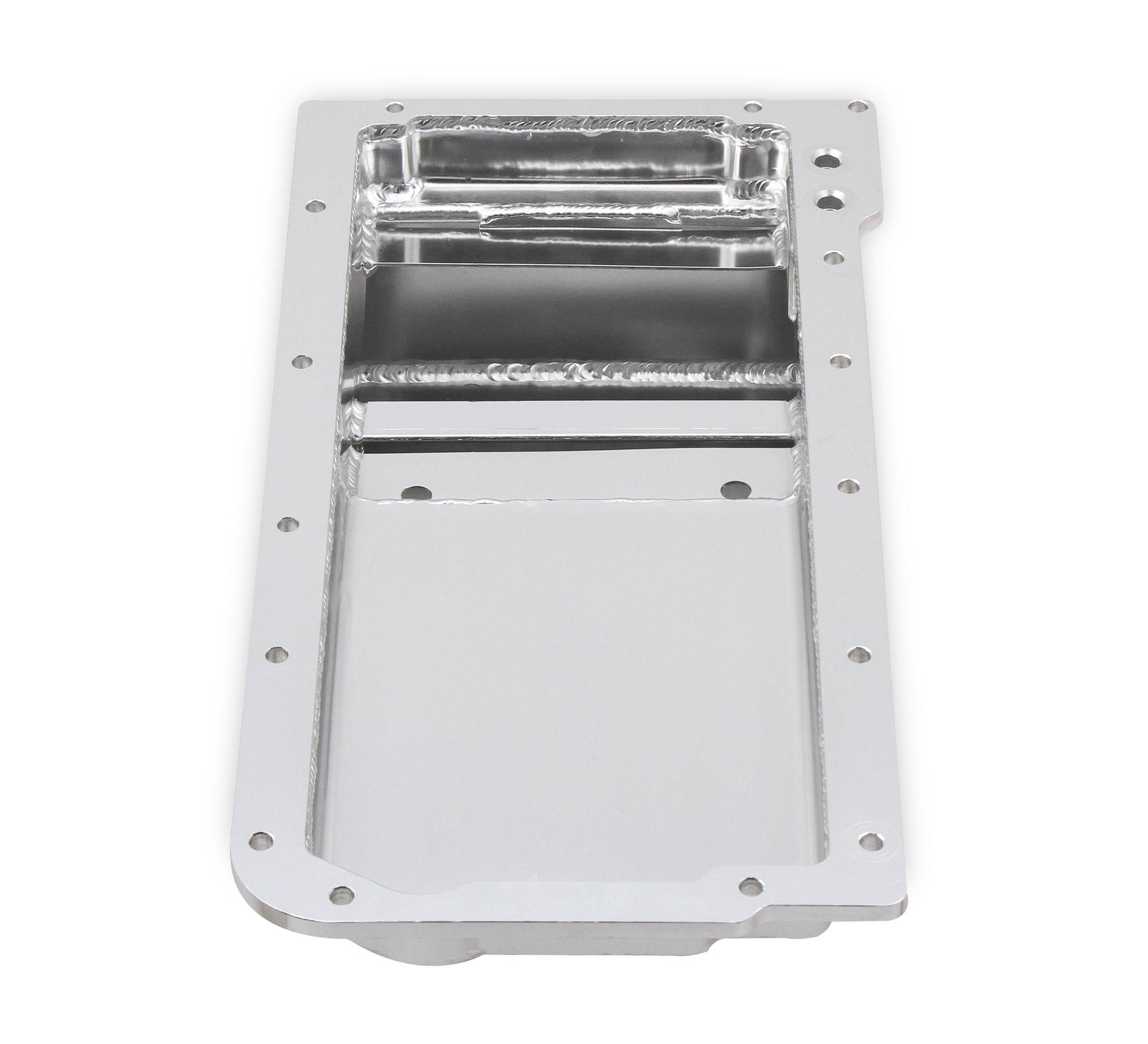

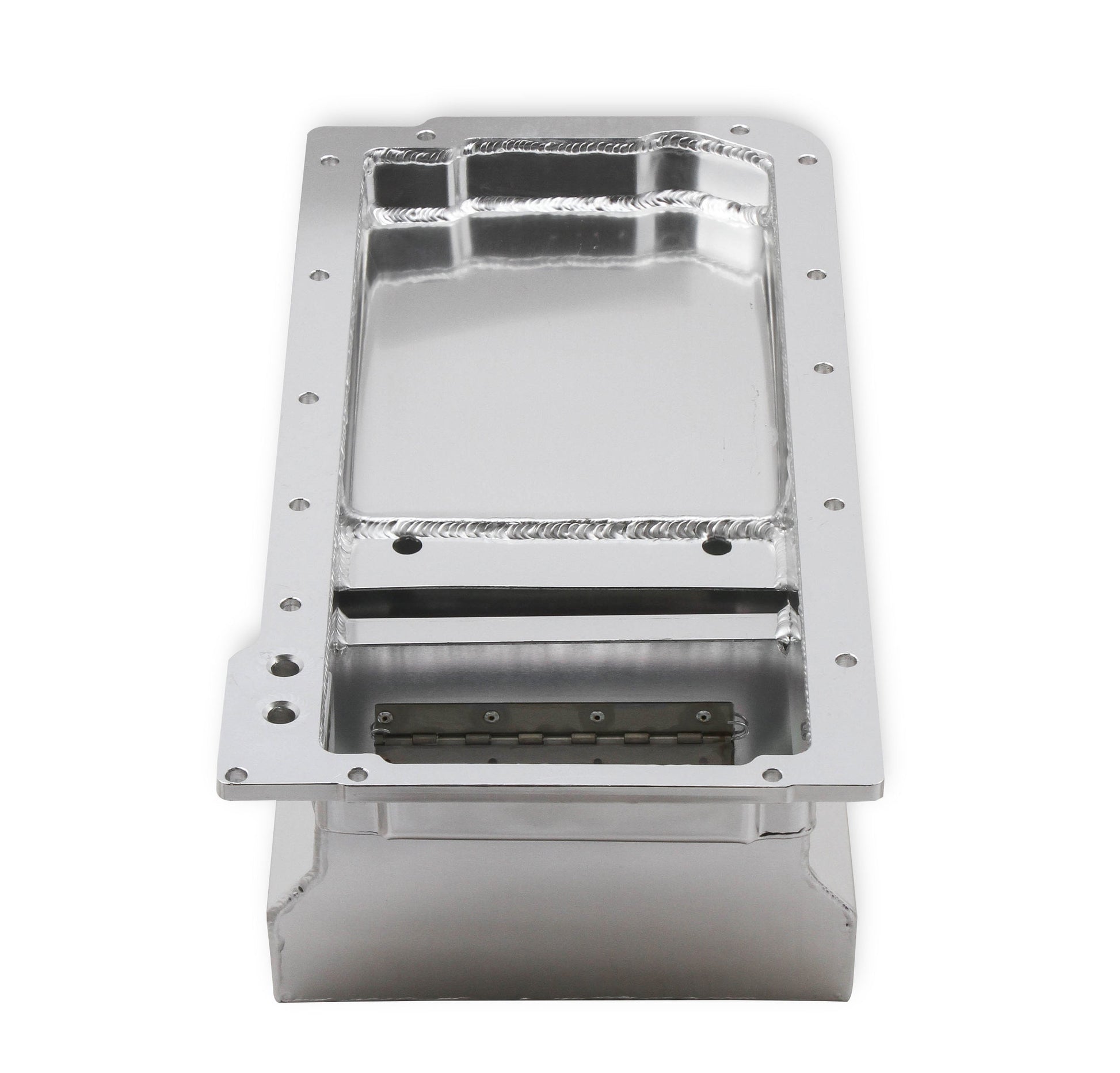

- Baffles keep oil from sloshing during hard acceleration resulting in oil starvation
- Rear Sump design for GM LS1/2/6 and LQ9 engines

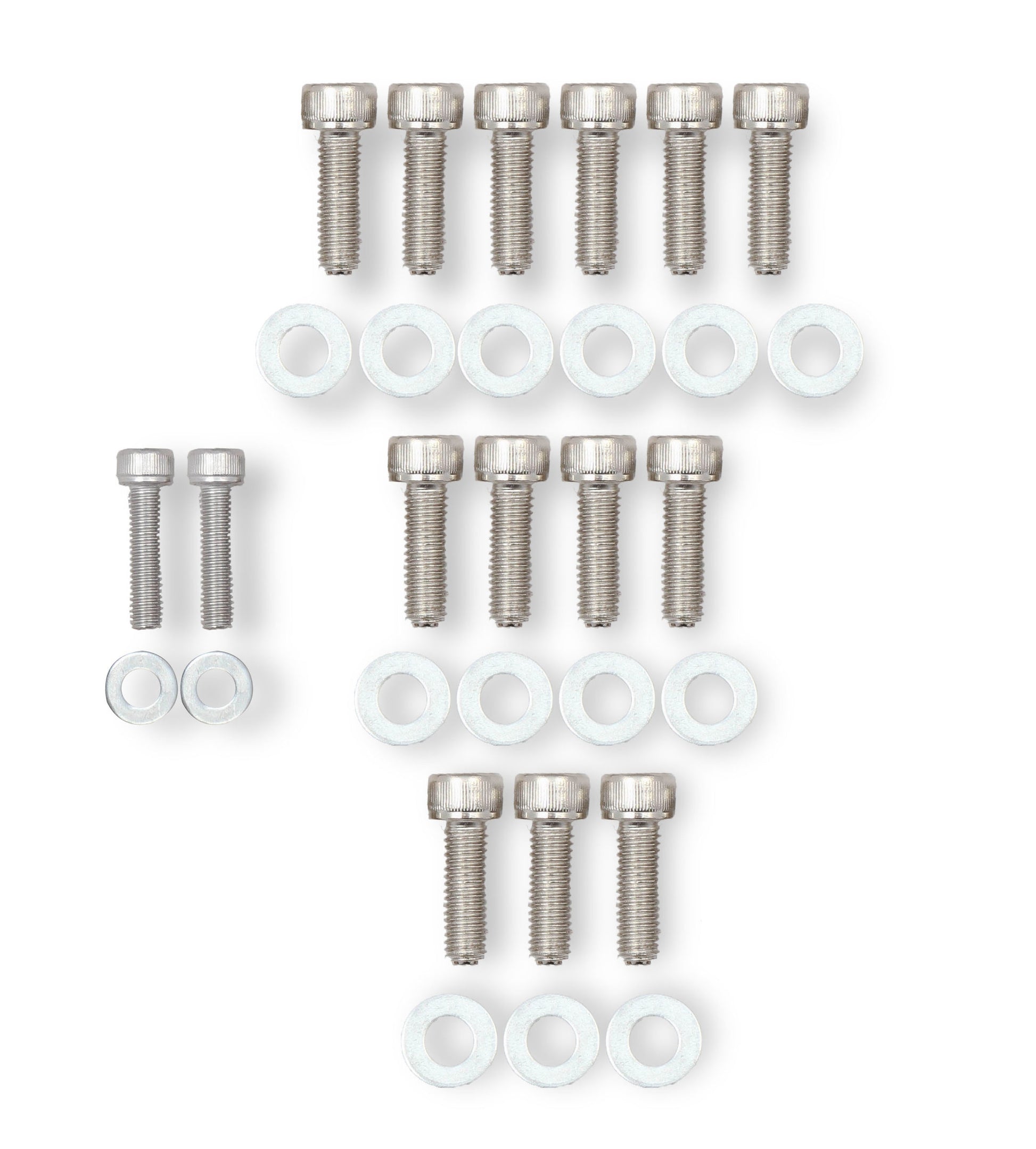

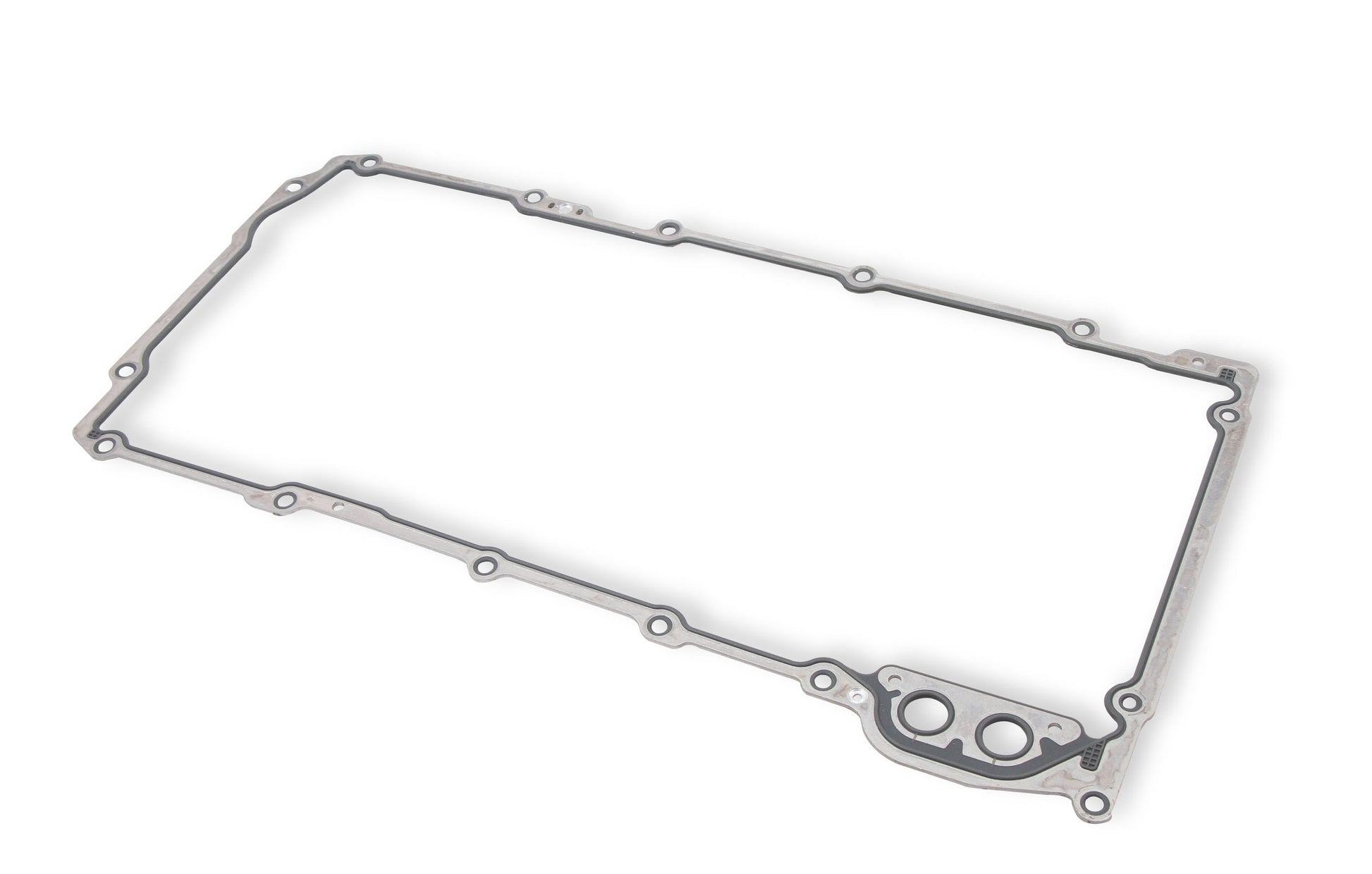

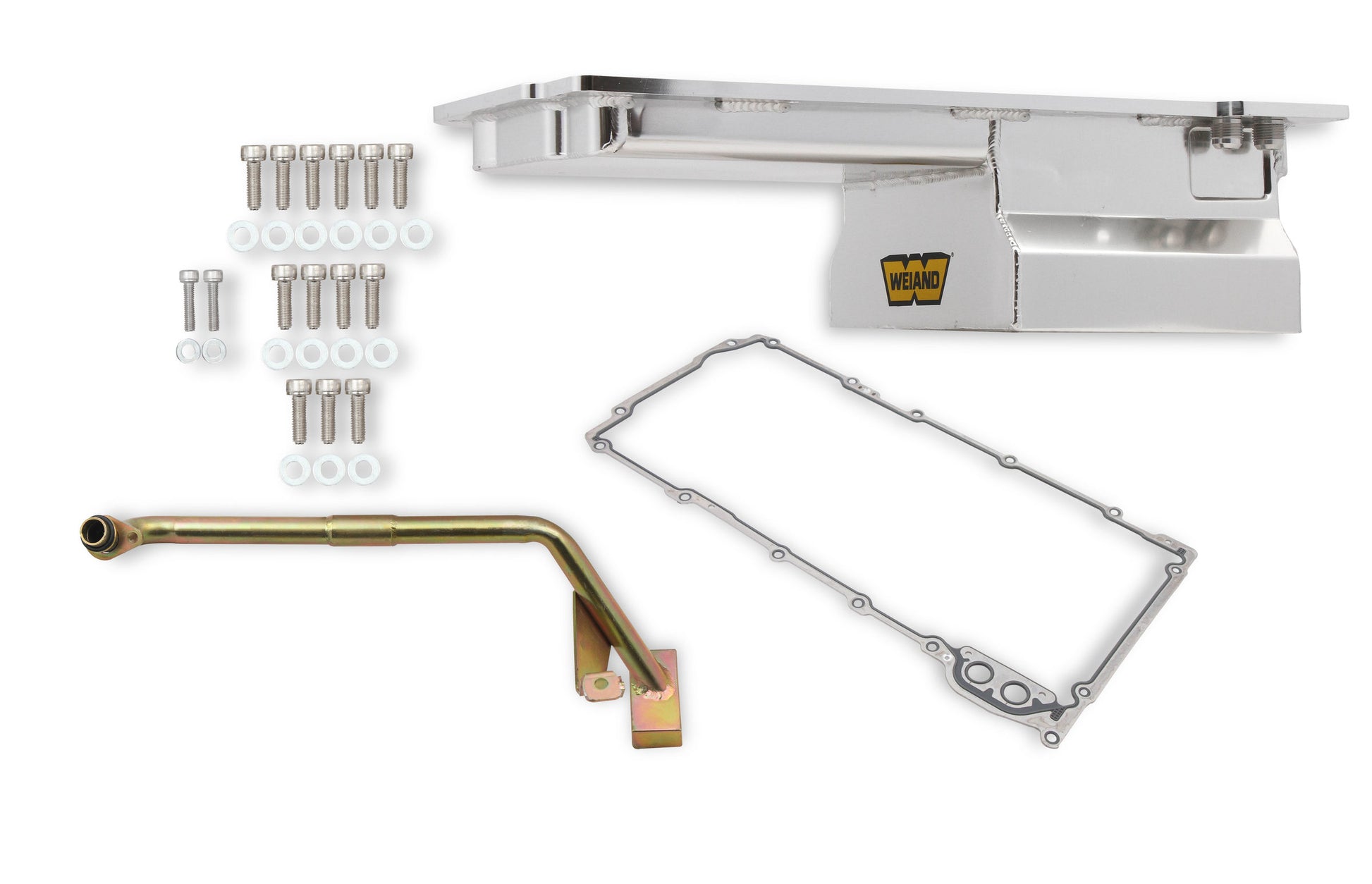

- Complete Kit includes oil pan, oil pan gasket, oil pan pickup tube, and oil pan mounting hardware
- Designed for use with remote oil filter system.
Application: GM LS Engines
Brand: Weiand
Category: Oil Pans
Crank Scraper Included: No
Dipstick Location: None
Emission Code: 5
Finish: Silver

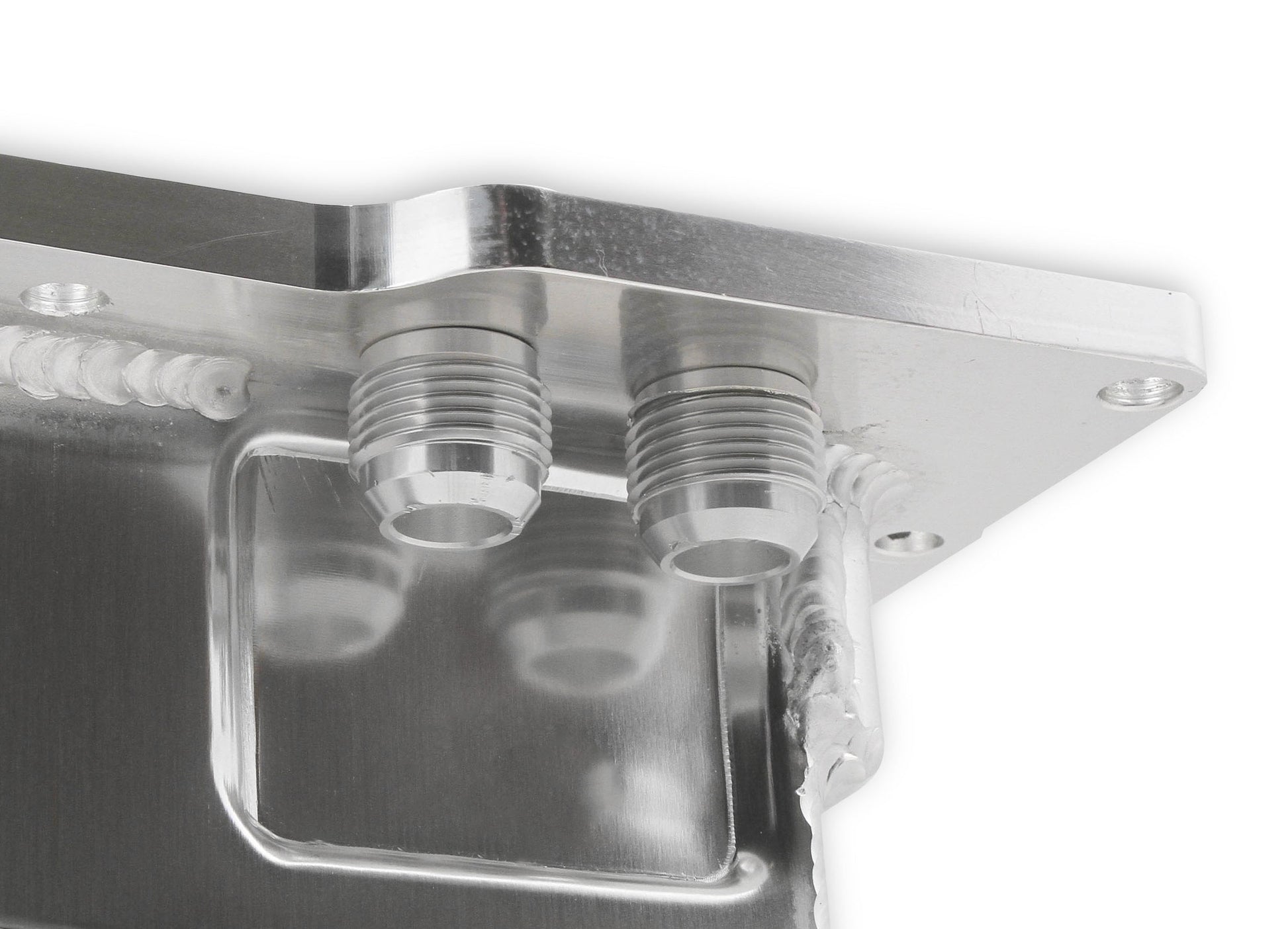

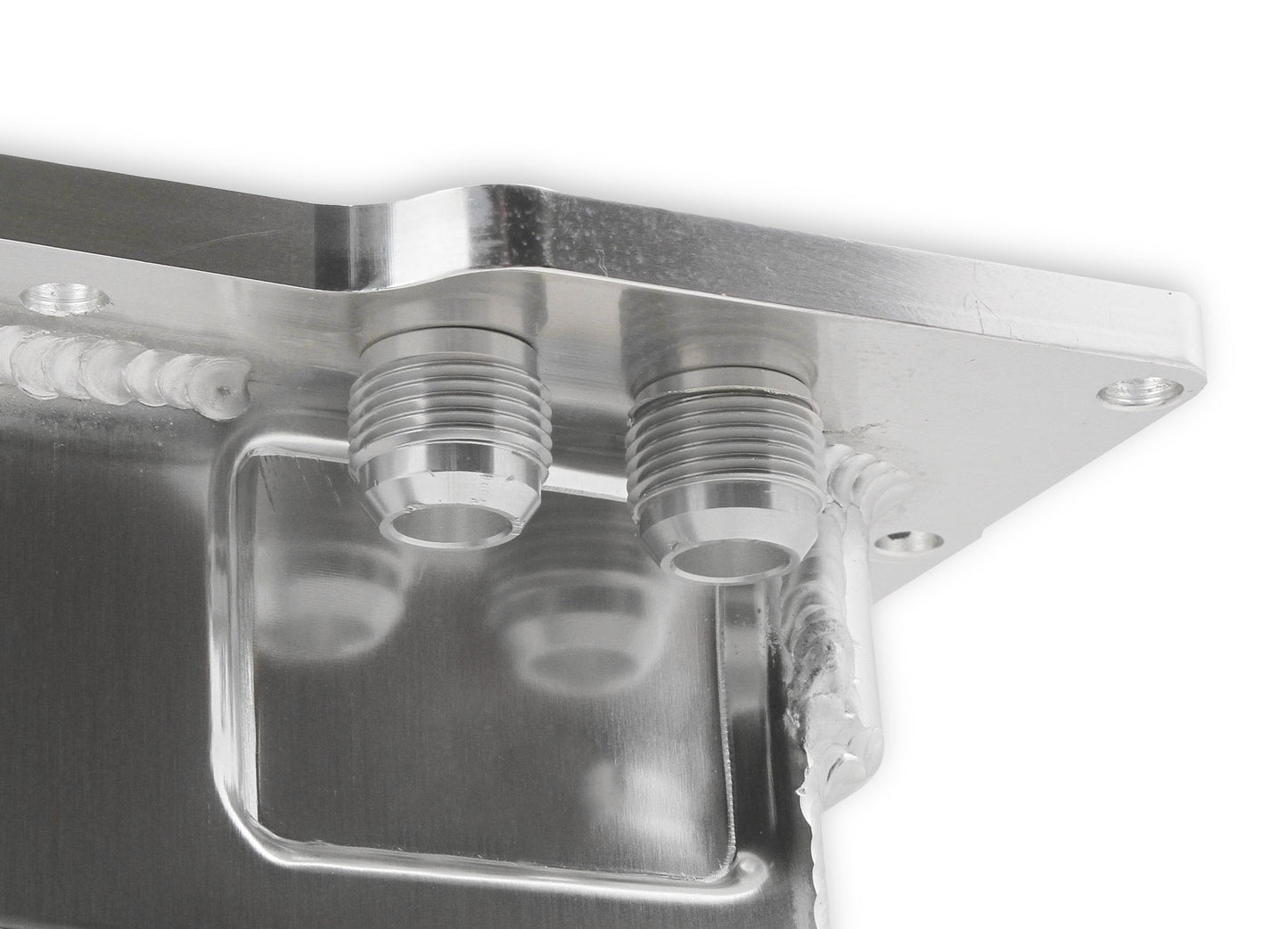

Fitting Size: Dual 10AN Fittings
Material: Aluminum
Oil Pan Capacity: 7.0 Quarts
Oil Pan Depth: 6.375"
Oil Pan Sump Length: 8.375
Oil Pan Sump Width: 10.375
Oil Pan Type: Fabricated
Product Type: Oil Pan Kit
Sump Location: Rear
Warranty: Limited 90 Day
Windage Tray Included: No
