Warn 110510 - Zeon XC 10-S Winch 10000lb Synthetic Rope
Warn 110510 - Zeon XC 10-S Winch 10000lb Synthetic Rope
SKU: WARN-110510
Regular price
$1,549.98 USD
Regular price
$1,704.98 USD
Sale price
$1,549.98 USD
Shipping calculated at checkout.
Low stock: 1 left
Quantity
Couldn't load pickup availability

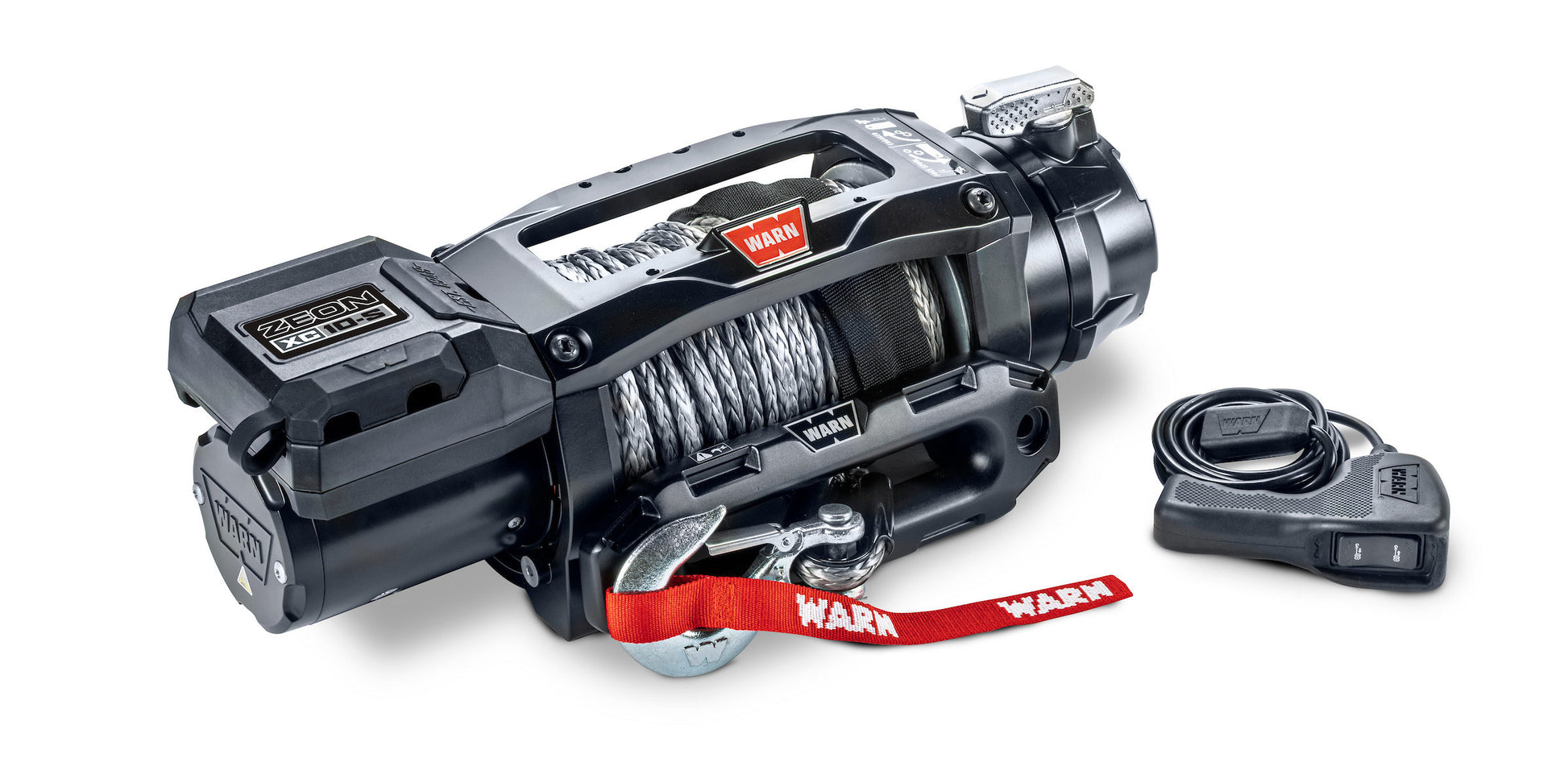

Warn 110510 - Zeon XC 10-S Winch 10000lb Synthetic Rope

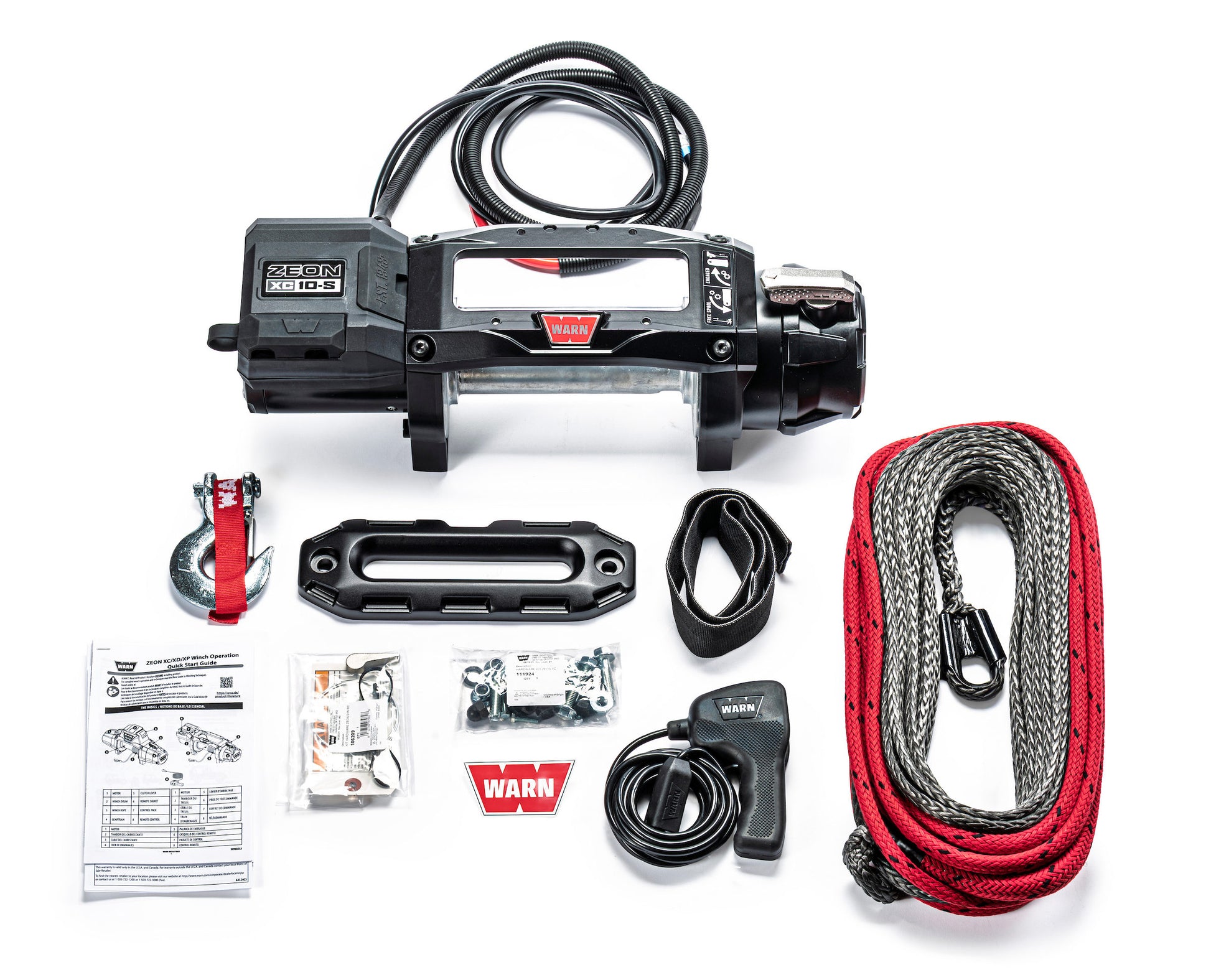

Winch - Zeon XC - 10000 lb Capacity - Hawse Fairlead - 12 ft Remote - 3/8 in x 100 ft Synthetic Rope - 12V - Kit
Based on the proven foundation of ZEON XD, the ZEON XC delivers ultimate performance in a low-profile, compact package, giving users greater flexibility for mounting applications. The ZEON XC offers the unmatched capability with best-in-class line speed and capacity, superior durability, and the industry’s leading warranty. Every ZEON XC is meticulously engineered, rigorously tested, and expertly assembled in Clackamas, Oregon, USA.
- Compact, low profile design: the entire control pack sits below the top of the tie plate, making it possible to mount this winch in the tightest applications
- The remote socket can easily be relocated within 9” of the control pack for added mounting versatility
- Ultimate performance and durability: best-in-class line speed, superior durability, and highest pulling capacity
- Fully waterproof: IP68 submersion and IP69K spray rated achieved through the use of automotive-grade O-ring seals
- OEM grade corrosion resistance: OE-grade paint and fasteners increase resistance to fading and corrosion, ensuring ZEON XP stays pristine for years to come
- Includes 100' of lightweight, easy-to-handle 3/8" Spydura synthetic rope and a large-radius black Epic aluminum hawse fairlead
- Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network.
- Designed, engineered, and assembled in the USA
Brake Activation: Automatic
Brake Type: Cone
Cable Diameter: 3/8
Cable Length: 100
Cable Material: Synthetic Rope
Color: Black
D Shackle Included: No
Fairlead Type: Hawse
Free Spooling: Yes
Gear Ratio: 141:1
Gearing: 3-Stage Planetary
Hand Saver: Yes
Length: 22
Maximum Height: 7.8
Maximum Width: 6.7
Motor Type: Series Wound
Motor Voltage: 12V
Mount Type: Fixed Mount
Mounting Bolt Pattern Length: 4.5
Mounting Bolt Pattern Width: 10
Mounting Hole Quantity: 4
Power Out: Yes
Rated Line Pull: 10000
Remote Included: Yes
Remote Type: Wire
Requires Mount: Yes
Solenoid Type: Contactor
Tree Saver: No
Type: Electric
Voltage: 12V
Winch Rating: Electric
