Warn 101155 - Industries Axon 5500 Wire Winch

Warn 101155 - Industries Axon 5500 Wire Winch

Warn | 101155
SKU: WARN-101155
Regular price $791.99 USD
Regular price $871.19 USD Sale price $791.99 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

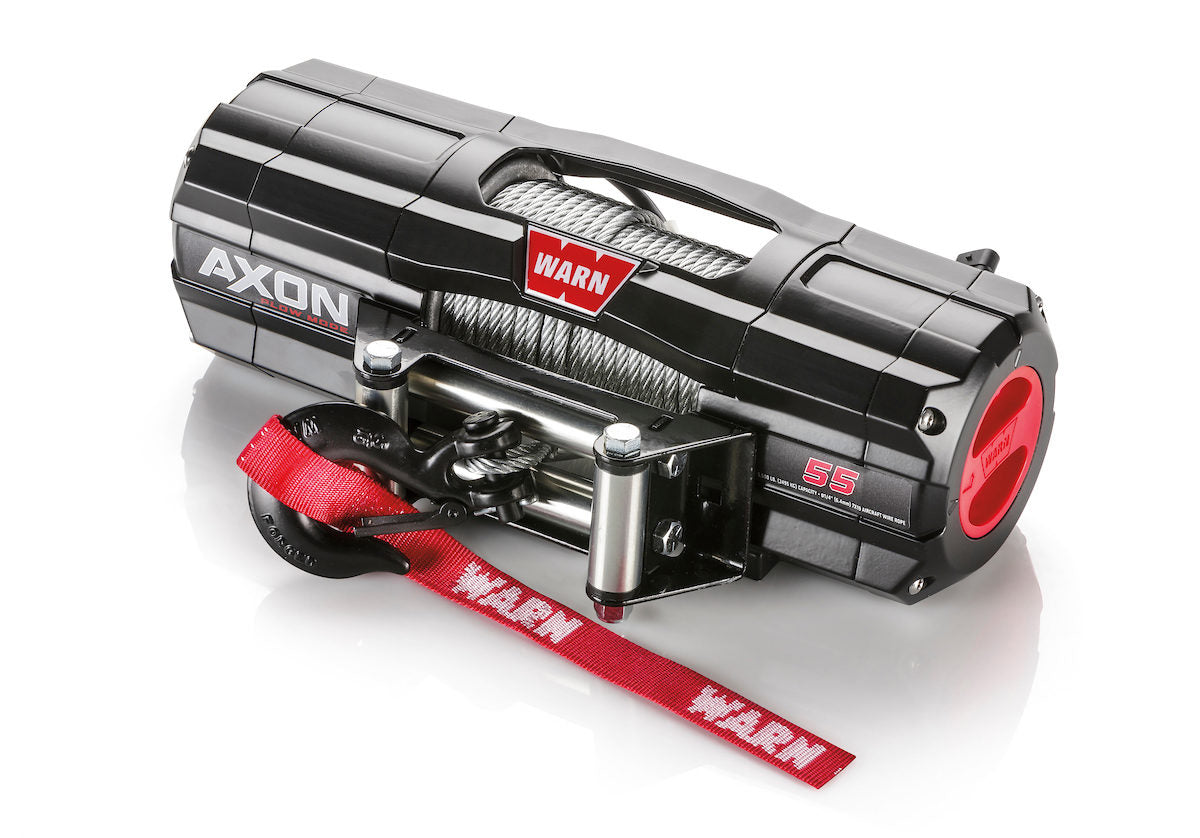

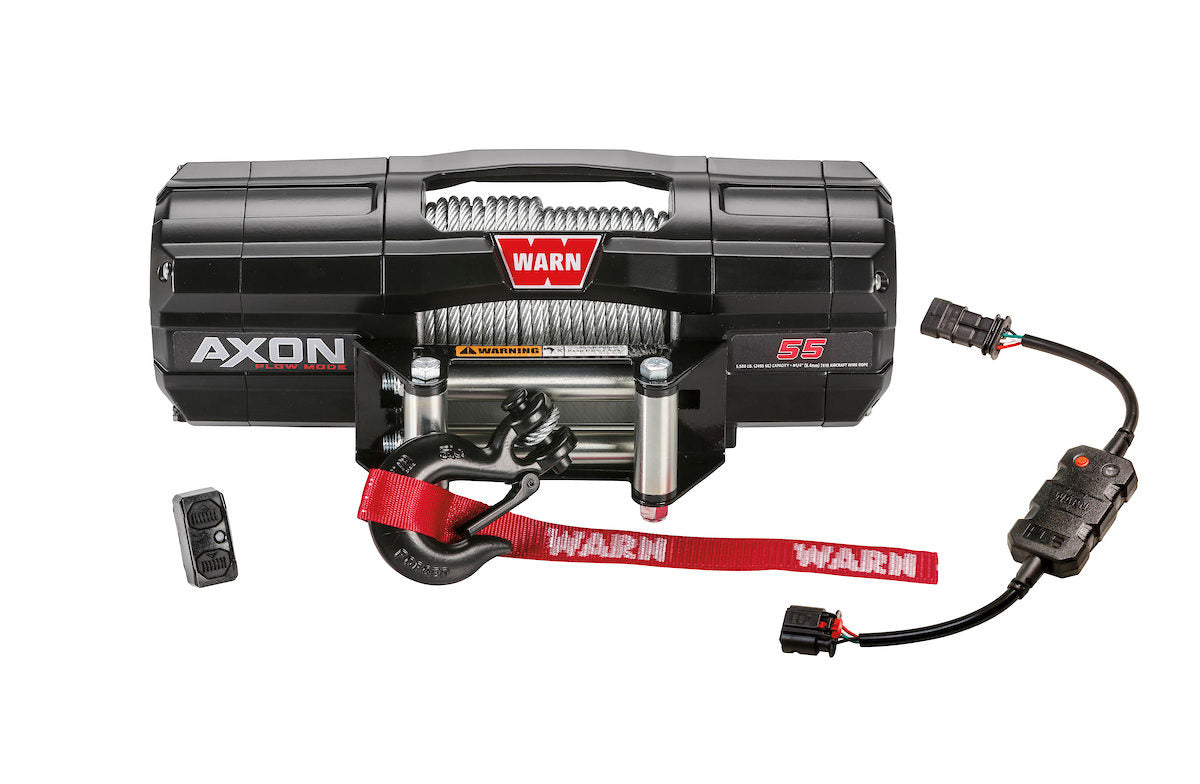

Warn 101155 - Industries Axon 5500 Wire Winch

AXON Powersport Winch; Series 55; 5500 lbs./2495 kg; Inc. EPIC Hawse Fairlead; 50 ft. of 1/4 in. Steel Rope; Rockerbar Digital Control Switch;

Rocky terrain, unpredictable conditions, and unexpected challenges can make anyone feel the heat. That's why WARN's new AXON w inches take an already legendary reputation for proven performance to a whole new level. Re-engineered from the ground up, AXON w inches completely protect critical components from water and mud with critical electronics sealed inside the metal housing.And with revolutionary new technology, AXON is the most advanced powersports Winch ever. With the all-new AXON(TM) lineup, WARN has taken Winching to the next level by combining a powerful motor and first-of-its-kind digital contactor into one unit called a Motactor(TM). The WARN Motactor(TM) increases performance, drops installation time, and provides never-before-seen levels of performance and feedback to the user. Tech is nothing without durability, so we made AXON the most durable powersports Winch ever. All-metal construction, waterproof sealing, and increased structural rigidity are made for extreme environments. It's smart, tough, and perfect for a wide range of powersports vehciles. Available in 3,500, 4,500, and 5,500 pulling capacities, with a choice of steel or Spydura(TM) synthetic rope.

  • AXON 55 includes 50-ft. of durable ¼-in. steel rope, roller fairlead, and a black hook
  • Massive 5,500 lb. capacity for the biggest UTVs and biggest pulls
  • Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
  • IP68 waterproofing keeps water and the elements out
  • Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
  • Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
  • New clutch design based on legendary WARN 4WD hub lock know-how
  • Load-holding brake for great control
  • Smooth and reliable all-metal three-stage planetary gear train
  • Rockerbar digital control switch, and HUB Wireless Receiver
  • Limited lifetime warranty (mechanical), 3 year warranty (electrical)
  • Plow mode allows for simplified plow controls and operation. Lets you set lifting limits and has one-touch control
  • Designed, engineered, and assembled in the USA
Brake Activation: Automatic
Brake Type: Drum
Cable Diameter: 1/4
Cable Length: 50
Cable Material: Metal Rope
D Shackle Included: No
Fairlead Type: Roller
Free Spooling: Yes
Gear Ratio: 239:1
Gearing: 3-Stage Planetary
Length: 15
Maximum Height: 4.8
Maximum Width: 4.6
Motor Type: Permanent Magnet
Motor Voltage: 12V
Requires Mount: Yes
Mount Type: Fixed Mount
Mounting Bolt Pattern Length: 6.59
Mounting Bolt Pattern Width: 3
Mounting Hole Quantity: 4
Power Out: Yes
Rated Line Pull: 5500
Remote Included: Yes
Remote Type: Wire
Solenoid Type: No
Type: Electric
Voltage: 12V
