Wagner Tuning - 200001034

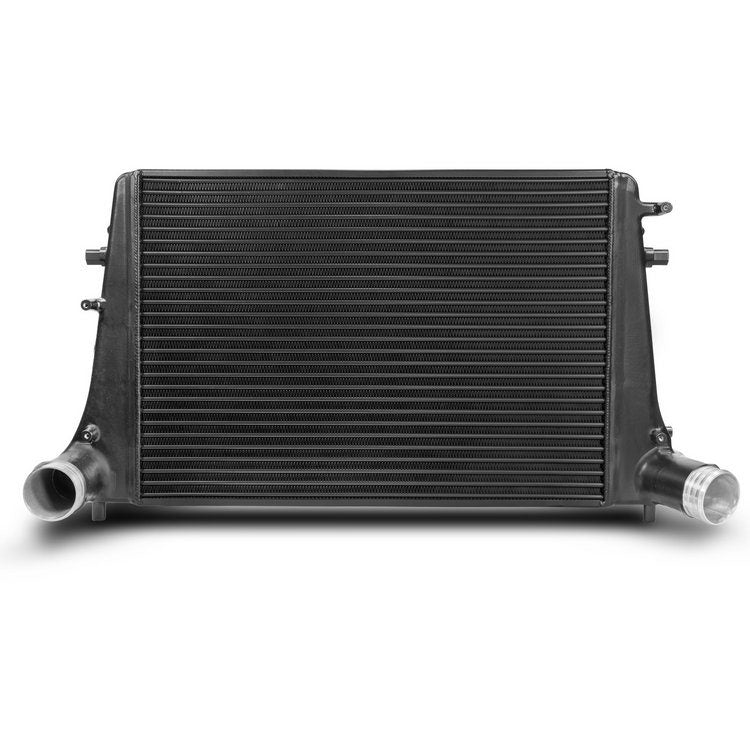

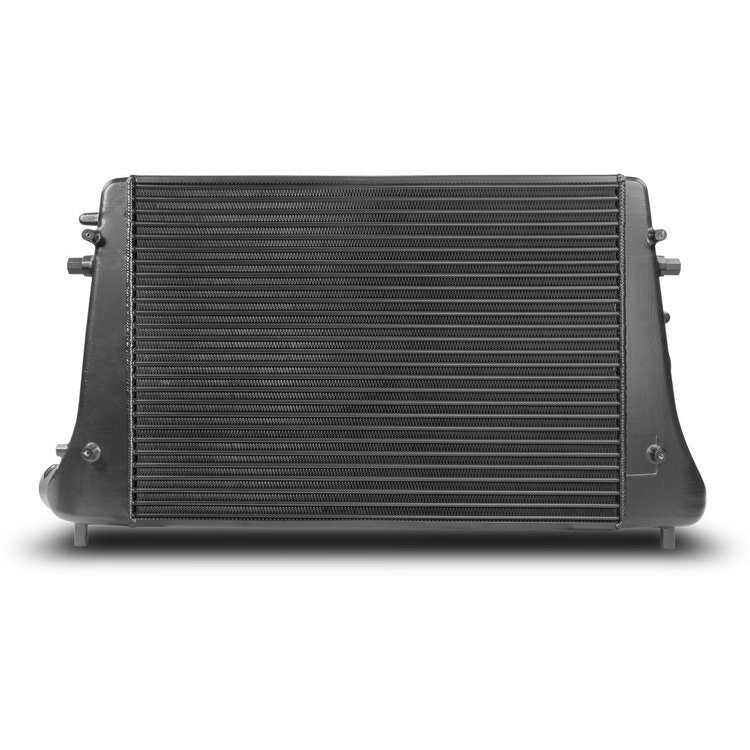

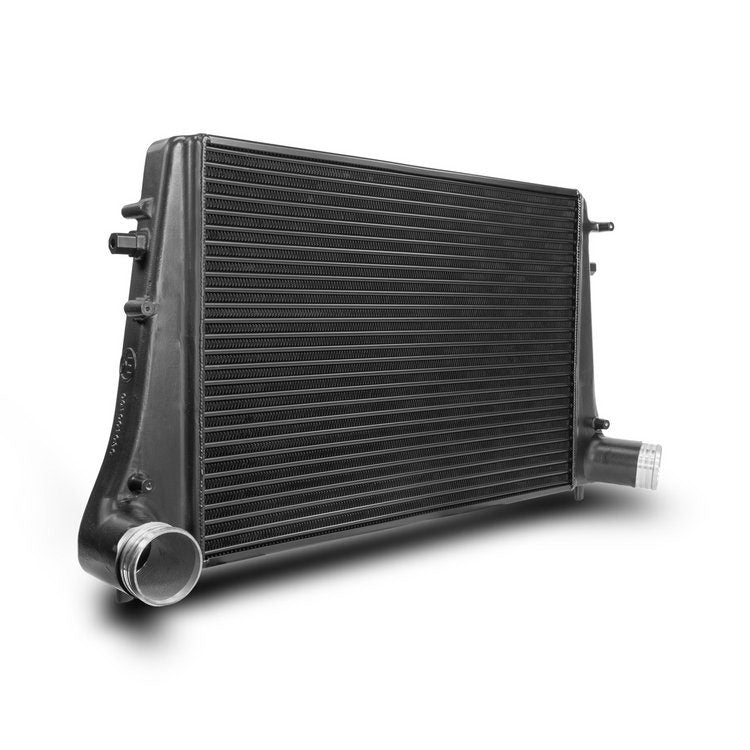

The revised Competition Gen.2 intercooler kit for the VAG models With the 2.0T(F)SI 1st & 2nd generation engine. The Competition Intercooler has the following Core dimensions (610mm x 440mm x 65mm / 17.45L), providing a 10 Percent larger flow area and 50 Percent more intercooler volume compared to the original Audi S3 intercooler.
The newly developed Competition high-performance intercooler core still grants enough airflow to the adjacent components, such as the water cooler, and is also very light (S3 OEM 8kg / Wagner Tuning 9.2kg).
CAD developed freeform end boxes with incorporated Cast aluminum air baffle for best possible internal air distribution.

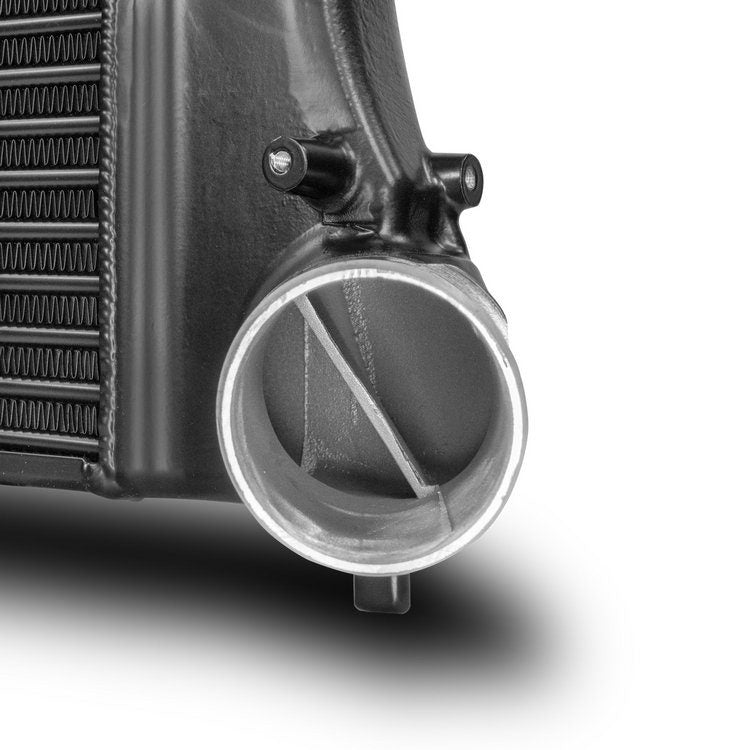

- The CNC machined hose connections were enlarged to 1/2 67mm , so this Kit Comes With: matching silicone hoses.
- Overall this intercooler has far from less back pressure than the stock cooler.
- In addition, all our intercoolers have an anti-corrosion coating with heat conduction properties. This guarantees optimal cooling with a significant increase in performance.
- Installation is done by replacing the OEM intercooler and is easy to perform.
- All our products are subject to constant qualitative monitoring.
- Available with parts certificate for many vehicles.
The Wagner Tuning Competition Intercooler Kit for the VAG 2,0TFSI / TSI engine is Suitable for the following vehicles:
Audi A3 8P 1,8 TFSI 118KW/160PS (2007-2012) / except convertible models with original intake!
Audi A3 8P 2,0 TFSI 147KW/200PS (2004-2012) / except convertible models with original intake!
Audi S3 8P 195KW/265PS (2006-2012)
Audi TT 8J 1,8 TSI 118KW/160PS (2008-2014)
Audi TT 8J 2,0 TFSI 147-155KW/200-211PS (2006-2014) (not MKB. CETA; CESA)
Audi TTS 8J 200KW/272PS (2008-2014) (not MKB. CETA; CESA)
Volkswagen Golf 5 GTI (incl.ED 30) 147-169KW/200-230PS (2004-2008)
Volkswagen Golf 6 GTI (incl.ED 35) (convertible) 155-173KW/211-235PS (2009-2013)
Volkswagen Golf 6 R (incl. convertible) 199KW/270PS (2009-2013)
Volkswagen Scirocco 3 2.0 TSI 147-162KW/200-220PS (2008-2015) (EA888 Gen1. - Gen3.)
Volkswagen Scirocco 3 R 195-206KW/265-280PS (2009-2015) (EA888 Gen1. - Gen3.)
Volkswagen EOS 2.0 TFSI 147KW/200PS (2006-2009)
Volkswagen EOS 2.0 TFSI 155KW/211PS (2009-2014)
Volkswagen Jetta 5 2.0 TFSI 147KW/200PS (2005-2010)
Volkswagen Jetta 6 2.0 TSI 147-155KW/200-211PS (2010-2014)
Volkswagen Passat B6 1.8 TSI 118KW/160PS (2007-2010)
Volkswagen Passat B6 2.0 TSI 147KW/200PS (2005-2010)
Volkswagen Passat B7 1.8 TSI 118KW/160PS (2010-2012)
Volkswagen Passat B7 2.0 TSI 155KW/211PS (2010-2014)
Volkswagen Passat CC 1.8 TSI 118KW/160PS (2008-2012)
Volkswagen Passat CC 2.0 TFSI 147KW/200PS (2008-2010)
Volkswagen Passat CC 2.0 TSI 155KW/211PS (2010-2014)
Volkswagen Beetle 2.0 TSI 147-162KW/200-220PS (2011-2016)
Skoda Octavia 1Z 1.8 TSI 118KW/160PS (2008-2013)
Skoda Octavia 1Z MK2 RS 147KW/200PS (2005-2009)
Skoda Octavia 1Z MK2 RS 155KW/211PS (2009-2013)
Skoda Suberb 3T 2.0 TSI 147KW/200PS (2010-2013)
Seat Leon 1P 1,8 TFSI 118KW/160PS (2009-2012)
Seat Leon 1P 2.0 TFSI 136KW/185PS (2005-2006)
Seat Leon 1P FR 147KW/200PS (2006-2009)
Seat Leon 1P FR 155KW/211PS (2009-2012)
Seat Leon 1P Cupra 177KW/241PS (2007-2011
Seat Leon 1P Cupra R 195KW/265PS (2009-2012)
Seat Leon 1P Copa Edition 210KW/286PS (2008)
Seat Leon 1P Cupra R310 LE 228KW/310PS (2009-2012)
Seat Leon 1P Cupra R310 WCE 228KW/310PS (2009-2012)
Slight modifications to the vehicle necessary
Part number 200001034

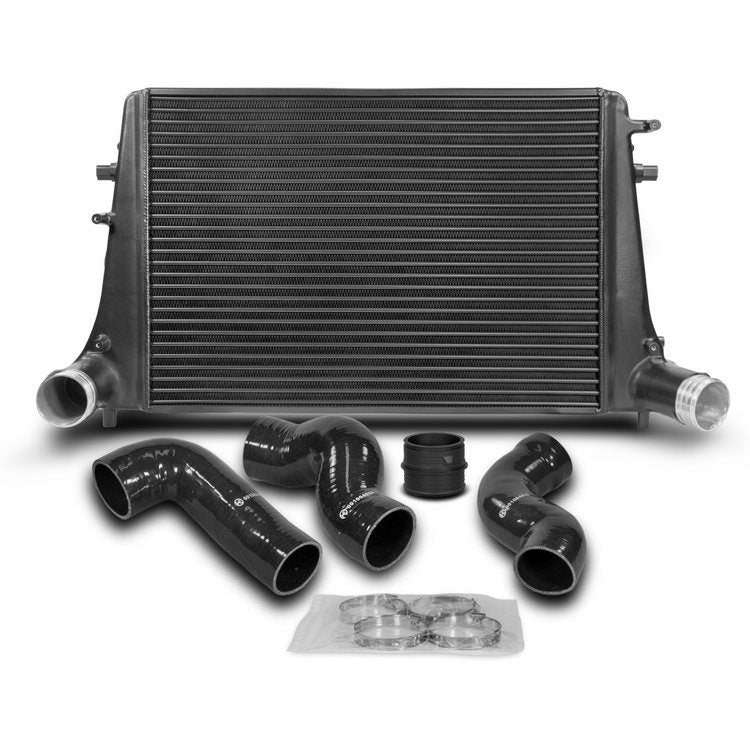

Kit Comes With:
- 1 intercooler
- 2 silicone hoses
- 4 hose clamps
- 1 aluminum adapter
- 1 installation instruction
