Vibrant - 2872
Aluminum Tubing Bend - Tight Radius - 90 Degree - Mandrel - 2 in Diameter - 1.563 in Radius - 0.438 in Legs - 0.125 in Thickness - Aluminum - Natural - Each
Recommended Products: 1st Choice PN: 2706, 2nd Choice PN: 2791, 3rd Choice PN: 2750B, 4th Choice PN: 1488C, 5th Choice PN: 2730R

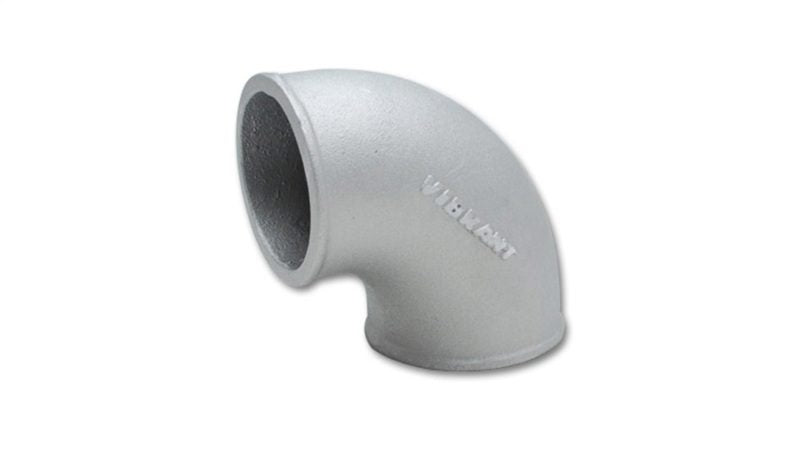

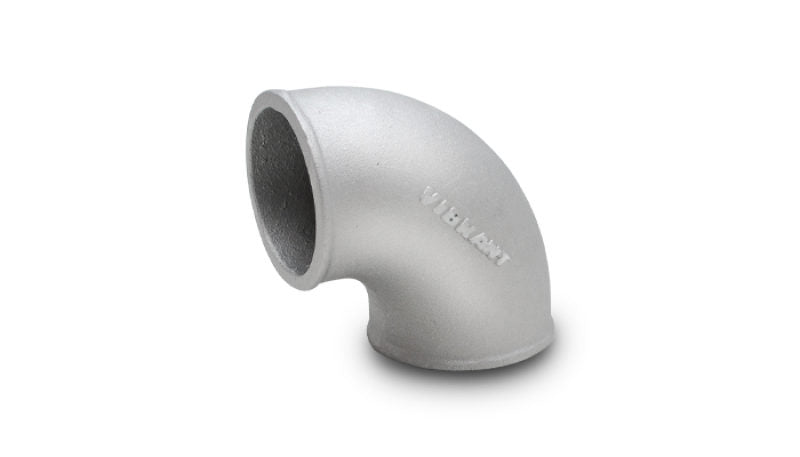

Vibrant Performance 90deg cast elbows manufactured from 6061 aluminum and requires minimal surface reparation for tig welding. They are available in outlet diameters ranging from 2” to 3”.
- Constructed from 6061 aluminum
- Fabricators can count on material consistency and dimensional accuracy
- Mirror polished
- Requires minimal preparation for welding and fabrication
Bend Angle: 90 Degree
Center Line Radius: 1.570 in. (39.9mm)
Finish: Raw
Gauge: 16
Inlet Diameter: 2.000 in. (50.8mm)
Leg/Straight Length: 0.4300 in./10.9mm
Material: 6061 Aluminum
Outlet Diameter: 2.000 in. (50.8mm)
Outside Diameter: 2.000 in.
Thickness: 1.5mm
