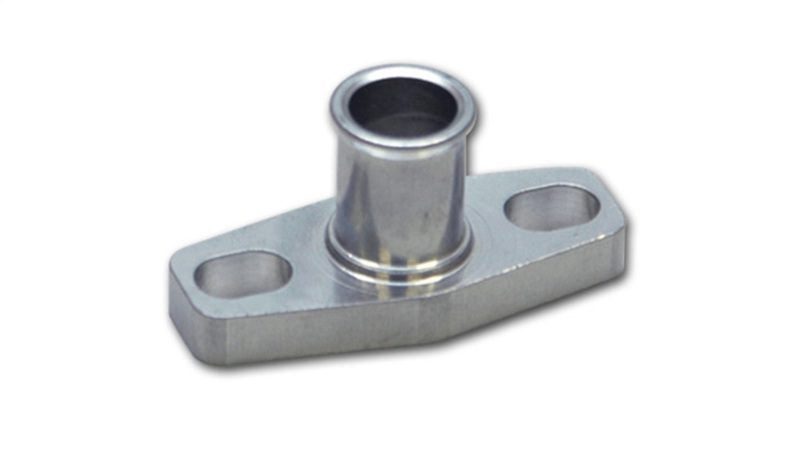

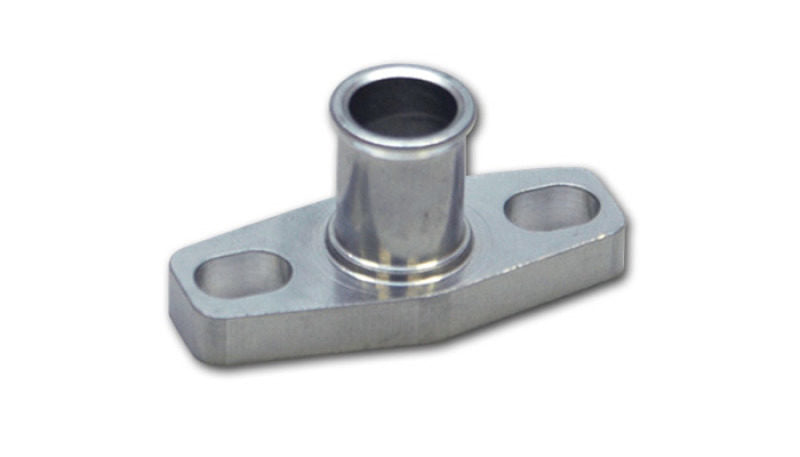

Vibrant 2850 - Billet AL Oil Drain Flange w/ integrated 5/8in Male Neck T3 T3/T4 T04 GT40-GT55 BB Turbos

Vibrant 2850 - Billet AL Oil Drain Flange w/ integrated 5/8in Male Neck T3 T3/T4 T04 GT40-GT55 BB Turbos

Vibrant | 2850
SKU: VIB-2850
$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Vibrant 2850 - Billet AL Oil Drain Flange w/ integrated 5/8in Male Neck T3 T3/T4 T04 GT40-GT55 BB Turbos

Turbo Oil Drain Flange - 5/8 in Hose Barb - Hardware Included - Aluminum - Natural - Garrett GT3271R / T3 / T4 Turbo - Each

Recommended Products: 1st Choice PN: 1400, 2nd Choice PN: 1441, 3rd Choice PN: 1438, 4th Choice PN: 16320, 5th Choice PN: 11910

Vibrant Performance aluminum turbo flanges are constructed entirely from 6061 aluminum and are available for most popular turbo applications. Vibrant Performance aluminum turbo flanges are excellent for oil drain solutions and include a pair of M8 x 1.25 bolts for easy installation.

  • Billet Aluminum
  • CNC Machined
  • 1 Year Limited Warranty
Add-On: N/A
Bolt Clearance: 10.67
Bolt Hole Center to Center: 50.04
Flange Overall Height: 29.39
Flange Overall Length: 69.34
Flange Overall Width: 25.4
Flange Thickness: 8.89
Material: Aluminum
Product Group: Turbo Oil Flanges and Kits
Spigot Length: 20.5
