Vibrant - 2626

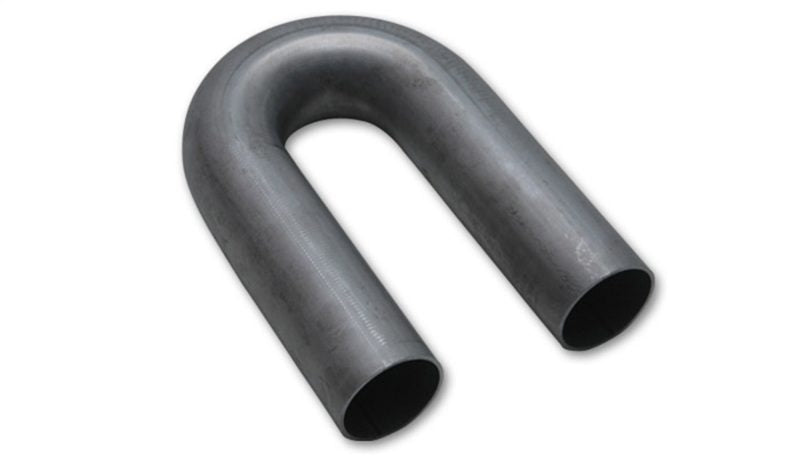

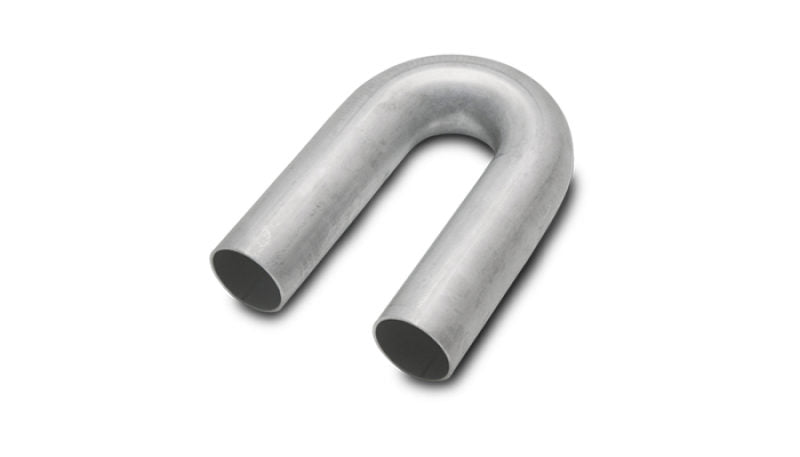

Exhaust Bend - U-Bend - 180 Degree - Mandrel - 2.25 in Diameter - 3.375 in Radius - 5 in Legs - 16 Gauge - Stainless - Each
180 Degree Stainless Steel Bend; 2.25 in. OD; 3.375 in. Centerline Radius; 5 in. Leg Length From Tangent; 304 Stainless Steel;
Vibrant continues to expand upon our 304 Stainless Steel Mandrel Bent program. In addition to our popular U-J Bends, we also offer a full assortment of bends from 15 deg to 180 deg. Available in a selection of sizes ranging from 1.00 in. to 5 in.
- Stainless Steel
- Ideal For Difficult Fabrication Projects
- Capable Of Withstanding Acidic/High Heat/Corrosive Conditions
- 5 Year Limited Warranty
Bend Angle: 180 Degree
Center Line Radius: 3.375 in. (85.7mm)
Diameter (in.): 2.250 in.
Finish: Raw
Inlet Diameter: 2.250 in. (57.2mm)
Leg/Straight Length: 5.000 in./127mm x 5.000 in./127mm
Outlet Diameter: 2.250 in. (57.2mm)
Overall Length: N/A
Thickness: 16 Gauge
