Vibrant - 2618

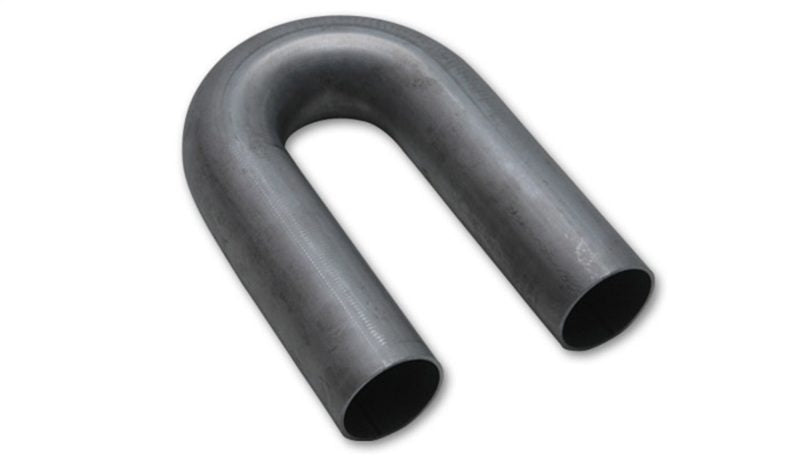

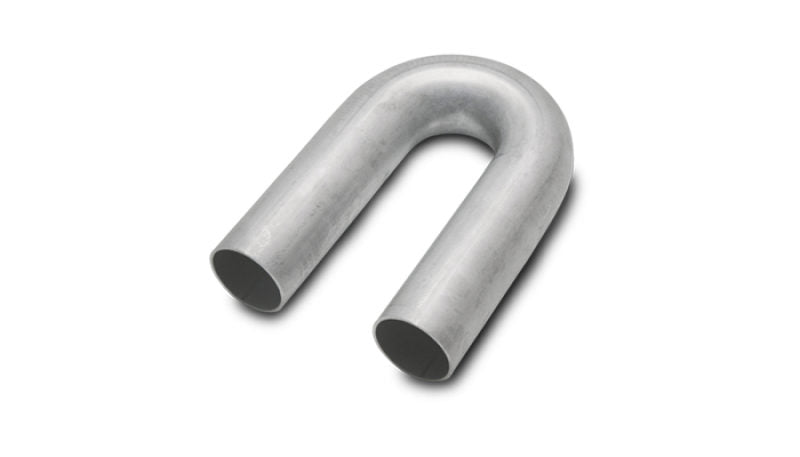

Exhaust Bend - U-Bend - 180 Degree - Mandrel - 1.25 in Diameter - 2.75 in Radius - 4 in Legs - 16 Gauge - Stainless - Each
Recommended Products: 1st Choice PN: 2726, 2nd Choice PN: 2634, 3rd Choice PN: 1194A, 4th Choice PN: 13030, 5th Choice PN: 11898
Vibrant continues to expand upon our 304 Stainless Steel Mandrel Bent program. In addition to our popular U-J Bends, we also offer a full assortment of bends from 15 deg to 180 deg. Available in a selection of sizes ranging from 1.00 in. to 5 in.
- Stainless Steel
- Ideal For Difficult Fabrication Projects
- Capable Of Withstanding Acidic/High Heat/Corrosive Conditions
- 5 Year Limited Warranty
Bend Angle: 180 Degree
Center Line Radius: 2.750 in. (69.9mm)
Diameter (in.): 1.250 in.
Finish: Raw
Inlet Diameter: 1.250 in. (31.8mm)
Leg/Straight Length: 4.000 in./101.6mm x 4.000 in./102mm
Outlet Diameter: 1.250 in. (31.8mm)
Overall Length: N/A
Thickness: 16 Gauge
