Vibrant - 19886

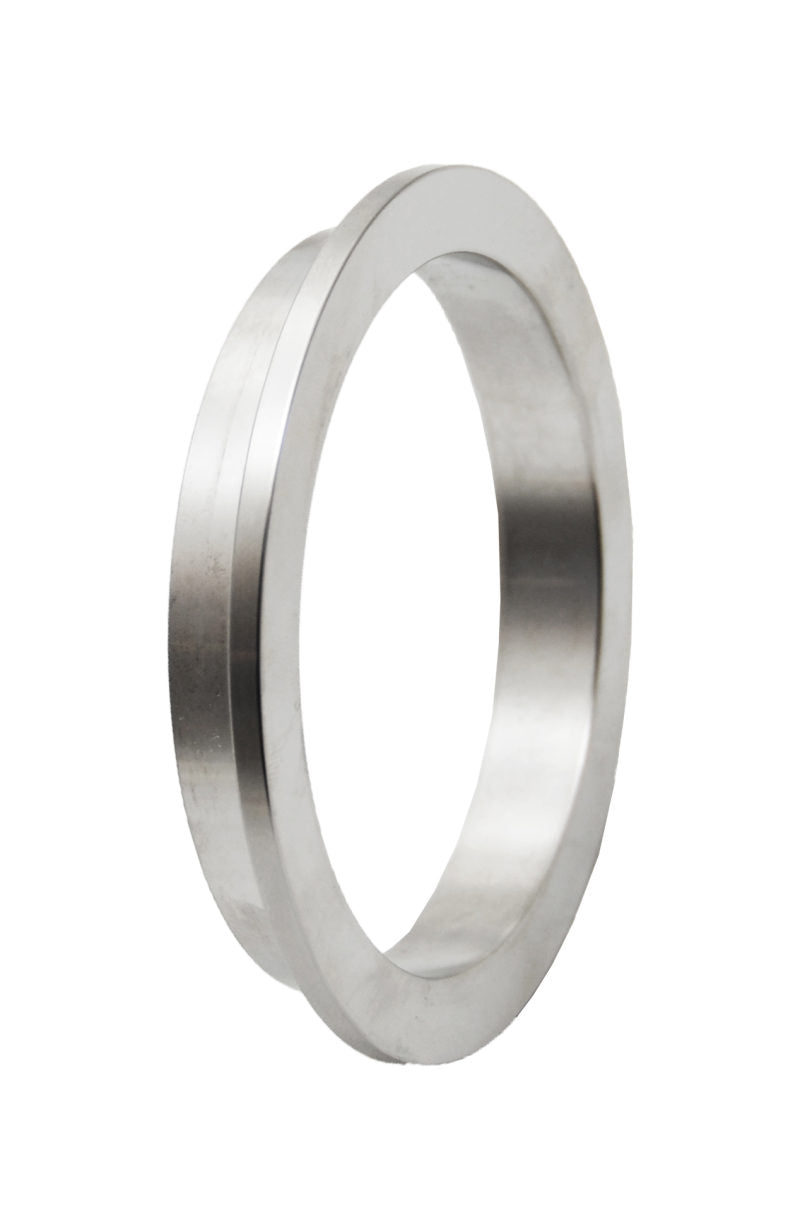

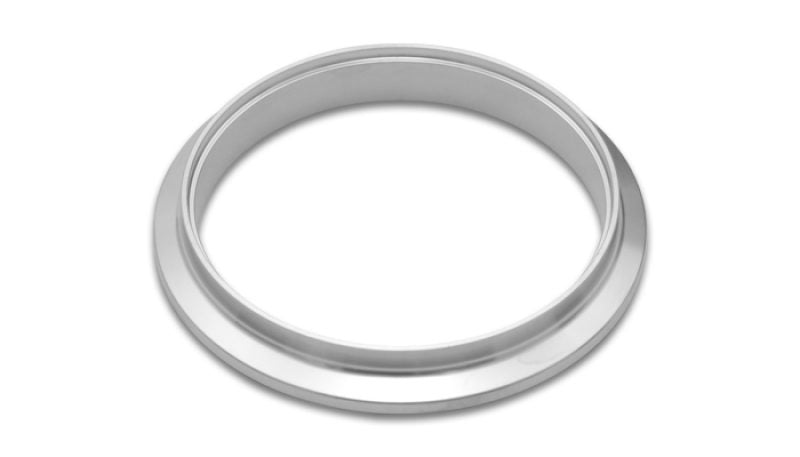

Stainless Steel Turbo V-Band Outlet Flange for Garrett GT3076R/3582R
Turbo Outlet Flange; 81.6MM CRMD; 2MM CRMDH; 3.3MM Apex W; 12.9MM Thickness; 90.16MM Flange OD; 2MM Tube Recess Depth; For Garrett GT30/53/G25-550/660; 304 Stainless Steel;
Vibrant Performance offers a variety of turbo outlet flanges for your custom fabrication projects. Constructed from 304 stainless steel and mild steel, Vibrant flanges are precision laser-cut or CNC-machined to ensure a perfect fit to your turbo components. For Garrett GTX29, GT30 / GTX30, GT35 / GTX35, GT40 / GTX40 90mm O.D. Flange with 81mm diameter mating ring, (suits 3 in. O.D. tubing)
- T304 Stainless Steel
- Prevents Warping Due To High Heat
- Works w/GT30R/GT35R/GT40R Turbochargers
- Tapped Holes
- 1 Year Limited Warranty
Add-On: N/A
Apex Width: 3.25
Centering Ring Male Diameter Height: 2
Centering Ring Male Diameter: 81.6
Flange O.D.: 90.16
Material: 304 Stainless Steel
Port I.D.: 74.5
Sale Segment: Turbo Flanges and Fittings
Thickness: 12.9
Tube Recess Depth: 2
Tube Recess I.D.: 3
Web Category: Turbine Outlet Flanges
