Vibrant - 19882

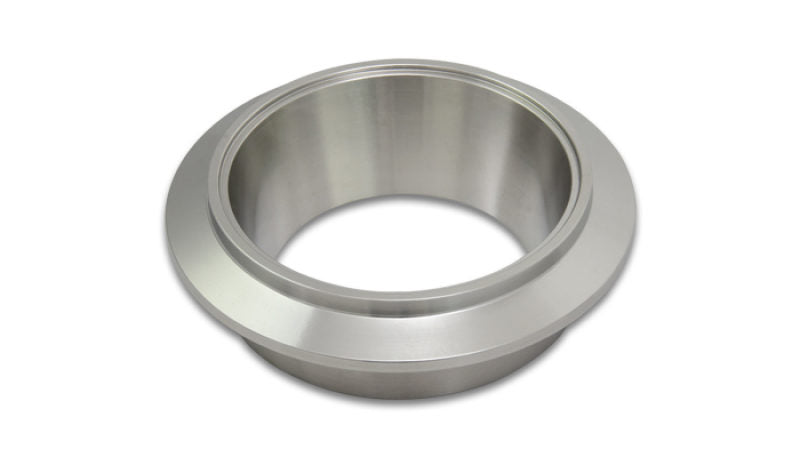

Turbo Outlet Flange; 91.2MM CRMD; 21MM CRMDH; 3.8MM Apex W; 34.3MM Thickness; 117.3MM Flange OD; For Garrett GT4202/4294/42974R/4508R/GTX4508R; 304 Stainless Steel; V-Band;
Vibrant Performance stainless steel turbo flanges are constructed entirely from T304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.
- Stainless Steel
- Works w/GT28/GT30/GT35 Turbine Housing
- 1 Year Limited Warranty
Add-On: N/A
Apex Width: 3.84
Centering Ring Male Diameter Height: 21
Centering Ring Male Diameter: 91.2
Flange O.D.: 117.3
Material: 304 Stainless Steel
Port I.D.: 66.79
Sale Segment: Turbo Flanges and Fittings
Thickness: 34.3
Tube Recess Depth: 1.5
Tube Recess I.D.: 3.5
Web Category: Turbine Outlet Flanges
