Vibrant - 14943

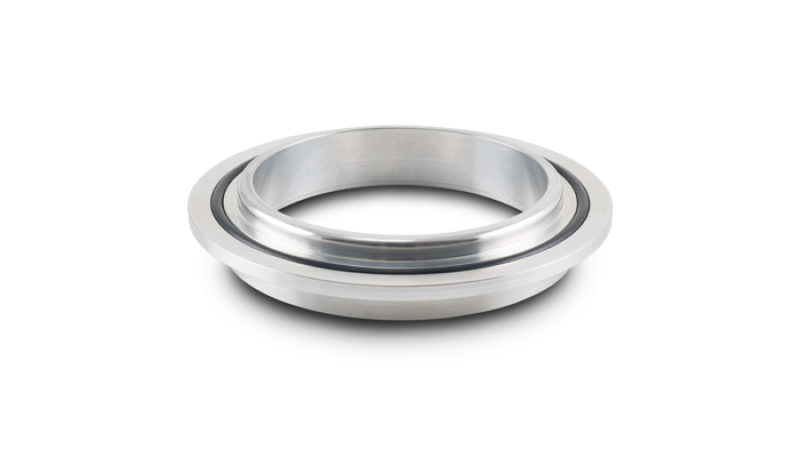

Turbo Discharge Flange - V-Band - Stainless - Garrett GT / GTX 42 / 45 / 47 / 50 / 55 Turbo - Each
Turbo Outlet Flange; 82MM CRMD; 5MM CRMDH; 3.7MM Apex W; 18MM Thickness; 107MM Flange OD; 2MM Tube Recess Depth; For GT42 Compressor; 304SS; 74.2MM Port ID; 3 in. Recess ID;

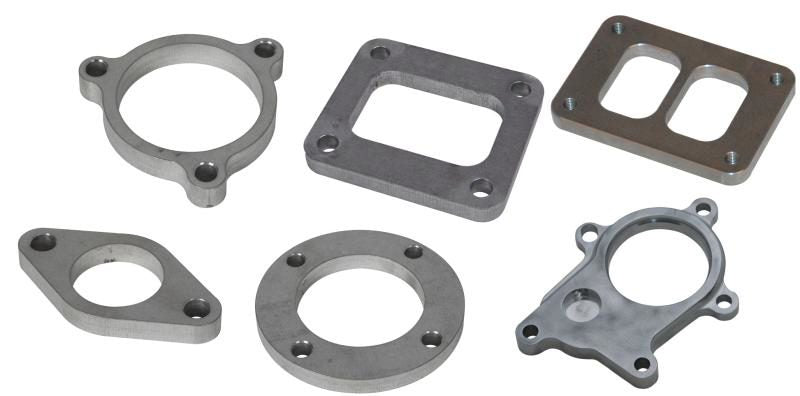

Vibrant Performance stainless steel turbo flanges are constructed entirely from 304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.
- Stainless Steel
- 1 Year Limited Warranty
Add-On: N/A
Apex Width: 3.71
Centering Ring Male Diameter Height: 5
Centering Ring Male Diameter: 82
Flange O.D.: 107
Material: 304 Stainless Steel
Port I.D.: 74.2
Sale Segment: Turbo Flanges and Fittings
Thickness: 18
Tube Recess Depth: 2
Tube Recess I.D.: 3
Web Category: Turbo Compressor Flanges
