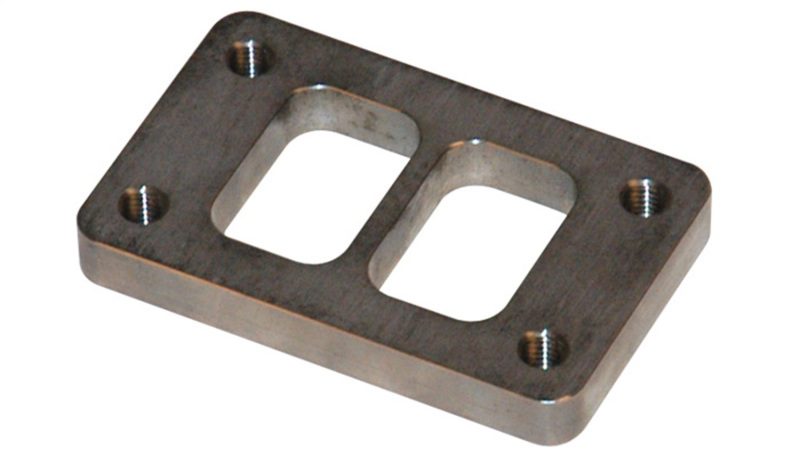

Vibrant 14450 - T03 Turbo Inlet Flange (Divided Inlet) Mild Steel 1/2in Thick
T03 Turbo Inlet Flange (Divided inlet) - 1/2" thick
Recommended Products: 1st Choice PN: 2361, 2nd Choice PN: 2360, 3rd Choice PN: 1424, 4th Choice PN: 1426, 5th Choice PN: 2465
Vibrant Performance mild steel turbo flanges are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, complex multi bolt and block off turbo flanges are all available.
- 1018 Mild Steel
- 0.5 in. Thick To Prevent Warping
- Tapped Holes
- Bolt Pattern 3.375 in. x 1.75 in.
- 6 Month Limited Warranty
Add-On Part: N/A
Bolt Hole Center to Center Height: 44.5
Bolt Hole Center to Center Width: 86
Bolt Hole Thread Size: M10 x 1.5
Material: Mild Steel
Overall Height: 69.9
Overall Port Width: 62.58
Overall Width: 108
Port Height: 44.5
Port Width: 28.7
Product Group: Turbine Inlet Flanges
Thickness: 0.5
