Vibrant - 14430

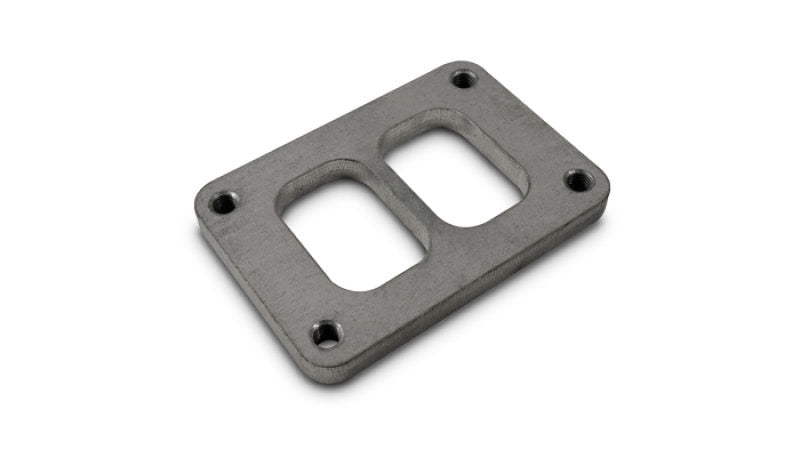

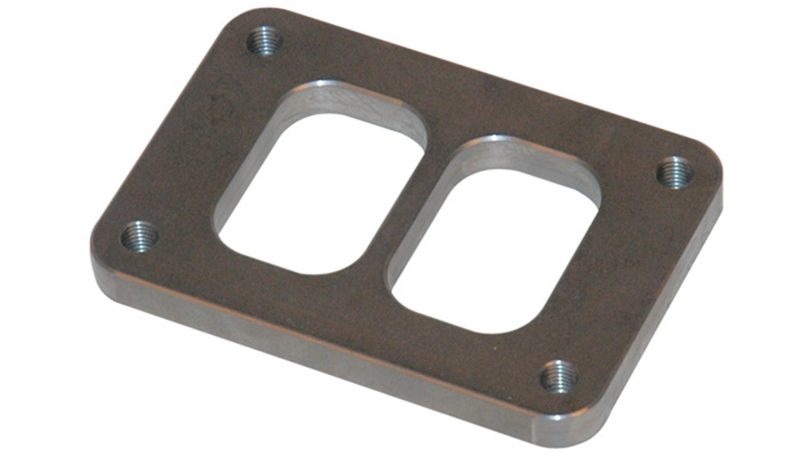

Turbo Inlet Flange - 0.5 in Thick - Steel - T6 - Divided - Each
Turbo Inlet Flange; 69.8MM BHCCH; 114.3MM BHCCW; M10X1.5 BHTS; 91.9MM Overall H; 136.7MM Overall W; 0.5 in. Thickness; 58.9MM Port H; For T06 Divided Inlet; Mild Steel;

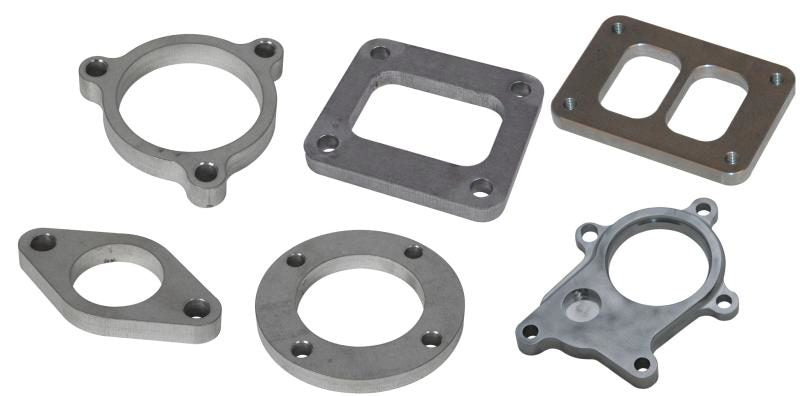

Vibrant Performance mild steel turbo flanges are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, complex multi bolt and block off turbo flanges are all available.
- 1018 Mild Steel
- 0.5 in. Thick To Prevent Warping
- Tapped Holes
- Bolt Pattern 4.5 in. x 2.75 in.
- 6 Month Limited Warranty
Add-On: N/A
Bolt Hole Center to Center Height: 69.8
Bolt Hole Center to Center Width: 114.3
Bolt Hole Thread Size: M10 x 1.5
Material: Mild Steel
Overall Height: 91.9
Overall Port Width: 87.4
Overall Width: 136.7
Port Height: 58.85
Port Width: 40.15
Sale Segment: Turbo Flanges and Fittings
Thickness: 0.5
Web Category: Turbine Inlet Flanges
