Vibrant - 14410

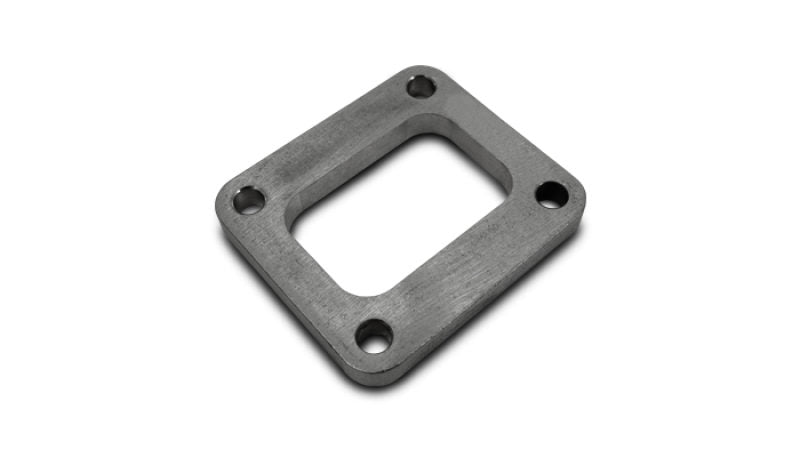

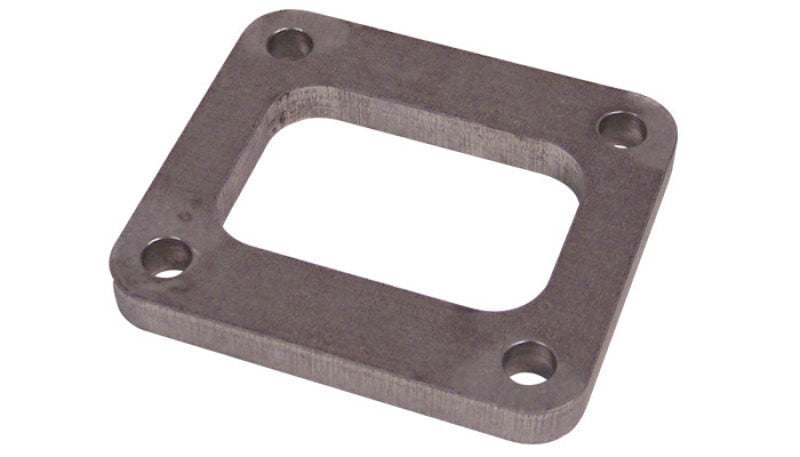

Turbo Inlet Flange - 0.5 in Thick - Steel - Natural - T4 - Each
Turbo Inlet Flange; 69.9MM BHCCH; 82.6MM BHCCW; 11.3MM BHID; 95.9MM Overall H; 108MM Overall W; 0.5 in. Thickness; 50.7MM Port H; 74.7MM Port W; For T4; Mild Steel;

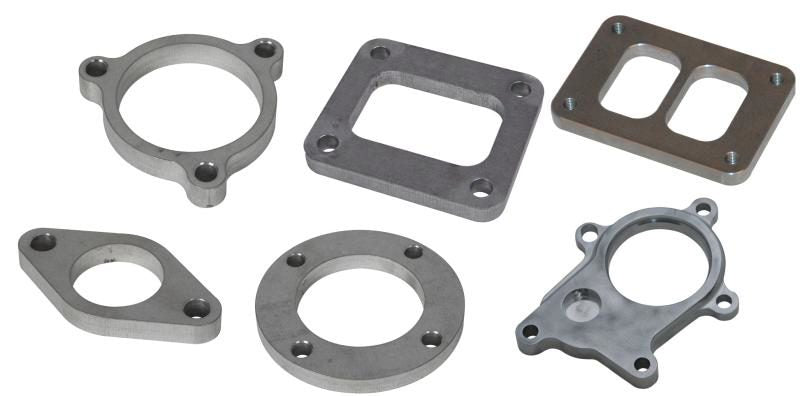

Vibrant Performance mild steel turbo flanges are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, complex multi bolt and block off turbo flanges are all available.
- 1018 Mild Steel
- 0.5 in. Thick To Prevent Warping
- Drilled Holes
- Bolt Pattern 3.25 in. x 2.75 in.
- 6 Month Limited Warranty
Add-On: N/A
Bolt Hole Center to Center Height: 69.85
Bolt Hole Center to Center Width: 82.6
Bolt Hole I.D.: 11.26
Material: Mild Steel
Overall Height: 95.87
Overall Port Width: 76.82
Overall Width: 108
Port Height: 50.71
Port Width: 74.68
Sale Segment: Turbo Flanges and Fittings
Thickness: 0.5
Web Category: Turbine Inlet Flanges
