Vibrant - 14380

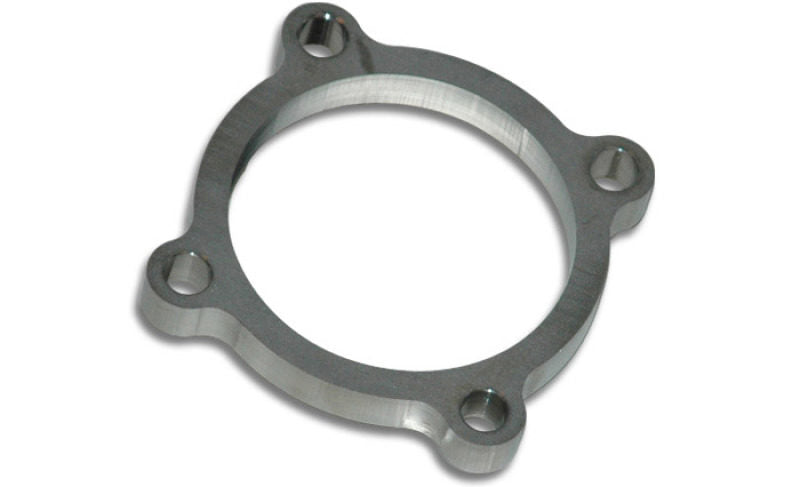

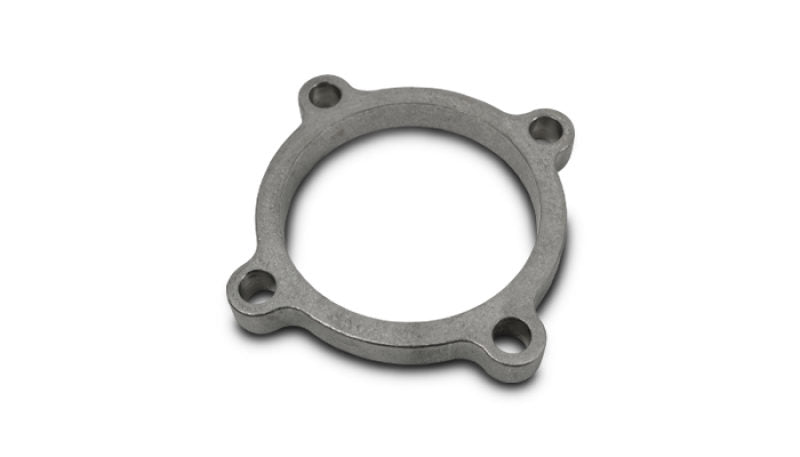

Turbo Discharge Flange - 0.5 in Thick - Steel - T3 GT Series 4-Bolt - 3 in Outlet - Each
Discharge Flange; 100.6MM Bolt Circle; 8.64MM BHID; 0.5 in. Thickness; 3 in. ID; 76.2MM Port ID; For GT30/GT35; 304 Stainless Steel; 4 Bolt;

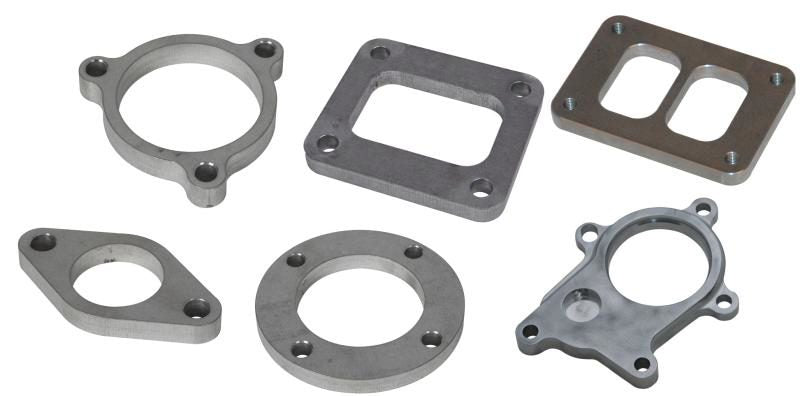

Vibrant Performance mild steel turbo flanges are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, complex multi bolt and block off turbo flanges are all available.
- 1018 Mild Steel
- Prevents Warping Due To High Heat
- Designed For GT30/35 Turbochargers w/o Internal Wastegate
- 6 Month Limited Warranty
Add-On: N/A
Bolt Circle: 100.55
Bolt Hole I.D.: 8.64
Material: 304 Stainless Steel
Port I.D.: 76.2
Sale Segment: Turbo Flanges and Fittings
Thickness: 0.5
Web Category: Turbine Outlet Flanges
