Vibrant - 1419
Turbo Discharge Flange - V-Band - Stainless - PTE Medium Frame Turbo - Each
Turbo Outlet Flange; 77.7MM CRMD; 1.6MM CRMDH; 3.3MM Apex W; 12.9MM Thickness; 92.06MM Flange OD; 2.5MM Tube Recess Depth; For PTE Medium Frame; 304 Stainless Steel; V-Band;

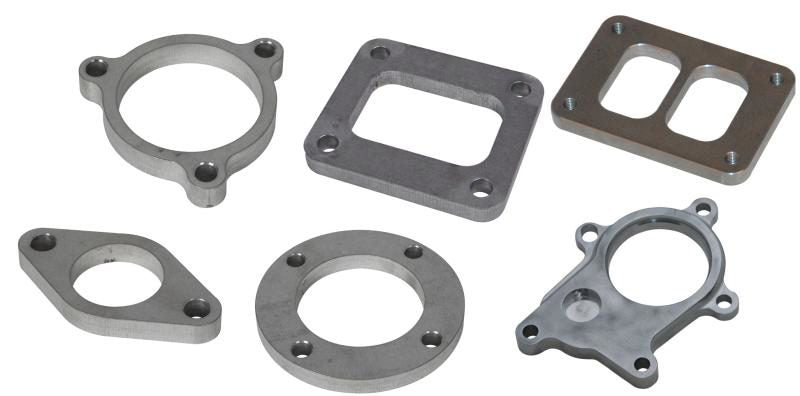

Vibrant Performance stainless steel turbo flanges are constructed entirely from 304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.
- Stainless Steel
- Works w/GT28/GT30/GT35 Turbine Housing
- 1 Year Limited Warranty
Add-On: N/A
Apex Width: 3.25
Centering Ring Male Diameter Height: 1.56
Centering Ring Male Diameter: 77.7
Flange O.D.: 92.06
Material: 304 Stainless Steel
Port I.D.: 72.9
Sale Segment: Turbo Flanges and Fittings
Thickness: 12.9
Tube Recess Depth: 2.5
Tube Recess I.D.: 3
Web Category: Turbine Outlet Flanges
