Vibrant - 1418

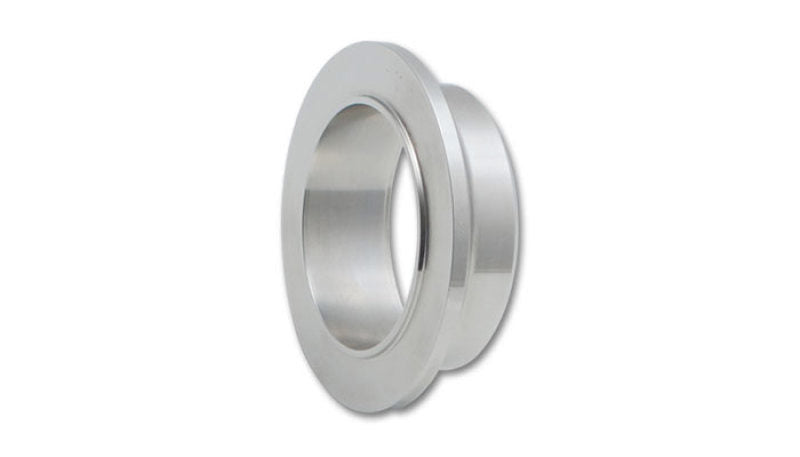

Turbo Inlet Flange - V-Band - Stainless - PTE Medium Frame Turbo - Each
Turbo Inlet Flange; 76.2MM Flange O.D.; 3.57MM Apex W; 56.7MM CRMD.; 1.2MM CRMDH; 50.5MM Port ID; 19MM Thickness; For PTE Medium Frame; 304 Stainless Steel;

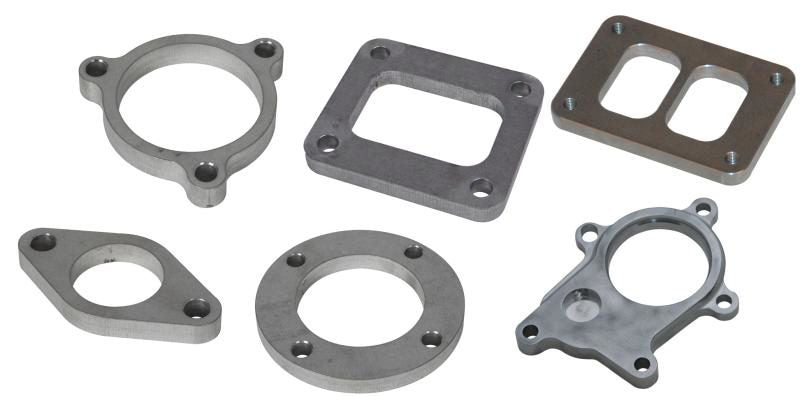

Vibrant Performance stainless steel turbo flanges are constructed entirely from 304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.
- Stainless Steel
- Works w/GT28/GT30/GT35 Turbine Housing
- 1 Year Limited Warranty
Add-On: N/A
Apex Width: 3.57
Centering Ring Male Diameter Height: 1.23
Centering Ring Male Diameter: 56.68
Flange O.D.: 76.2
Material: 304 Stainless Steel
Port I.D.: 50.51
Sale Segment: Turbo Flanges and Fittings
Thickness: 19
Web Category: Turbine Inlet Flanges
