Vibrant - 1410A

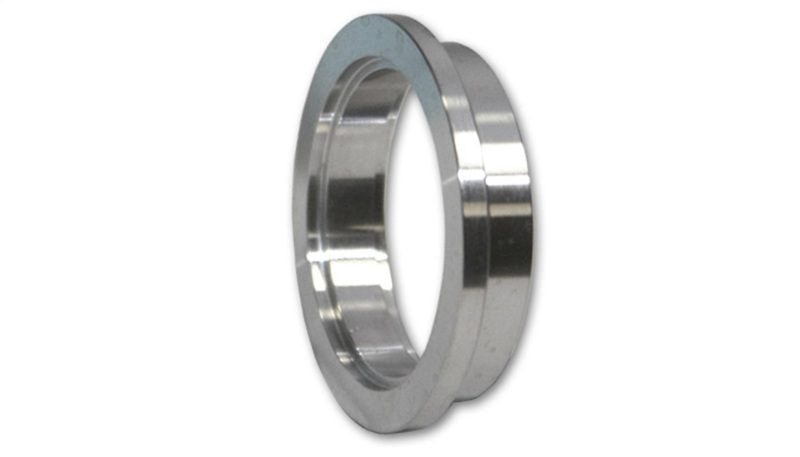

Wastegate Flange - Outlet - V-Band Style - Stainless - Natural - Tial V44 / MV-R Wastegate Flange - Each
Wastegate Outlet Flange; 1.75 in. Tube Recess ID; 56.13mm Flange OD; 3.3mm Apex Width; 304 Stainless Steel; 45mm CRFD; 2.2mm CRFDD; 11.9mm Thickness; 41.3mm Port ID; 2mm TRD;
Vibrant Performance stainless steel turbo flanges are constructed entirely from 304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.
- Stainless Steel
- Designed For 44mm Wastegates
- 1 Year Limited Warranty
Apex Width: 3.27
Centering Ring Female Diameter Depth: 2.2
Centering Ring Female Diameter: 44.96
Flange O.D.: 56.13
Material: 304 Stainless Steel
Port I.D.: 41.25
Sale Segment: Turbo Flanges and Fittings
Thickness: 11.94
Tube Recess Depth: 2
Tube Recess I.D.: 1.75
Web Category: Turbine Outlet Flanges
Add-On: N/A
