Vibrant - 10137

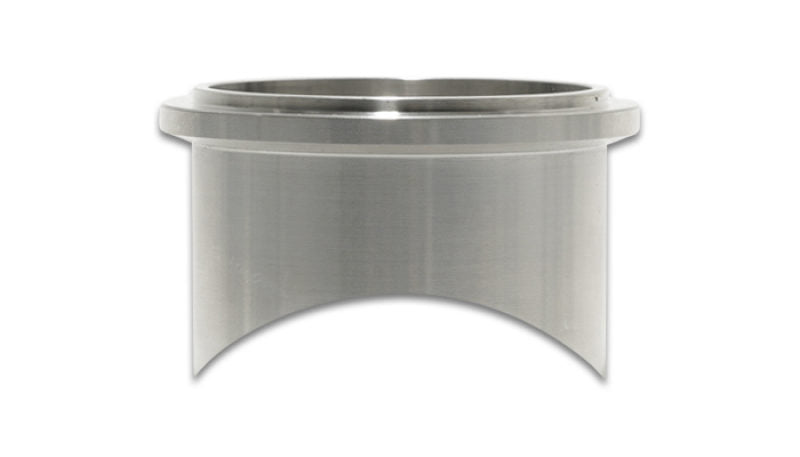

Tial 50mm Blow Off Valve Weld Flange for 2.50" O.D. Tubing - Stainless Steel
Blow Off Valve Weld Flange; 2.5 in. OD; 59.5MM Flange OD; 3.3MM Apex Width; 51.7 CRMD; 2MM Centering Ring Male Diameter Height; 47.7MM Port ID; Tial 50mm; 304 Stainless Steel;
Vibrant Performance Weld Flanges for Tial Blow Off Valves are made from your choice of 304 Stainless Steel, 6061 Aluminum or Titanium construction.
- Blow Off Valve Weld Flange
Add-On: N/A
Apex Width: 3.31
Centering Ring Male Diameter Height: 2
Centering Ring Male Diameter: 51.67
Coped For Tube O.D.: 2.5
Flange O.D.: 59.5
Material: 304 Stainless Steel
Port I.D: 47.7
Sale Segment: Turbo Flanges and Fittings
Web Category: Blow Off Valve Flanges
