Van Compass 3016-043 - Rear Mini Spring Pack, 3 Leaf, 1.25" Lift Sag Correction, Sprinter 2500 4WD/AWD (2015-Up)

Van Compass 3016-043 - Rear Mini Spring Pack, 3 Leaf, 1.25" Lift Sag Correction, Sprinter 2500 4WD/AWD (2015-Up)

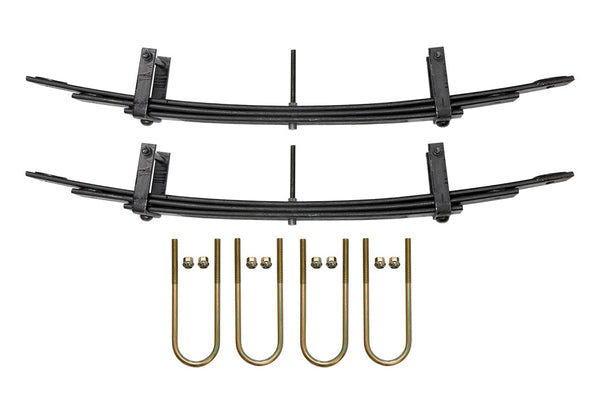

Rear Mini Spring Pack, 3 Leaf - Sprinter 2500 4X4, 1.25 Inch Lift Sag Correction

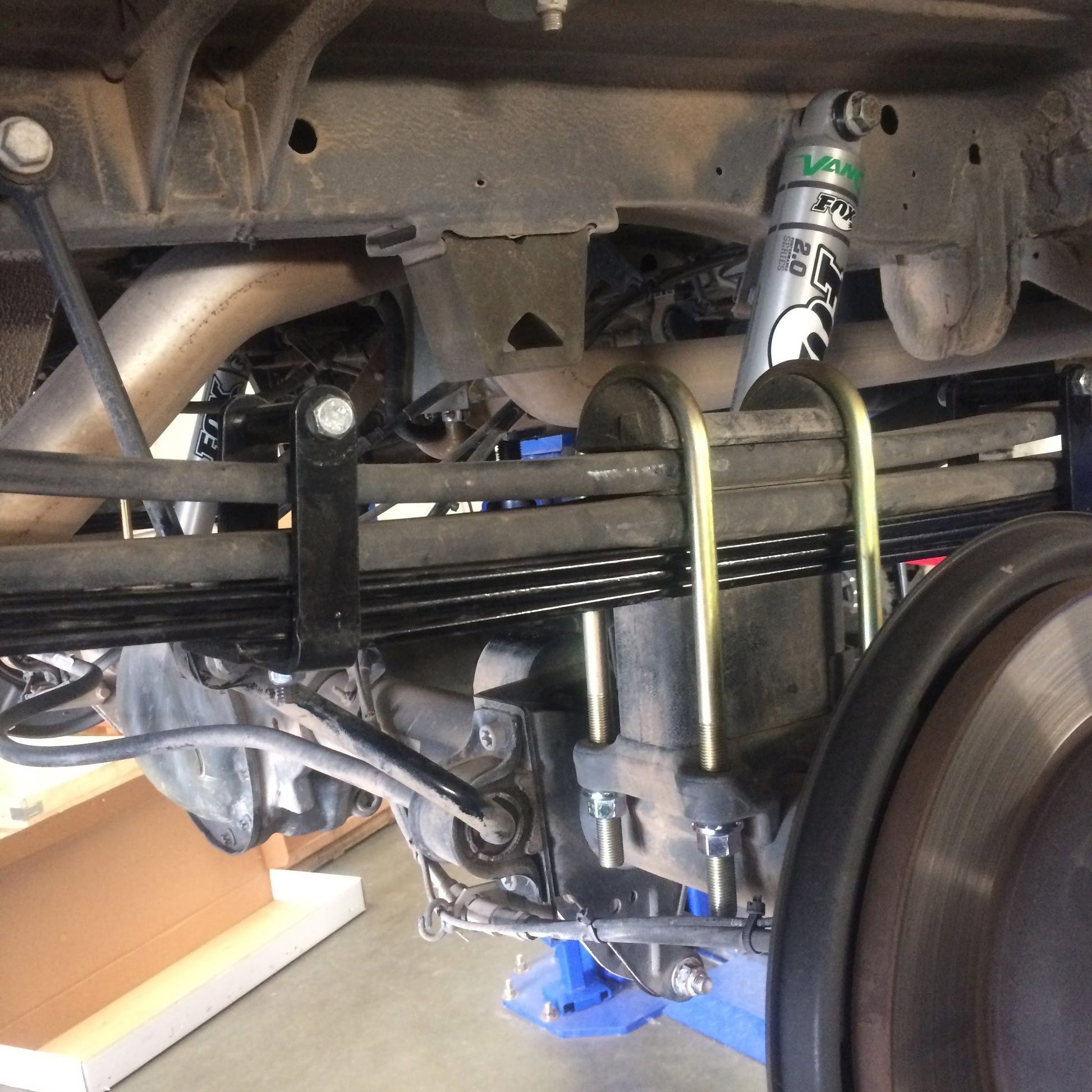

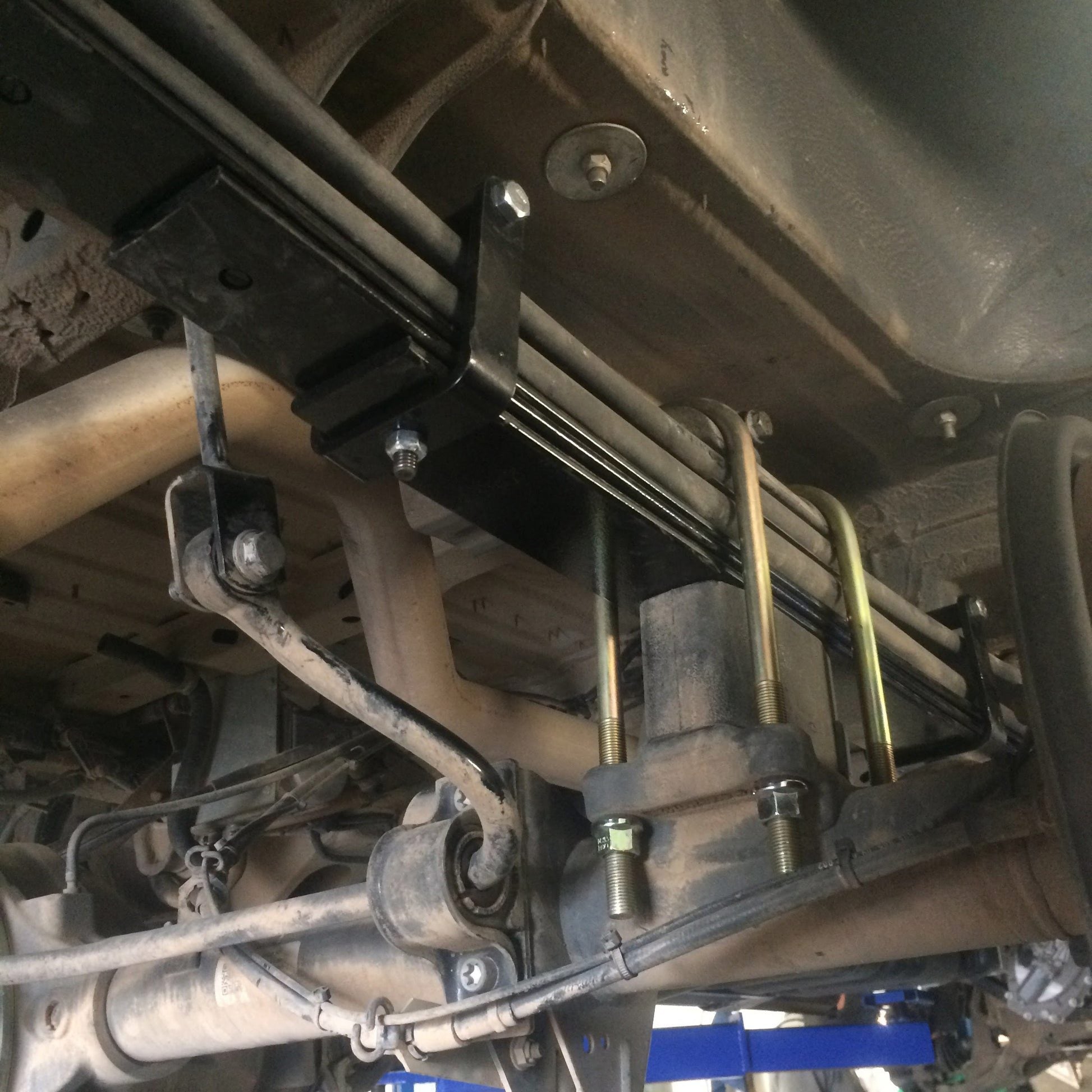

Our Sprinter multi leaf spring pack installs under the factory leaf springs to correct sagging and lost wheel travel in the rear of a built-up van.

Our mini spring pack can be installed one of 2 ways: 3-leaf Sag Correction or the 6-leaf for 2" of total lift. In the 3-leaf configuration, the factory suspension geometry is still preserved and functions well to restore lost ride height on heavy vans.

• Our 3-leaf Sprinter 4x4 mini leaf spring pack installs under the factory leaf springs and can increase ride height from 1" to 1
• The increase in spring rate gained by this leaf pack along with the additional clearance between the bumpstop and axle will reduce the chances of bottoming out enhance vehicle stability, ride comfort and restore the factory look of the van
• As a vehicle approaches its GVWR (Gross Vehicle Weight Rating), the rear suspension will naturally begin to sag and ride quality will begin to suffer
• 5" (25mm to 33mm) depending on the vehicle's weight distribution
• The Sprinter van is no different
• *Compatible on 4wd vans that have a factory 2-leaf spring pack
• Not compatible with the factory 'mono leaf' or the 3500 spring pack with a third 'overload' spring
• This product is designed to improve ride and handling while at or near GVWR, however we do not recommend exceeding the manufacturer's GVWR
