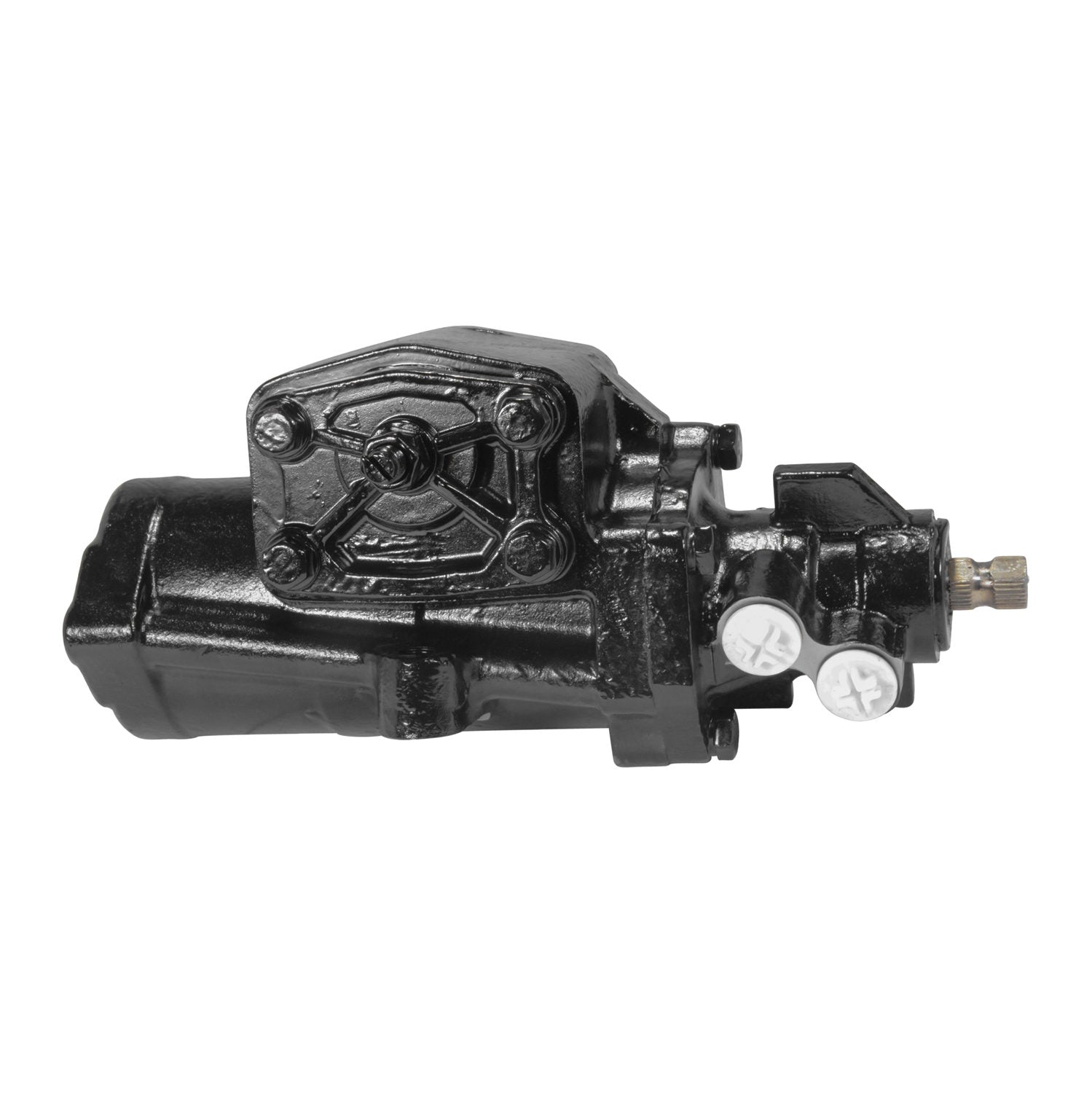

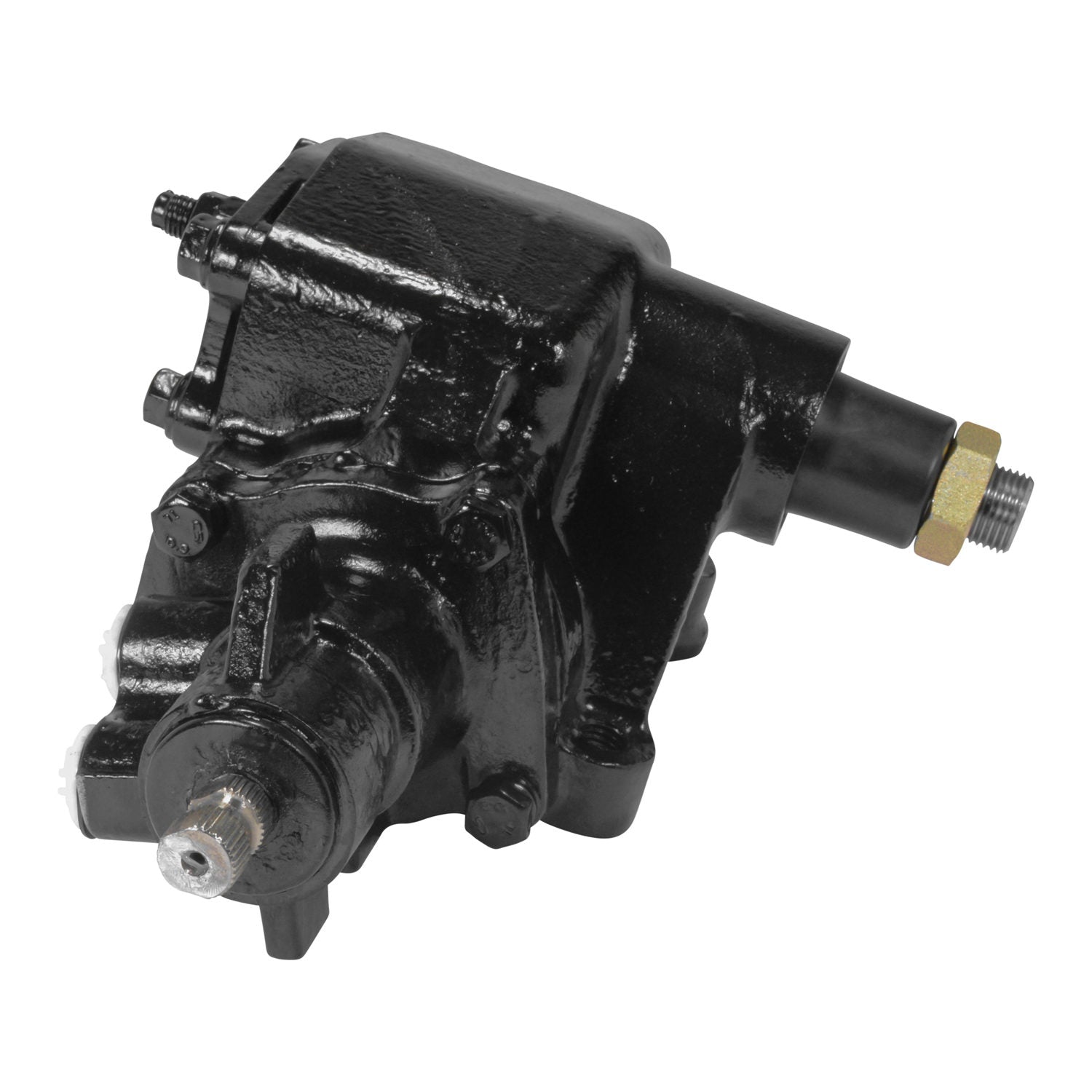

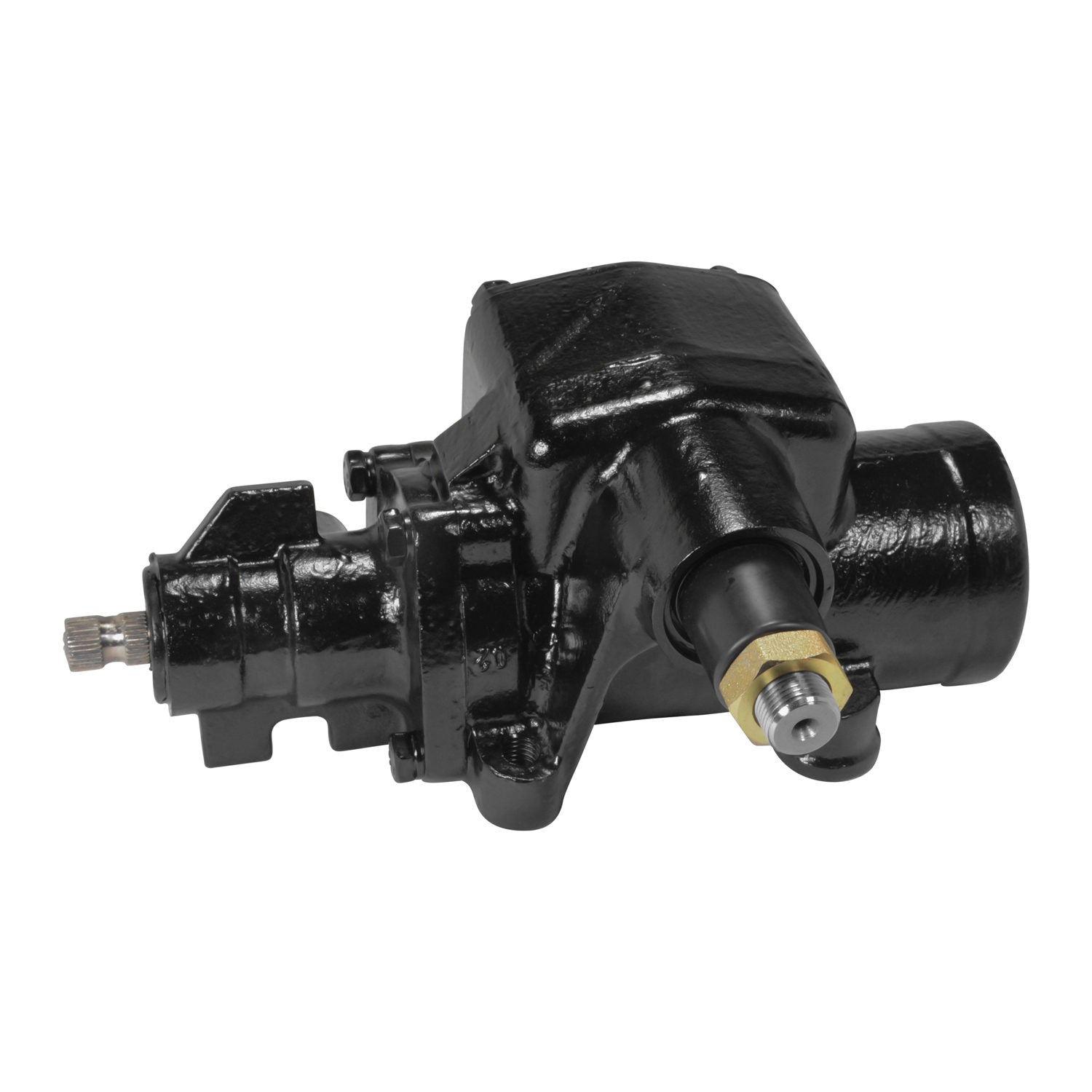

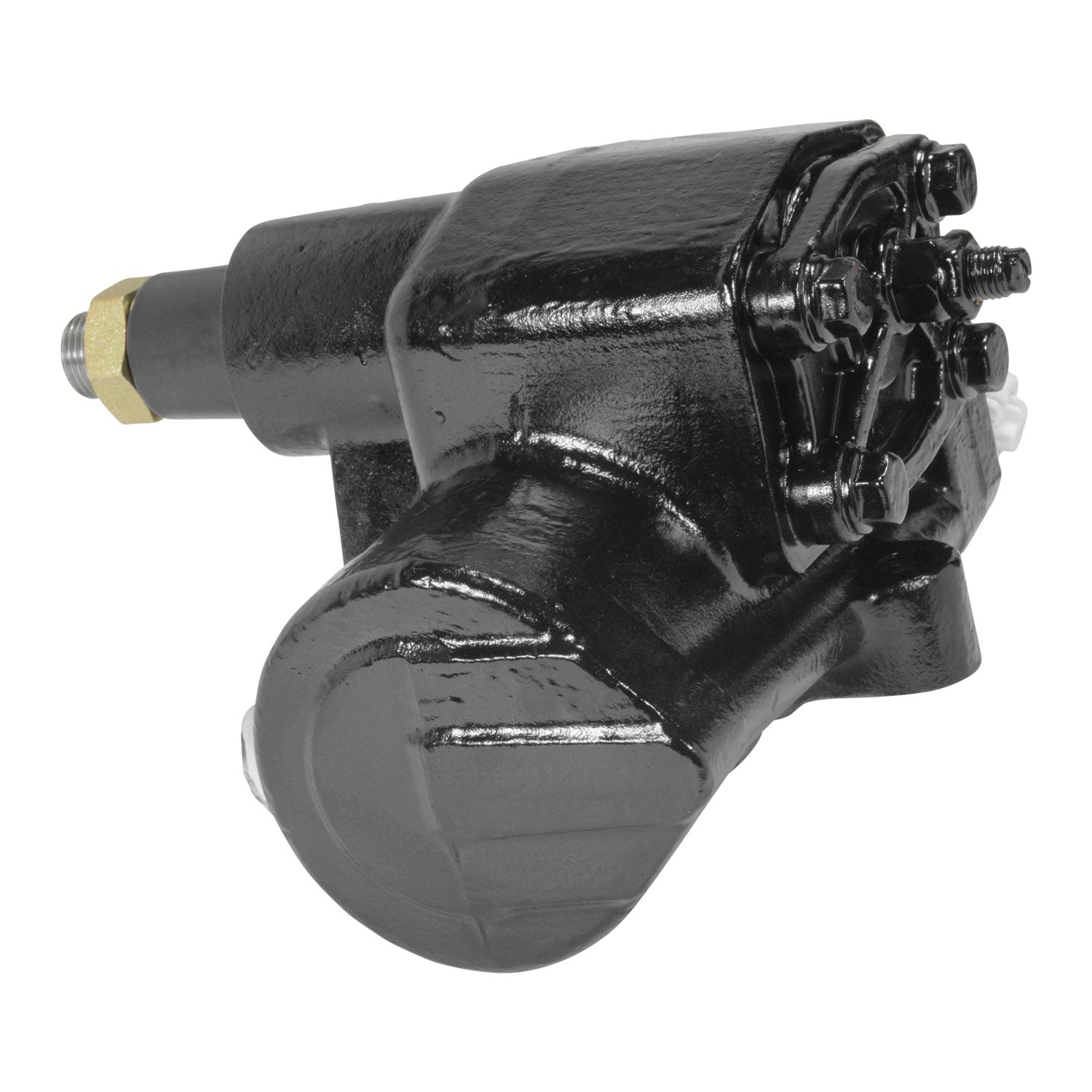

USA Standard Gear ZSG7616 - Power Steering Gear Box, 2003-08 Dodge Ram 2500, 3500, 2006-08 1500 Mega Cab 4X4 USA Standard

USA Standard Gear ZSG7616 - Power Steering Gear Box, 2003-08 Dodge Ram 2500, 3500, 2006-08 1500 Mega Cab 4X4 USA Standard

When internal steering gear components wear out, your vehicle's steering may feel vague and floaty, leading to lane drifting and imprecise cornering. Turn back time with a new, not rebuilt, steering box from USA Standard Gear.

• The cure for vague-feeling, worn out power steering units
• Engineered to meet or exceed OEM quality
• Designed for easy bolt-on installation
• Turns lock-to-lock: 3.0 2500/3500, 3.3 1500 Mega Cab

Features and Benefits:

• The cure for vague-feeling, worn out power steering units
• Engineered to meet or exceed OEM quality
• Designed for easy bolt-on installation
• Turns lock-to-lock: 3.0 2500/3500, 3.3 1500 Mega Cab

Details:

• AAP UDA 12:Ea
• AAP UDA 22:1
• AAP UDA 4:60

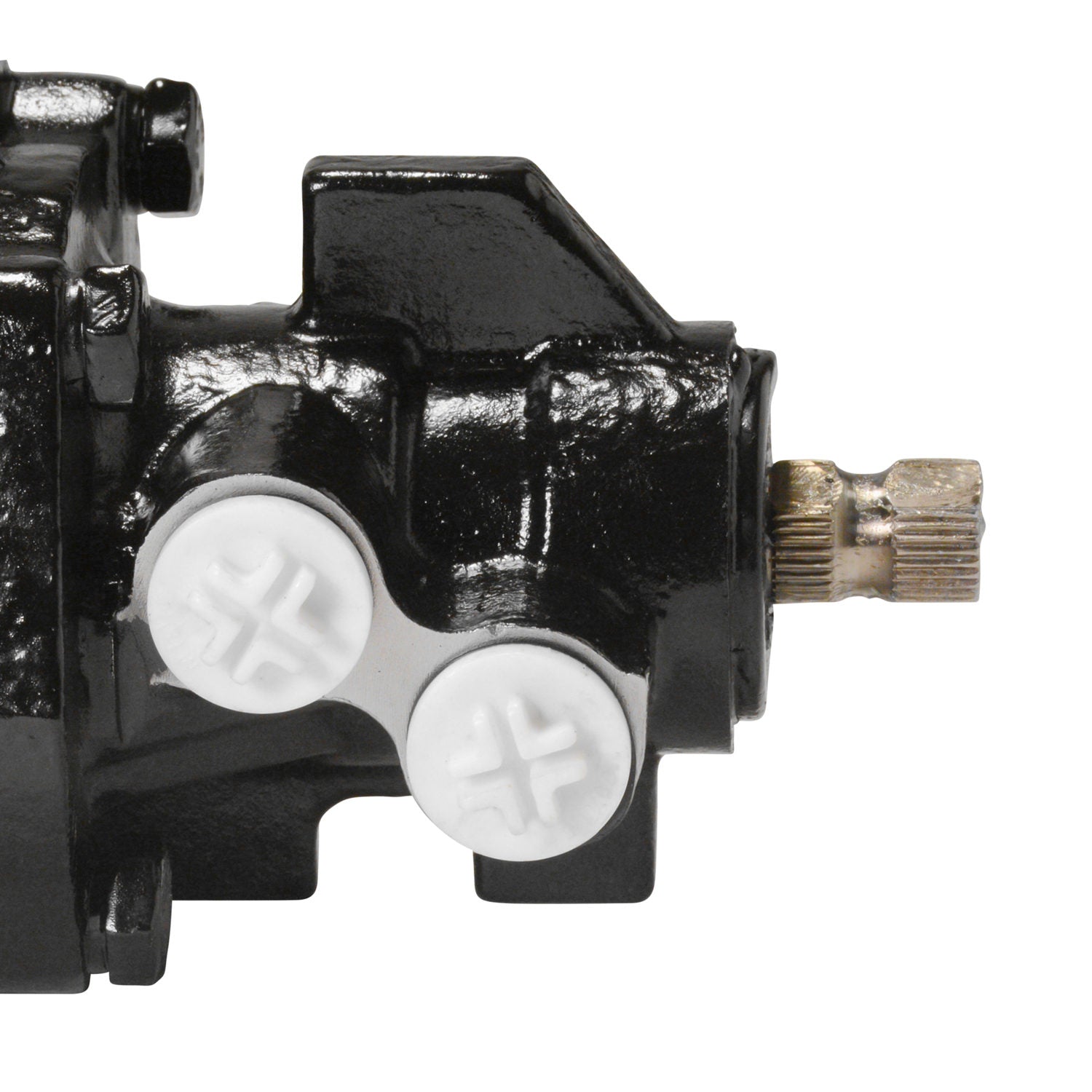

• Input Shaft Diameter:0.73
• Input Shaft Spline Quantity:26 Spline, 2 Flats & Groove
• Mounting Hole Quantity:3
• Pitman Arm Included:No
• Power Assisted:Yes
• Pressure Port Thread Size:M18 x 1.5
• Return Port Thread Size:M20 x 1.5
• Total Turns Lock To Lock:3.0-3.3

Application Summary:

2006-2008 Dodge Ram 1500 (Body: Extended Crew Cab Pickup & Steering System: Power & Drive: 4WD)

• 2003-2008 Dodge Ram 2500 (Steering System: Power & Drive: 4WD)
• 2003-2008 Dodge Ram 3500 (Steering System: Power & Drive: 4WD)
