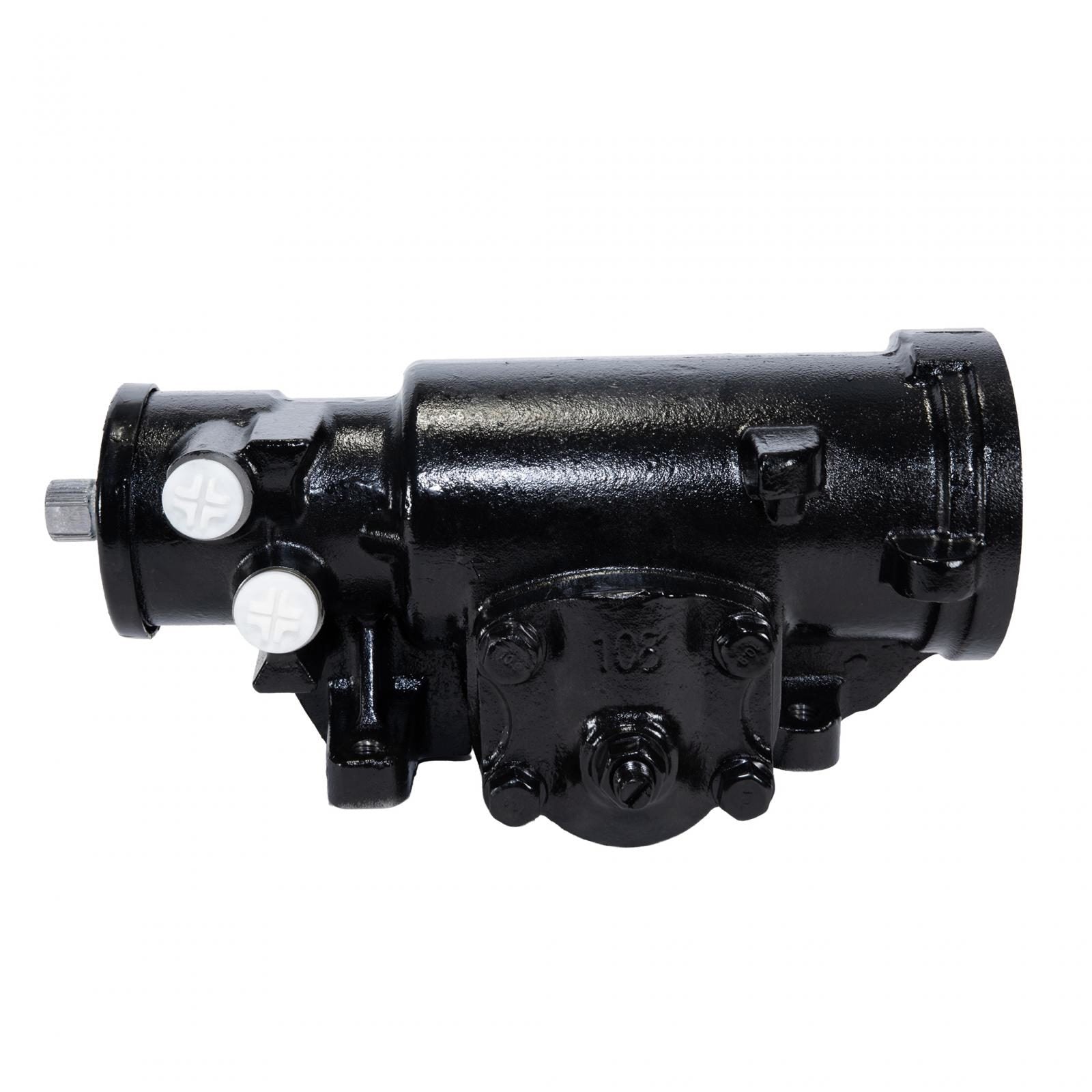

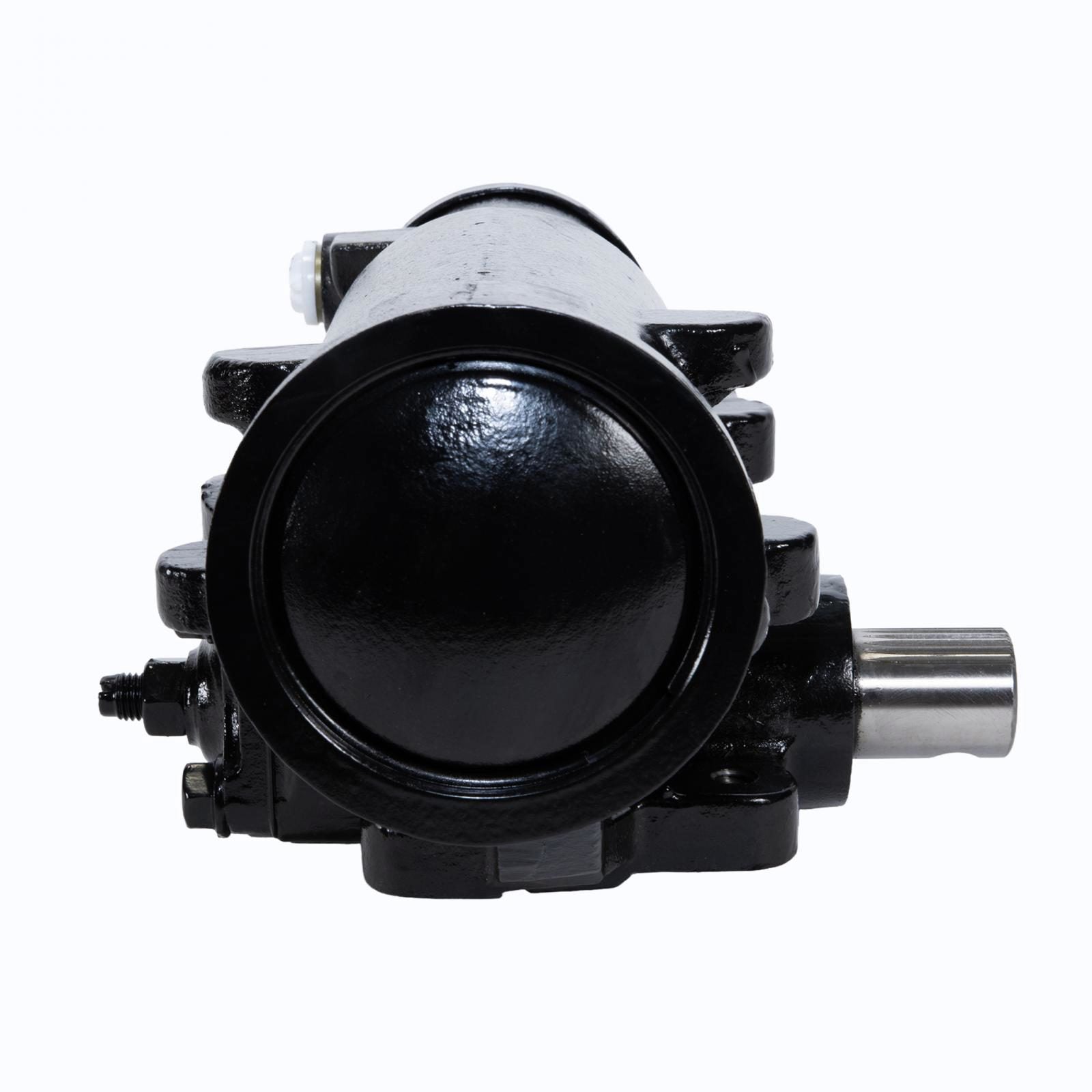

USA Standard Gear ZSG7502 - Power Steering Gear Box, 1968-76 GM Truck, Blazer, Jimmy, And Suburban, 4Wd USA Standard

USA Standard Gear ZSG7502 - Power Steering Gear Box, 1968-76 GM Truck, Blazer, Jimmy, And Suburban, 4Wd USA Standard

When internal steering gear components wear out, your vehicle's steering may feel vague and floaty, leading to lane drifting and imprecise cornering. Turn back time with a new, not rebuilt, steering box from USA Standard Gear.

• The cure for vague-feeling, worn out power steering units
• Engineered to meet or exceed OEM quality
• Designed for easy bolt-on installation
• Fits 1968-76 Chevrolet and GMC Truck, Blazer, Jimmy, and Suburban, 4WD

Features and Benefits:

• The cure for vague-feeling, worn out power steering units
• Engineered to meet or exceed OEM quality
• Designed for easy bolt-on installation
• Fits 1968-76 Chevrolet and GMC Truck, Blazer, Jimmy, and Suburban, 4WD

Details:

• Color:Black
• Finish:Powdercoat
• Input Shaft Diameter:0.812
• Mounting Hole Quantity:4
• Output Shaft Diameter:1.25
• Output Shaft Spline Quantity:9
• Power Assisted:Yes
• Pressure Port Thread Size:11/16/2018
• Return Port Thread Size:5/8 x 18
• Total Turns Lock To Lock:3.38
• Type:Power

Application Summary:

1969-1974 Chevrolet K10 Pickup (Drive: 4WD / Qualifier: with Power Steering)

• 1969-1974 Chevrolet K20 Pickup (Drive: 4WD / Qualifier: with Power Steering)
• 1968-1974 Chevrolet K30 Pickup (Drive: 4WD / Qualifier: with Power Steering)
• 1969-1974 Chevrolet Blazer (Drive: 4WD / Qualifier: with Power Steering)
• 1975-1976 Chevrolet K5 Blazer (Steering: Gear & Steering System: Power & Drive: 4WD)
• 1975-1976 Chevrolet K10 (Steering: Gear & Steering System: Power & Drive: 4WD)
• 1969-1976 Chevrolet K10 Suburban (Qualifier: with Power Steering)
• 1975-1976 Chevrolet K20 (Steering: Gear & Steering System: Power & Drive: 4WD)
• 1969-1979 Chevrolet K20 Suburban (Steering: Gear & Steering System: Power & Drive: 4WD / Qualifier: with Power Steering)
• 1966-1974 GMC K15/K1500 Pickup (Drive: 4WD / Qualifier: with Power Steering)
• 1969-1973 GMC K15/K1500 Suburban (Drive: 4WD / Qualifier: with Power Steering)
• 1968-1974 GMC K35/K3500 Pickup (Drive: 4WD / Qualifier: with Power Steering)
• 1970-1974 GMC Jimmy (Drive: 4WD / Qualifier: with Power Steering)
• 1975-1978 GMC K15 (Steering: Gear & Steering System: Power & Drive: 4WD)
• 1975-1976 GMC K15 Suburban (Steering: Gear & Steering System: Power & Drive: 4WD)
• 1975 GMC K25 (Steering: Gear & Steering System: Power & Drive: 4WD)
• 1975-1976 GMC K25 Suburban (Steering: Gear & Steering System: Power & Drive: 4WD)
