USA Standard Master Overhaul kits let you finish your install with confidence.

• Fits 2011 and up GM and Chrysler 11.5 inch
• Uses Koyo bearings and races

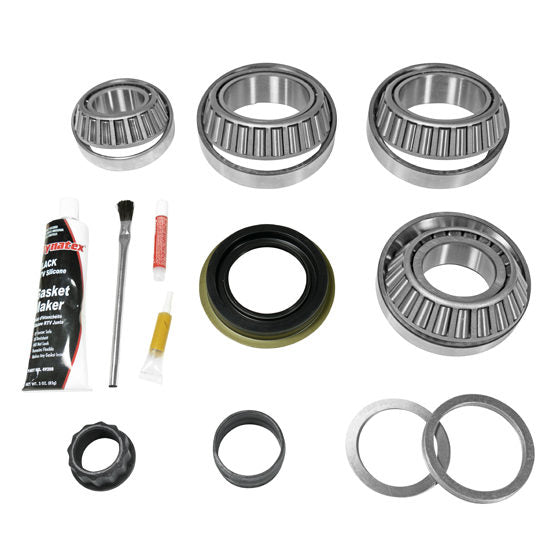

• Included are carrier bearings and races, pinion bearings and races, pinion seal, complete shim kit, ring gear bolts, pinion nut, crush sleeve, thread locker, marking compound with brush and gasket

1 year warranty against Manufacturer defects

Technical Notes:
In mid 2011 the design for the pinion bearing changed. The early design had a rear pinion race O.D. of 4.125 inch. The later design has an O.D. of 4.375 inch. This kit is the 4.375 inch design

Features and Benefits:

• Fits 2011 and up GM and Chrysler 11.5 Inch
• Uses Koyo bearings and races
• Included are carrier bearings and races, pinion bearings and races, pinion seal, complete shim kit, ring gear bolts, pinion nut, crush sleeve, thread locker, marking compound with brush and gasket.

Details:

• AAP_UDA_4: 55
• Grade Type: Regular

Fitment Notes:

• 11.5 inch. Rear
• Master Overhaul Kit
• Differential Rebuild Kit
• 4.375 inch. Diameter Inner Pinion Bearing (NP516549/ NP673386)

Application Summary:

2011-2013 Ram 2500 (Rear) (Drive: 4WD, RWD / Note: 11.5 inch. Rear

• Master Overhaul Kit
• Differential Rebuild Kit
• 4.375 inch. Diameter Inner Pinion Bearing (NP516549/ NP673386))
• 2011-2013 Ram 3500 (Rear) (Drive: 4WD, RWD / Note: 11.5 inch. Rear
• Master Overhaul Kit
• Differential Rebuild Kit
• 4.375 inch. Diameter Inner Pinion Bearing (NP516549/ NP673386))
• 2011-2019 Chevrolet Silverado 2500 HD (Rear) (Drive: 4WD, RWD / Note: 11.5 inch. Rear
• Master Overhaul Kit
• Differential Rebuild Kit
• 4.375 inch. Diameter Inner Pinion Bearing (NP516549/ NP673386))
• 2011-2019 Chevrolet Silverado 3500 HD (Rear) (Drive: 4WD, RWD / Note: 11.5 inch. Rear
• Master Overhaul Kit
• Differential Rebuild Kit
• 4.375 inch. Diameter Inner Pinion Bearing (NP516549/ NP673386))
• 2011-2019 GMC Sierra 2500 HD (Rear) (Drive: 4WD, RWD / Note: 11.5 inch. Rear
• Master Overhaul Kit
• Differential Rebuild Kit
• 4.375 inch. Diameter Inner Pinion Bearing (NP516549/ NP673386))
• 2011-2019 GMC Sierra 3500 HD (Rear) (Drive: 4WD, RWD / Note: 11.5 inch. Rear
• Master Overhaul Kit
• Differential Rebuild Kit
• 4.375 inch. Diameter Inner Pinion Bearing (NP516549/ NP673386))
