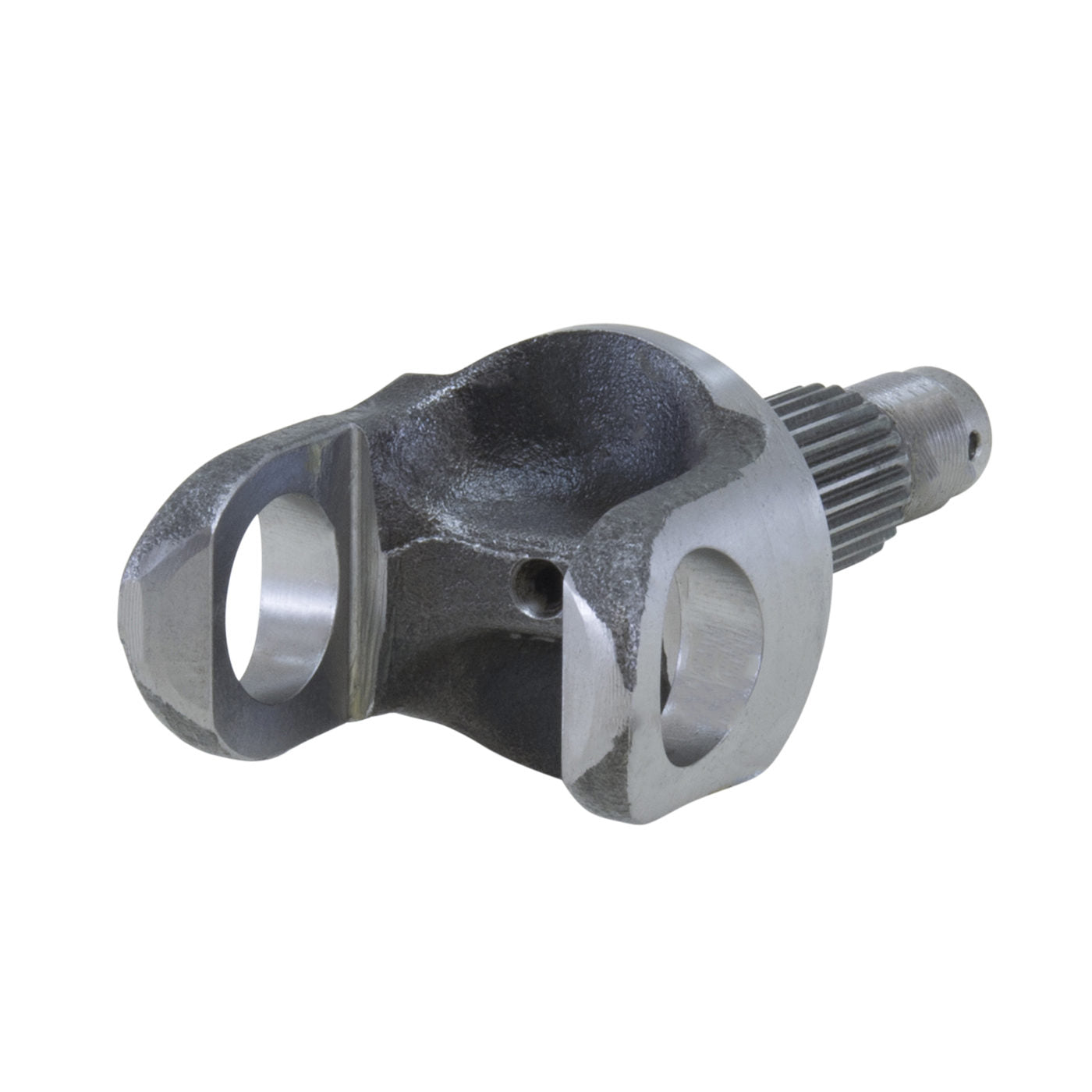

USA Standard Gear ZA W39125 - Gear Chromoly Outer Front Axle For Dana 30, 27 Spline, 6.11ќ Long USA Standard

USA Standard Gear ZA W39125 - Gear Chromoly Outer Front Axle For Dana 30, 27 Spline, 6.11ќ Long USA Standard

Precision, quality USA Standard Gear axles. USA Standard Gear uses precision manufacturing technologies to provide top quality, competition tough axles.

• Fits Jeep Wrangler and Cherokee front with Dana Spicer 30
• 4340 Chromoly
• Outer stub
• 27 spline
• 6.11 inch from end of splines to center of u-joint bore

5 year warranty against Manufacturer defects
Technical Notes:
1990 and older vehicles require YB U43379 hub upgrade

Features and Benefits:

• Fits Dana 30 front differential
• 27 spline
• Measures 6.11 long from end of splines to center of u-joint bore
• Heavy duty 4340 chromoly construction
• Accepts 5-760X Series u-joint

Details:

• AAP_UDA_4: 50
• Axle Nut Included: No
• Spline Quantity: 27

Fitment Notes:

• Dana 30
• 4340 Chrome-Moly Axle
• 6.11 inch. Long
• 27 Spline

Application Summary:

1986-2001 Jeep Cherokee (Front Outer) (Drive: 4WD / Note: Dana 30

• 4340 Chrome-Moly Axle
• 6.11 inch. Long
• 27 Spline)
• 1987-2006 Jeep Wrangler (Front Outer) (Drive: 4WD / Note: Dana 30
• 4340 Chrome-Moly Axle
• 6.11 inch. Long
• 27 Spline)
