USA Standard Gear ZA C52067614 - Axle For '94 & Up Chrysler 9.25 Truck Rear. 34 1/16 And Has 31Spl Non-Abs Axle. USA Standard

USA Standard Gear ZA C52067614 - Axle For '94 & Up Chrysler 9.25 Truck Rear. 34 1/16 And Has 31Spl Non-Abs Axle. USA Standard

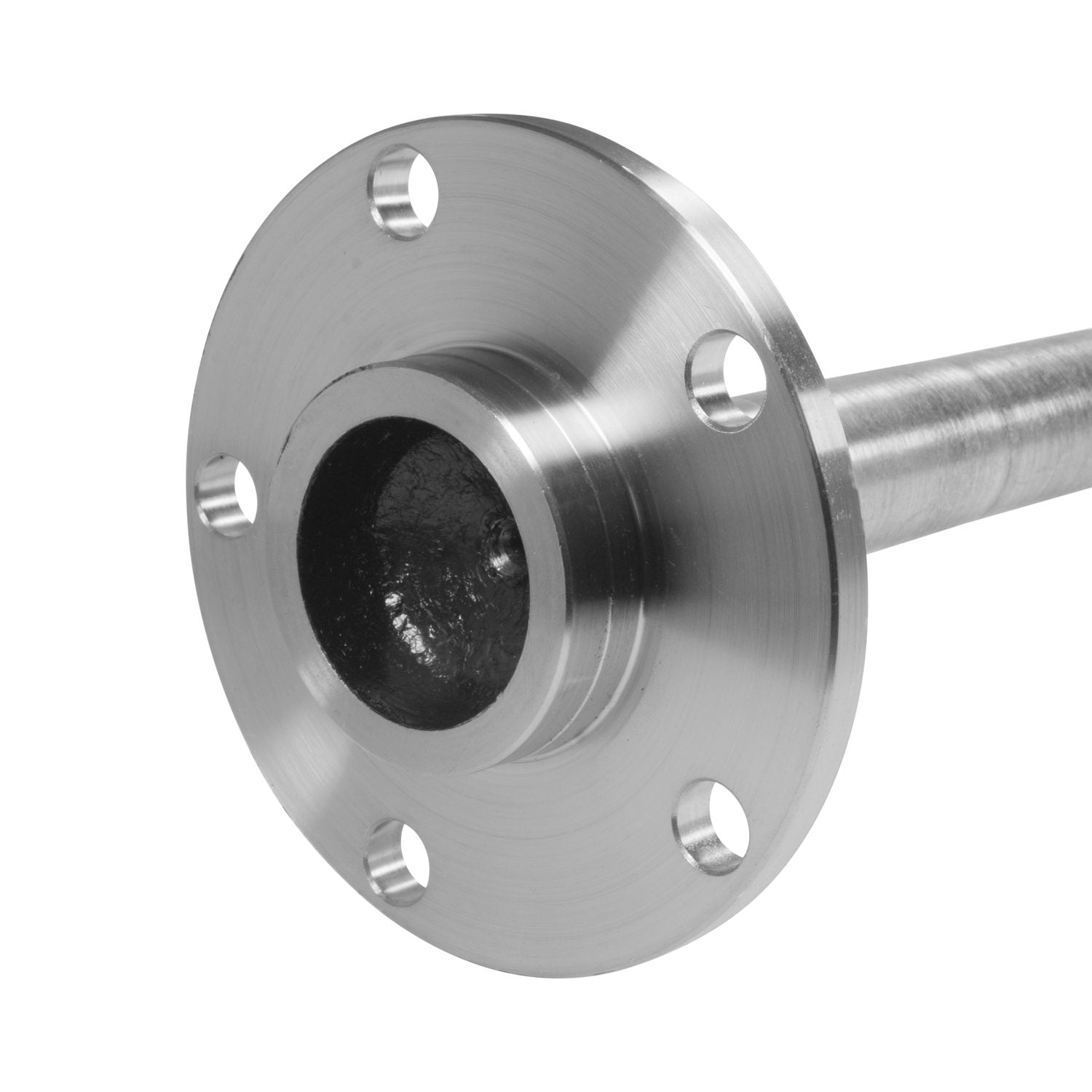

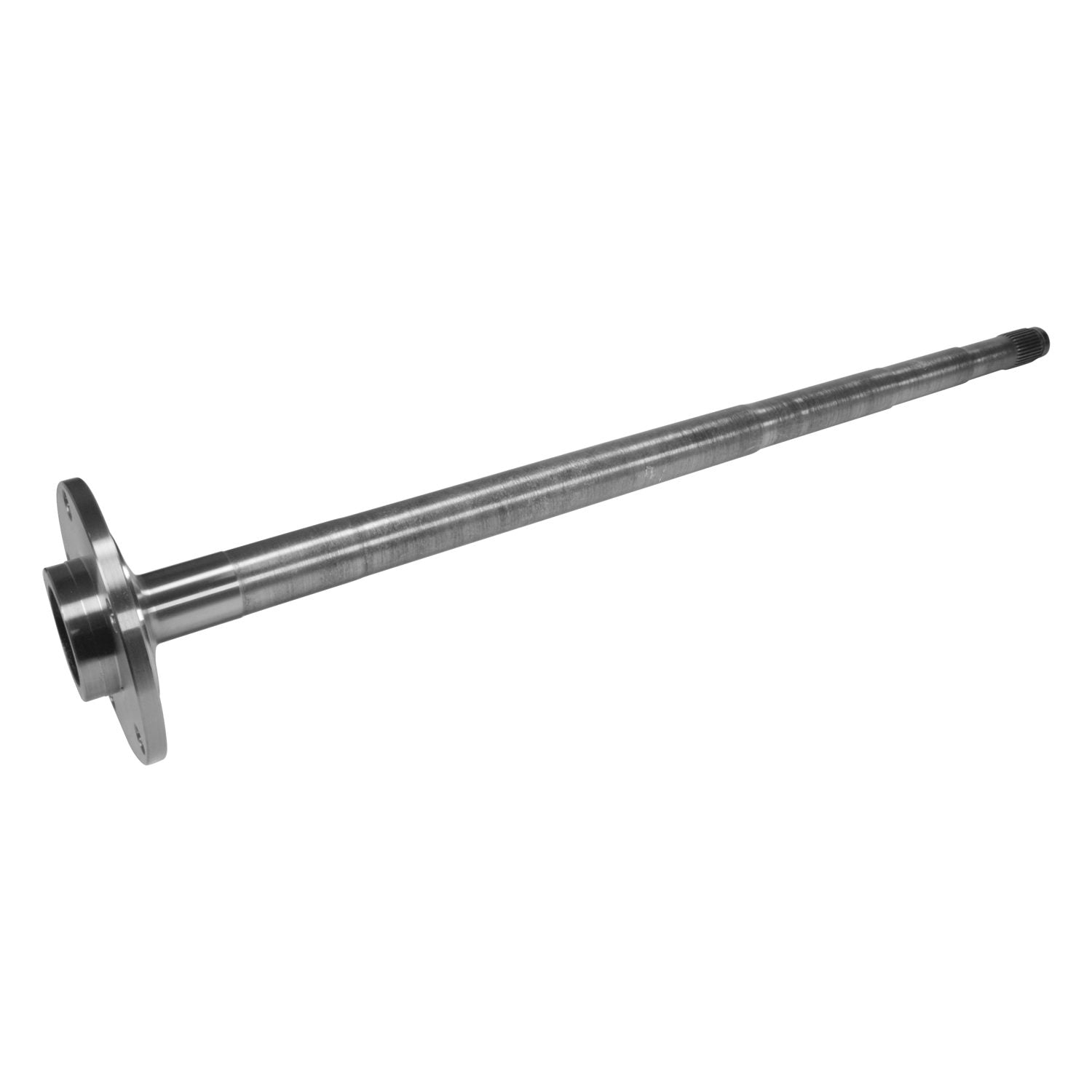

USA Standard axle for '94 & up Chrysler 9.25 truck rear. This axle measures 34 1/16 and has 31 spines.

This is a non-ABS axle.

• Fits 1994 and up Chrysler 9.25 truck rear for 2 wheel drive and 4 wheel drive
• 34 1/16 long
• 5 lug
• 31 spline

Features and Benefits:

• Fits 1994 and up Chrysler 9.25 inch truck rear for 2 wheel drive and 4 wheel drive
• 34 1/16 inch long
• 5 lug
• 31 spline

Details:

• AAP UDA 4:50
• ABS Tone Ring Included:No
• Axle Nut Included:No
• Axle Type:Semi Float
• Cv Joints Included:No
• Inboard Spline Quantity:31
• Retainer Included:no
• Rust Resistant Coating:No
• Shaft Length:34.06 inch
• Wheel Bolt Pattern Size:5 x 5.5 inch

Application Summary:

1994-2006 Dodge Ram 1500 (Rear) (Drive: 4WD, Rwd / Note: Chrysler 9.25 inch.

• 31 Spline
• 34-1/16 inch. Length
• 5 Lug)
• 1994-1999 Dodge Ram 2500 (Rear) (Drive: Rwd / Note: Chrysler 9.25 inch.
• 31 Spline
• 34-1/16 inch. Length
• 5 Lug)
