UMI Performance - 656061

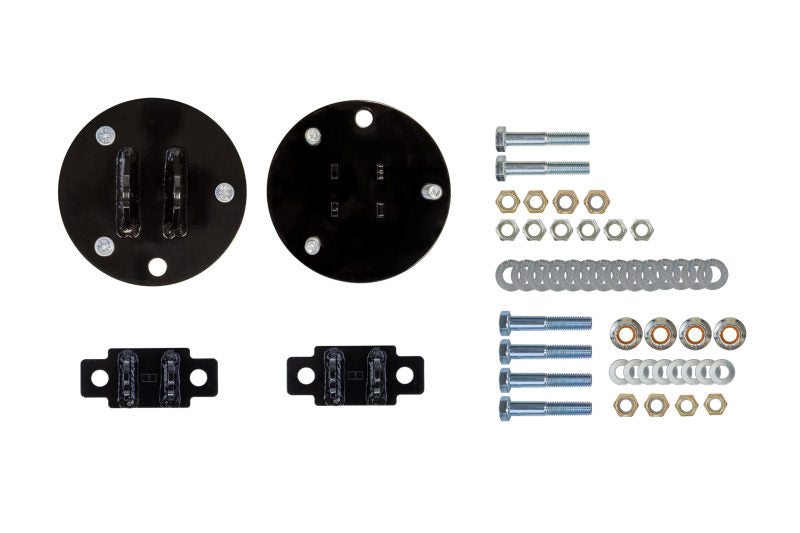

2015-2024 Ford F-150 Front coilover bracket kit
UMI's F-150 front coilover bracket kit is designed to give the truck enthusiast a great mounting option for traditional 2-1/2" dia coilover shock and spring systems. UMI's full kits utilize Viking coilovers but 656061 bracket kit can also accomodate most other brands. Note: springs and shocks not included. Set truck at desired ride height and measure to determine proper shock length. Choose spring based on shock ride height.
- Race proven double shear upper and lower mounting solution (shocks and springs sold separately)
- Fits standard 1.250" W shock with 1/2" through bolt
- For reference, UMI uses 12" 600 lb/in and 850 lb/in springs with a 13-7/8" to 15-1/8" range shock
- Fits in factory location on lower a-arm and upper spring mount area
- No fabrication required, simply bolt-in
- Heavy duty steel construction
- Black powder coat
- 100% Made In USA
- UMI's F-150 front coilover bracket kit is designed to give the truck enthusiast a great mounting option for traditional 2-1/2" diameter coilover shock and spring systems.
- UMI's full kits utilize Viking coilovers but 656061 bracket kit can also accomodate most other brands.
- The bracket kit will accomodate shocks and springs for street performance, drag, autocross and road race oriented trucks.
Control Arm Color: Black
Universal Or Specific Fit: Specific
