UMI Performance - 3062
3062 - 1978-1988 GM G-Body Front Coilover Bracket Conversion Kit

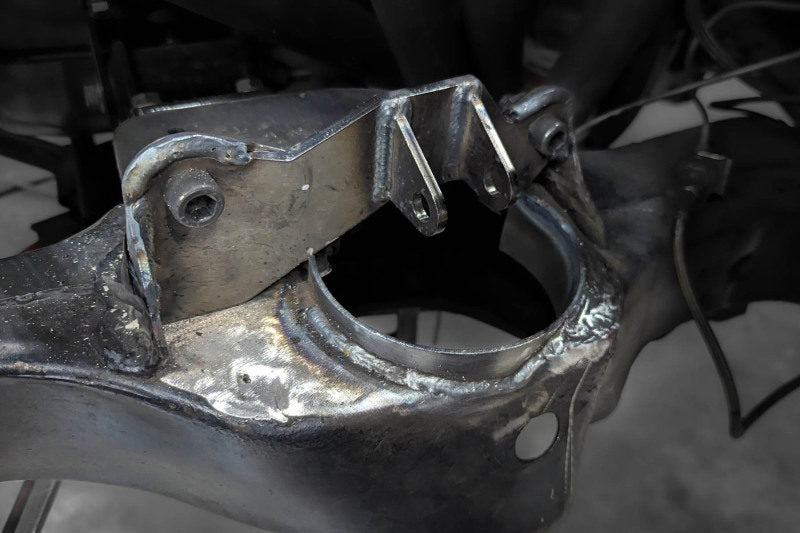

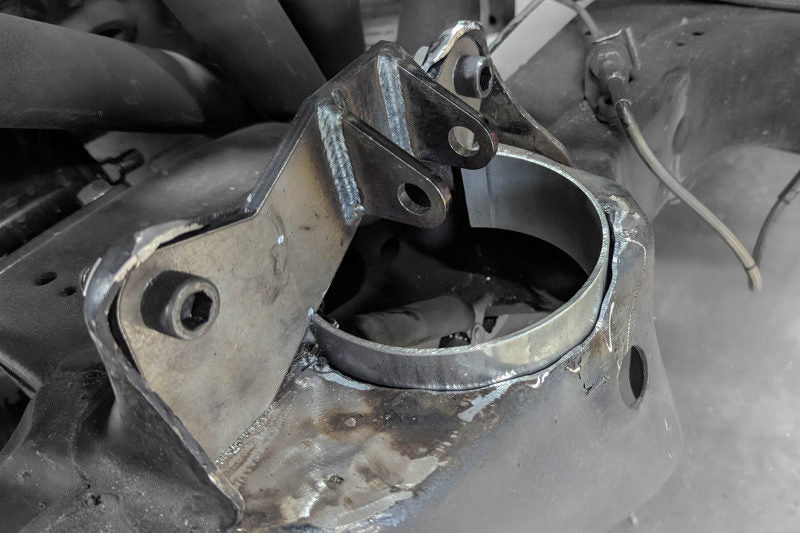

UMI’s weld-in double shear upper shock mount kit is the premium way to add a true racing coilover to the front of your G-Body. This kit includes the double shear mount, trim ring, gussets and full hardware. Fits most common 1/2″ x 1-1/2″ coilovers. Cutting, welding and fabrication is required.

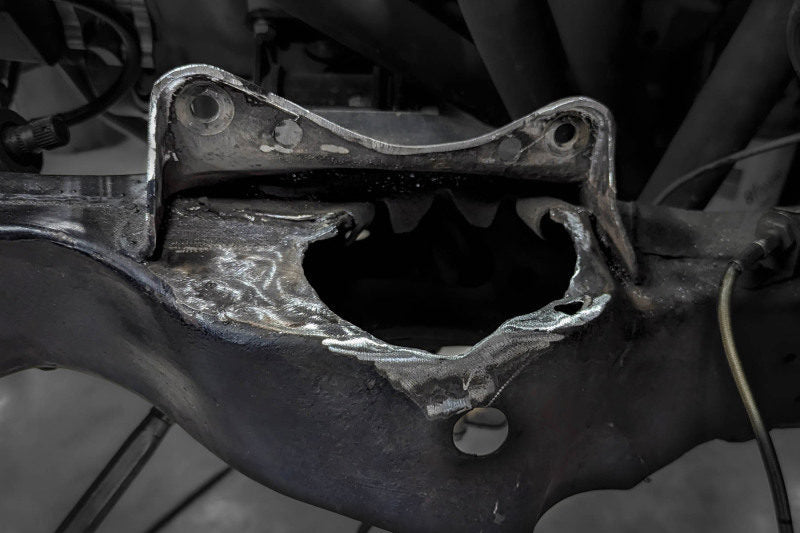

- Weld-in kit requires cutting, welding and fabrication
- Double shear mount fits most common 1/2″ dia bolt x 1-1/2″W racing coilovers
- Commonly used with Viking C209 length shocks and 8″ 850 lb/in springs

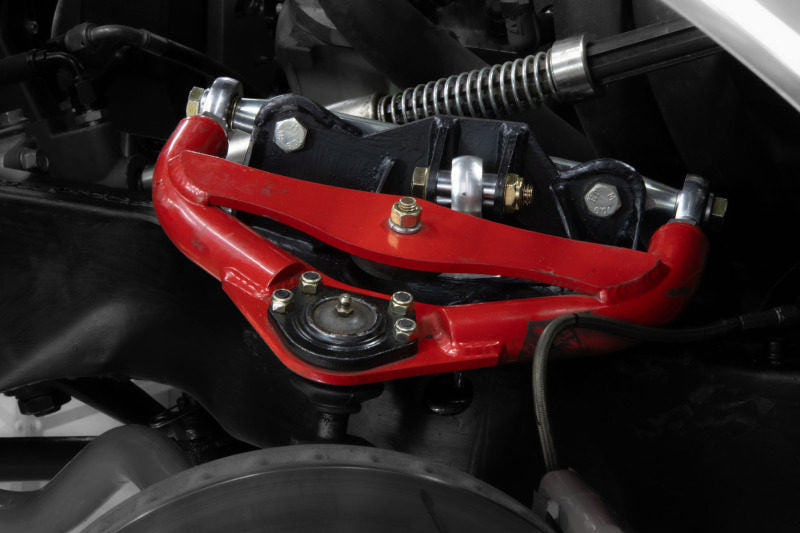

- Pairs well with UMI 3057 #cornermax lower a-arms

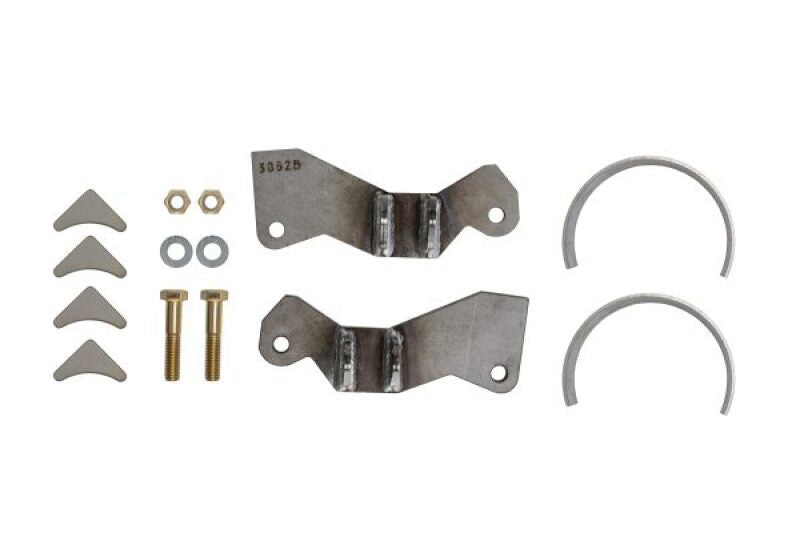

- Trim rings, gussets and hardware is included
- 100% Made In USA
- Race proven on the UMI Green Machine
Attachment Type: Welded
Bolt In or Welded In: Welded In
Cutting Required: Yes
Drilling Required: No
Grade Type: Performance
Material: Steel
Mounting Hardware Included: Yes
