Turbosmart

Turbosmart TS-1-5862VB082E - - Turbocharger

MSRP: $2,111.06
$1,899.95
( saved $211.11 )
Write a Review
  • Turbosmart TS-1-5862VB082E -   - Turbocharger
  • PLEASE NOTE: Pictures are repsentative of style, may be generic.

Out of stock

SKU:
TS-1-5862VB082E
UPC:
09329677028812
  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

Turbosmart - TS-1-5862VB082E

Turbocharger - TS-1 - 58 mm Inlet - V-Band Outlet - External Wastegate - Aluminum - Natural - Universal - Each

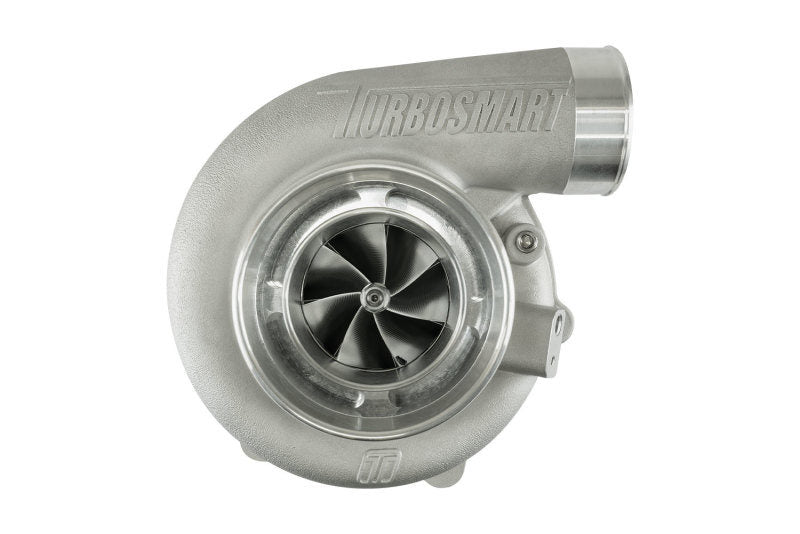

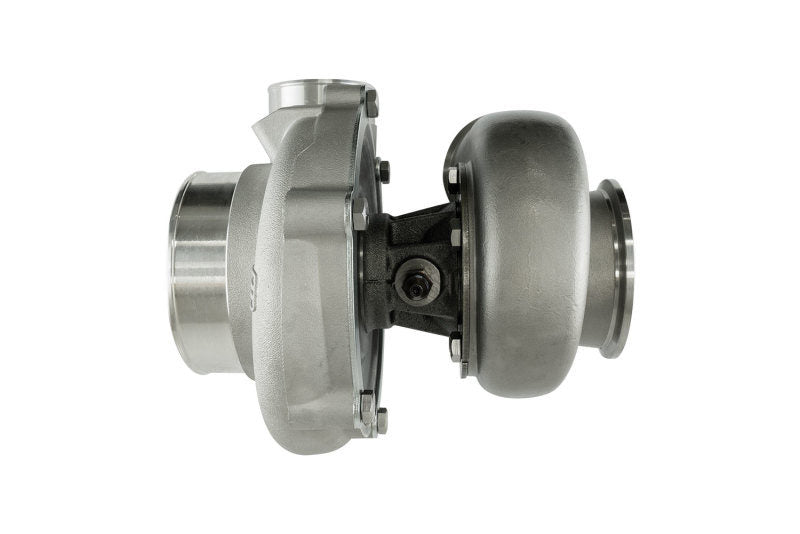

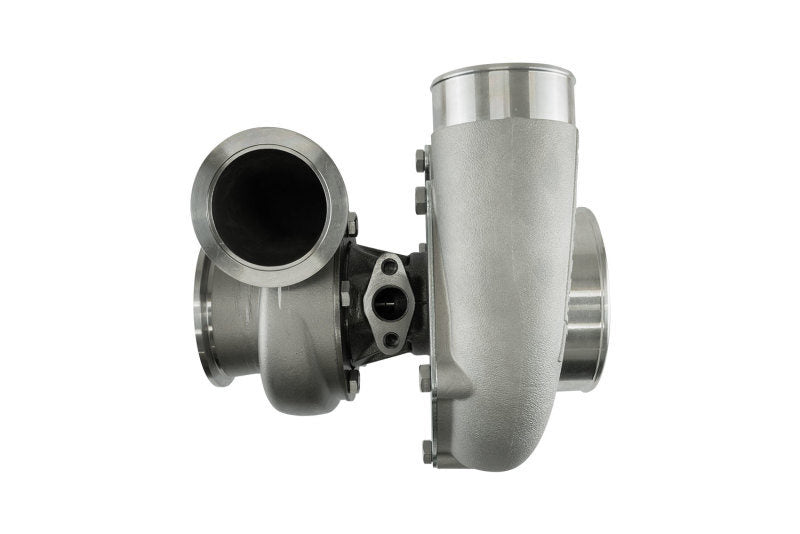

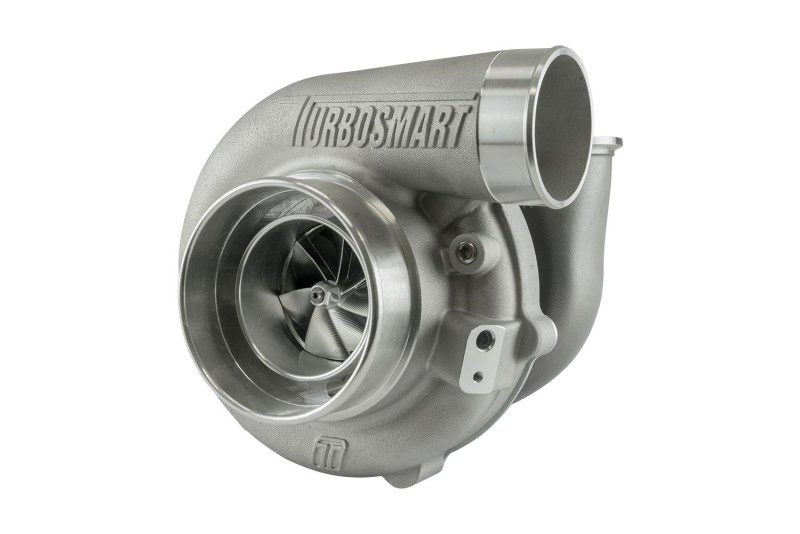

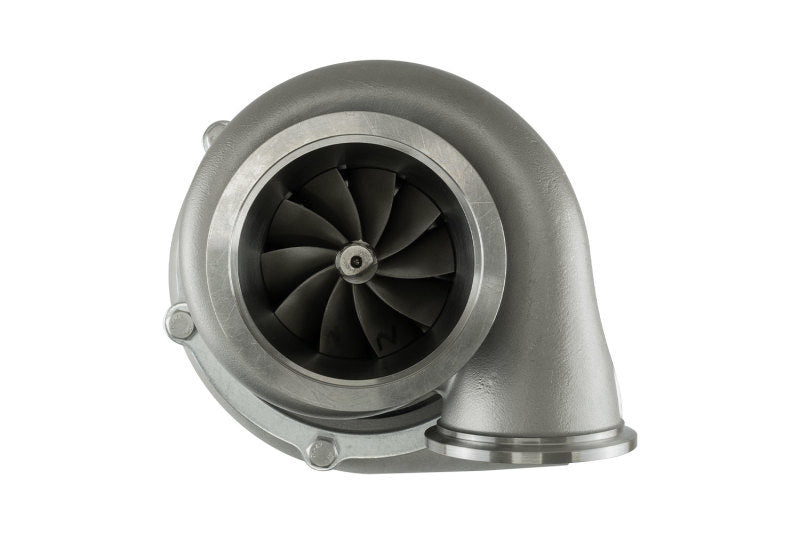

TS-1 Turbocharger 5862 V-Band 0.82AR Externally Wastegated

Smaller, Lighter and Faster - The Turbosmart TS-1 turbocharger series has been developed to leverage modern materials, design and manufacturing techniques to create a Turbocharger range that meets the demands of both Motorsport, and performance enthusiasts alike. The TS-1 series are oil cooled turbochargers with lightweight stainless steel investment cast turbine housings, a proprietary bearing and main shaft combination which will provide transient response you never knew possible with the type of performance, quality, reliability and support you've come to know Turbosmart for. The ultra-low rotating mass of our unique bearing and shaft assembly is matched to aggressive compressor aerodynamics to ensure high levels of performance at lower shaft speeds which is mated with a unique T14 Inconel turbine wheel to ensure power at high loads and flow is maintained. The TS-1 turbocharger series has taken a ?whole of engine' approach to increasing performance, aiming to achieve power through reduced back pressure and high performance turbines - while being smaller, lighter and faster in response than other solutions on the market.

  • Unparalleled transient response
  • Aggressive aerodynamics with 7+7 splitter wheels
  • Lightweight 310s stainless steel investment cast turbine housings
  • Lightweight, Aluminum compressor covers
  • CFD driven designed housings for optimal AR's and flow
  • T14 Inconel turbine wheel for extreme EGT's
  • VSR speed balanced
  • Proprietary dual ceramic bearing system
  • Integrated Iron backplate on center housing

Available in: TS-1 oil cooled turbochargers; TS-2 oil and water cooled turbochargers; V-Band, various T3 Flange and T4 Flange options; Reverse rotation (Selected Sizes); Various AR's options; Internal and external wastegated options available
Compressor Inducer: 58mm
Compressor Inlet: 4.0 in. / 101.6mm

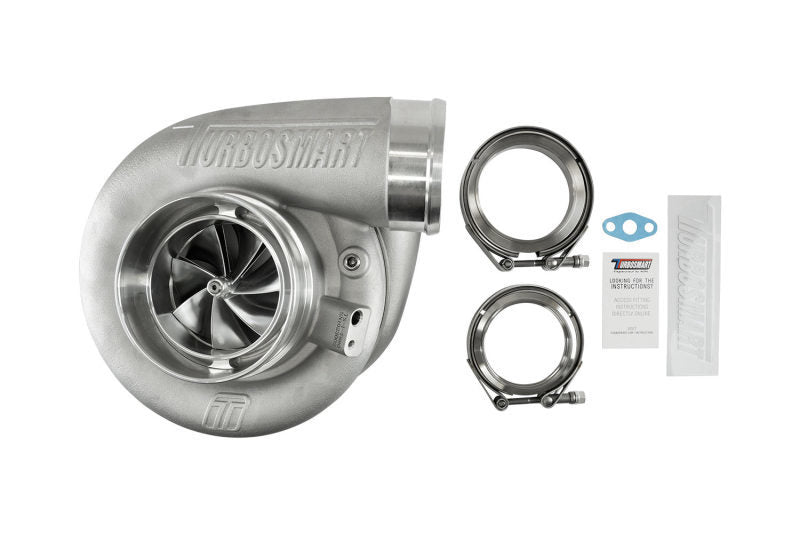

Package Contents: (1x) Turbosmart Performance Turbocharger, (2x) Weld Flanges (Turbine inlet and outlet), (2x) V-Band Clamps (Turbine inlet and outlet), (1x) Oil drain gasket
Turbine AR: 0.82
Turbine Exducer: 62mm
Turbine Inlet: V-Band (3.00 in.)
Turbine Outlet: V-Band (3.00 in.)
Weight: 6.06kg / 13.3lbs
