Turbosmart TS-0555-1202 - WG60 Gen V Power-Gate 60 CG - 5psi Black

Turbosmart TS-0555-1202 - WG60 Gen V Power-Gate 60 CG - 5psi Black

Wastegate - WG60 - 5 psi Spring - 60 mm Diameter - Gaskets / Hardware - Black - Universal - Each

Gen-V WG60CG Power-Gate60 Compressed Gas 5psi Black

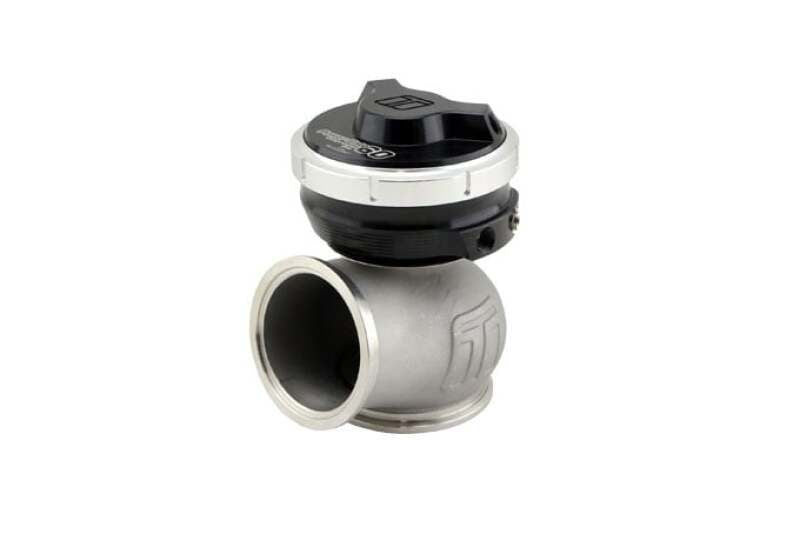

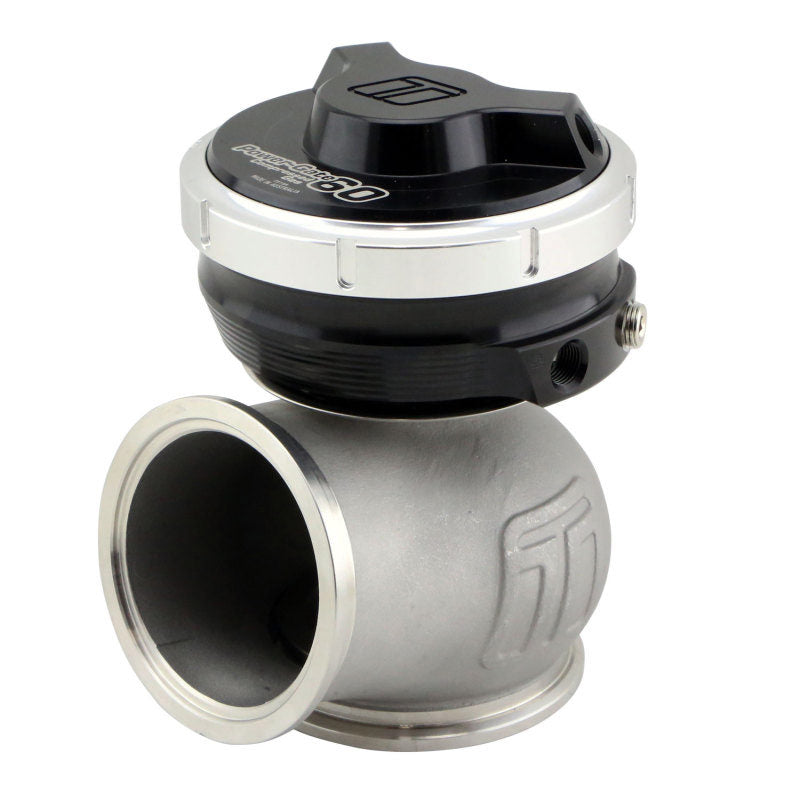

The GenV PowerGate60 Compressed Gas external wastegate is a cost-effective, high performing 60mm external wastegate designed for control strategies that actively bias the top chamber with increased pressure for large boost bandwidth operation, such as CO2 drag racing or compressed air applications. The Compressed Gas / C02 external wastegate range features an inverted diaphragm suitable for high-pressure CO2 or compressed air systems and large pressure differentials.

• Base Spring Options of 3 & 5 PSI
• 17-7 PH Stainless Steel Springs
• Strap Type V-band clamps
• Class Leading, Thermal Performance
• Class Leading CFD & Bench Validated Flow Performance
• Class Leading Fatigue Resistance
• Optional Liquid Actuator Cooling
• Optional Position Sensor Available Separately
• Rotatable / Clock-able Actuator Housing
• 60mm V-Band Fitment
• Nitronic 60 Valve Guide & High Temp 347 SS Body
