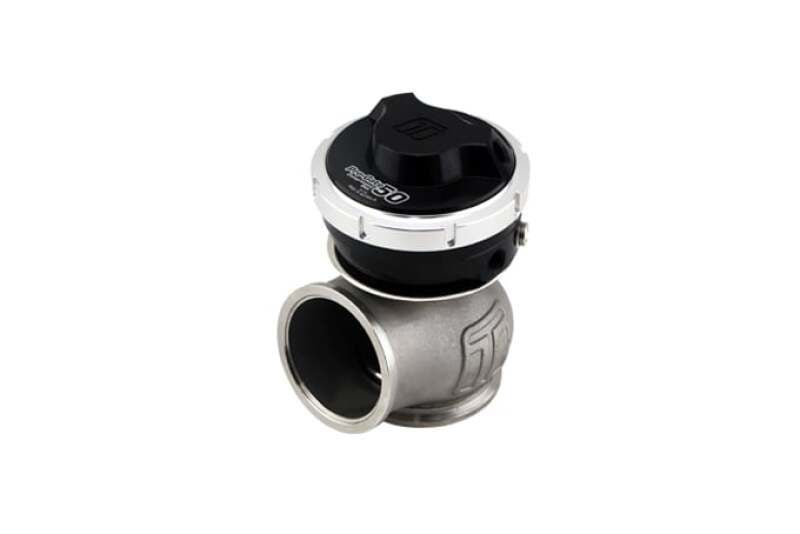

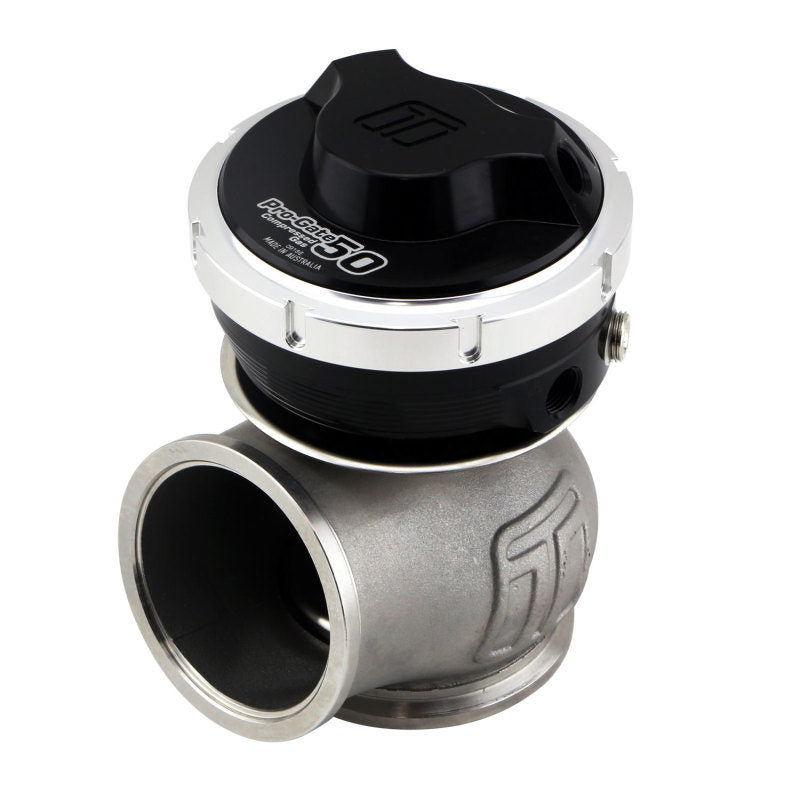

Turbosmart TS-0554-1202 - WG50 Gen V Pro-Gate 50 CG - 5psi Black

Turbosmart TS-0554-1202 - WG50 Gen V Pro-Gate 50 CG - 5psi Black

Wastegate - GenV ProGate - 5 psi Spring - 50 mm Diameter - Gaskets / Fittings / Hardware - Black Anodized - Universal - Each

Gen-V WG50CG Pro-Gate50 Compressed Gas 5psi Black

The GenV ProGate WG50 Compressed Gas external wastegate is a cost-effective, high performing 50mm external wastegate designed for control strategies that actively bias the top chamber with increased pressure for large boost bandwidth operation, such as C02 drag racing or compressed air application. The Compressed Gas / C02 external wastegate range features an inverted diaphragm suitable for high-pressure C02 or compressed air systems and large pressure differentials.

• Base Spring Options of 3 & 5 PSI
• 17-7 PH Stainless Steel Springs
• Strap Type V-band clamps
• Class Leading Thermal Performance
• Class Leading CFD Driven & Bench Validated Flow Performance
• Class Leading Fatigue Resistance
• Optional Liquid Actuator Cooling
• Optional Position Sensor Available Separately
• Rotatable / Clock-able Actuator Housing
• 50mm V-Band Fitment
• Nitronic 60 Valve Guide & High Temp 347 SS Body
