Tuff Country - 97056
Tuff Country P/N 97056 block kit includes lift blocks and u-bolts designed to raise the rear of your Dodge Truck. Installation is done by inserting the cast lift blocks between the factory rear leaf springs and axle. Extended zinc plated rear u-bolts designed specifically for the Dodge Truck are used to replace the factory u-bolts.
Details:
- Rear Block and U-Bolt Kit
- Lifts the rear of your vehicle 3/4 inch (Replaces factory blocks)
- Maintains a factory ride
- Custom made for the application
- Lift blocks are constructed of heavy duty cast iron
- Blocks are non-tapered
- Zinc plated corrosion resistant extended u-bolts
- Simple Bolt-on Installation
- Made In The USA
- Sold As A Kit
Fits:
- 1994-2002 Dodge Ram 2500 4WD (with factory contact overloads)
- 1994-2002 Dodge Ram 3500 4WD (with factory contact overloads)
Installation Notes:
- On most applications factory length shocks must be replaced with extended length shocks when installing rear blocks 2 inches in height or taller
- Included 5.5 inch lift blocks replace factory 4.75 inch blocks. U-bolts are not long enough to stack both blocks
- Designed for rear axles only. Never use lift blocks with a front axle
Tech Specs:
- Amount of Lift: 3/4 Inch Rear Lift
- Blocks Tapered: Yes
- Lift Block Dimensions: 5.5 Inch H x 3 Inch W x 5.5 Inch L
- U-Bolt Dimensions: 9/16 Inch x 3 Inch x 18 Inch - Square

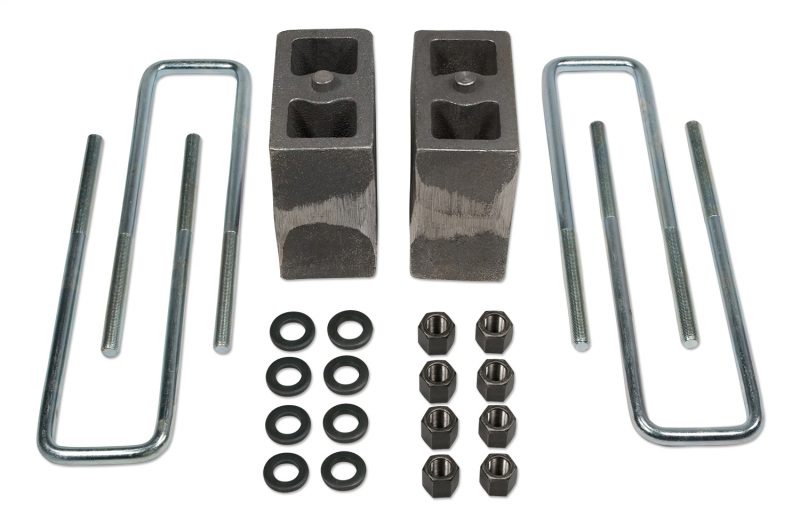

- Includes: 2) 5.5 Inch Cast Iron Lift Blocks, 4) Rear Axle U-bolts, 1) Hardware Bag (nuts and washers)
