Trans-Dapt Performance - 44061
Engine Conversion Kit - Swap In A Box - Gaskets / Hardware / Headers / Mounts / Oil Pan / Pickup Tube - Auto / Manual Trans - 4WD - Small Block Chevy - GM Compact SUV / Truck 1982-2005 - Kit

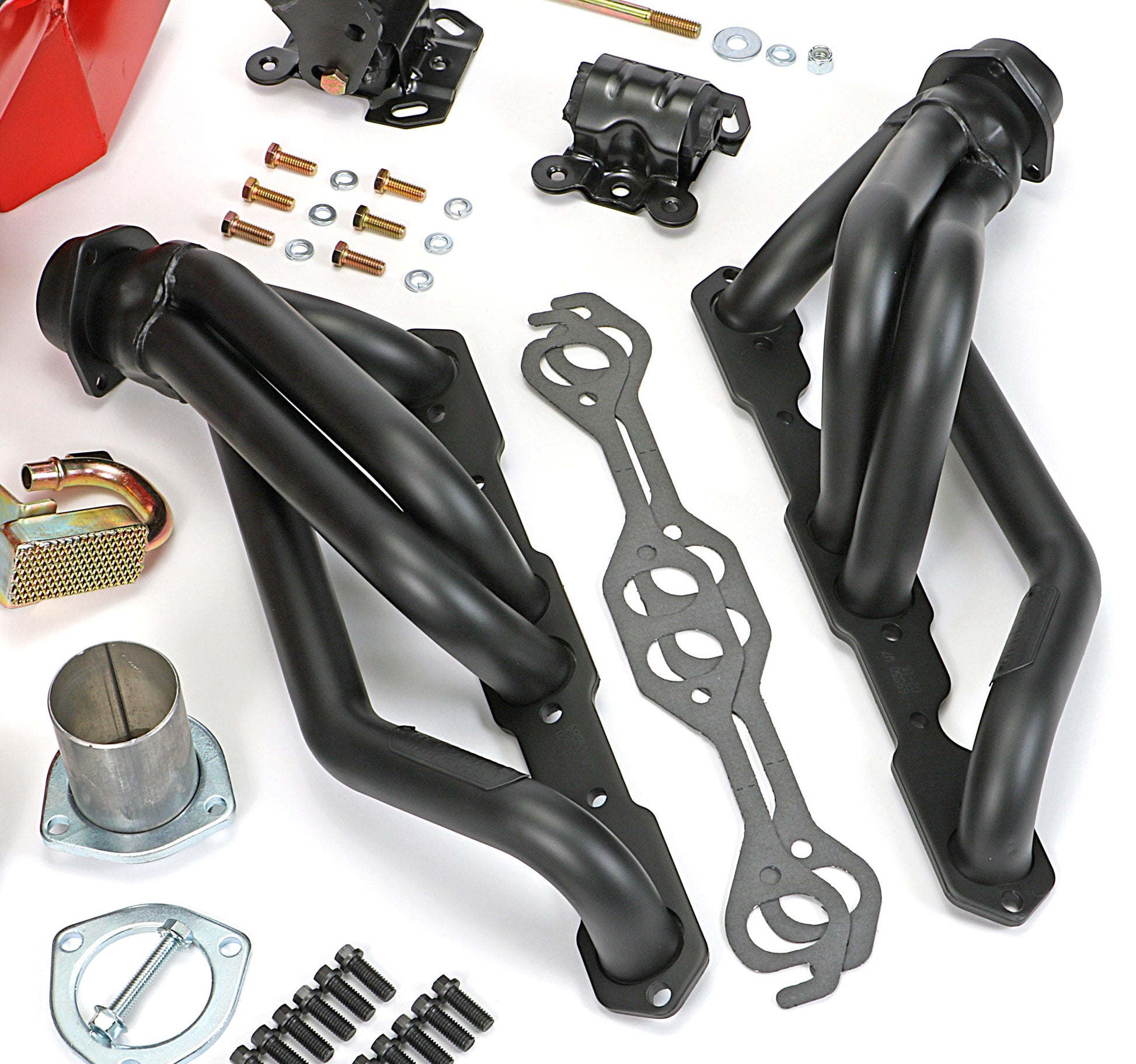

Engine Swap-In-A-Box Kit; Installs 1955-78 SB Chevy with FACTORY Heads in 1982-04 (4WD only) Chevy/GMC S10, S15, Blazer Vehicle Family; Standard-Duty, Mild Steel, 1-1/2 in. MID-LENGTH Tube Headers- UNCOATED Headers
Tube Diameter: 1-1/2 in.
Gasket Or Seal Included: Yes
Pickup Included: Yes
Oxygen Sensor Bung Included: No
Oil Pan Bolts Included: Yes
Mounting Hardware Included: Yes

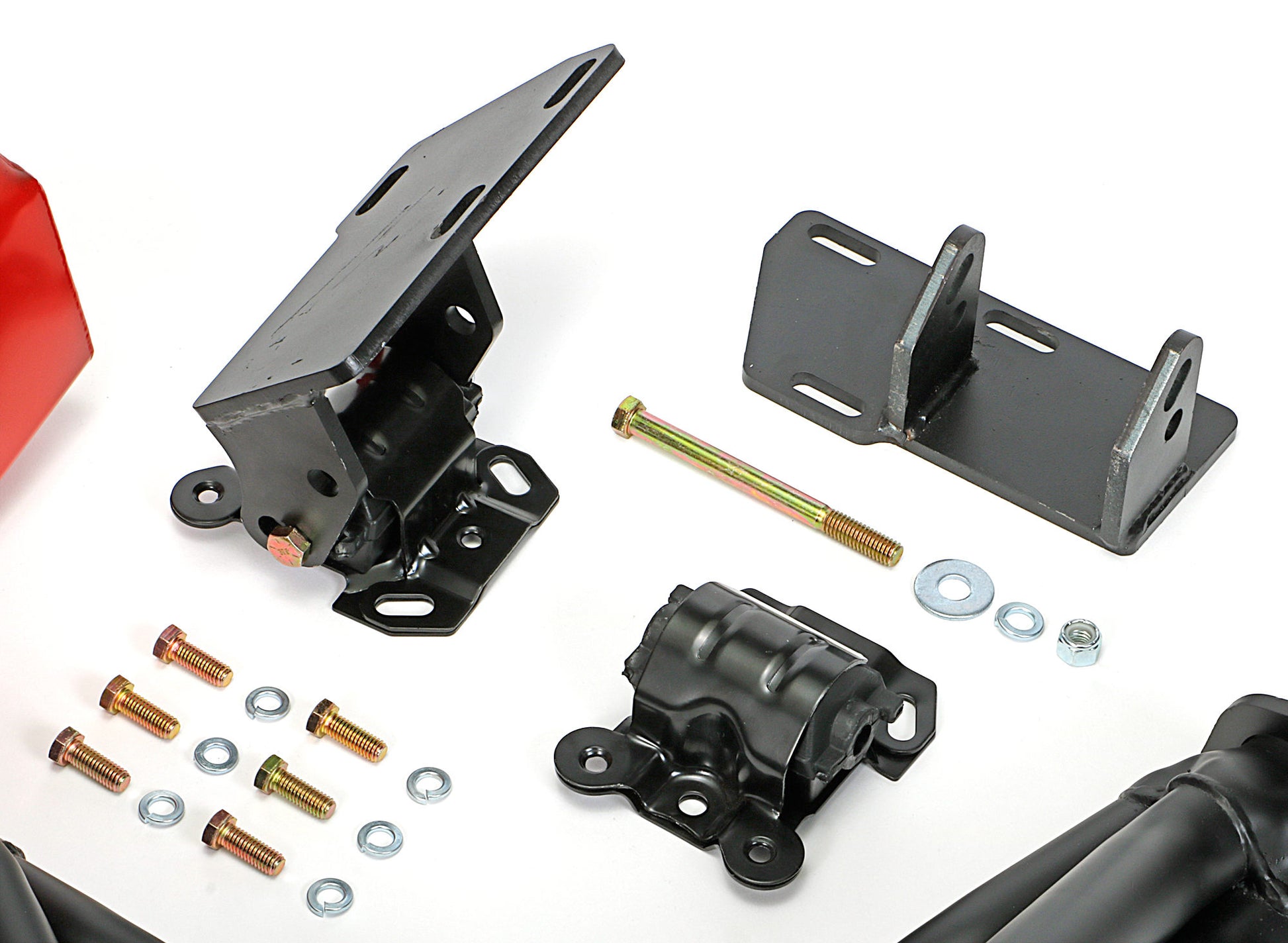

Motor Mounts Included: Yes
Installation Hardware Included: Yes
Header Fasteners Included: Yes
Drain Plug Included: Yes
Windage Tray Included: Yes
Crank Shaft Wiper Included: Yes
Collector Bolts Included: Yes
Bolts/Studs Included: Yes
Tuned: No

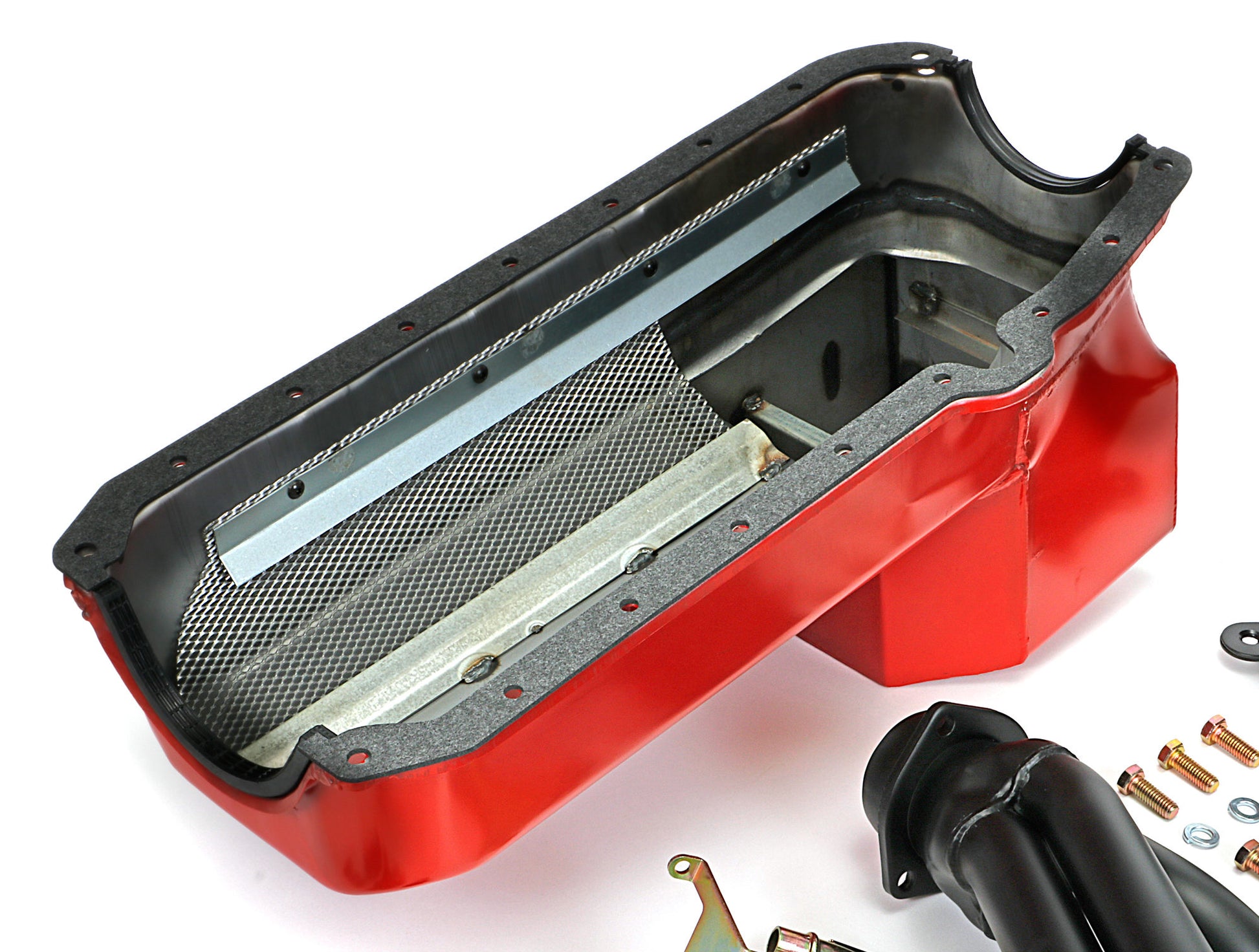

Oil Pan Depth (in): 9.25 in.
with EGR: No
with A.I.R. System: No
Reducers Included: Yes
Y-Pipe Included: No
Kicked Out: No
Transmission Mount Type: Crossmember
Replacement Head Flange Gasket: 27500
Header Construction: MILD STEEL- Standard-Duty
Vehicle Family: Chevy/GMC S10/S15 Family; 1982-04
Wheel Drive Type: 4WD
Transmission Type: Manual Transmission
Performance: Yes
Oil Pan Material: Steel
Primary Tube Gauge: 18g
Oil Pan Capacity: 7 Qt. Capacity
O2 Provision: No
Cylinder Head: Factory Style
Header Finish: Uncoated
Header Material: Mild Steel

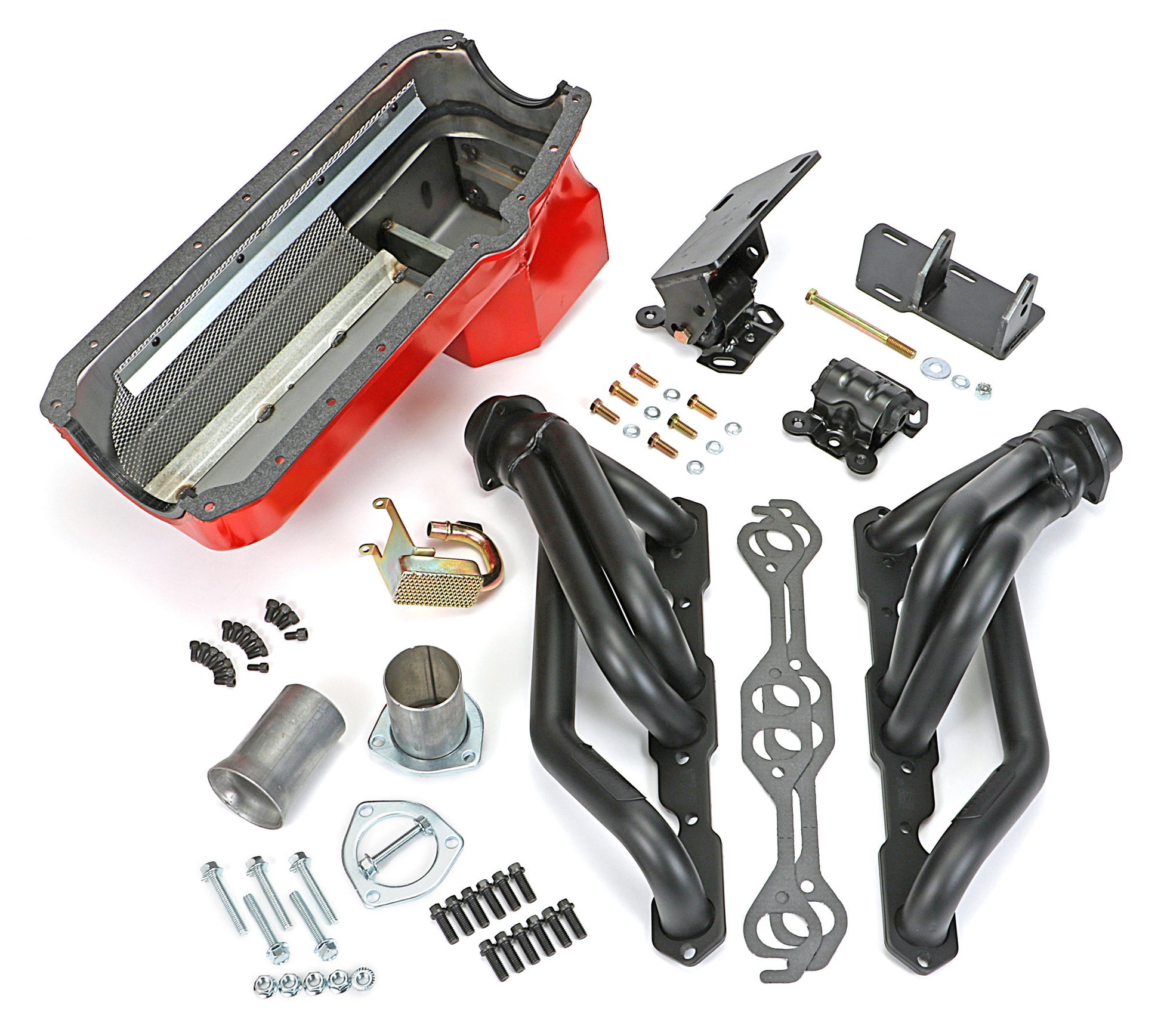

Package Contents: Headers; Engine Mounts; Oil Pan; related gaskets and Hardware
Primary Tube Diameter (in): 1.50 in.
Head Type: Factory Heads
Sump Location: Rear
Air Conditioning: Yes
Collector Attachment: 2-1/2 in.
Emissions Notes: Not legal for sale or use in California, or on pollution controlled vehicles.
Drivetrain: 4WD
Contents: Headers; Engine Mounts; Oil Pan; related gaskets and Hardware
Exhaust System Dia: 2-1/2 in.
Reducer Outlet Size: 2-1/2 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Collector Size: 2-1/2 in.
Capacity: 7 Qts.
Engine Notes: For 1955-79 SB Chevy engines with driver's side dipstick only.
Baffled: Yes
Transmission Compatibility: Manual Transmission
Power Steering: Yes
Manual Transmission - Floor: Yes
Manual Transmission - Column: No
Automatic Transmission - Floor: Yes
Automatic Transmission - Column: No
Engine: Chevy SB 283-400; '55-79 (Gen 1)
Finish: Uncoated Headers
Dipstick Port: Yes
Pickup #: 2509
Tube Size: 1-1/2 in.
Tube Material Thickness: 18g
Tube Design: MID-LENGTH
Sump Style: Wet Sump
Material: Mild Steel
Product Details: Engine swap kit for installing a 1955-78 SB Chevy engine into 1982-2004 4WD Chevy/GMC S10/S15 Trucks
Port Shape: Round
Pan Capacity: 7 Qts.
Finish Type: These headers are uncoated.
O2 Sensors Included: No
IMPORTANT!: 4WD Vehicles ONLY!
Header Style: Mid-Length Tube
Header Port Shape: Round
Head Style: Factory Profile
Fluid Capacity: 7 Qt
Flange Thickness: 0.3125 in.
