Superwinch - 1715001
Winch - 1500 lb Capacity - Roller Fairlead - 1/8 in x 35 ft Steel Rope - 120V - Kit
AC 1500 Winch; 15000 lbs.; 1.1 HP 120V AC Permanent Magnetic Motor; Standard Drum; Dynamic Motor Brake;
The AC 1500 utility winch features a free-spool "pull and turn" clutch handle, 12' handheld remote, and 35' of .150 in. diameter wire rope. The AC 1500 is rated for 1,500 lbs. of reliable pulling power, and is IP66 rated for protection from water and dust. The AC 1500 comes with a limited 2 year warranty and is available in a durable gray powder coat finish.
- 1500 lbs. Capacity
- 1.1 HP 120V AC Motor
- Permanent Magnetic Motor Provides Dynamic Braking
- 2 Stage Planetary Gearing w/262:1 Ratio

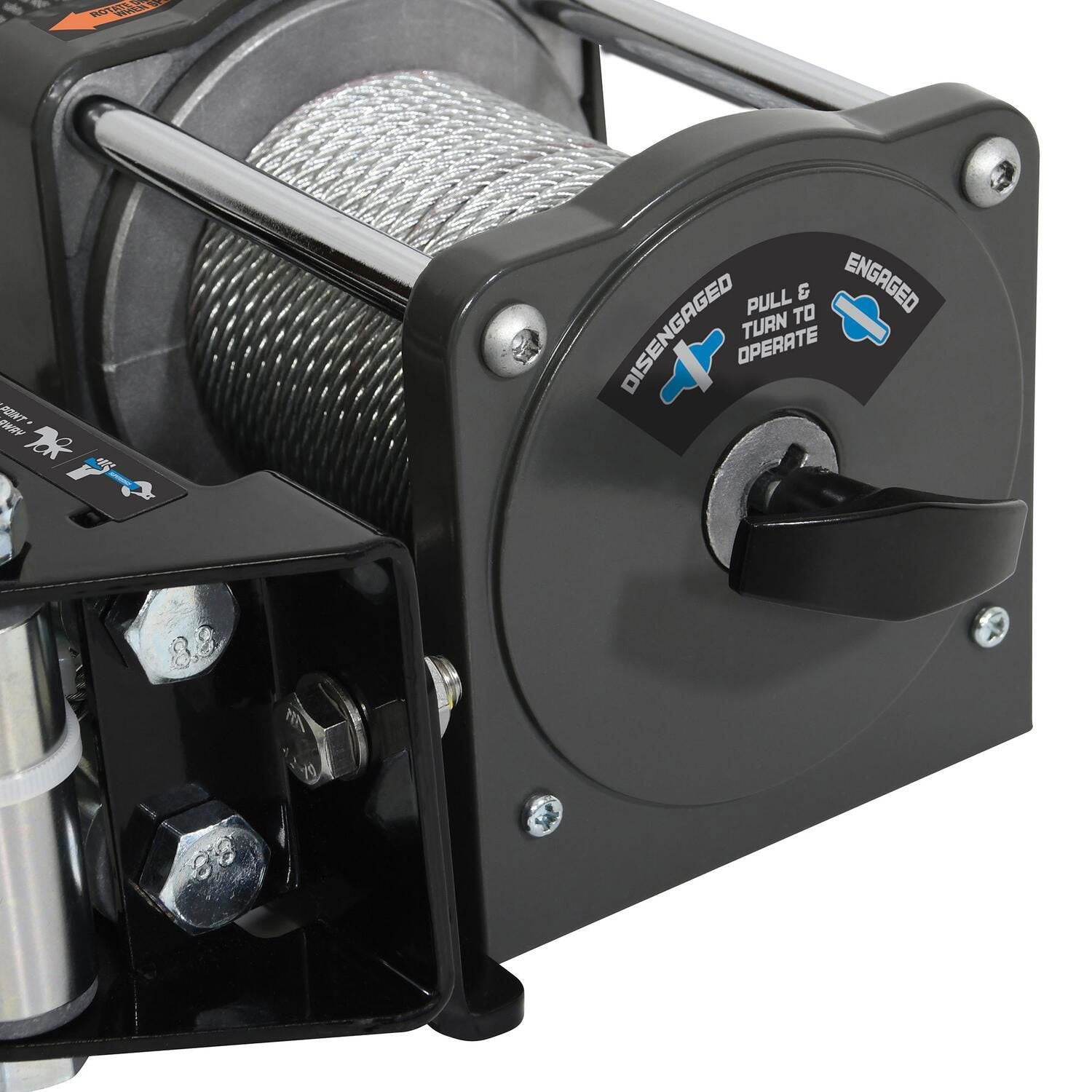

- Pull And Turn Clutch Handle
- Standard Drum: 3.2 in. L x 1.9 in. D
- Ip66 Protection From Water And Dust
- Clevis Pinned Latched Hook

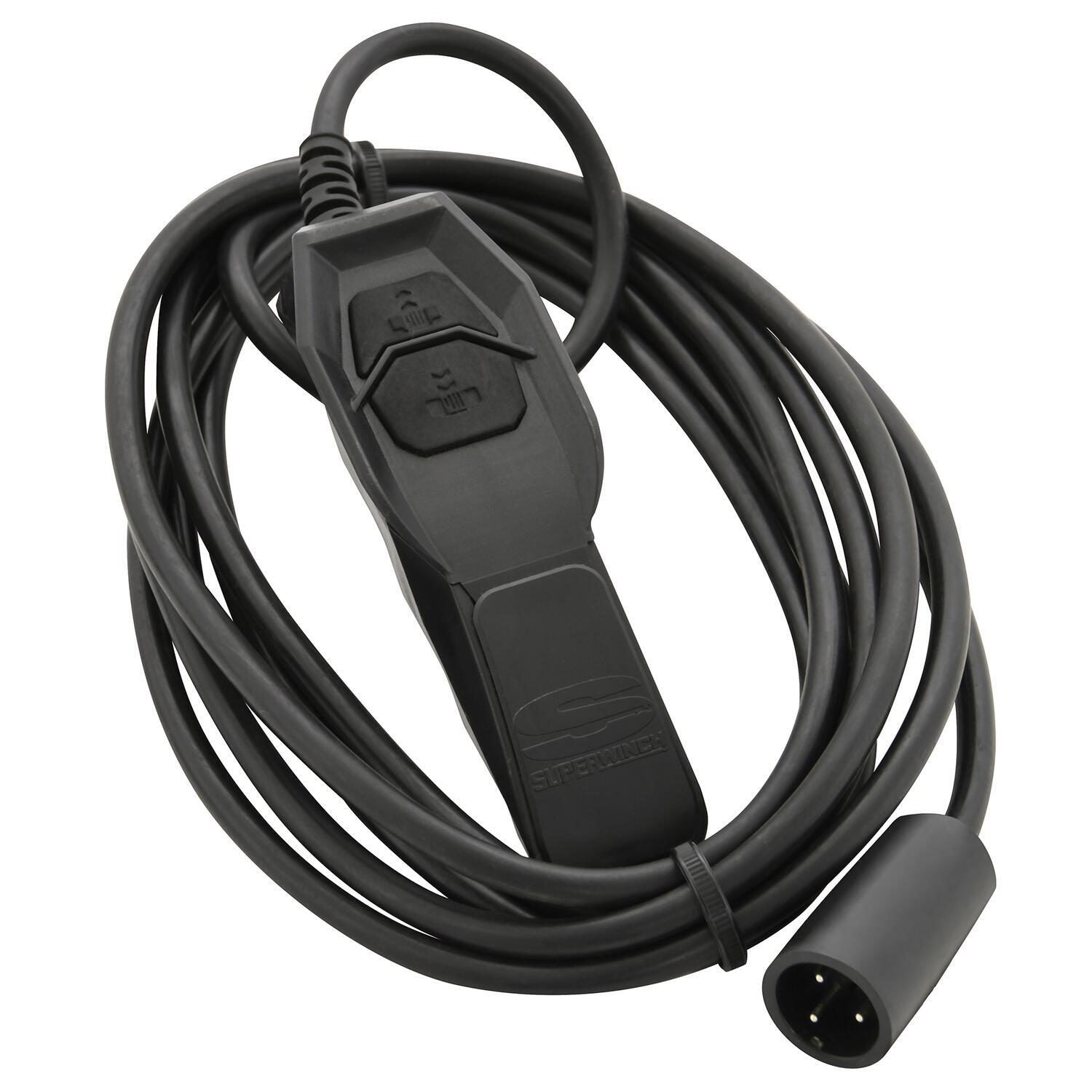

- 12 Ft. Hand Held Remote
- 2 Hole Mounting Bolt Pattern 3.1 in. On Center
- Gray Powder Coat Finish

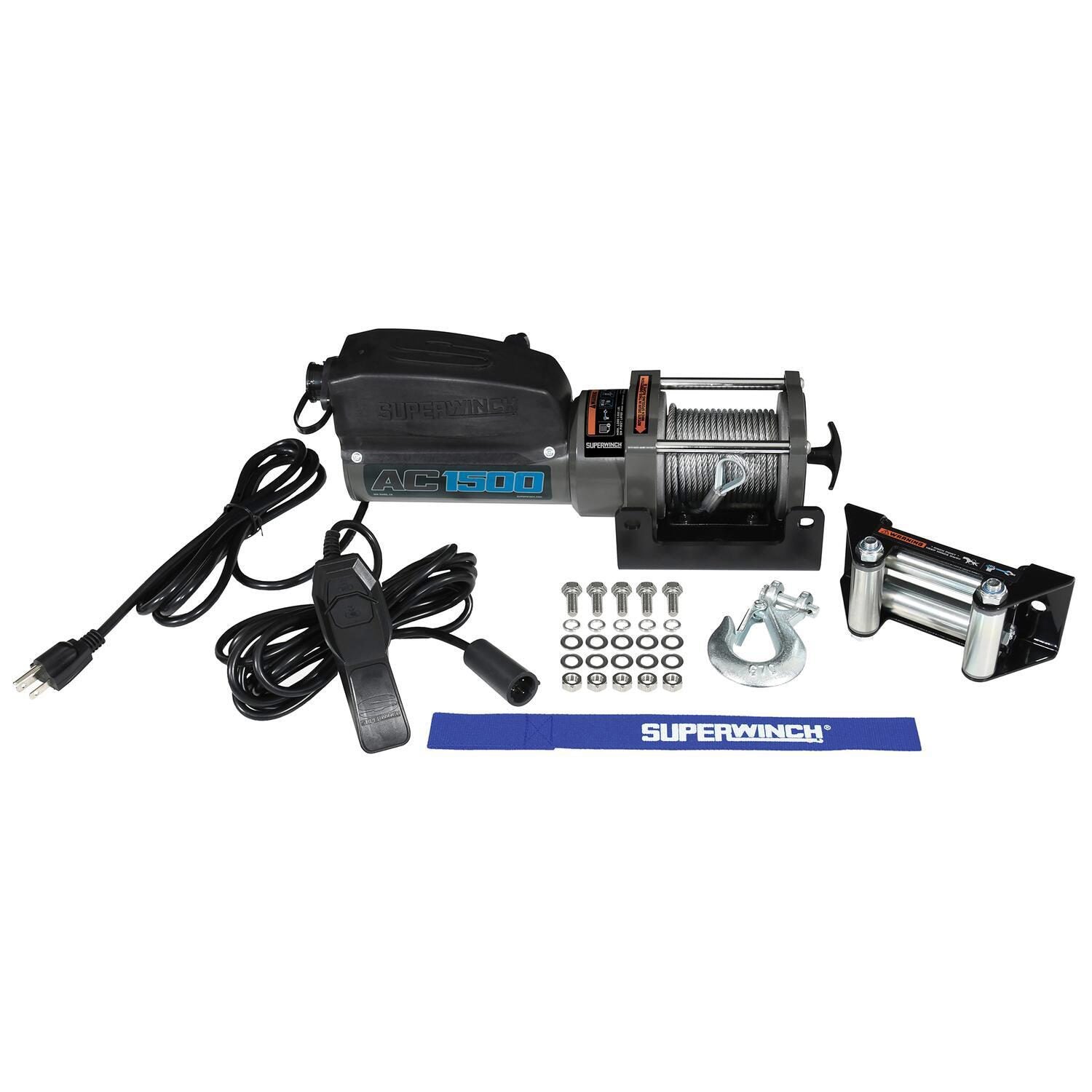

- Kit Incl. Remote Control/Wire Rope/Roller Fairlead/Mounting Plate/Fasteners And Power Cord
Brake System: Dynamic
Material: Steel
Winch Hook: Heavy-Duty, Clevis Pinned Latched
Warranty: 2 Year Limited Manufacturer
Rope Length: 5/32 in x 35 ft (3.9mm x 10.6m)
Remote Control: 12 ft Rubber Sealed Hand-held
Rated Single Line Pull (Lbs): 1500
Mounting Bolt Pattern: 2-Hole pattern 3.1in on center
Motor: 1.1 HP, 120V AC
IP Rating: IP66 Waterproof and Dustproof
Can Ship By Ground Delivery: Yes
Gear System: 2-stage planetary
Gear Ratio: 262:1
Finish: Powder Coated
Fairlead: 4-Way Roller
EN Compliant: No
Color: Black
Clutch: Free-Spooling, Pull and Turn
Winch Model: AC 1500
