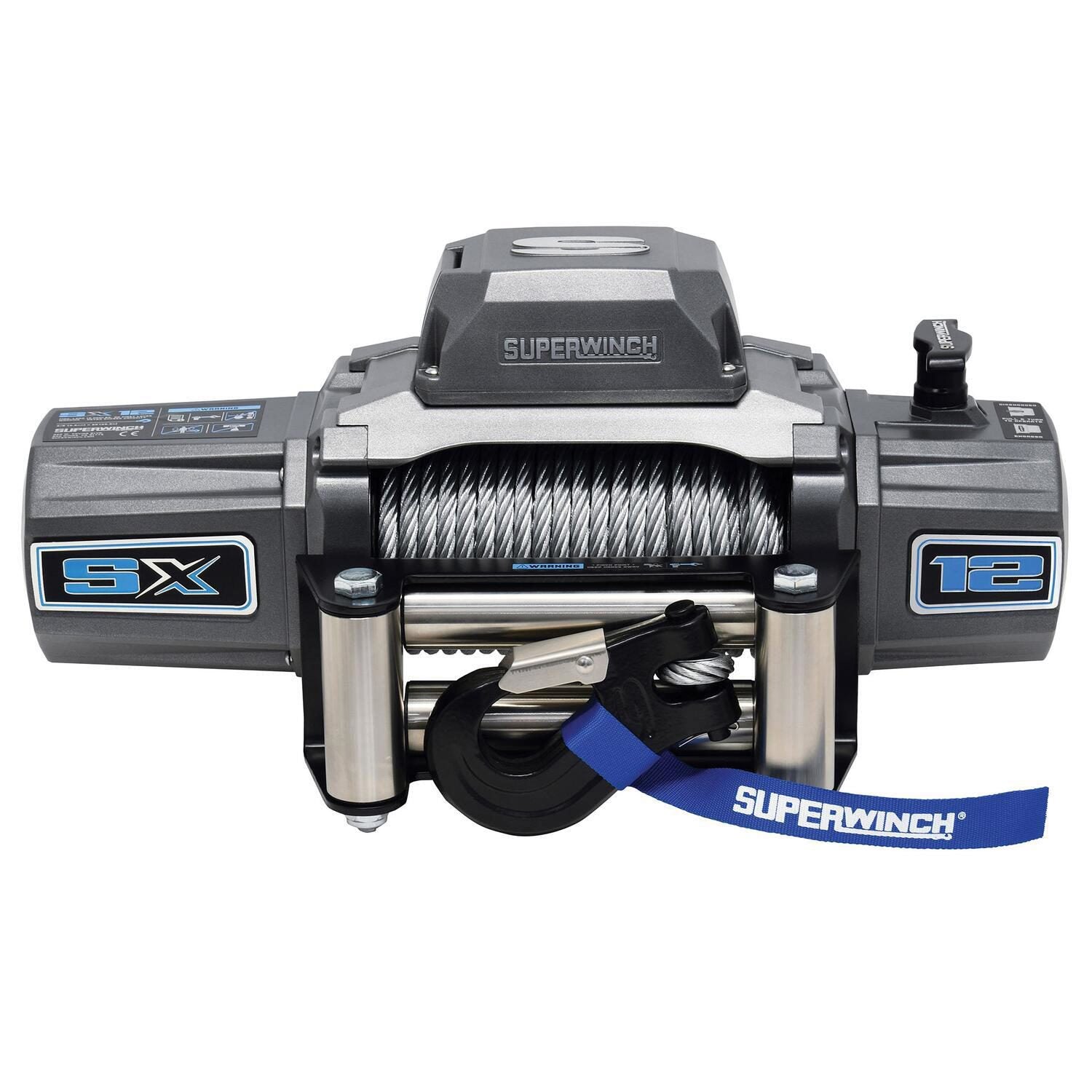

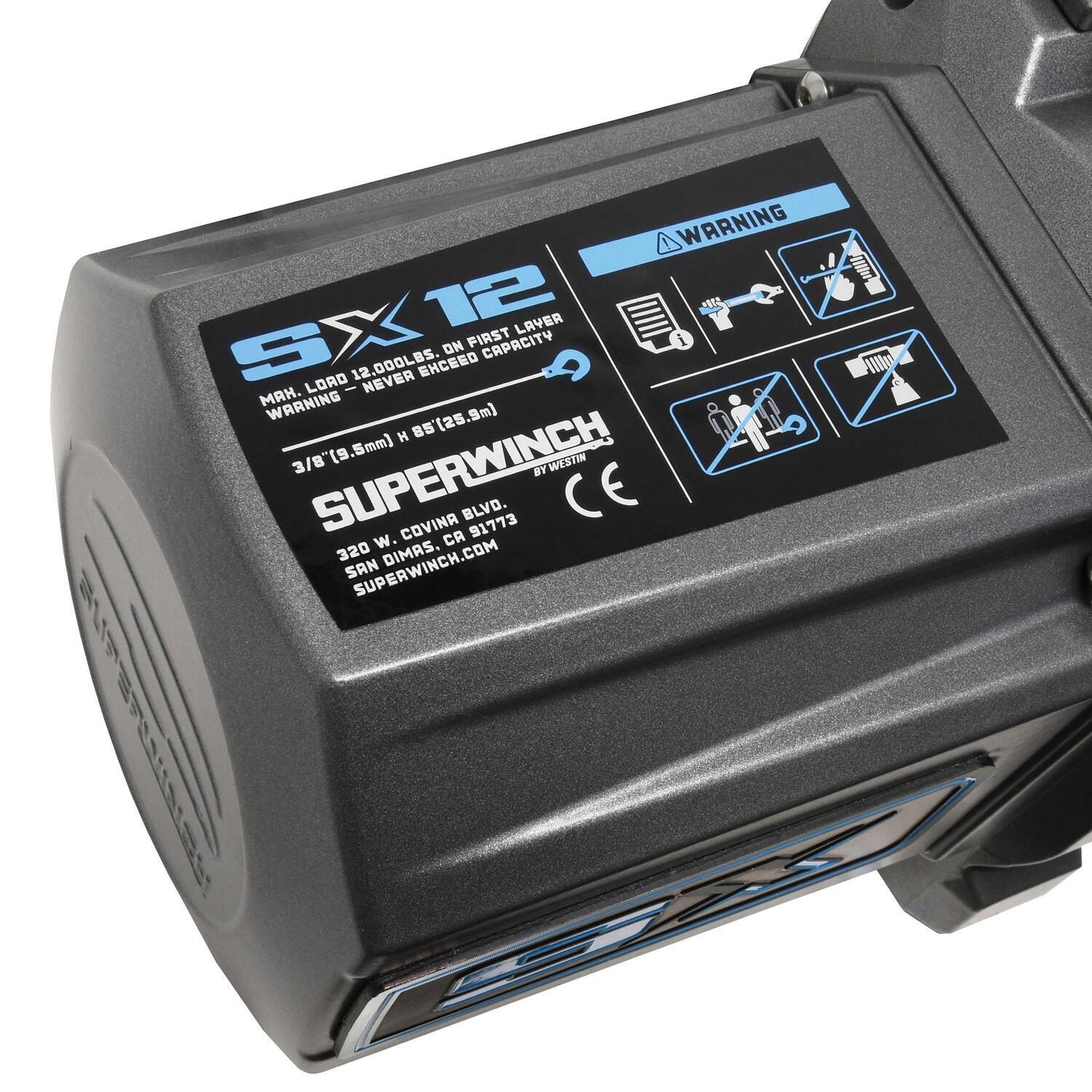

Superwinch 1712200 - 12000 LBS 12V DC 3/8in x 85ft Wire Rope SX 12000 Winch - Graphite

Superwinch 1712200 - 12000 LBS 12V DC 3/8in x 85ft Wire Rope SX 12000 Winch - Graphite

Superwinch | 1712200
SKU: SWINCH-1712200
Regular price $808.99 USD
Regular price $889.89 USD Sale price $808.99 USD
Sale Sold out
Shipping calculated at checkout.

8 in stock

Quantity

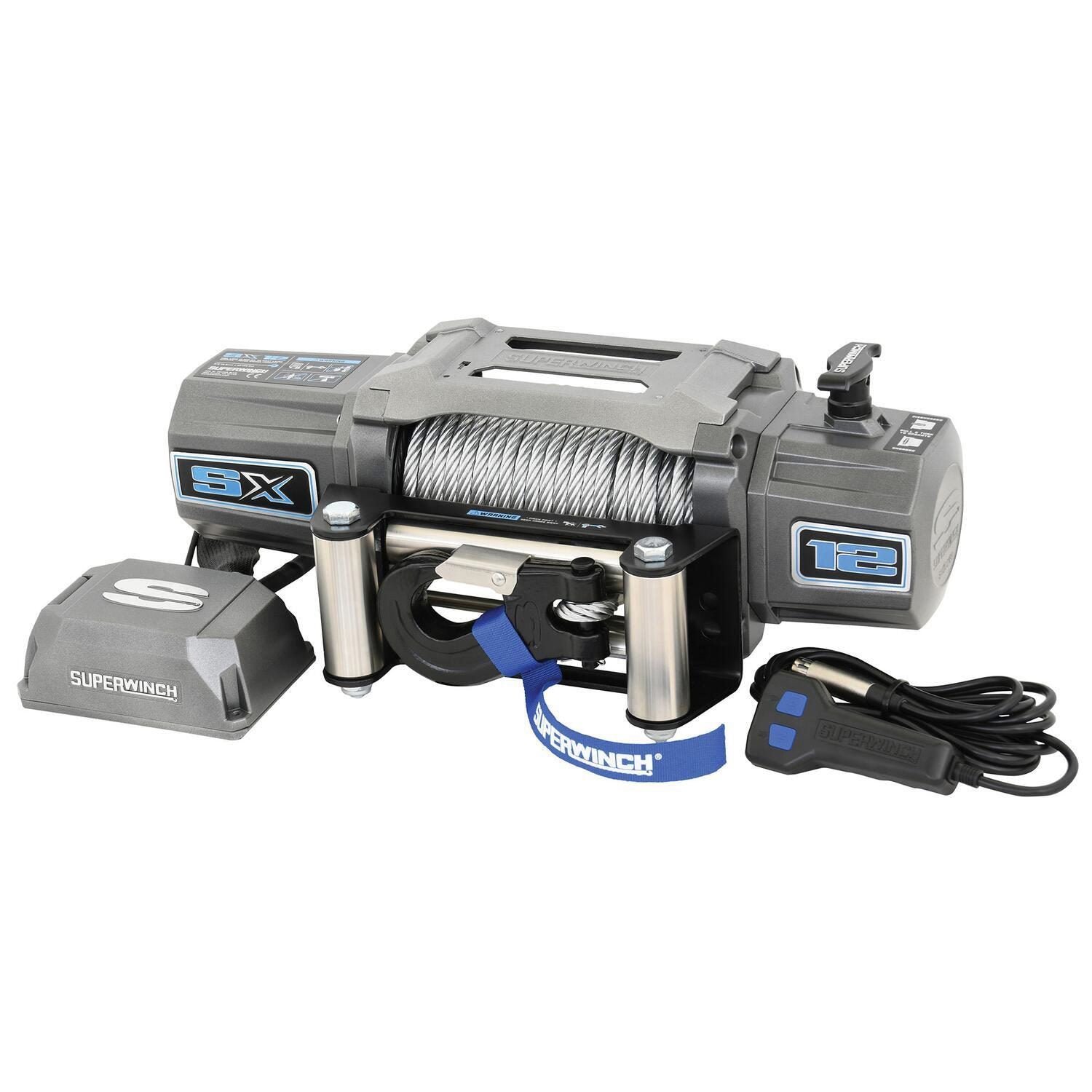

Superwinch 1712200 - 12000 LBS 12V DC 3/8in x 85ft Wire Rope SX 12000 Winch - Graphite

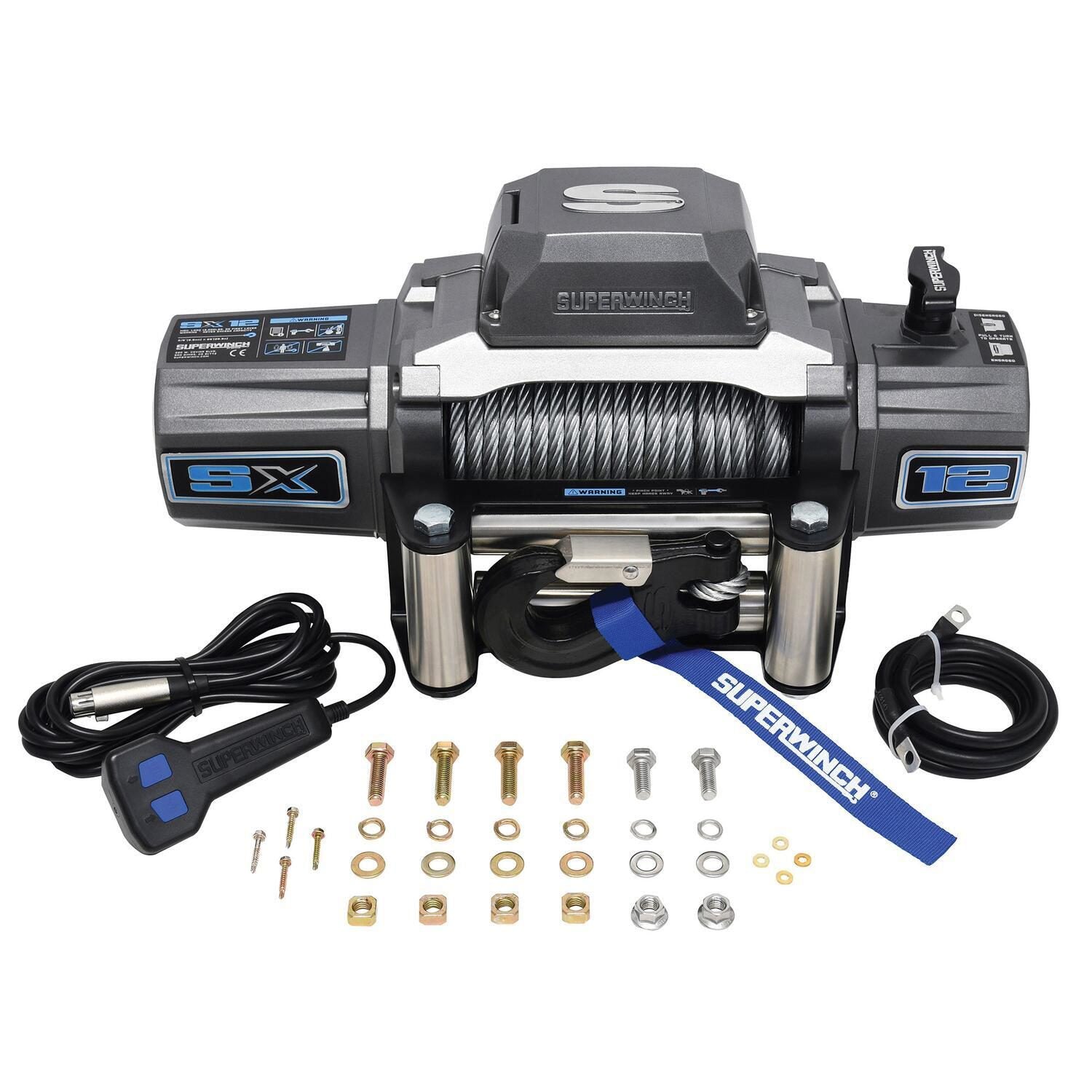

Winch - SX-Series - 12000 lb Capacity - Roller Fairlead - 12 ft Remote - 3/8 in x 85 ft Steel Cable - 12V - Kit

SX12 Winch; 12000 lbs.; 12 VDC; 3/8 in x 85 ft. Wire Rope; Handheld Remote Control; 6.0 HP; Automatic Brake; 3-Stage Planetary; Stainless Steel 4-Way Roller Fairlead;

The SX12 is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8 in. diameter wire rope and a 12' lighted wired remote that comes standard. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX 12 wire rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.

  • 12,000 lbs. capacity
  • 6.0 Hp Sealed Motor
  • 85' - 3/8" wire rope

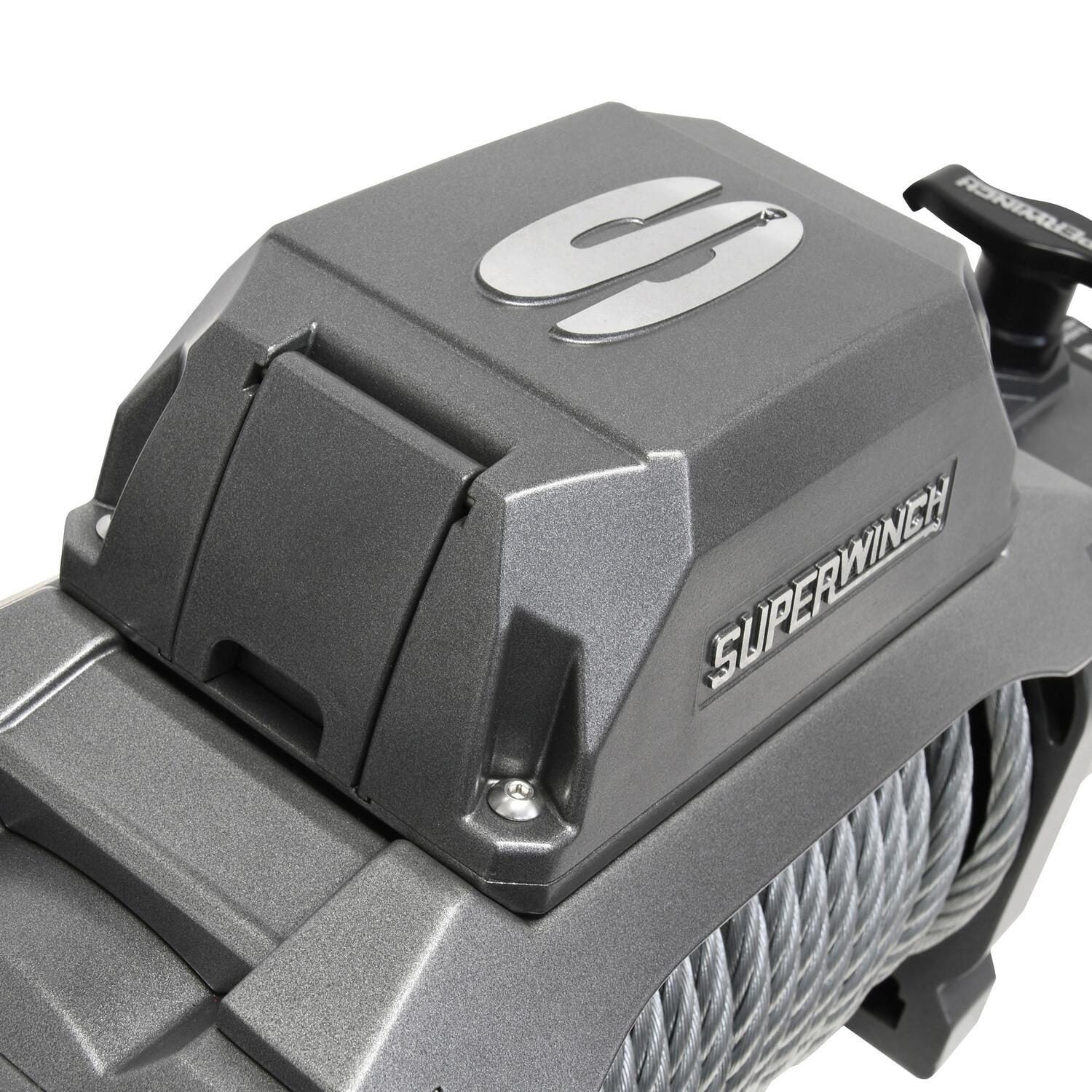

  • Relocatable die-cast aluminum control box
  • 12' wired remote with integrated lithium-ION rechargeable LED flashlight

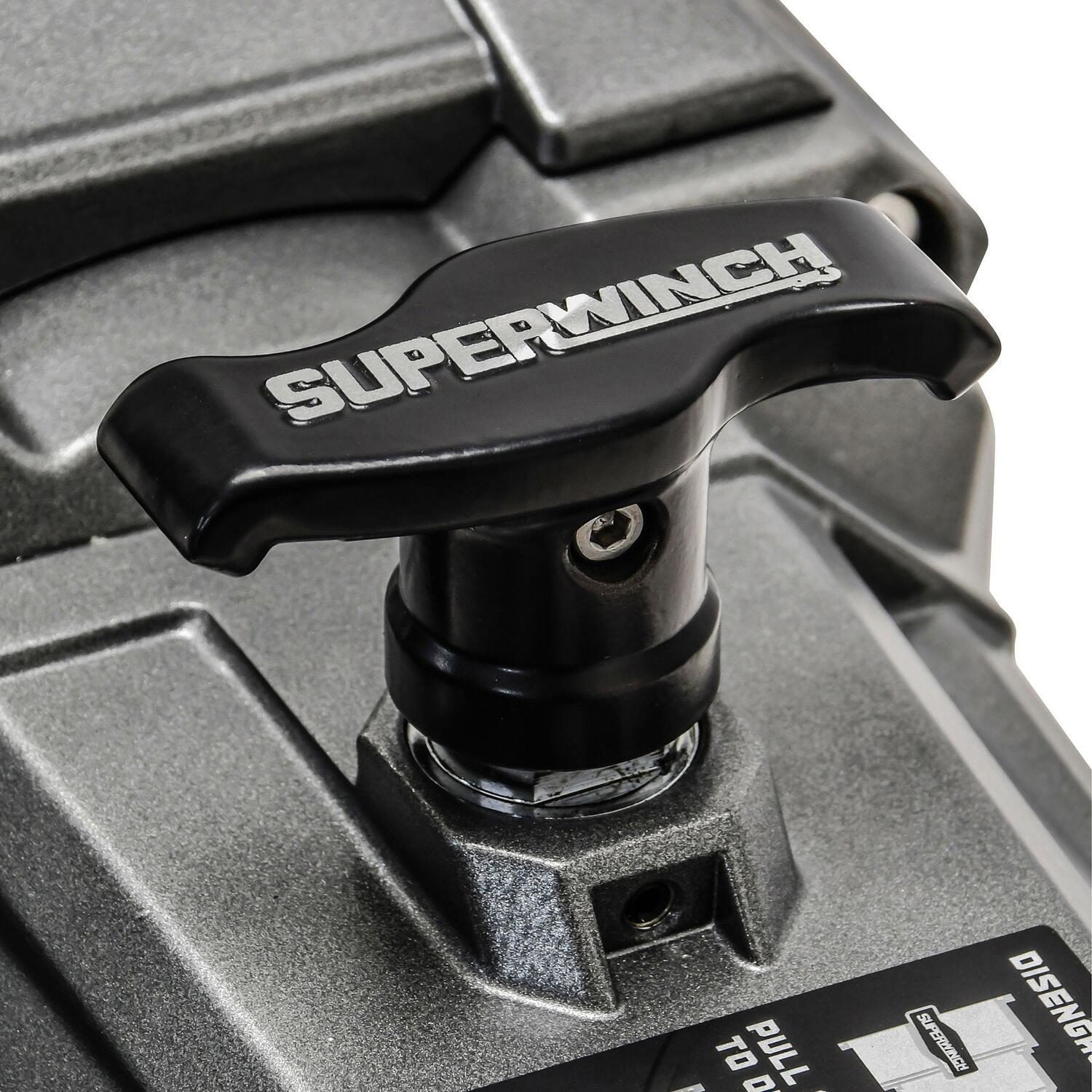

  • Ergonomic pull-and turn clutch handle
  • Clockable gear box
  • Clockable gear box
  • 3-stage planetary gearing with 231:1 ratio
  • 3-stage planetary gearing with 231:1 ratio

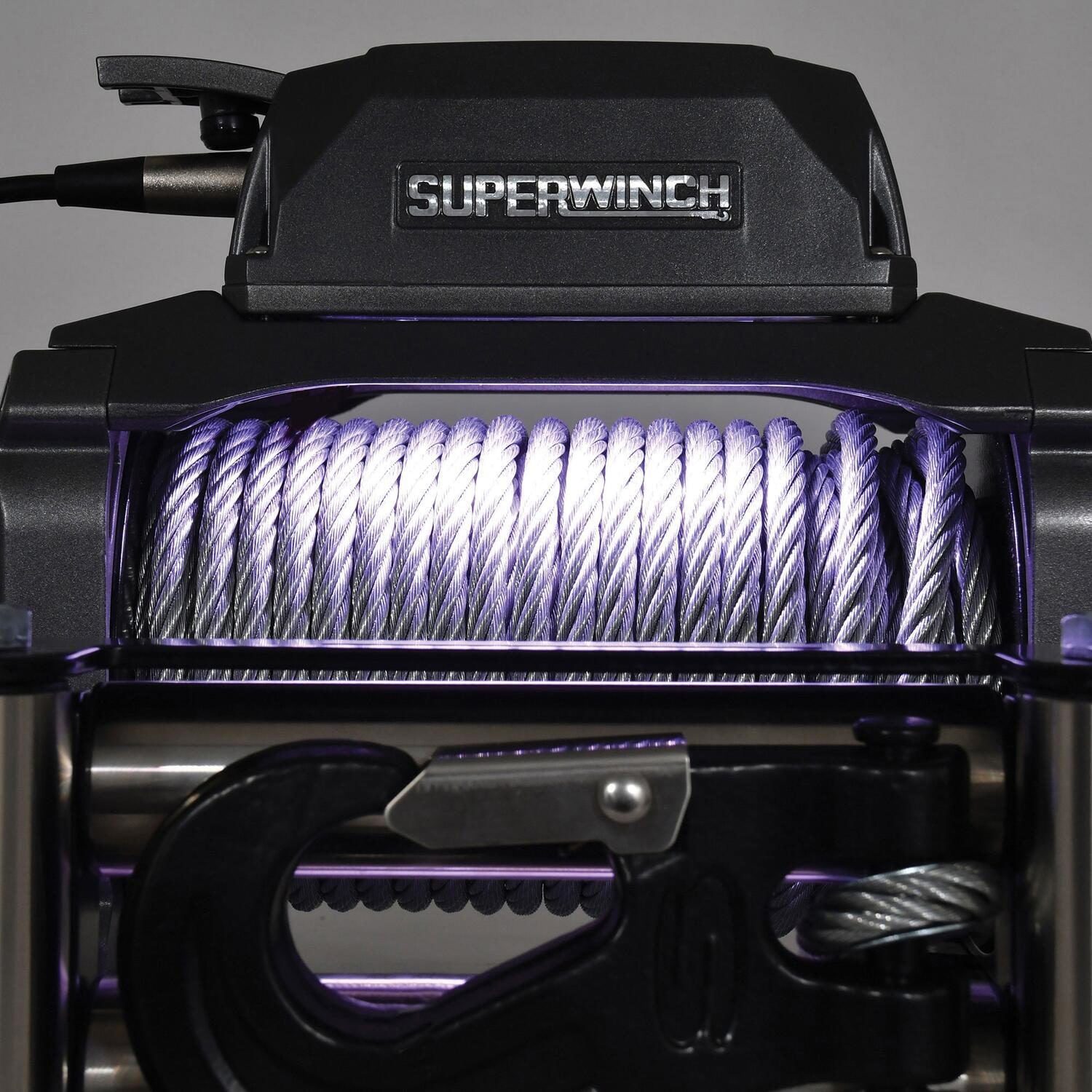

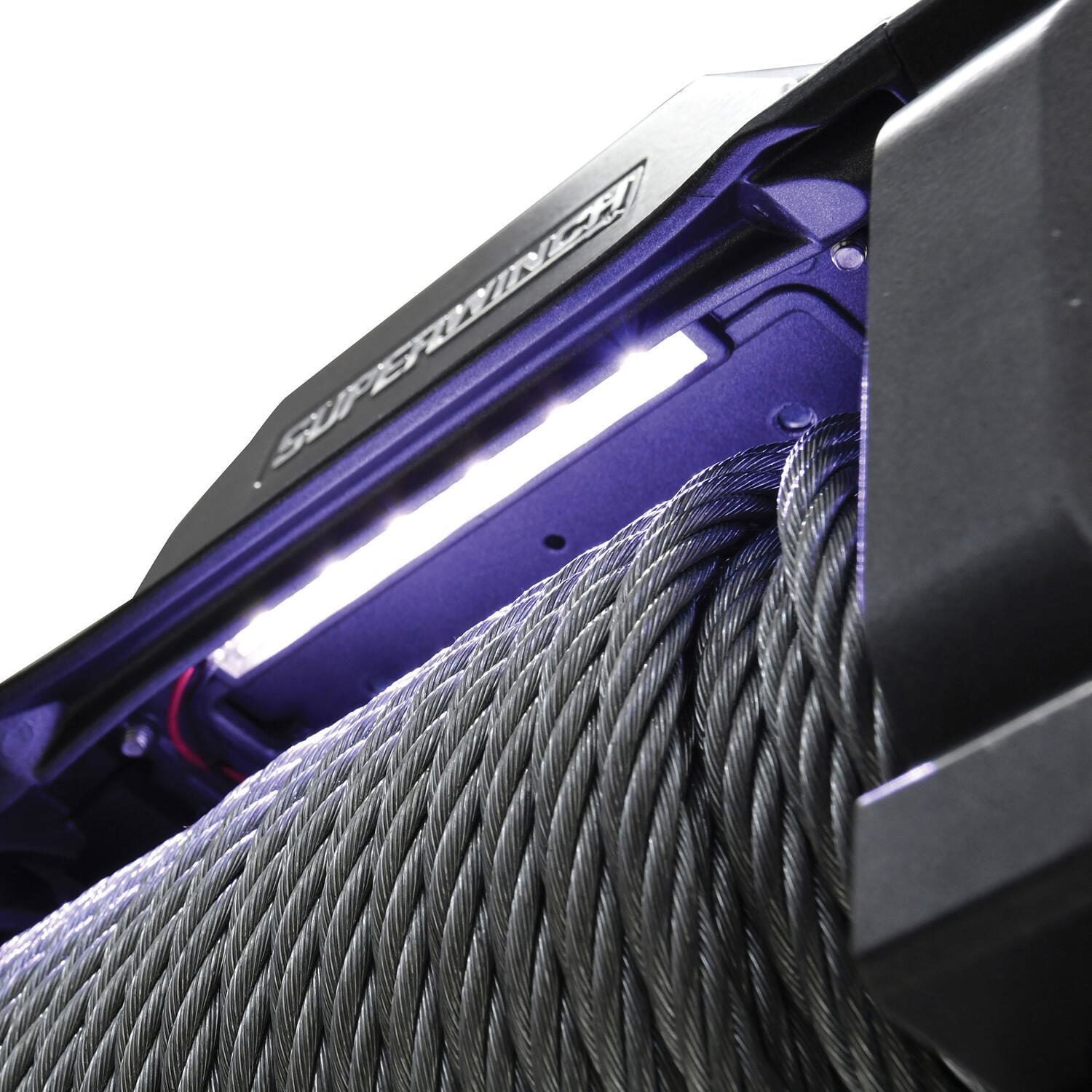

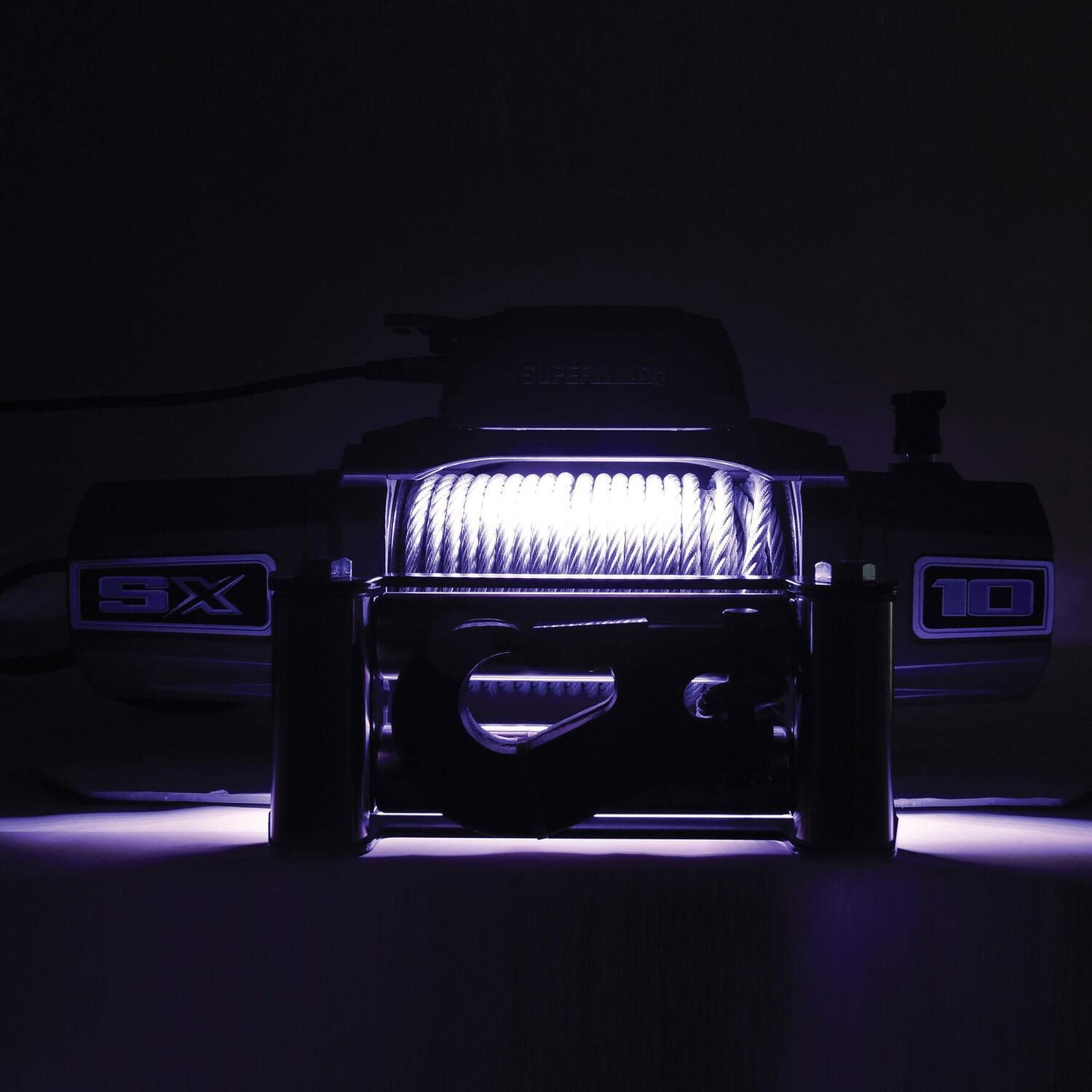

  • Patented drum light
  • Patented drum light
  • Drum diameter measures 2.5"

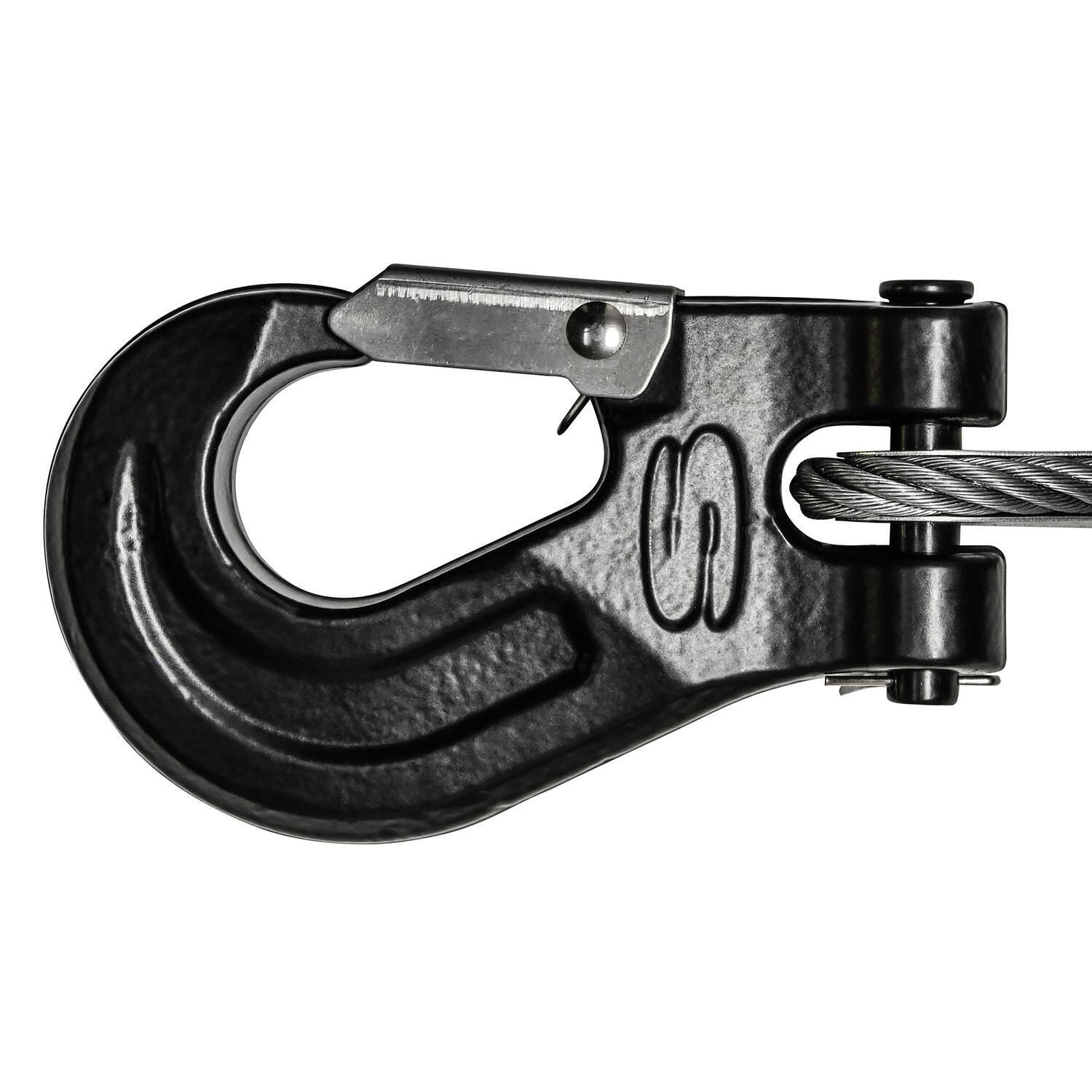

  • Heavy duty clevis winch hook
  • Stainless steel roller fairlead
  • 100% full load holding automatic mechanical brake
  • IP68-rated waterproof and dustproof
  • Durable metallic graphite powder coat finish
Brake System: 100% Full-load holding automatic mechanical brake
Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)
Winch Model: SX12
Winch Hook: Heavy-Duty, Clevis Pinned Latched
Warranty: Limited Lifetime Mechanical/7 Year Limited Electrical
Voltage: 12V DC
Task Lighting: Patented drum light
Rope Material: Steel Wire
Rope Length: 3/8 in x 85 ft (9.5mm x 26m)
Remote Type: Wire
Remote Control: 12 ft Hand-held wired remote only included (wired remote features flashlight with built-in lithium ION battery. Recharges while plugged into winch.)
Rated Single Line Pull (Lbs): 12000
Motor: 6.0 HP, 12V DC
Can Ship By Ground Delivery: Yes
Material: Steel
Line Speed: 68 Amps Motor Draw/23.4 FPM (7.13 MPM)
IP Rating: IP68 Waterproof and Dustproof
Gear System: 3-stage planetary
Gear Ratio: 231:1
Finish: Powder Coated
Fairlead: Stainless Steel 4-Way Roller
EN Compliant: No
Drum: Durable fully welded steel drum
Dimensions: 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
Control Box: Relocatable Die-Cast Aluminum
Color: Graphite
Clutch: Pull and turn clutch handle
Winch Series: SX Series
