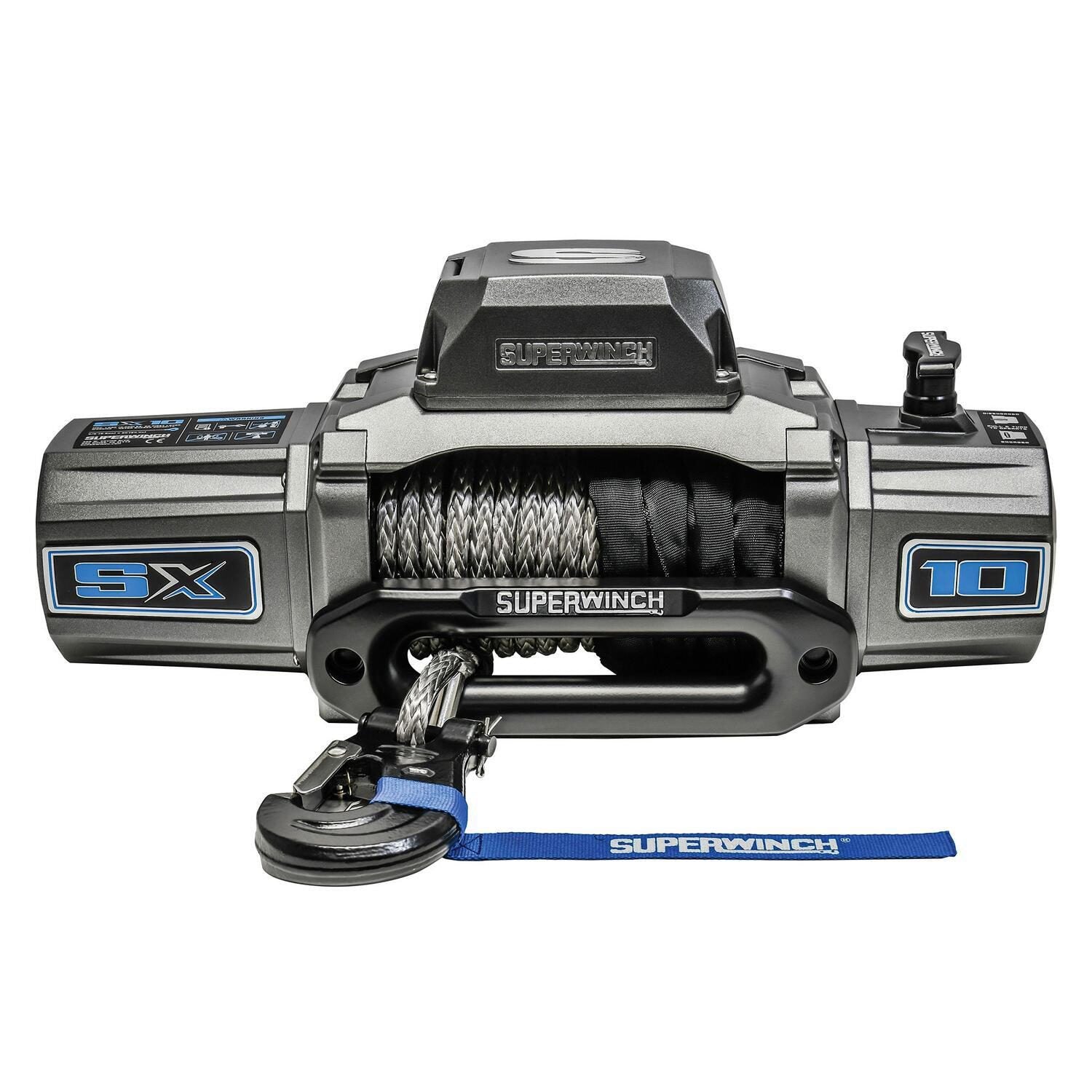

Superwinch 1710201 - 10000 LBS 12V DC 3/8in x 80ft Synthetic Rope SX 10000 Winch

Superwinch 1710201 - 10000 LBS 12V DC 3/8in x 80ft Synthetic Rope SX 10000 Winch

Superwinch | 1710201
SKU: SWINCH-1710201
Regular price $916.99 USD
Regular price $1,008.69 USD Sale price $916.99 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 1 left

Quantity

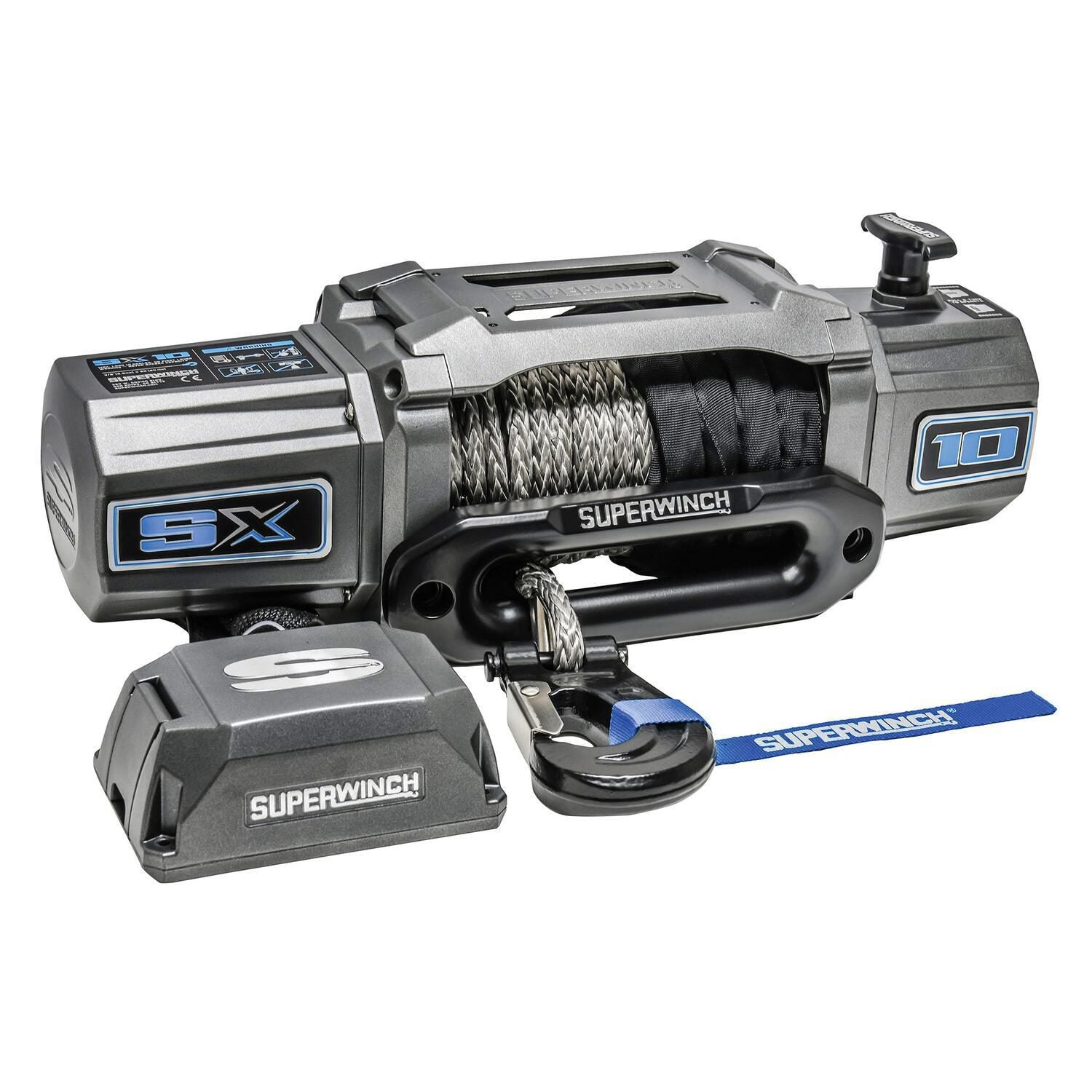

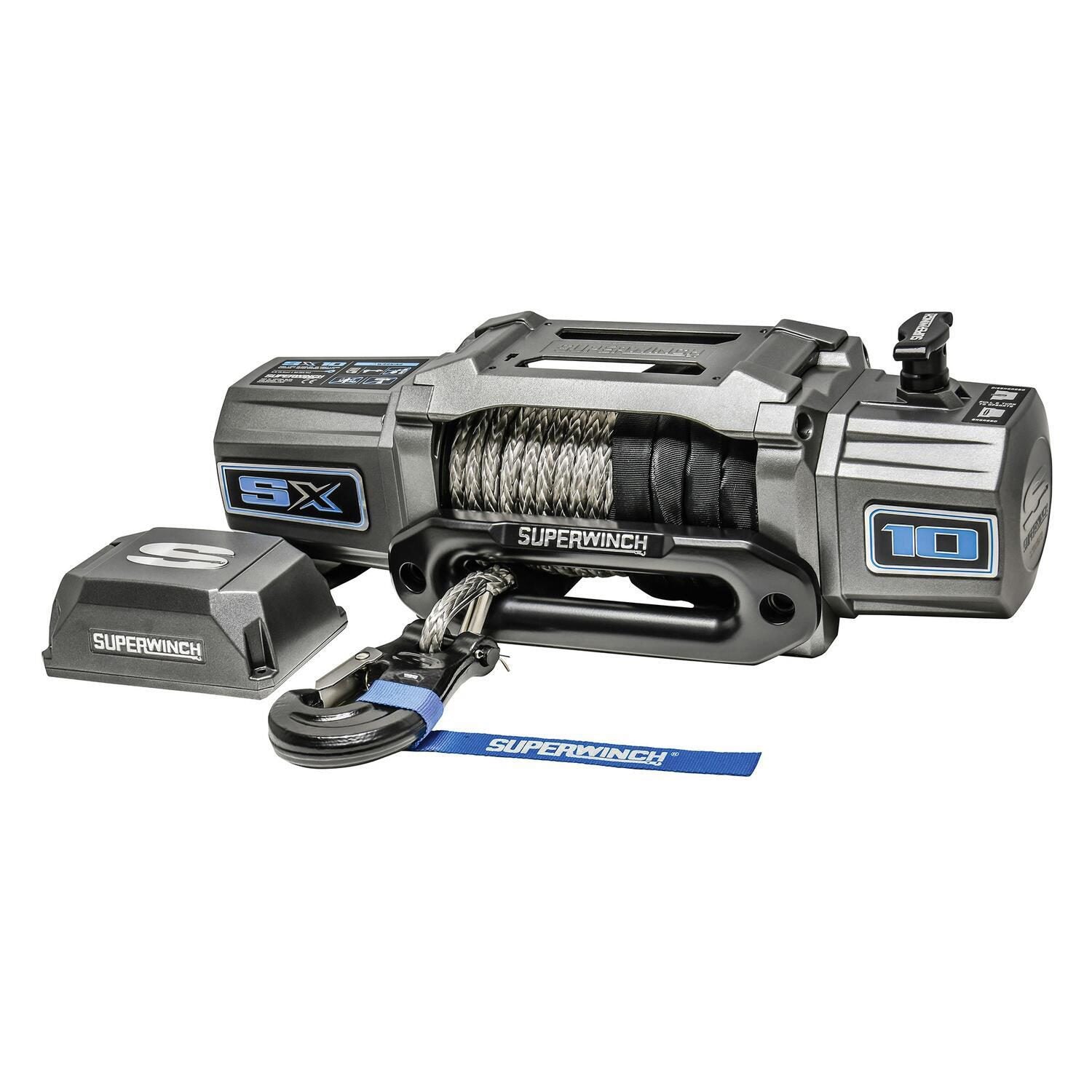

Superwinch 1710201 - 10000 LBS 12V DC 3/8in x 80ft Synthetic Rope SX 10000 Winch

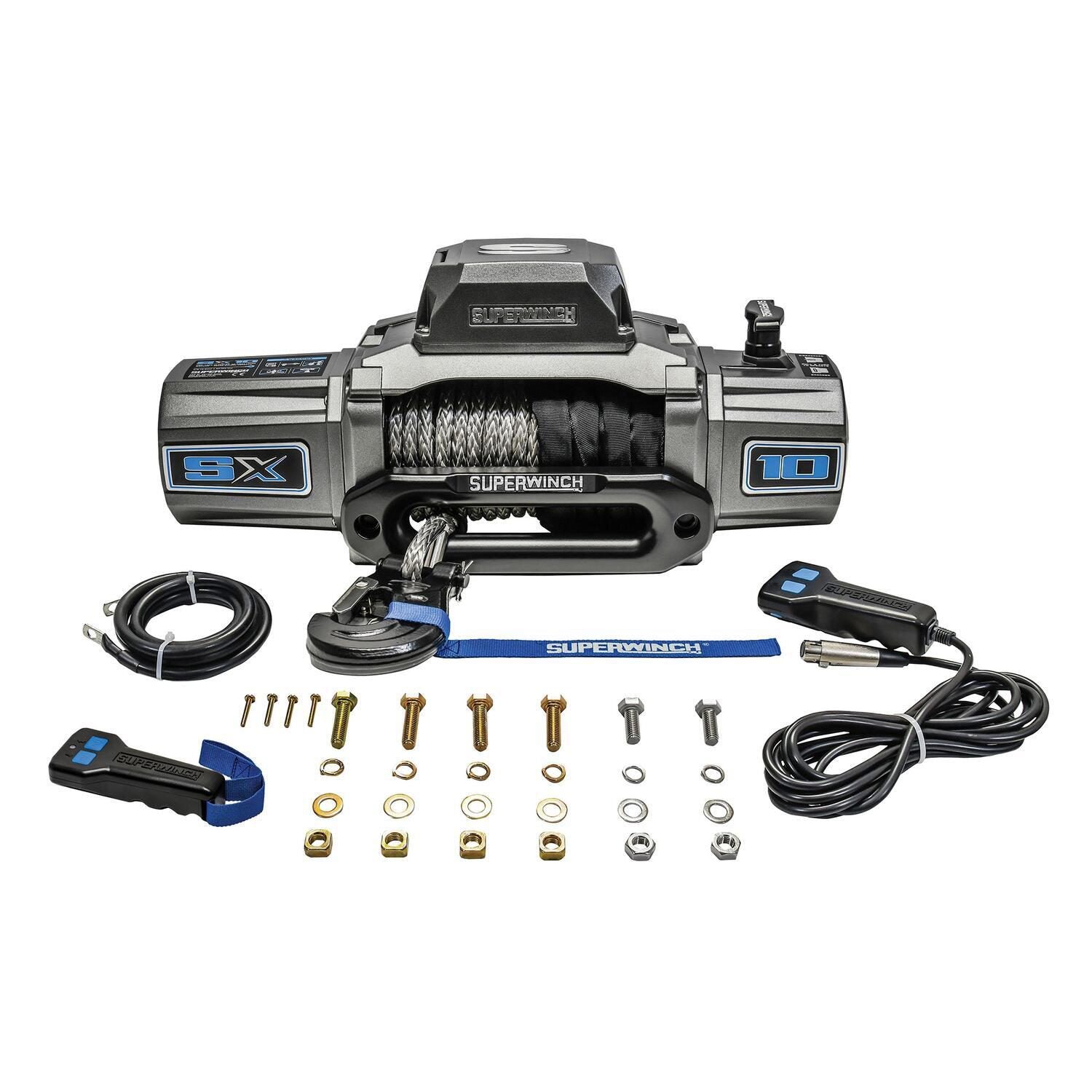

Winch - SX 10 - 10000 lb Capacity - Hawse Fairlead - 12 ft Remote - 3/8 in x 80 ft Synthetic Rope - 12V - Kit

SX10SR Winch; 10000 lbs.; 12 VDC; 3/8 in. X 80 ft. Synthetic Rope; Handheld Remote Control; 5.5 HP; Automatic Brake; 3-Stage Planetary; Aluminum Hawse Fairlead;

The SX10SR is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8 in. diameter synthetic rope, a 12' lighted wired remote, and wireless handheld remote. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 10,000 lbs. of raw pulling power, the new SX10SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.

  • 10,000 lbs. capacity
  • 5.5 HP Sealed Motor
  • 80' - 3/8" UV coated synthetic rope

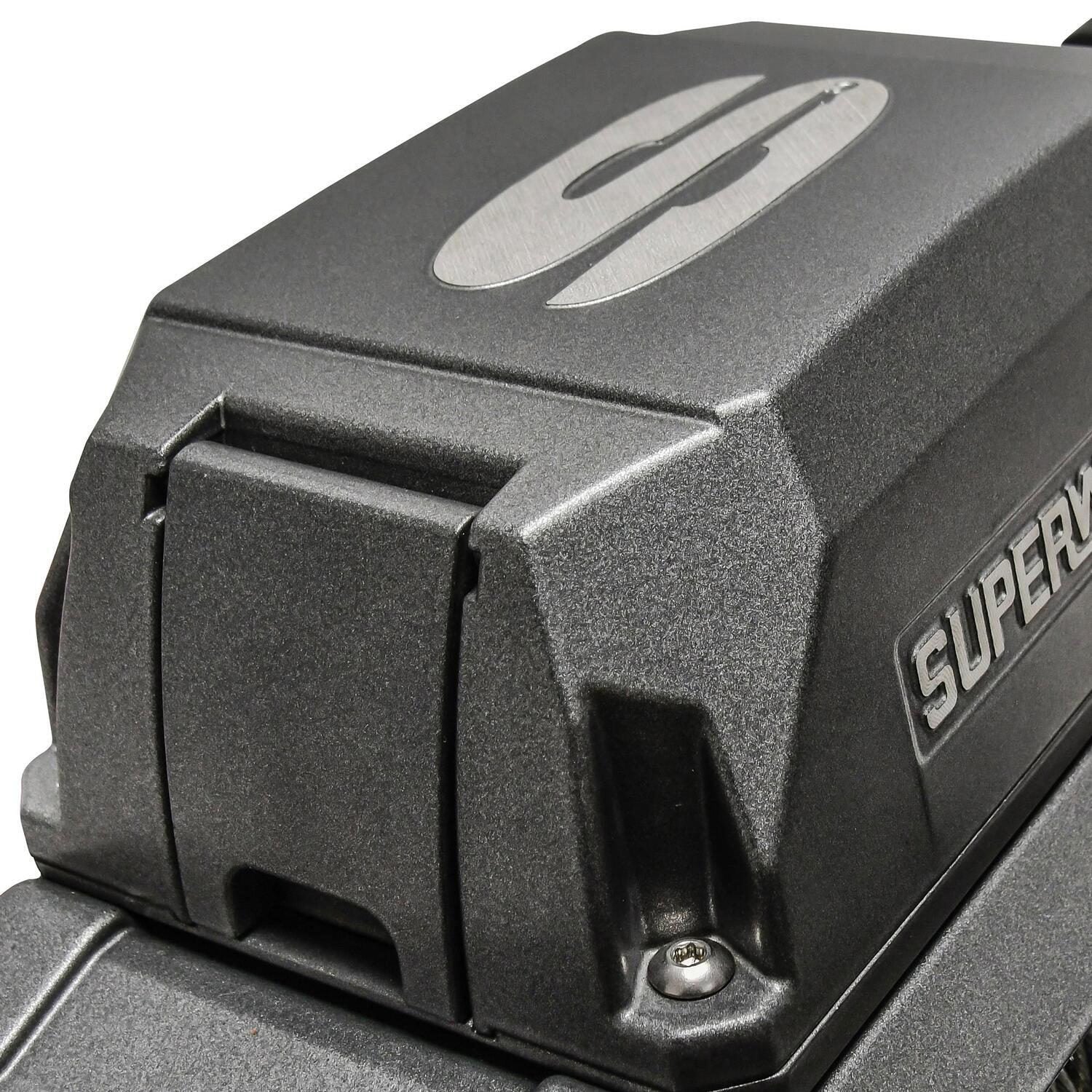

  • Relocatable die-cast aluminum control box
  • Includes wireless remote & 12' wired remote with integrated lithium-ION rechargeable LED flashlight

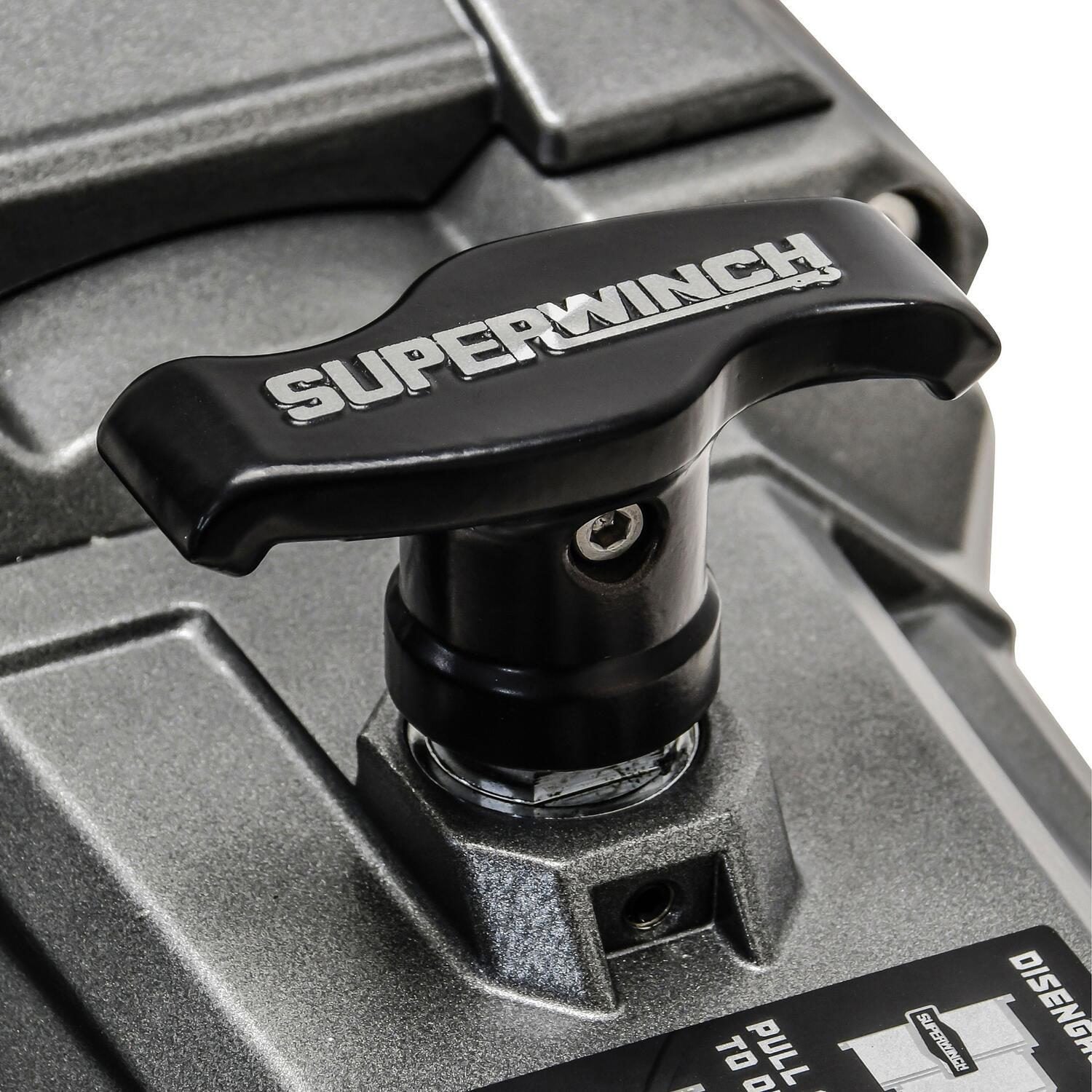

  • Ergonomic pull-and turn clutch handle
  • Clockable gear box
  • 3-stage planetary gearing with 218:1 ratio

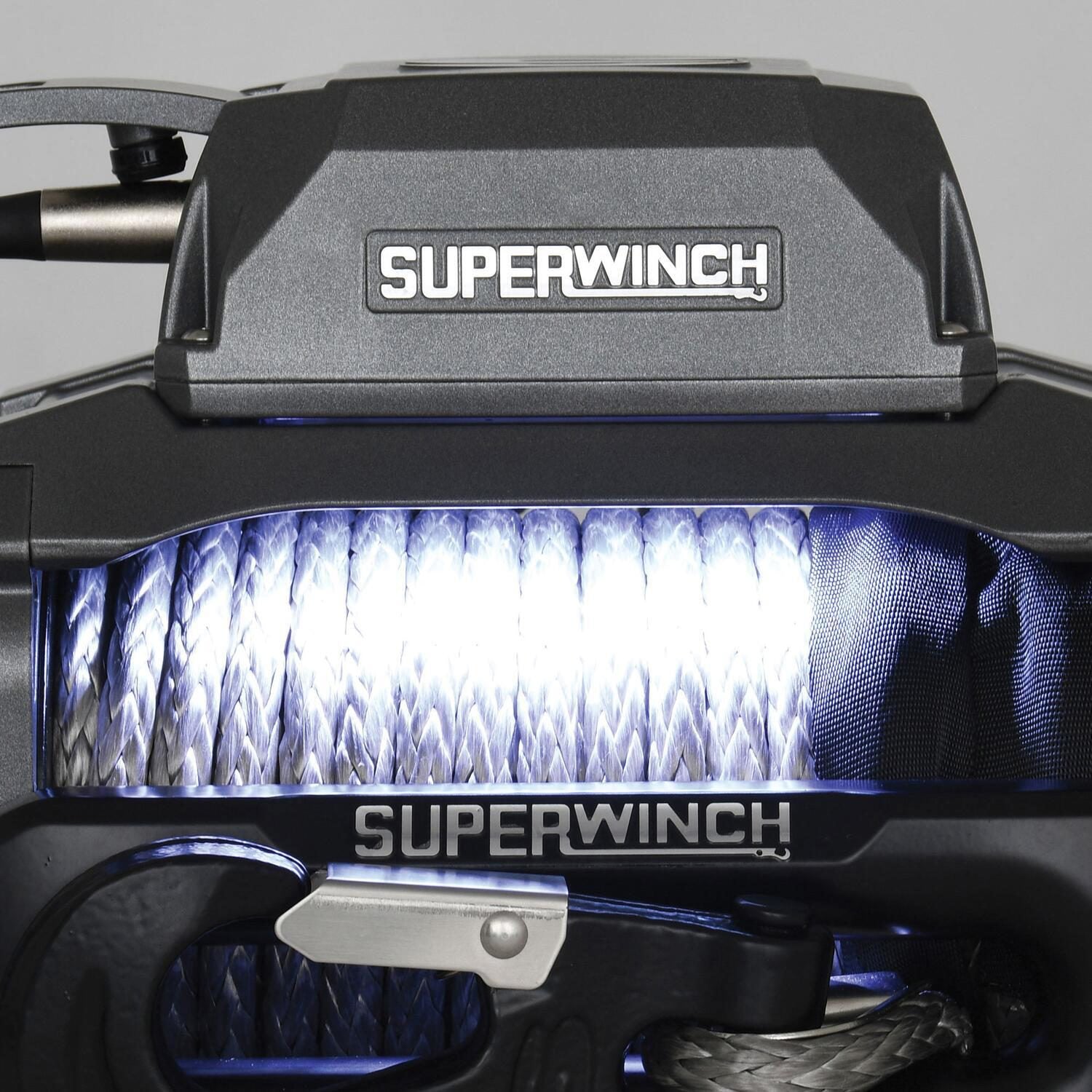

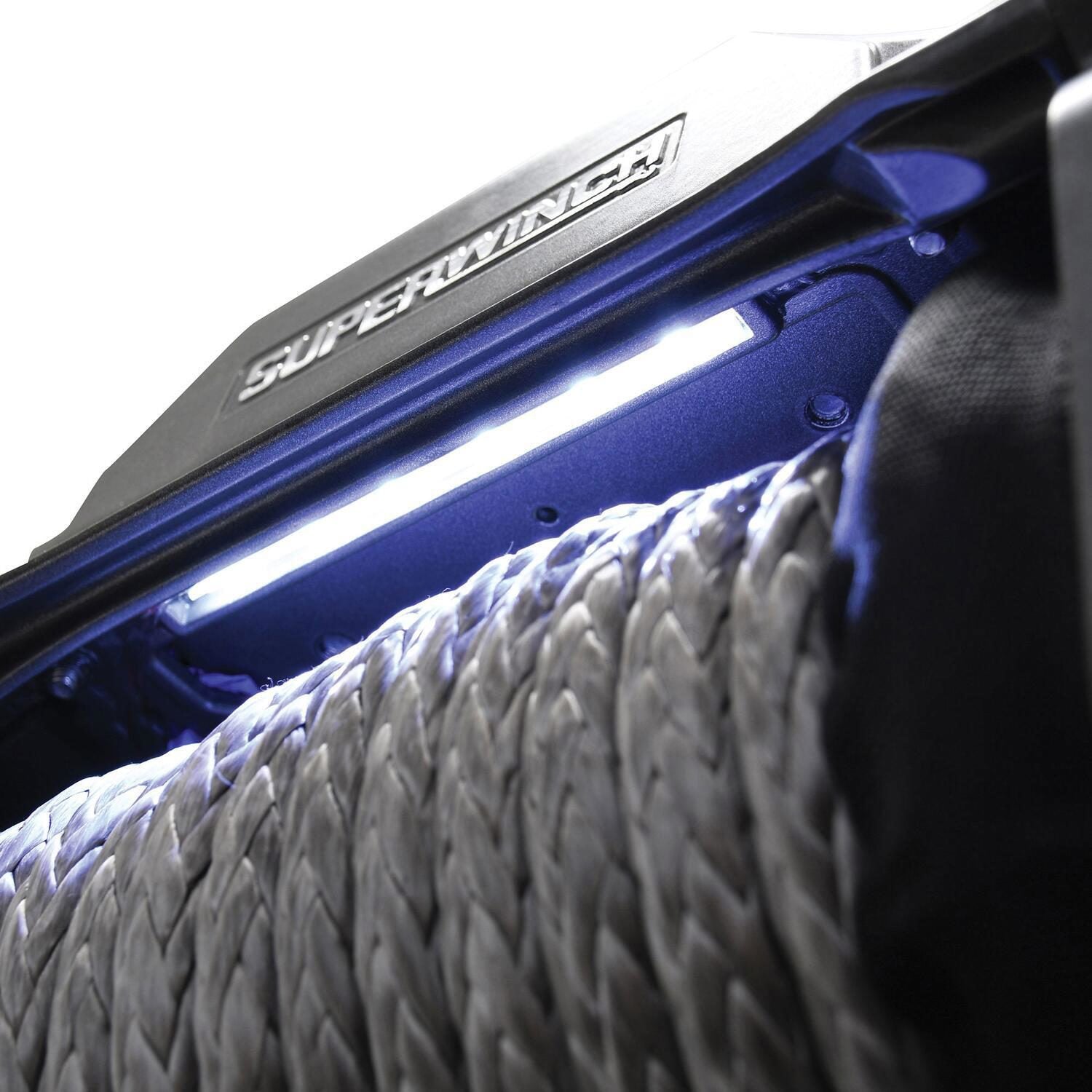

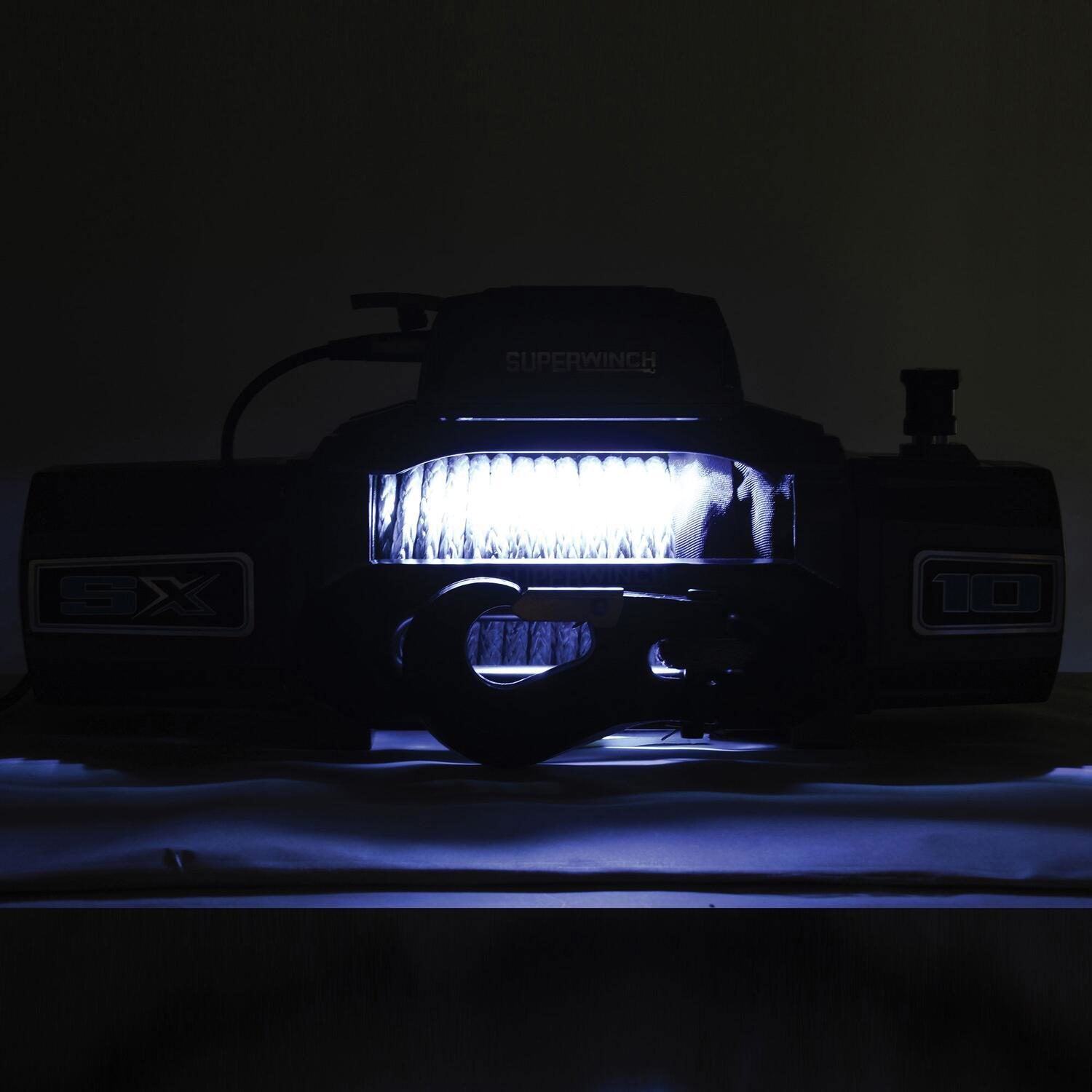

  • Patented drum light
  • Drum diameter measures 2.5"
  • Heavy duty clevis winch hook
  • Aluminum hawse fairlead
  • 100% full load holding automatic mechanical brake
  • IP68-rated waterproof and dustproof
  • Durable metallic graphite powder coat finish
Brake System: 100% Full-load holding automatic mechanical brake
Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)
Winch Model: SX10SR
Winch Hook: Heavy-Duty, Clevis Pinned Latched
Warranty: Limited Lifetime Mechanical/7 Year Limited Electrical
Voltage: 12V DC
Task Lighting: Patented drum light
Rope Material: Synthetic
Rope Length: 3/8 in x 80 ft (9.5mm x 24.3m)
Remote Type: Wire and Wireless
Remote Control: Wireless hand-held remote & 12 ft handheld wired remote included (wired remote features flashlight with built-in lithium ION battery. Recharges while plugged into winch.)
Rated Single Line Pull (Lbs): 10000
Mounting Type: Bolt-On
Mounting Hardware Included: Yes
Motor: 5.5 HP, 12V DC
Can Ship By Ground Delivery: Yes
Material: Steel
Line Speed: 363 Amps Motor Draw (Max Load)/4.5 FPM (1.37 MPM)
IP Rating: IP68 Waterproof and Dustproof
Horsepower: 5.5
Gear System: 3-stage planetary
Gear Ratio: 218:1
Finish: Powder Coated
Fairlead: Aluminum hawse
EN Compliant: No
Drum: Durable fully welded steel drum
Dimensions: 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
Control Box: Relocatable Die-Cast Aluminum
Color: Graphite
Clutch: Pull and turn clutch handle
Winch Series: SX Series
