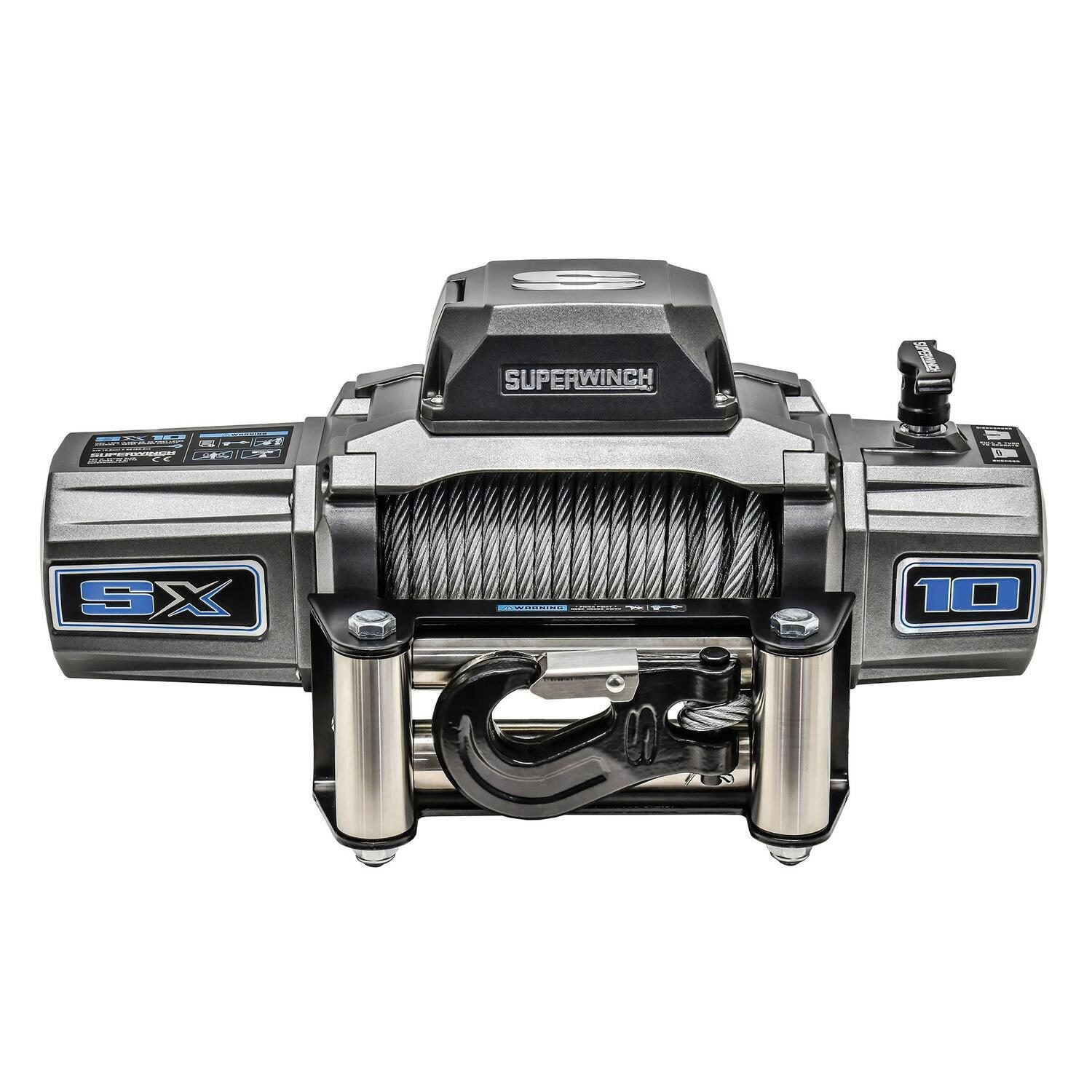

Superwinch 1710200 - 10000 LBS 12V DC 3/8in x 85ft Wire Rope SX 10000 Winch

Superwinch 1710200 - 10000 LBS 12V DC 3/8in x 85ft Wire Rope SX 10000 Winch

Superwinch | 1710200
SKU: SWINCH-1710200
Regular price $727.99 USD
Regular price $800.79 USD Sale price $727.99 USD
Sale Sold out
Shipping calculated at checkout.

4 in stock

Quantity

Superwinch 1710200 - 10000 LBS 12V DC 3/8in x 85ft Wire Rope SX 10000 Winch

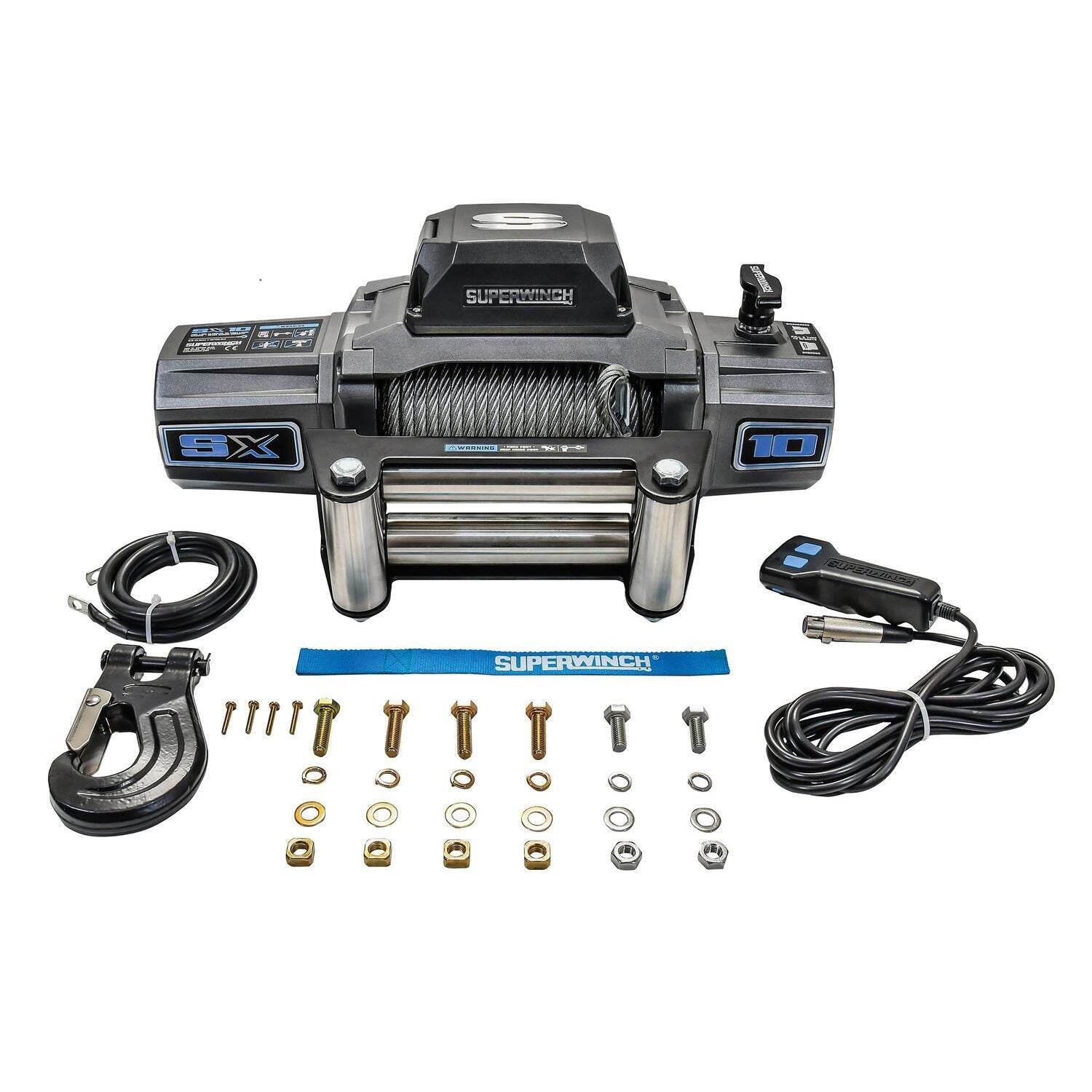

Winch - SX 10 - 10000 lb Capacity - Roller Fairlead - 12 ft Remote - 3/8 in x 85 ft Steel Rope - 12V - Kit

SX 10000 Winch; 10000 lbs.; 12 VDC; 3/8 in. X 85 ft. Wire Rope; Handheld Remote Control; 5.5 HP; Automatic Brake; 3-Stage Planetary; Stainless Steel 4-Way Roller Fairlead;

The SX10 is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Available in 10,000 lbs. of raw pulling power, the new SX series has an IP68 rating for dustproof and waterproof operation while the sleek modern look is finished with a durable metallic graphite powder-coat that is built to last. Combined with innovative features such as a patented drum light, relocatable control box and a lighted remote, and steel winch rope, this winch has it all.

  • 10,000 lbs. capacity
  • 5.5 HP Sealed Motor
  • 85' - 3/8" wire rope

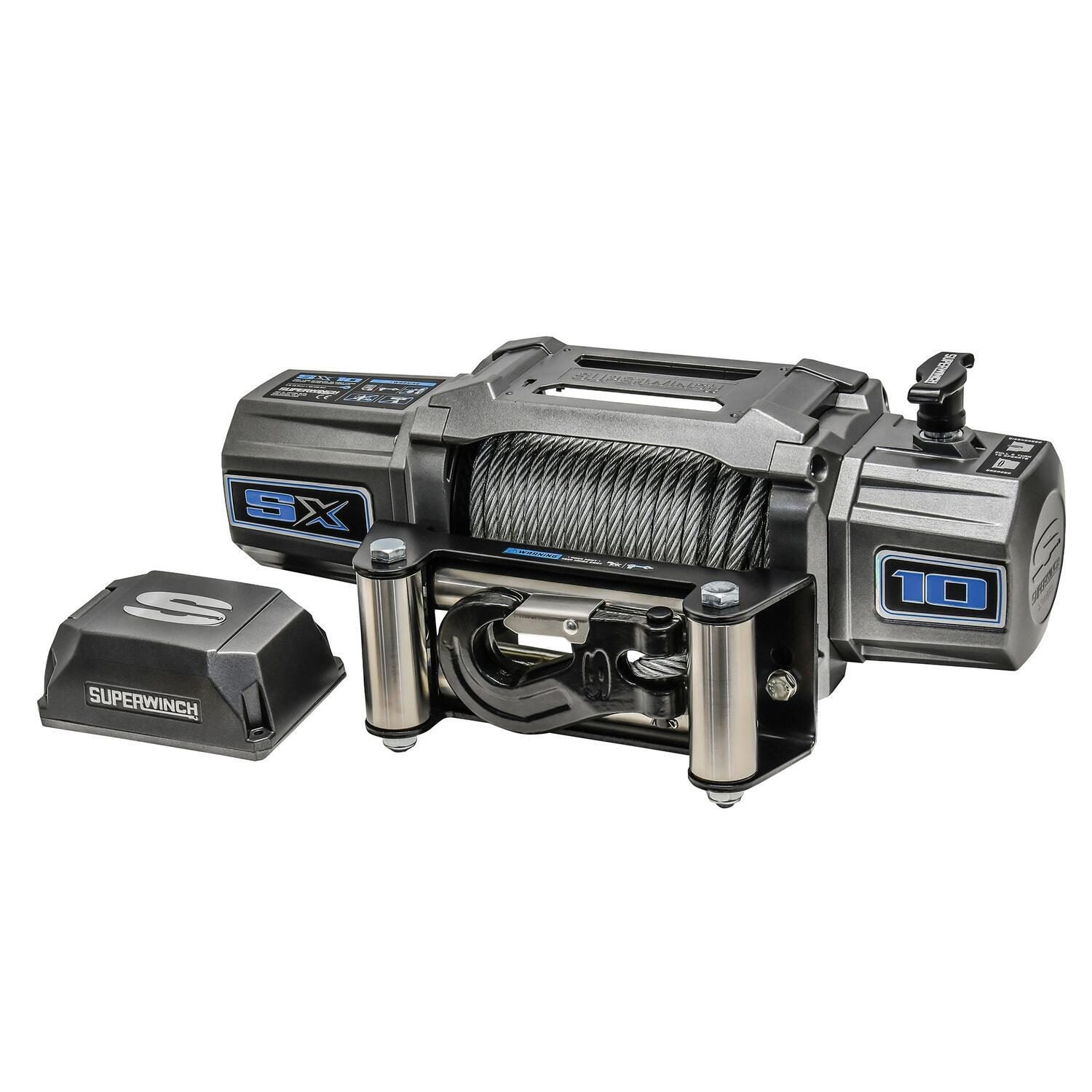

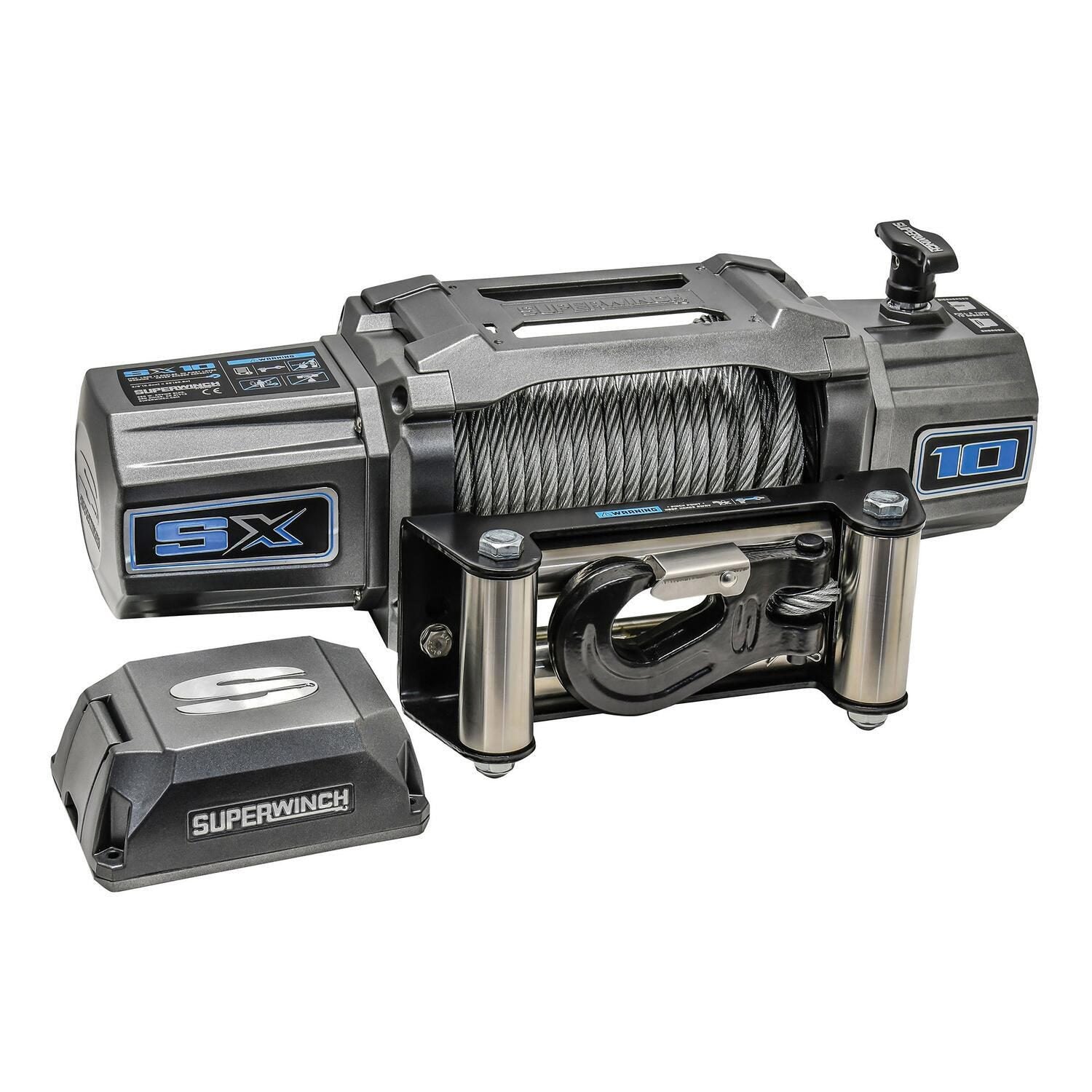

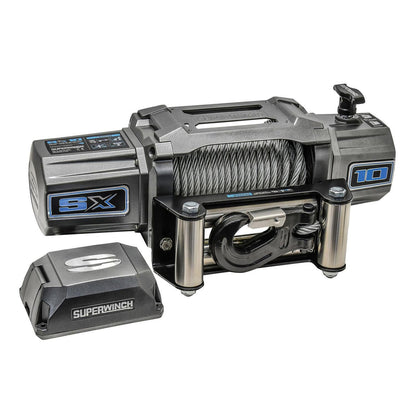

  • Relocatable die-cast aluminum control box
  • 12' wired remote with integrated lithium-ION rechargeable LED flashlight

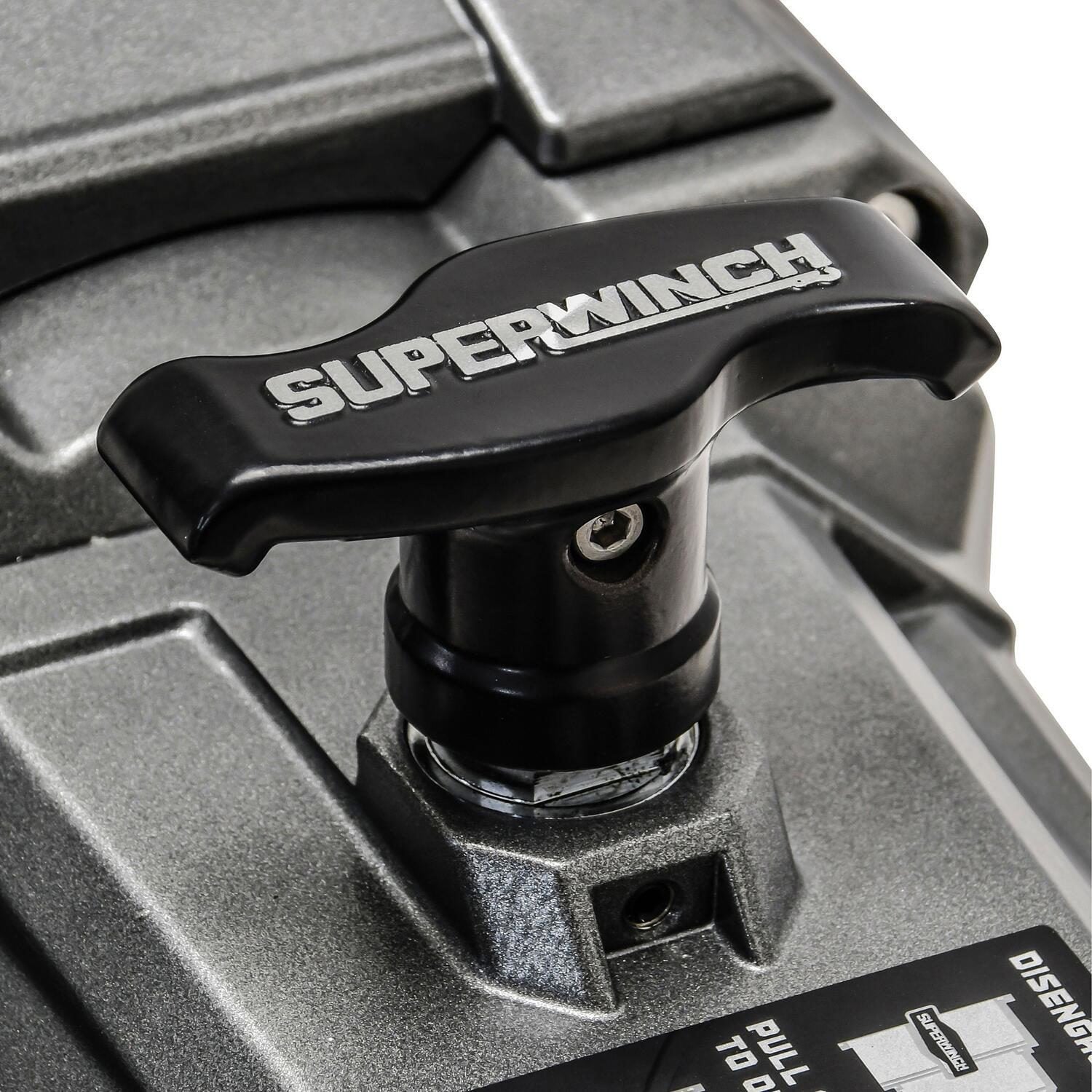

  • Ergonomic pull-and turn clutch handle
  • Clockable gear box
  • 3-stage planetary gearing with 218:1 ratio
  • 3-stage planetary gearing with 218:1 ratio

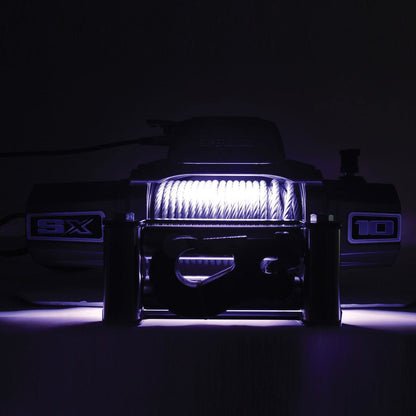

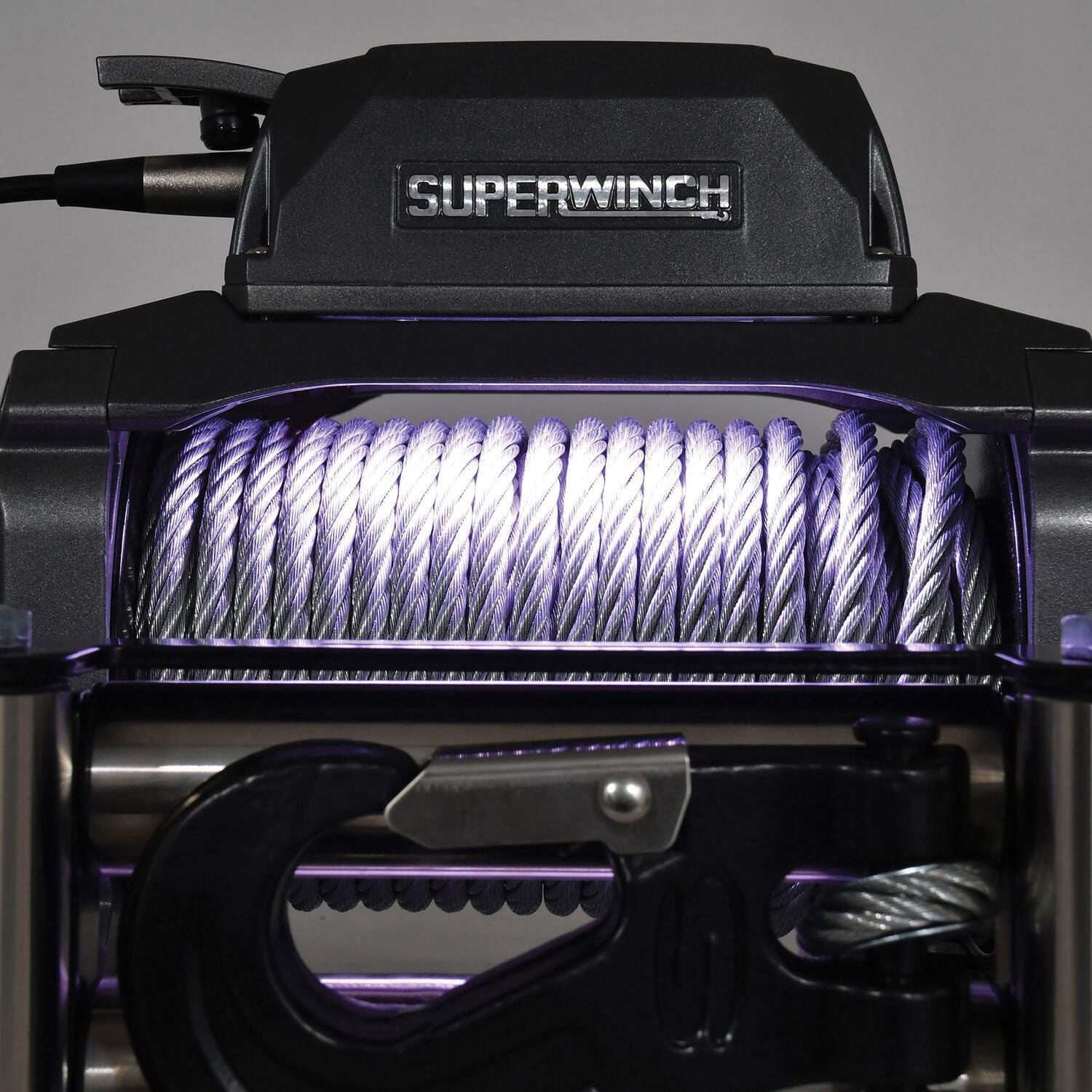

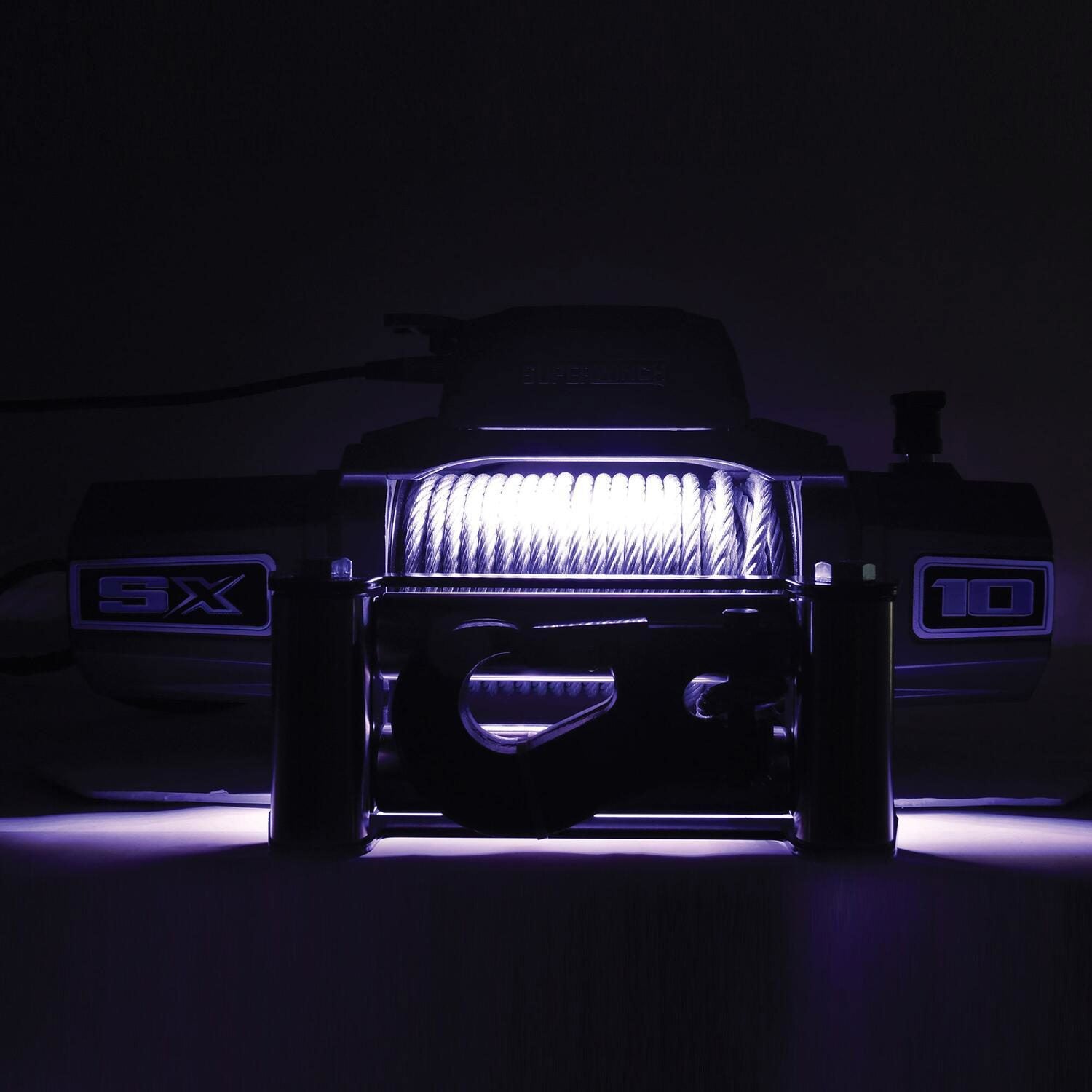

  • Patented drum light
  • Patented drum light
  • Drum diameter measures 2.5"
  • Heavy duty clevis winch hook

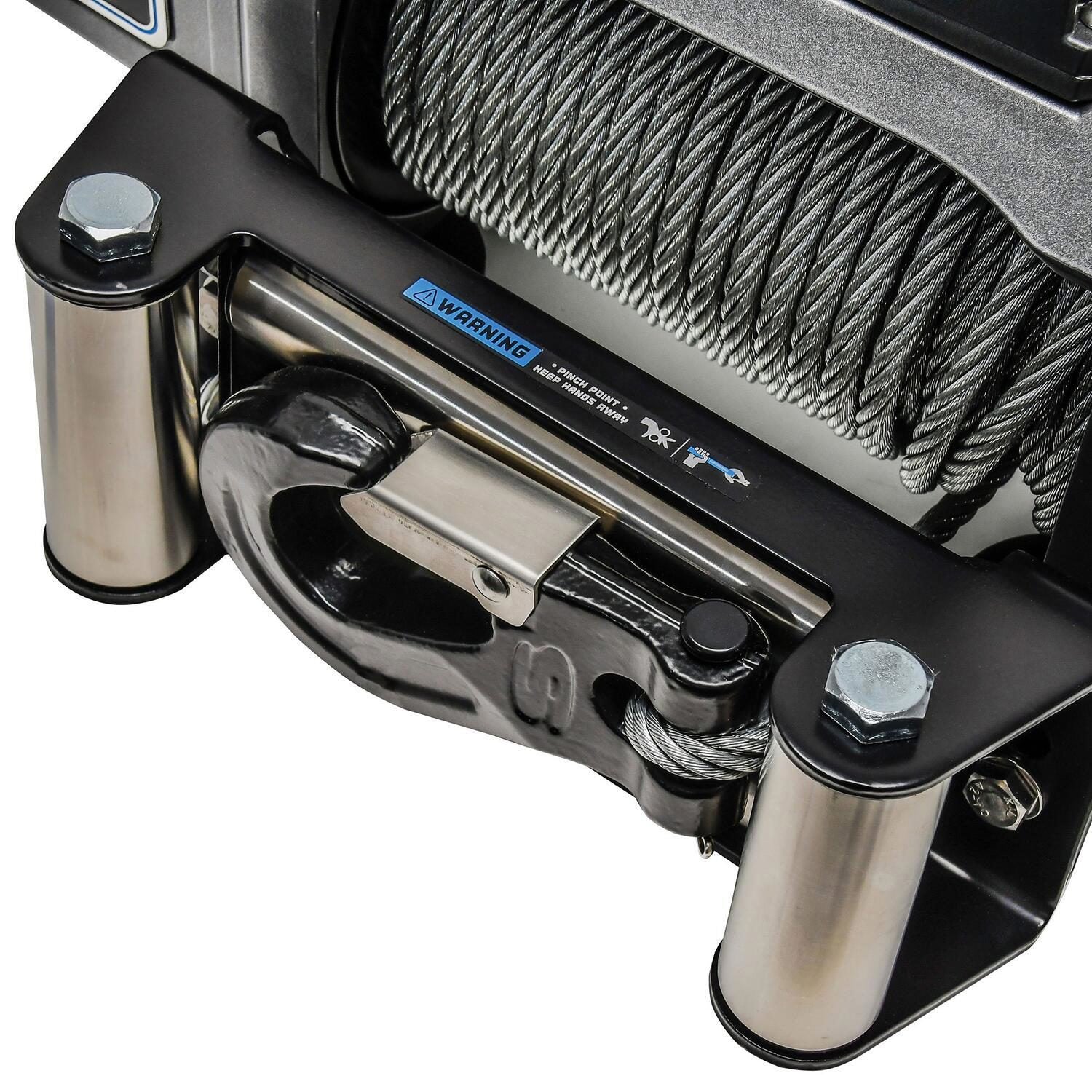

  • Stainless steel roller fairlead
  • 100% full load holding automatic mechanical brake
  • IP68-rated waterproof and dustproof
  • Durable metallic graphite powder coat finish
Brake System: 100% Full-load holding automatic mechanical brake
Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)
Winch Model: SX10
Winch Hook: Heavy-Duty, Clevis Pinned Latched
Warranty: Limited Lifetime Mechanical/7 Year Limited Electrical
Voltage: 12V DC
Task Lighting: Patented drum light
Rope Material: Steel Wire
Rope Length: 3/8 in x 85 ft (9.5mm x 26m)
Remote Type: Wire
Remote Control: 12 ft Hand-held wired remote only included (wired remote features flashlight with built-in lithium ION battery. Recharges while plugged into winch.)
Rated Single Line Pull (Lbs): 10000
Mounting Type: Bolt-On
Mounting Hardware Included: Yes
Motor: 5.5 HP, 12V DC
Can Ship By Ground Delivery: Yes
Material: Steel
Line Speed: 363 Amps Motor Draw (Max Load)/4.5 FPM (1.37 MPM)
IP Rating: IP68 Waterproof and Dustproof
Horsepower: 5.5
Gear System: 3-stage planetary
Gear Ratio: 218:1
Finish: Powder Coated
Fairlead: Stainless Steel 4-Way Roller
EN Compliant: No
Drum: Durable fully welded steel drum
Dimensions: 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)

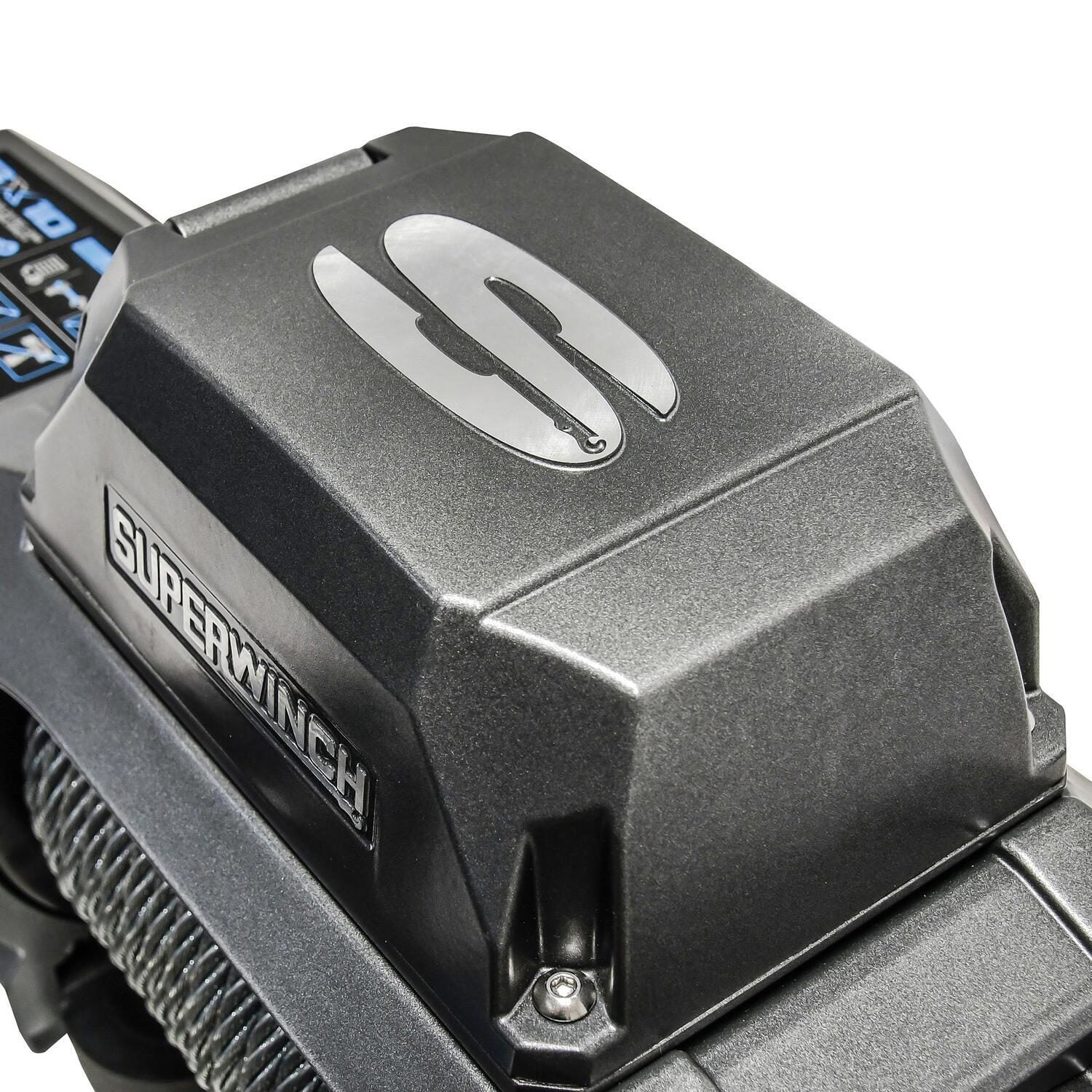

Control Box: Relocatable Die-Cast Aluminum
Color: Graphite
Clutch: Pull and turn clutch handle
Winch Series: SX Series
