Superwinch - 1511200

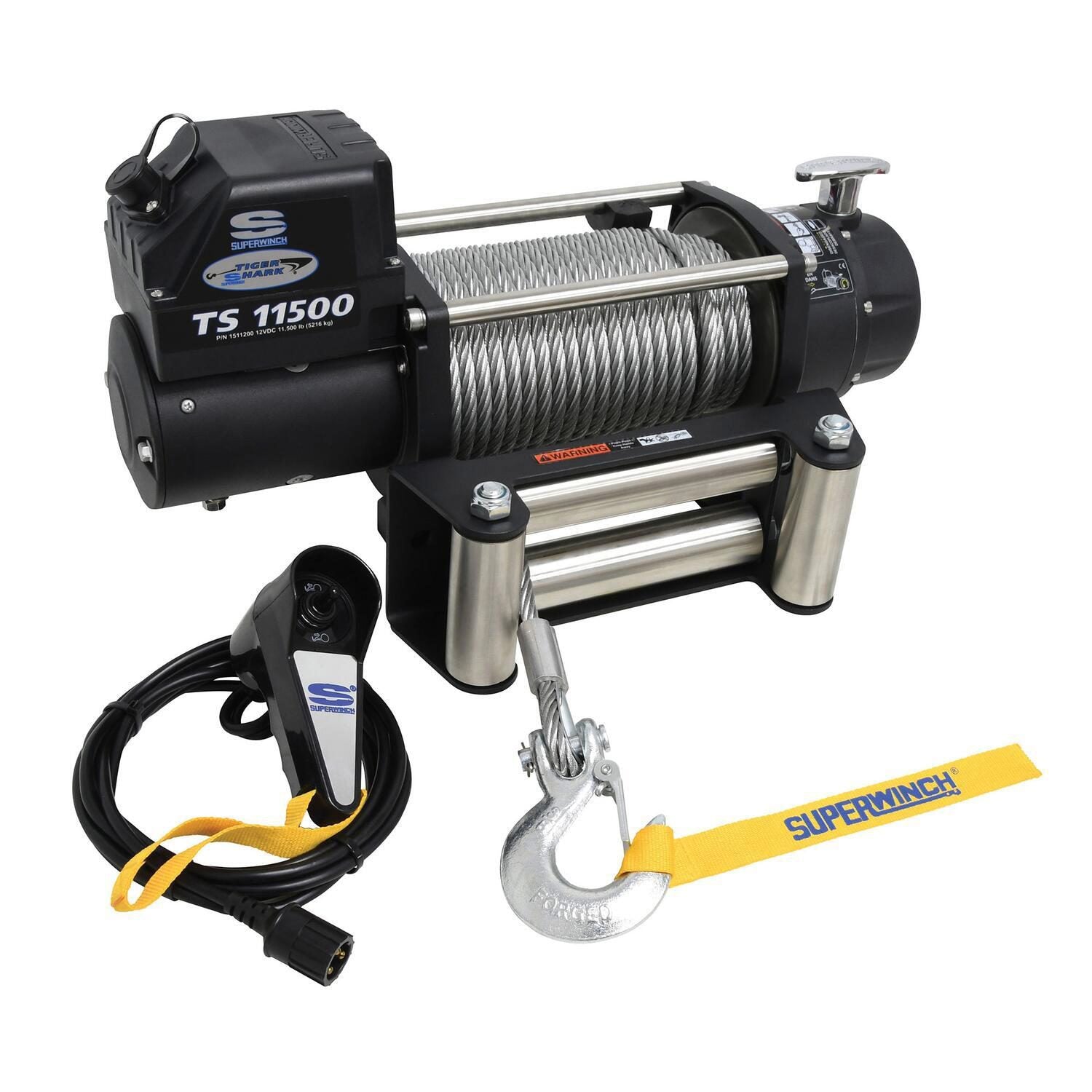

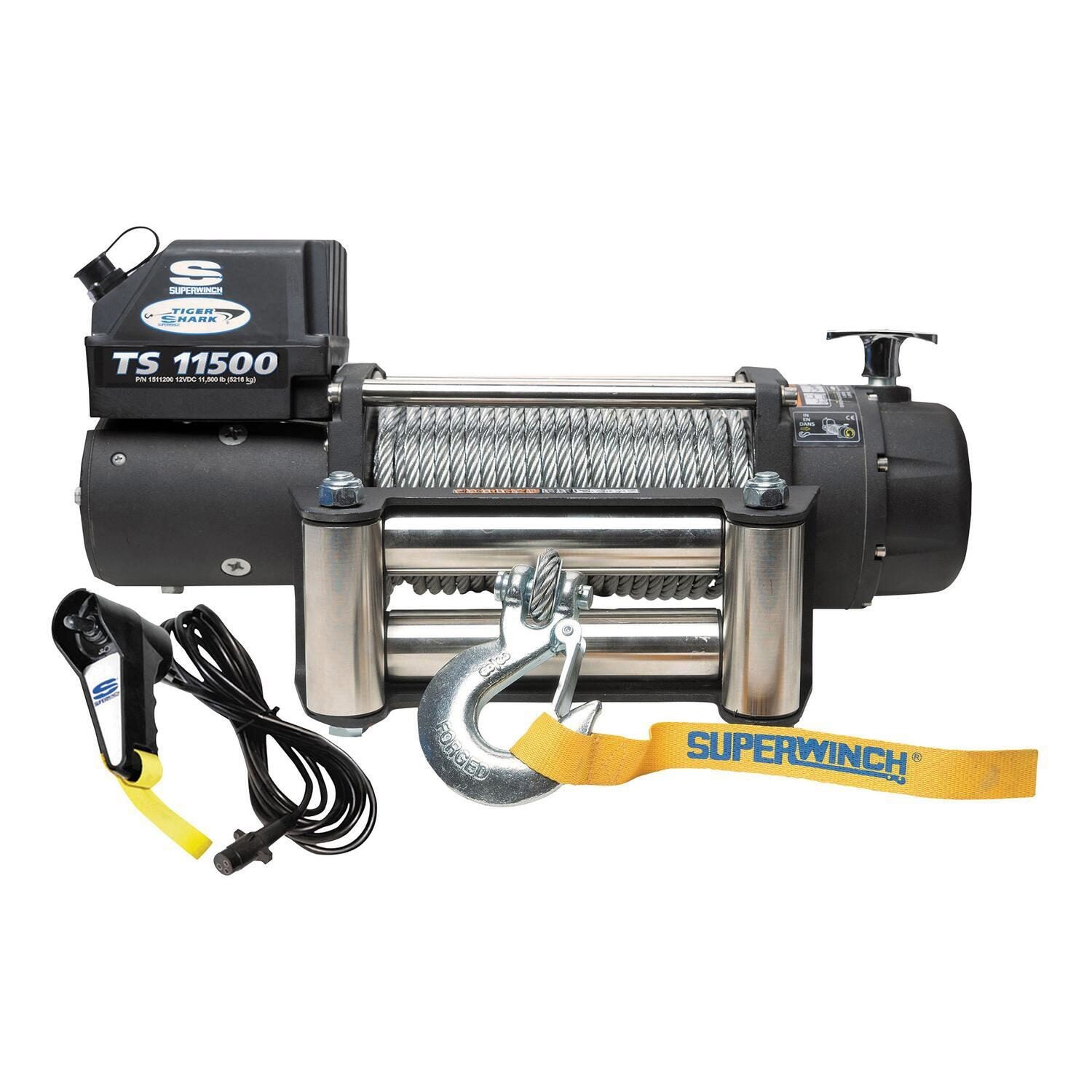

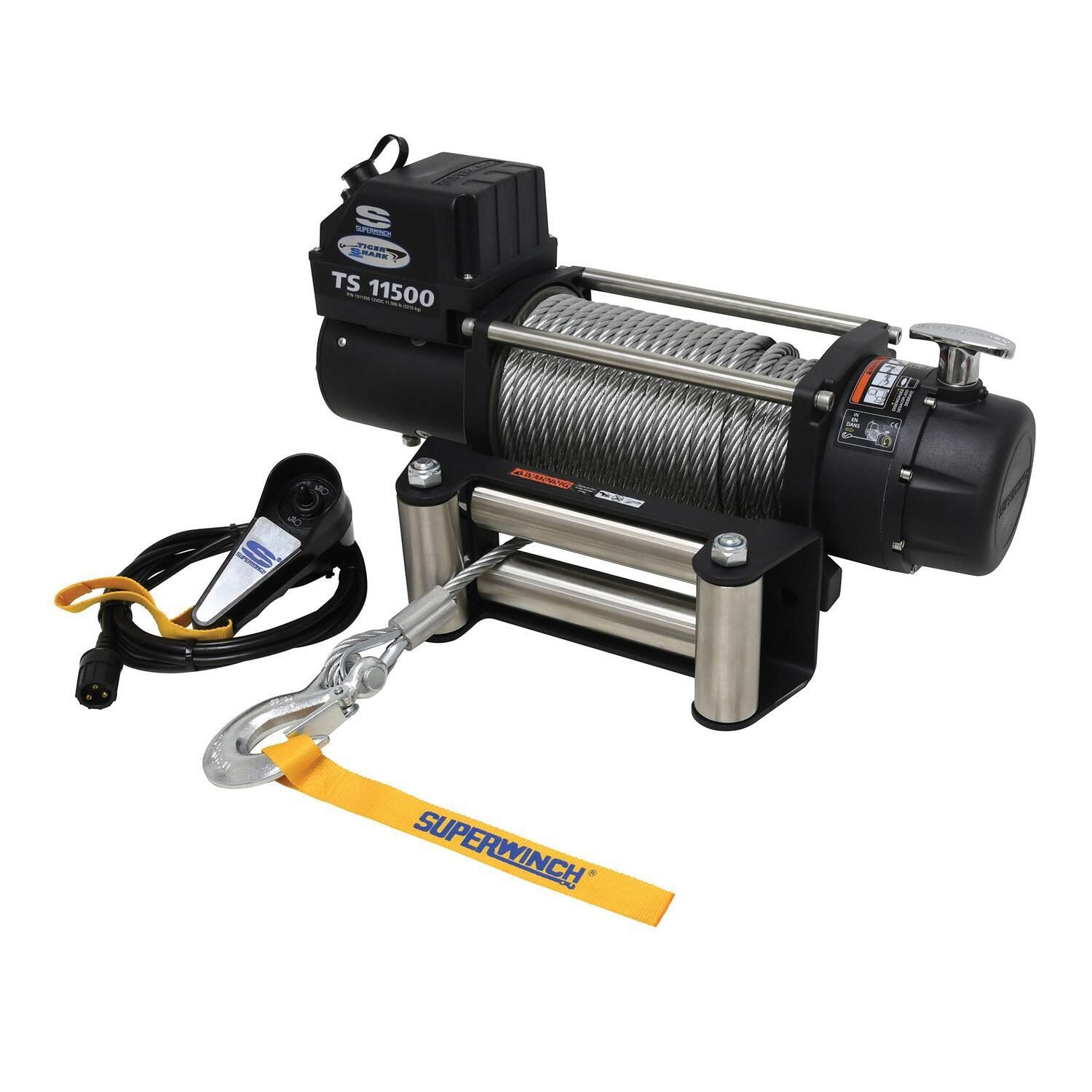

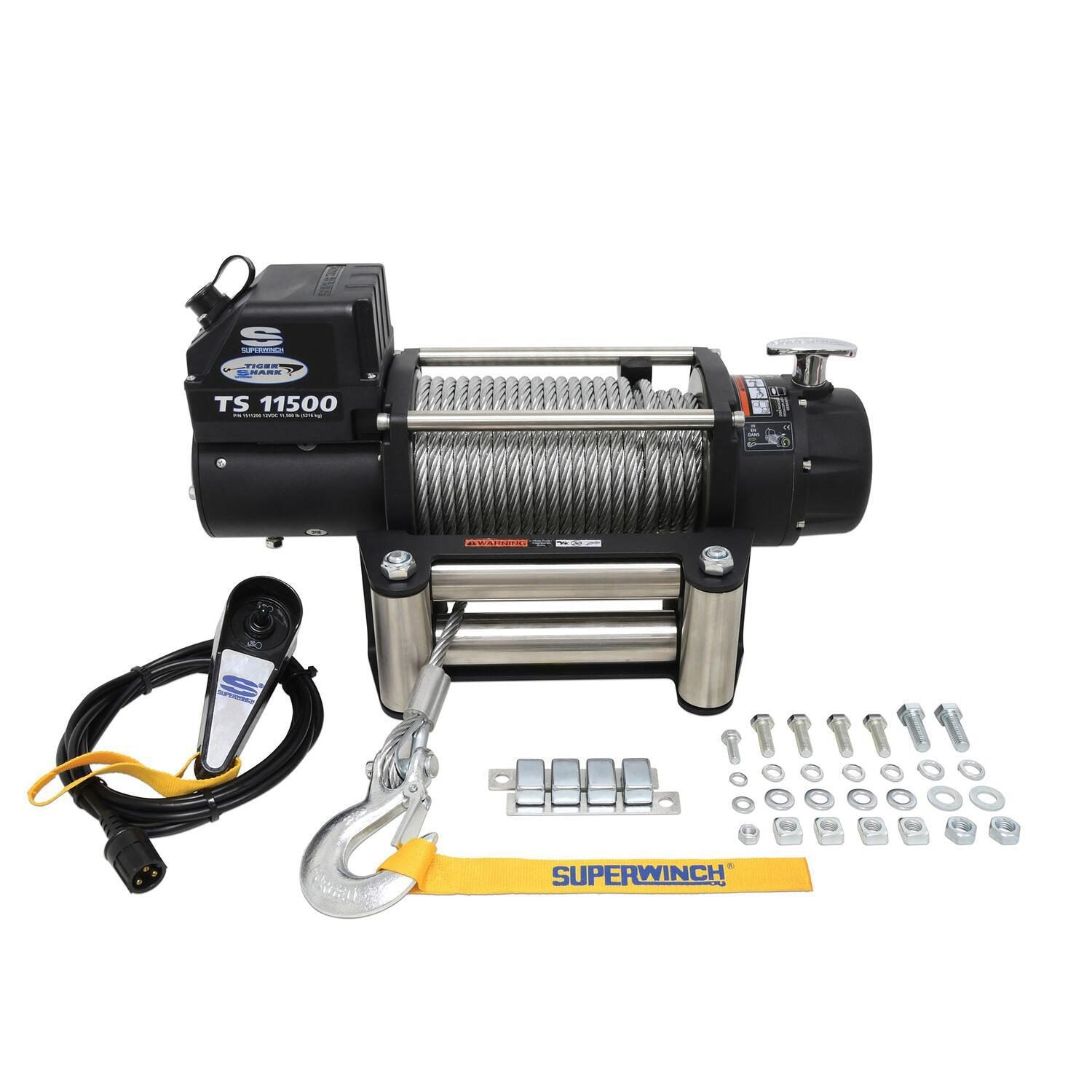

Winch - Tiger Shark 11500 - 11500 lb Capacity - Roller Fairlead - 12 ft Remote - 3/8 in x 84 ft Steel Rope - 12V - Kit
Tiger Shark 11500 Winch; 11500 lbs; 12 Vdc; 3/8 In X 84 ft Steel Rope; Handheld Remote Control; 5.2 hp; 3-Stage Planetary; 218:1 Gear Ratio And 4-Way Roller Fairlead;
One of Superwinch’s most popular winches, the Tiger Shark 11500 is the benchmark for performance winching while not breaking the bank. From powerful motors, to strong gears to long-life stainless steel parts, the Tiger Shark 11500 stands out from the competition. It is easy to see why the Tiger Shark remains one of Superwinch’s most popular winches year after year.
- 11,500 lbs. capacity
- 6.0 HP motor
- 3-Stage Planetary Gearing With 218:1 Ratio
- Weather Sealed Solenoid
- Heat insulated first layer

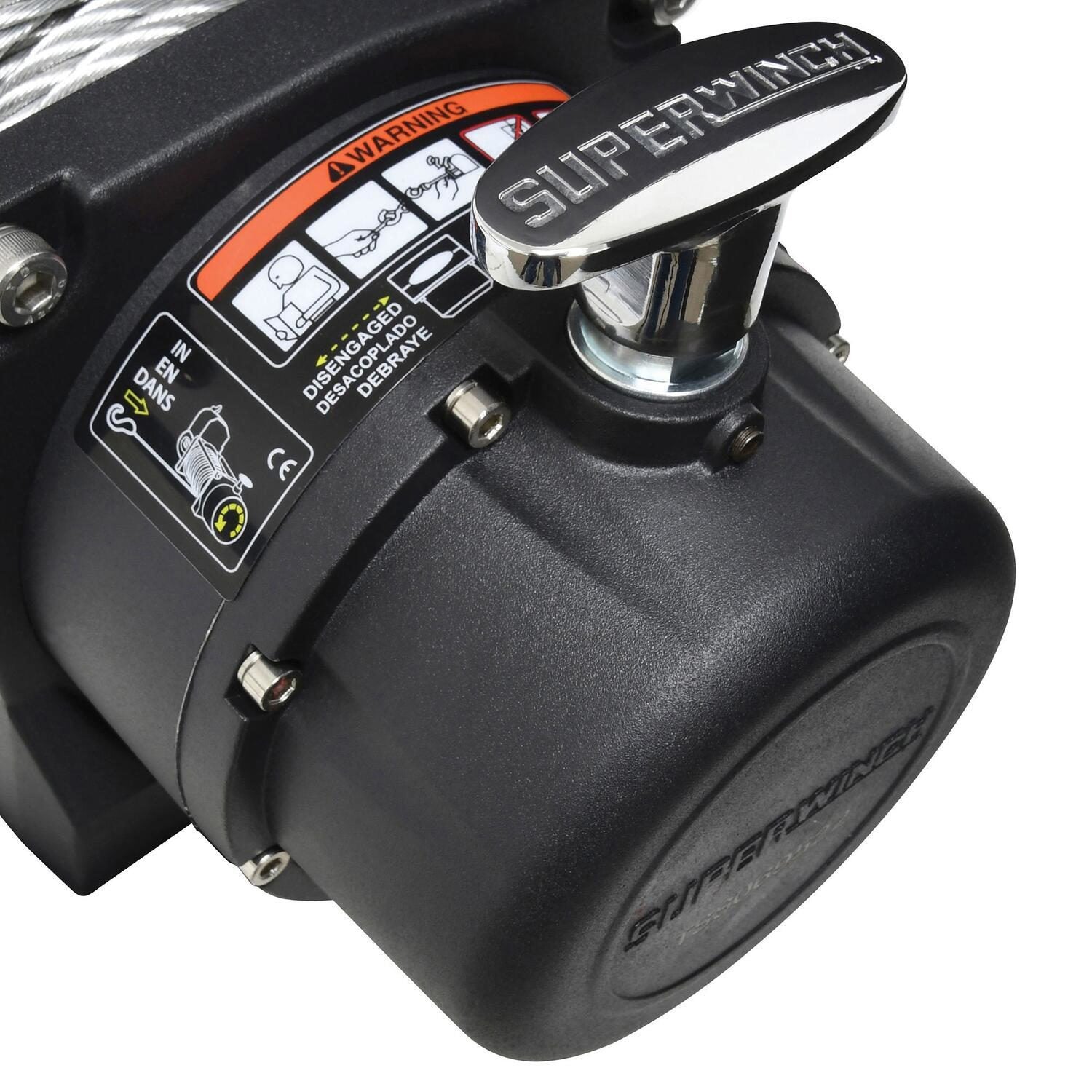

- Ergonomic pull and turn freespool

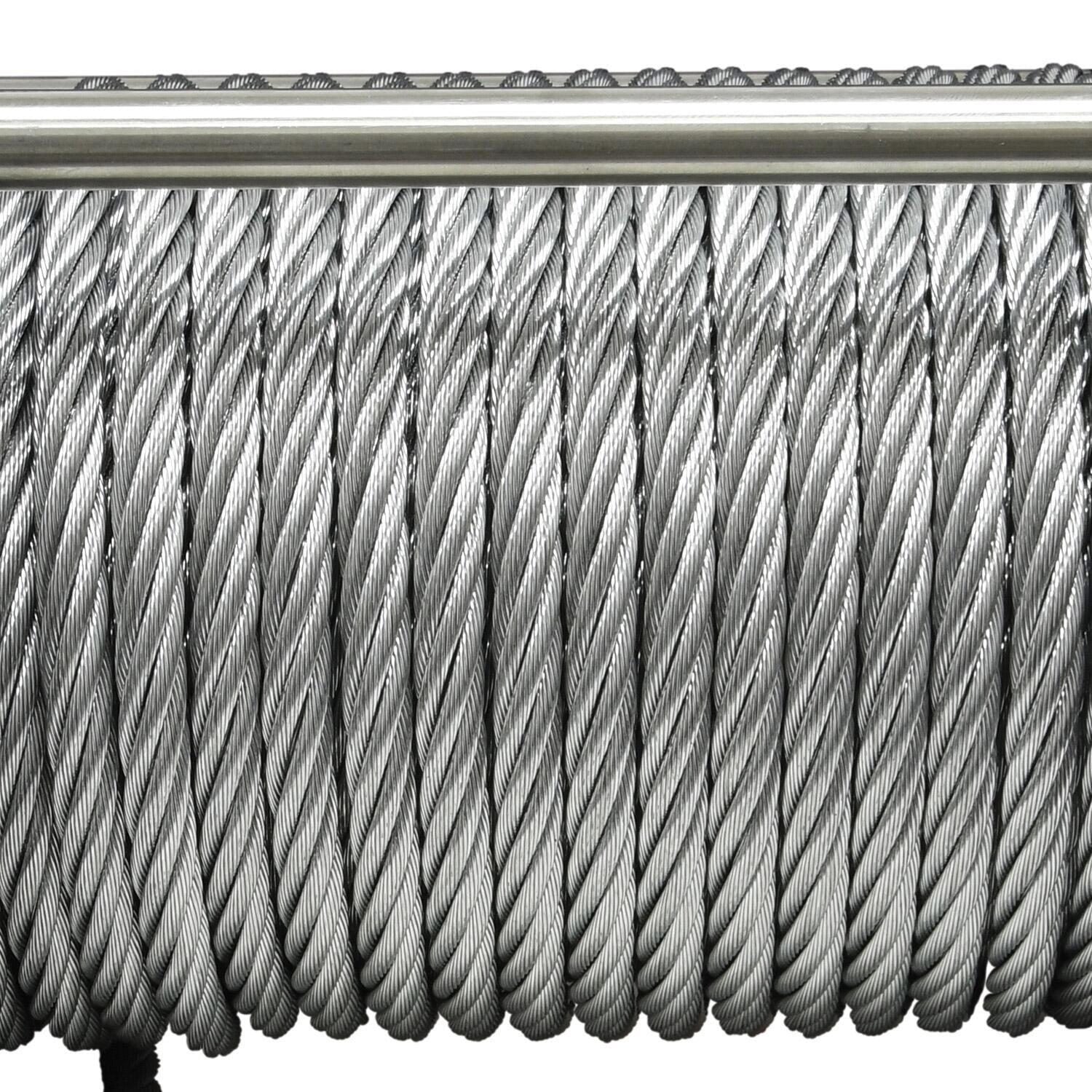

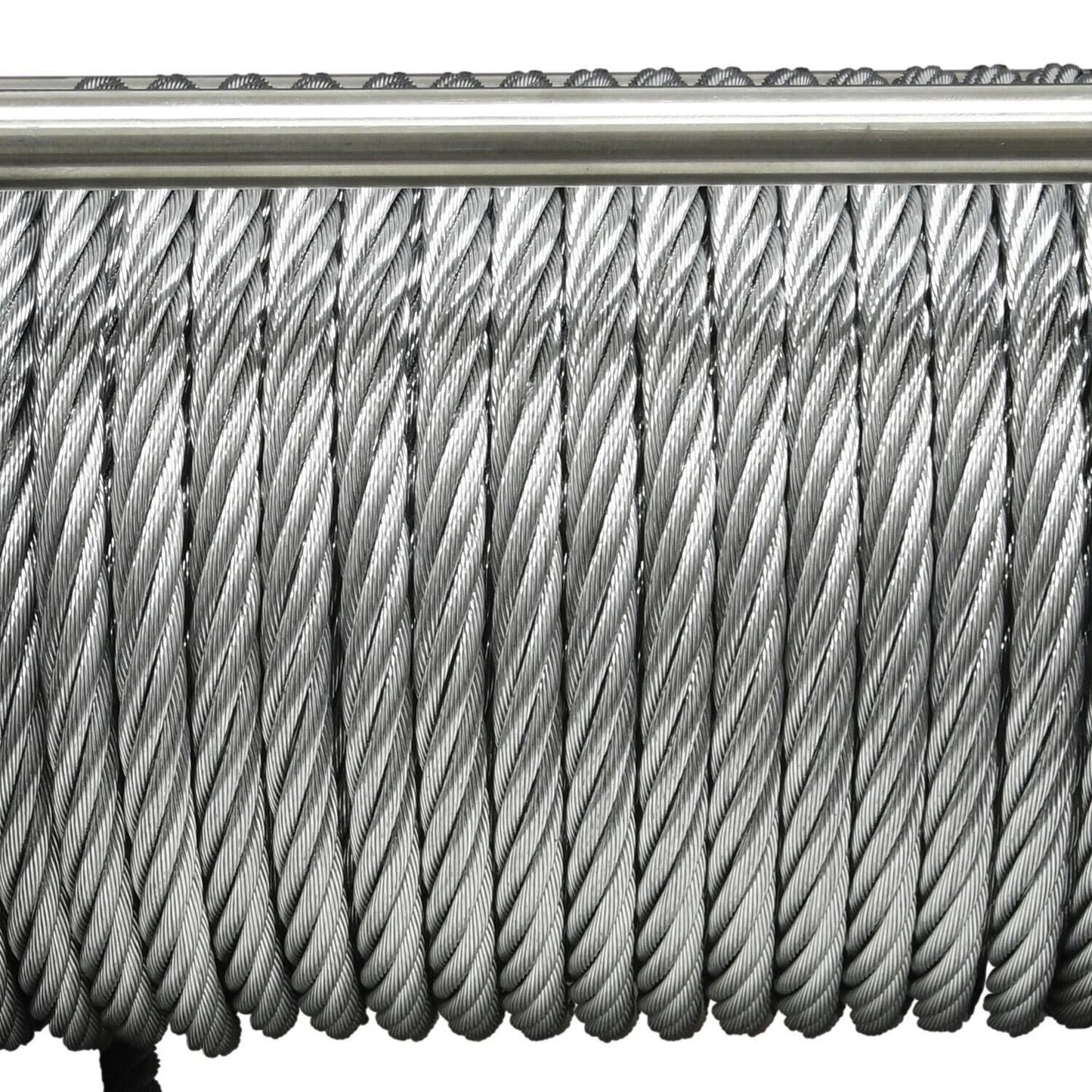

- 84 ft. - 3/8 in. wire rope

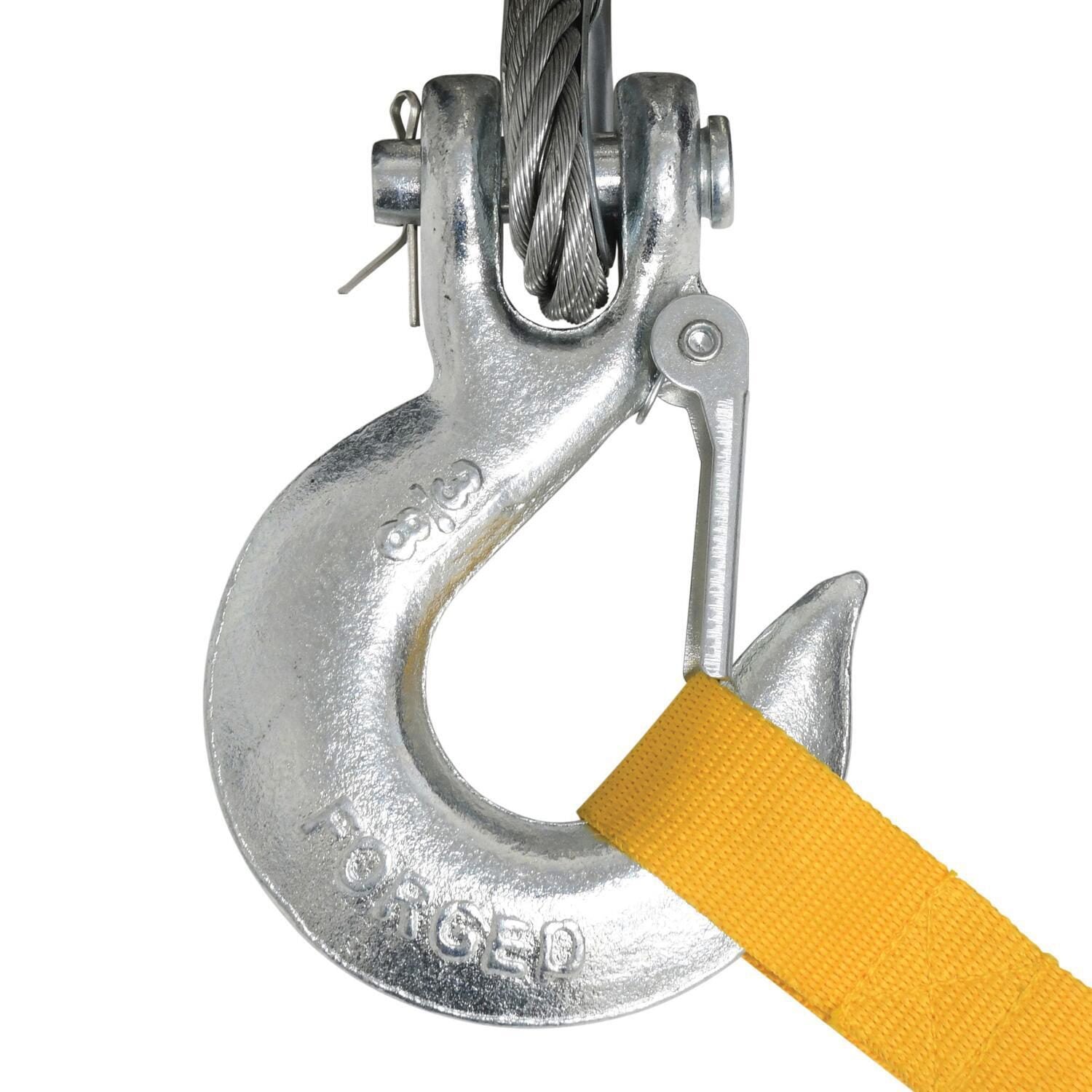

- Heavy-duty, clevis pinned, latched hook
- Stainless steel 4-way roller fairlead (wire rope)
- Rugged handheld remote control
- Automatic load holding brake design
Winch Model: Tiger Shark 11500 Series
Brake System: Mechanical, Automatic Load Holding
Material: Steel
Winch Hook: Heavy-Duty, Clevis Pinned Latched
Warranty: Limited Lifetime Mechanical/7 Year Limited Electrical

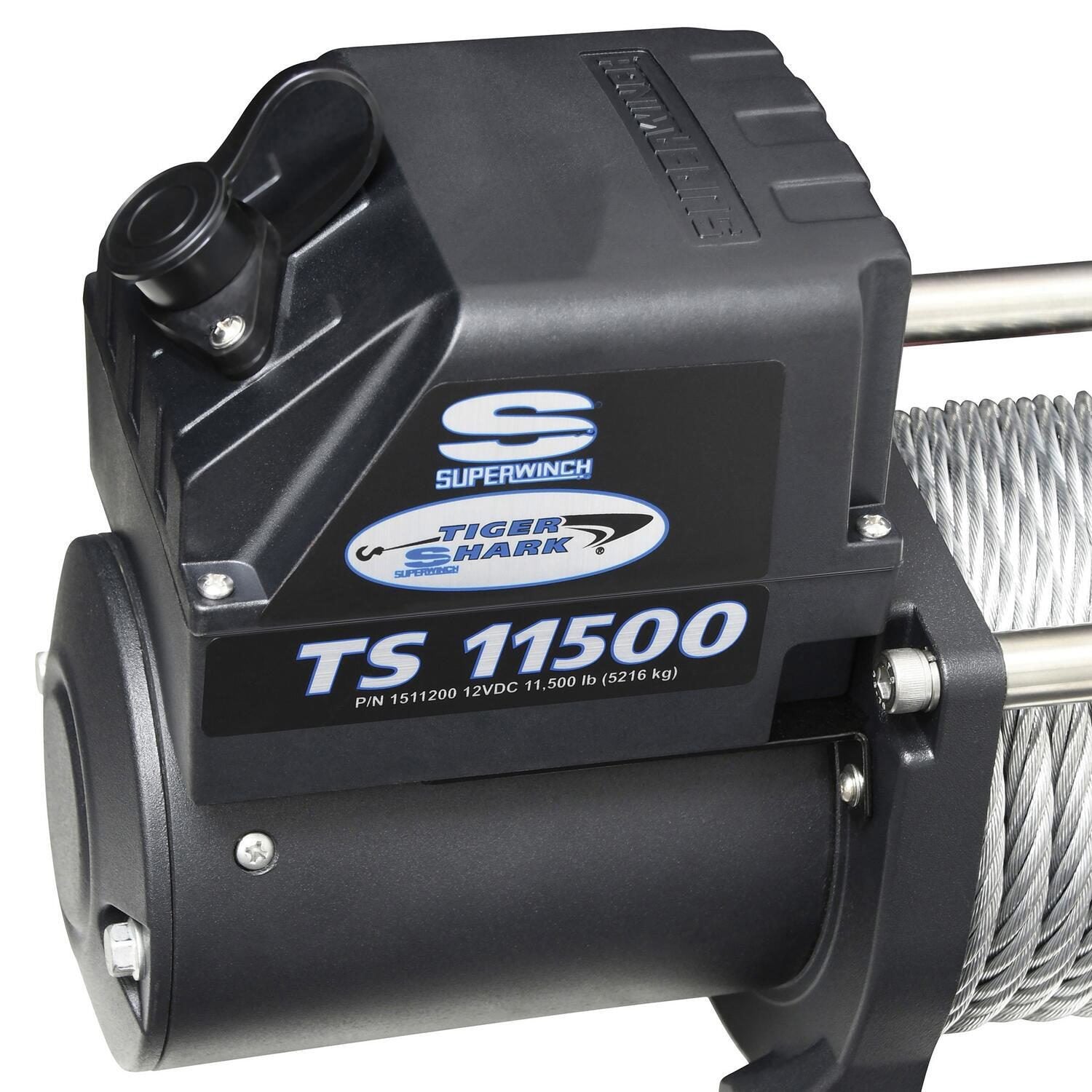

Solenoid: Weather Sealed Solenoid and Circuit Breaker Protected
Rope Material: Steel Wire
Rope Length: 3/8 in x 84 ft (9.5mm x 25.6m)
Remote Type: Wire
Remote Control: 12 ft Rubber Sealed Hand-held
Rated Single Line Pull (Lbs): 11500
Net. Weight: 94 lbs (42kgs)
Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)
Motor: Series wound 6.0 HP/4.4KW, 12V DC
Line Speed: 80 Amps Motor Draw/19 FPM (5.7 MPM)
Can Ship By Ground Delivery: Yes
Gear System: 3-stage planetary
Gear Ratio: 218:1
Finish: Powder Coated
Fairlead: Stainless Steel 4-Way Roller
EN Compliant: No
Drum Length (in.): 9.0
Drum Diameter (in.): 2.5
Drum: Durable fully welded steel drum
Dimensions: 24.7in L x 10.9in D x 6.2in H (624mm L x 278mm D x 157mm H)
Color: Black
Clutch: Ergonomic pull and turn
