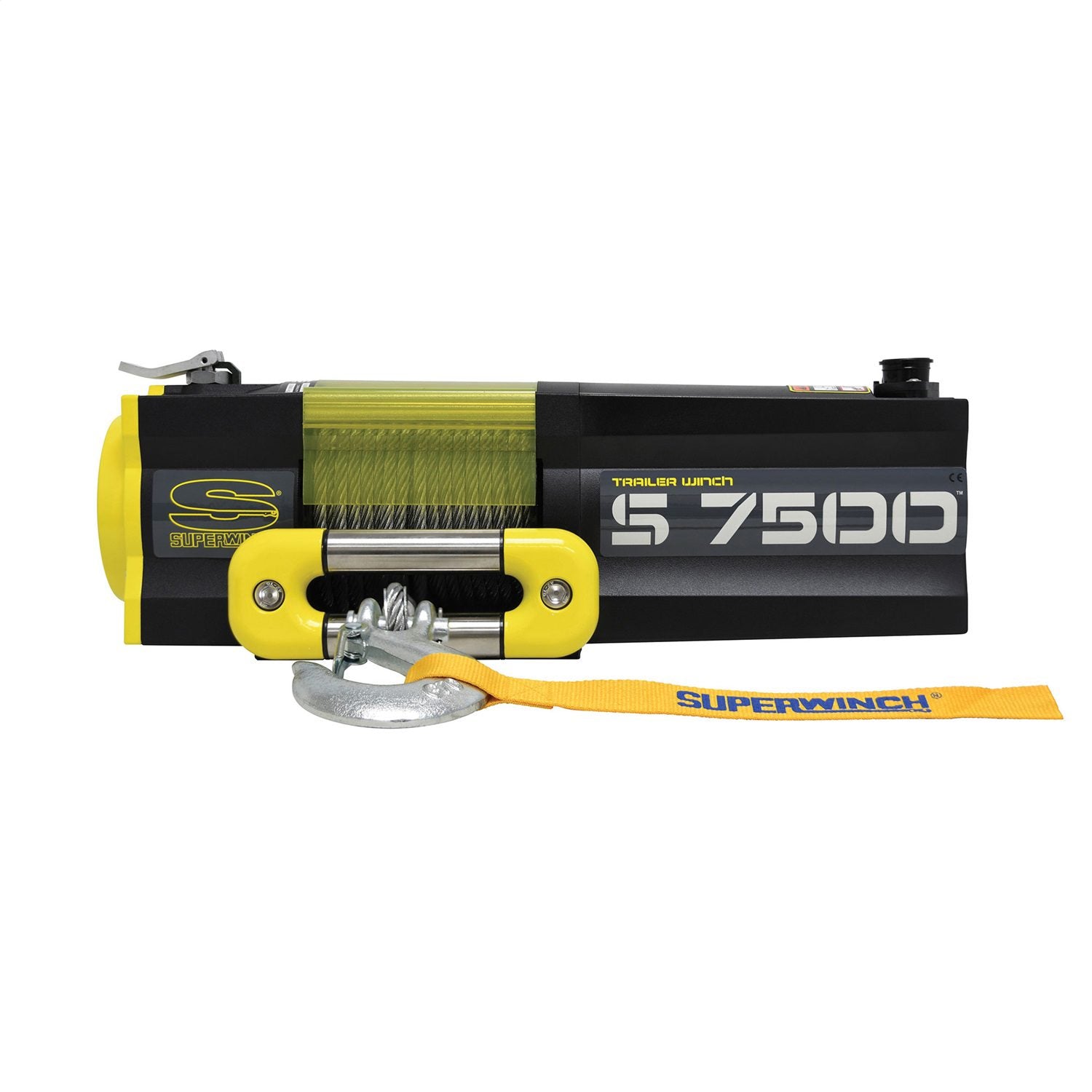

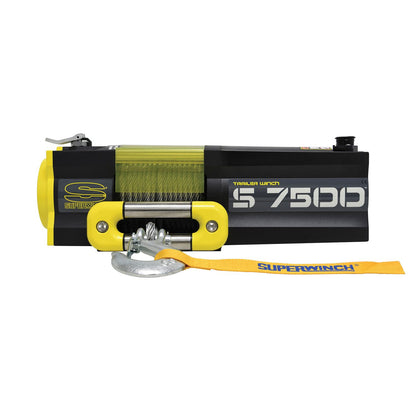

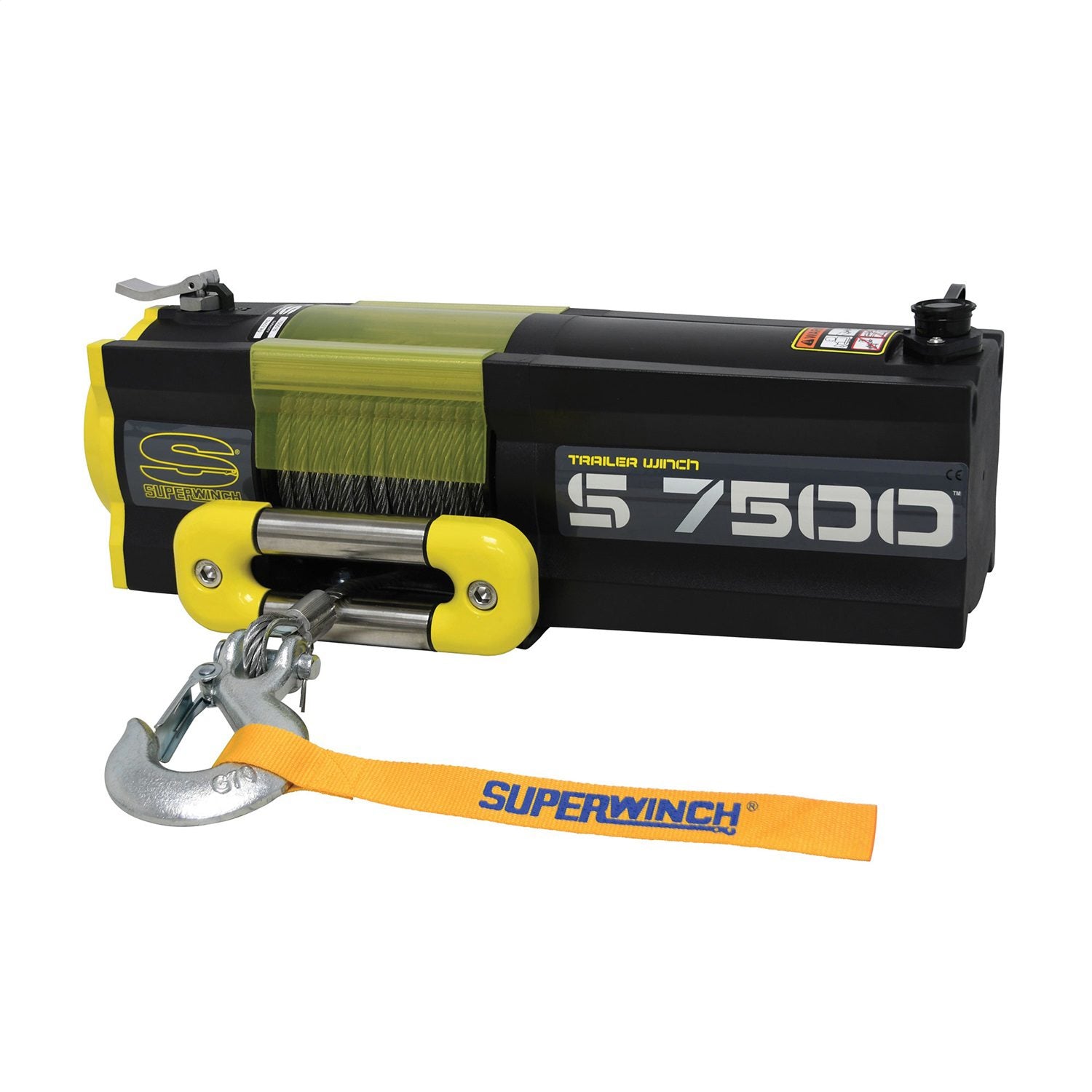

Superwinch - 1475200

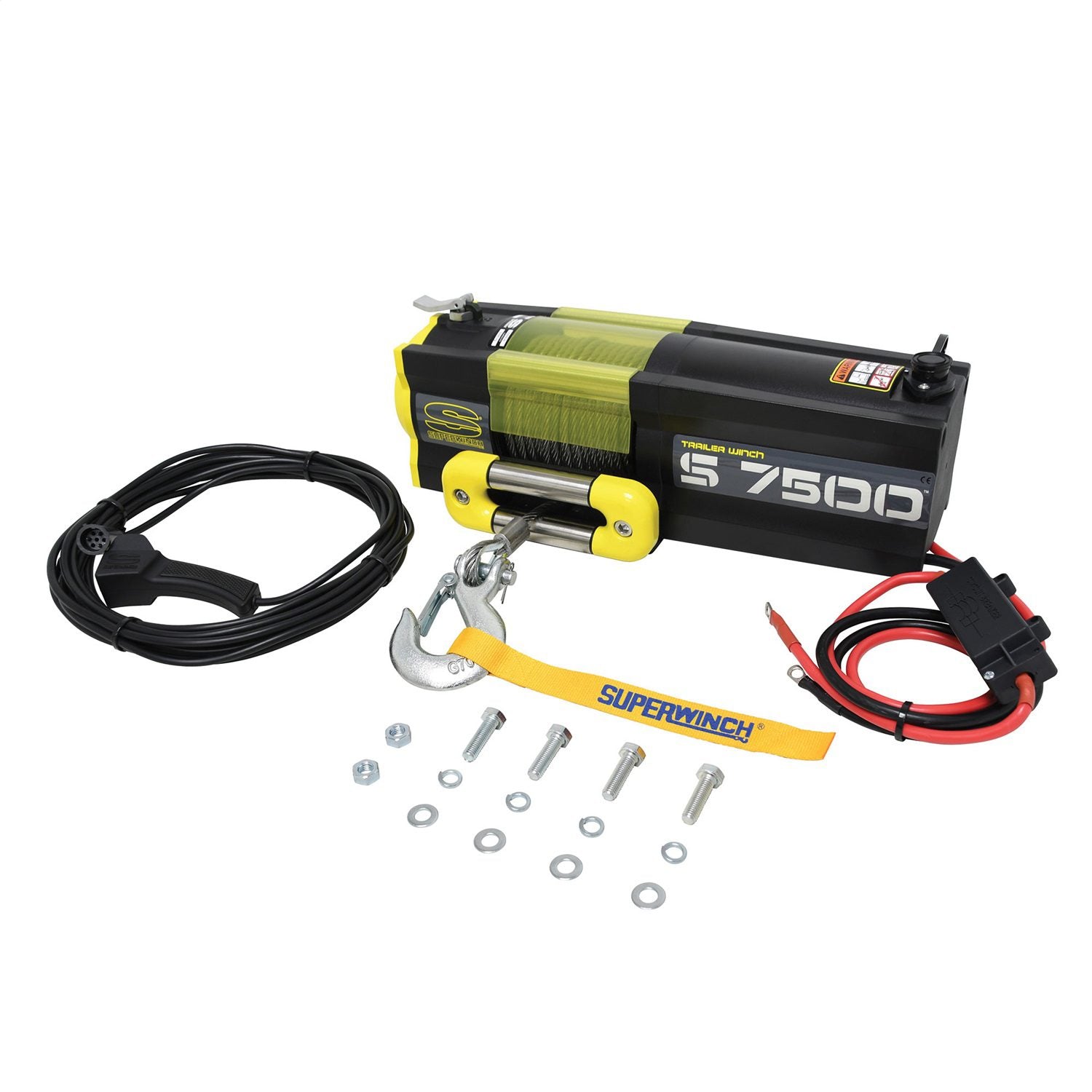

Winch - S7500 - 7500 lb Capacity - Roller Fairlead - 30 ft Remote - 5/16 in x 55 ft Steel Rope - 12V - Kit
S7500 Winch; 7500 lbs; 12 Vdc; 5/16 In X 54 ft Steel Rope; 30.5 ft Handheld Remote Control; 3.6 hp; Mechanical Brake; 3-Stage Planetary; 249:1 Gear Ratio; 2-Way Fairlead;

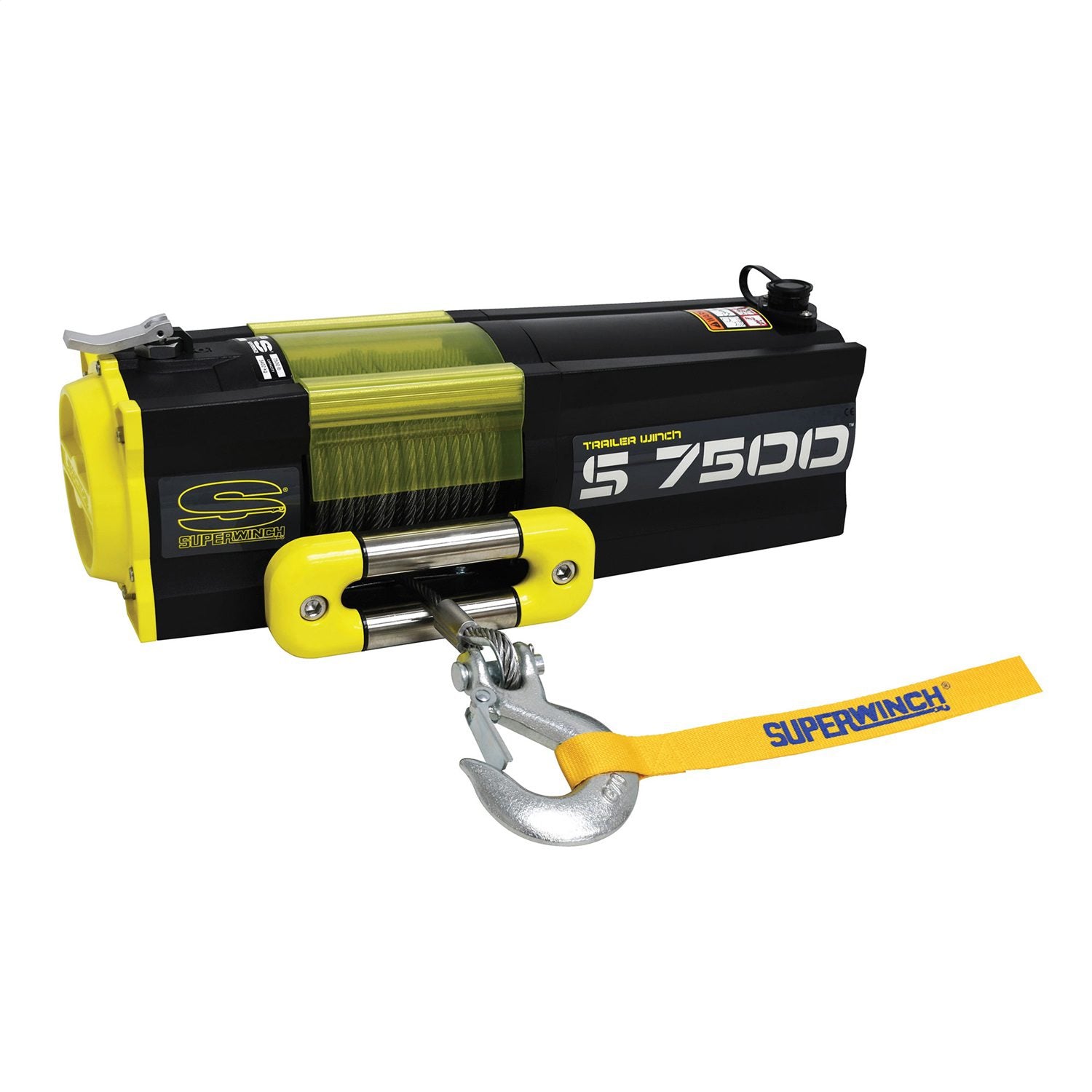

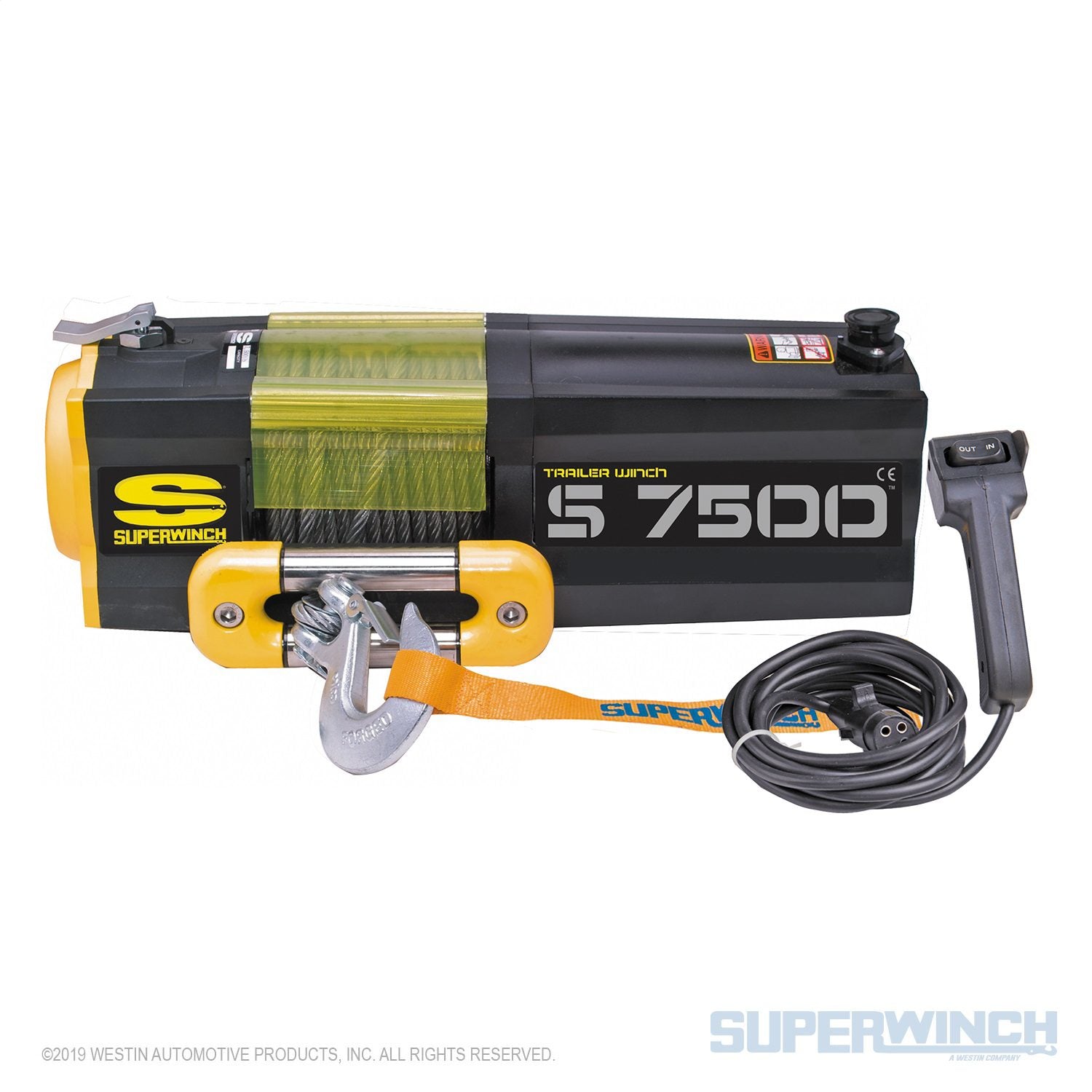

The S7500 Winch pulls 7,500 lbs with a 3.6 hp permanent magnet motor driven through an all steel 3-stage planetary gear box. The tinted protective cover protects the cable, drum and operators fingers. Machined aluminum freespool lever can be easily operated by foot. Innovative 2-hole drum prevents steel cable from detaching from drum.
- 7,500 lbs. capacity
- 3.6 Hp Permanent Magnet Motor Provides Dynamic Braking
- 3-Stage Planetary Gearing With 249:1 Ratio
- Sealed Solenoid

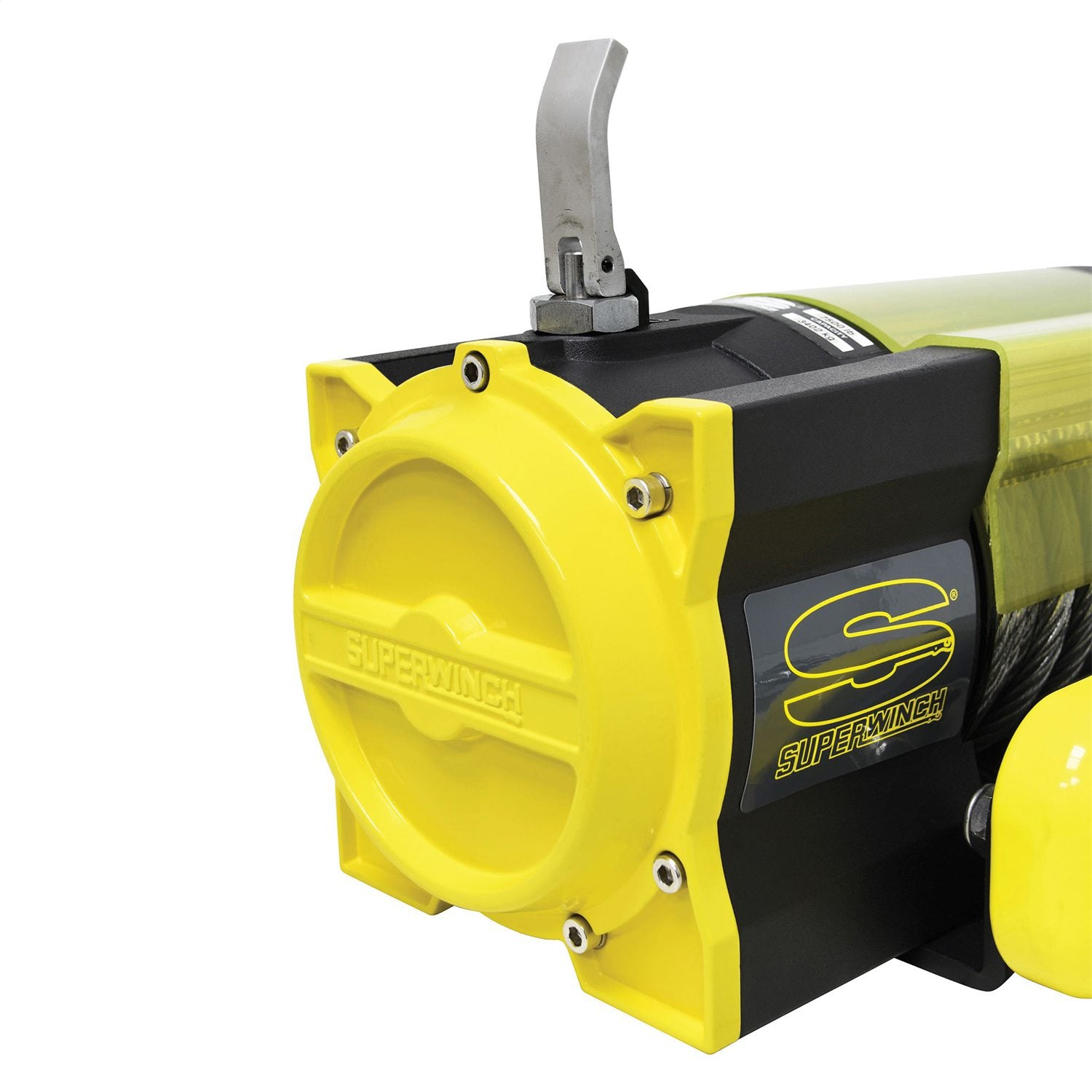

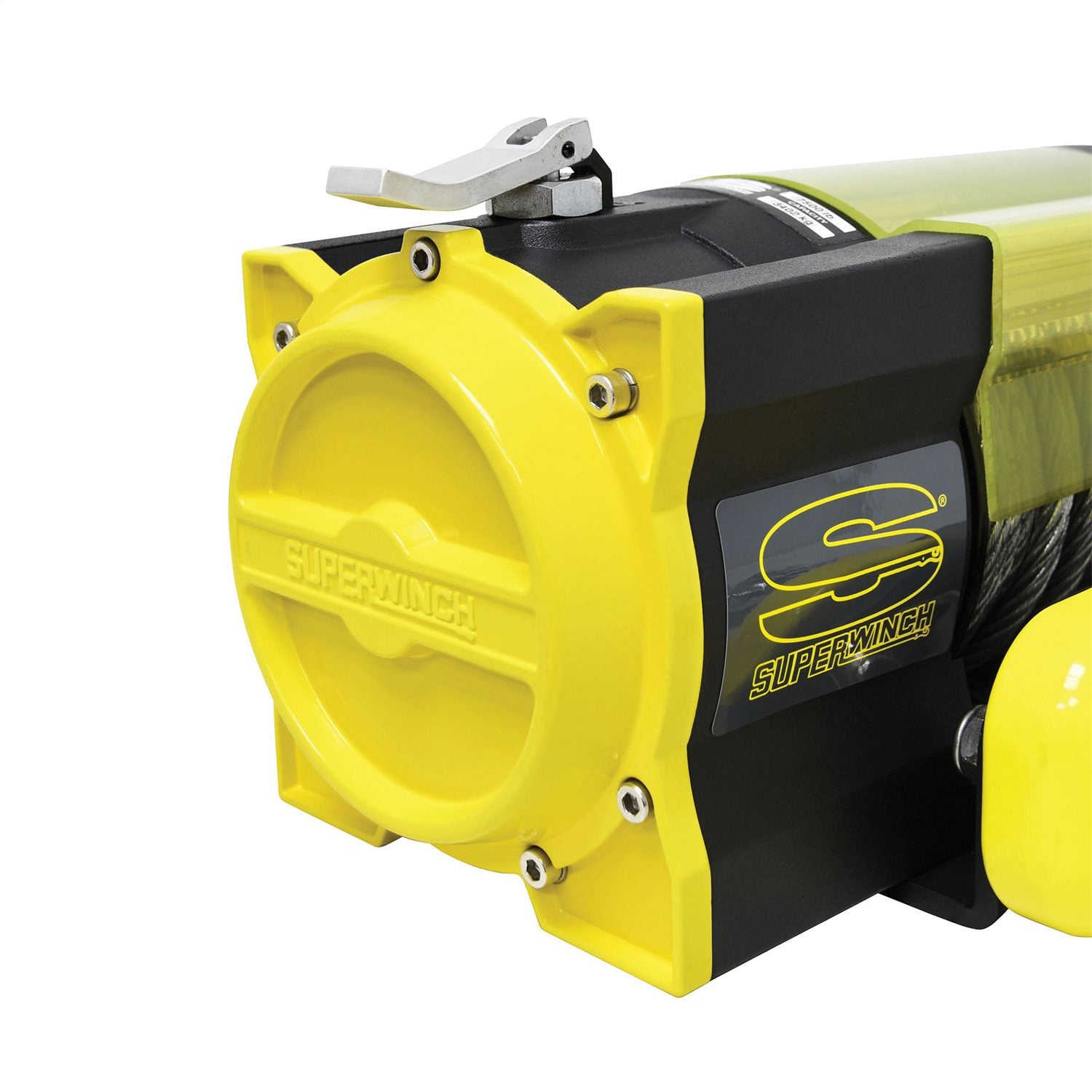

- Lever Style Freespool Allows Hand Or Foot Operation
- Steel Cut Gears For Better Engagement And Longevity
- Automatic load holding brake
- Stainless steel 2-way roller fairlead
- 30 ft. wire remote
Brake System: Mechanical, Automatic Load Holding, Outside Drum
Mounting Bolt Pattern: 4 bolt
Winch Hook: Heavy-Duty, Clevis Pinned Latched
Warranty: 2 Year Limited Manufacturer
Solenoid: VS4 (sealed submersible vented)

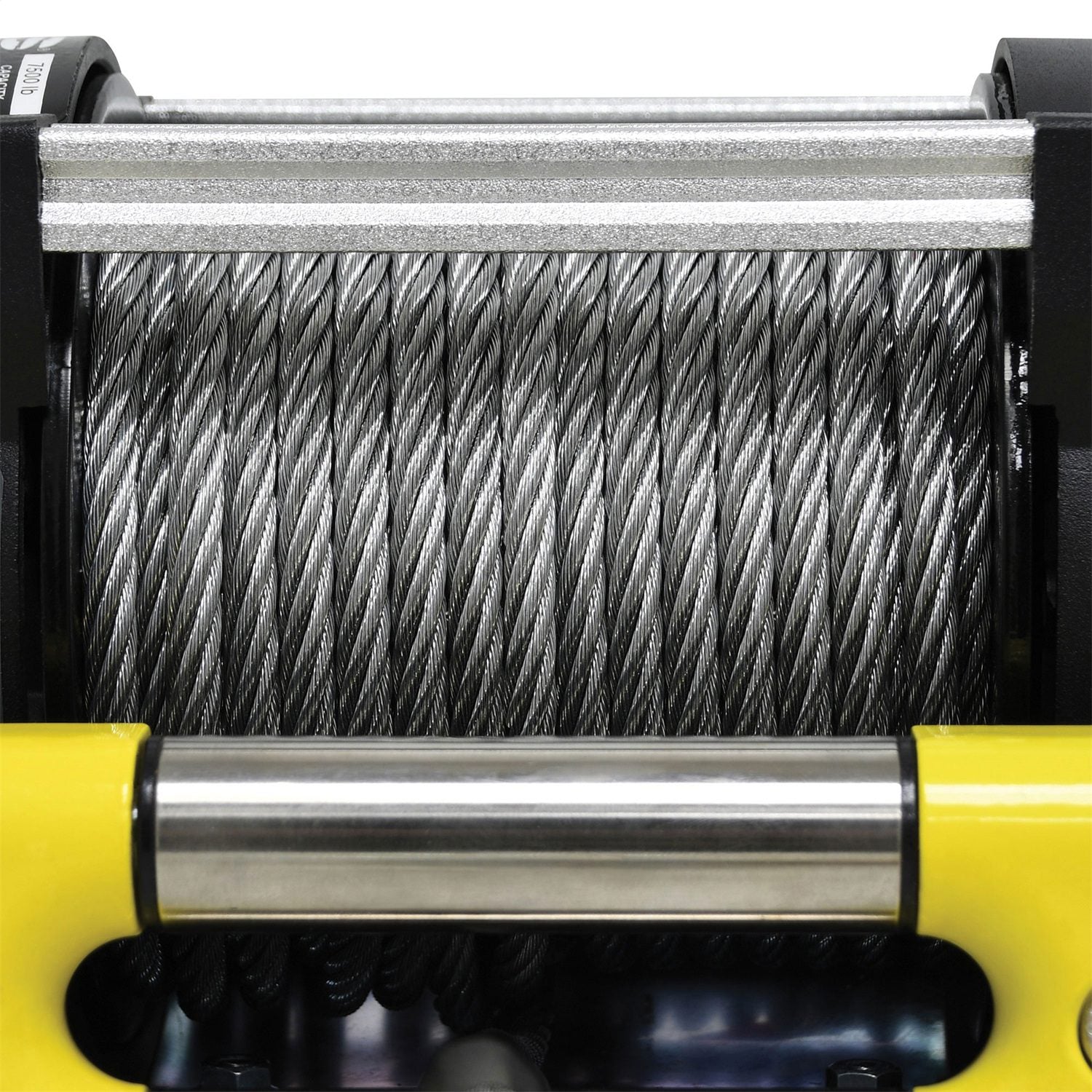

Rope Material: Steel Wire
Rope Length: 5/16 in x 55 ft
Remote Type: Wire
Remote Control: 12 ft Rubber Sealed Hand-held
Rated Single Line Pull (Lbs): 7500
Net. Weight: 51 lbs (23.1kgs)
Motor: 3.6 HP, pemanent magnet motor, 12V DC
Can Ship By Ground Delivery: Yes
Material: Steel
Line Speed: 80 Amps Motor Draw/19 FPM (5.8 MPM)
Gear System: 3-stage planetary
Gear Ratio: 249:1
Finish: Powder Coated
Fairlead: Strong roller-coaster fairlead/hawse hybrid
EN Compliant: No
Dimensions: 19.1in L x 6.6in D x 8.2in H (485mm L x 167mm D x 208mm H)
Color: Yellow
Clutch: Kick-n-flip
Winch Model: S 7500 Series
