Superwinch - 1455201

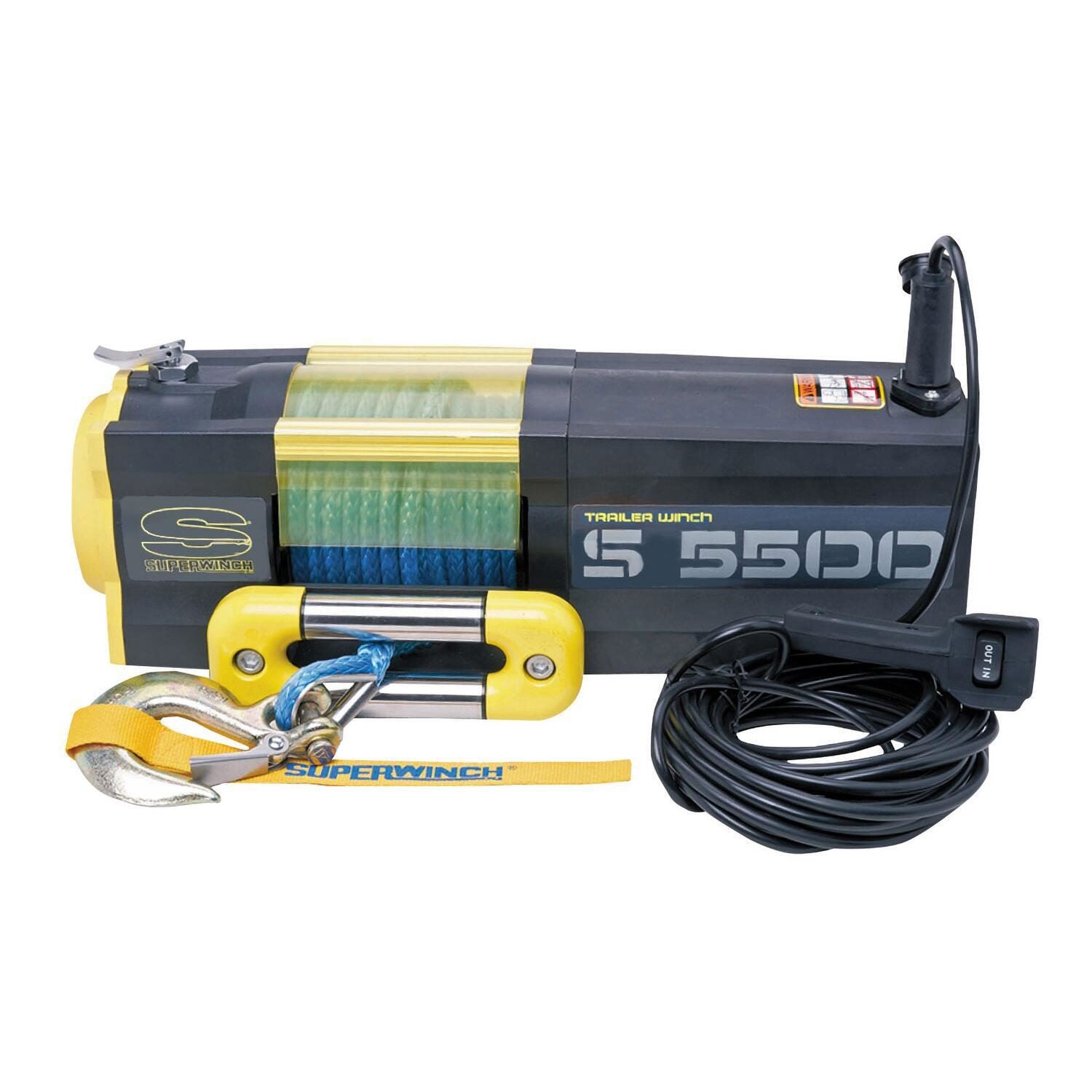

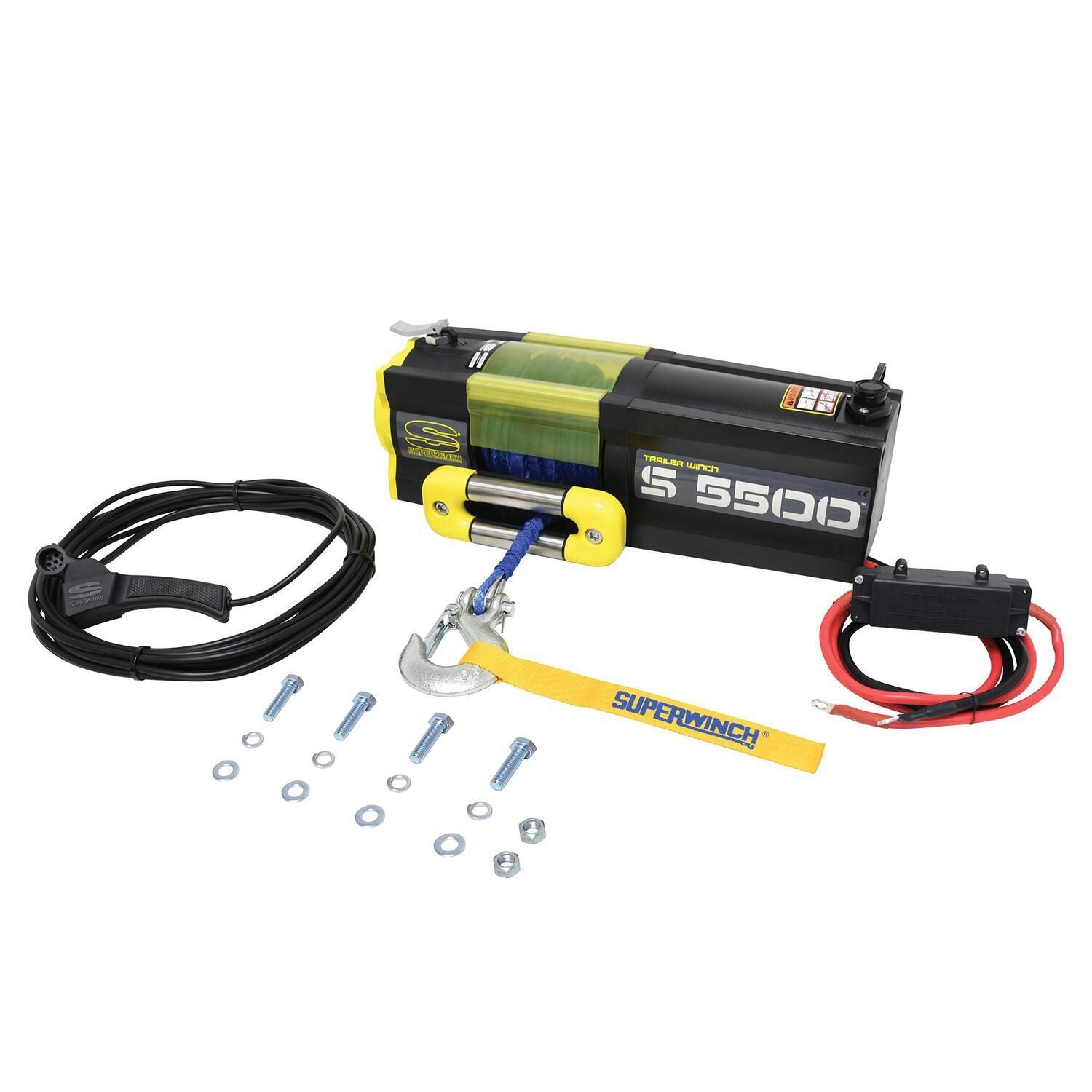

Winch - S5500 - 5500 lb Capacity - Roller Fairlead - 30 ft Remote - 1/4 in x 60 ft Synthetic Rope - 12V - Kit
S5500SR Winch; 5500 lbs; 12 Vdc; 1/4 In X 60 ft Synthetic Rope; 30.5 ft Handheld Remote Control; 3.6 hp; Mechanical Brake; 3-Stage Planetary; 185:1 Gear Ratio; 2-Way Fairlead;

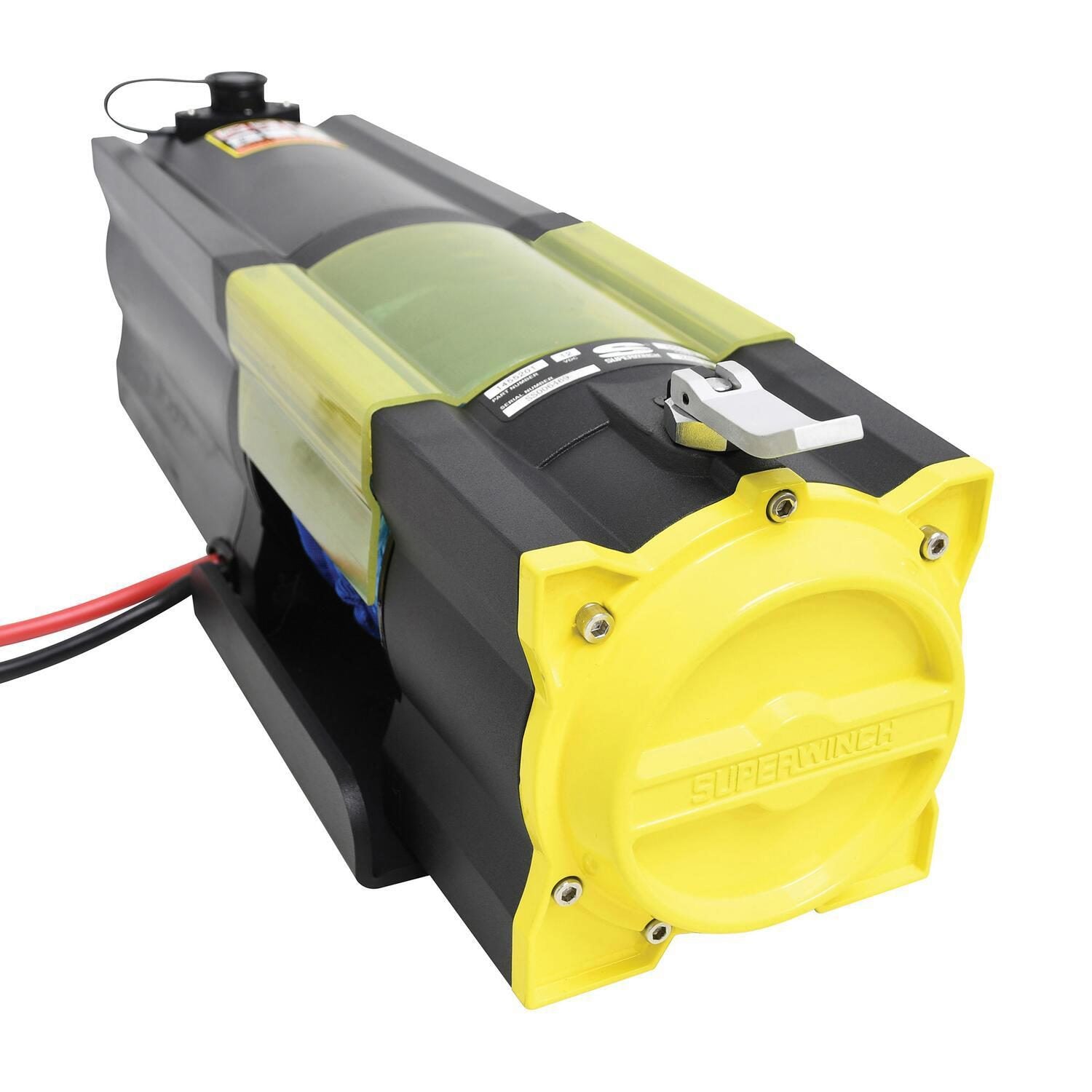

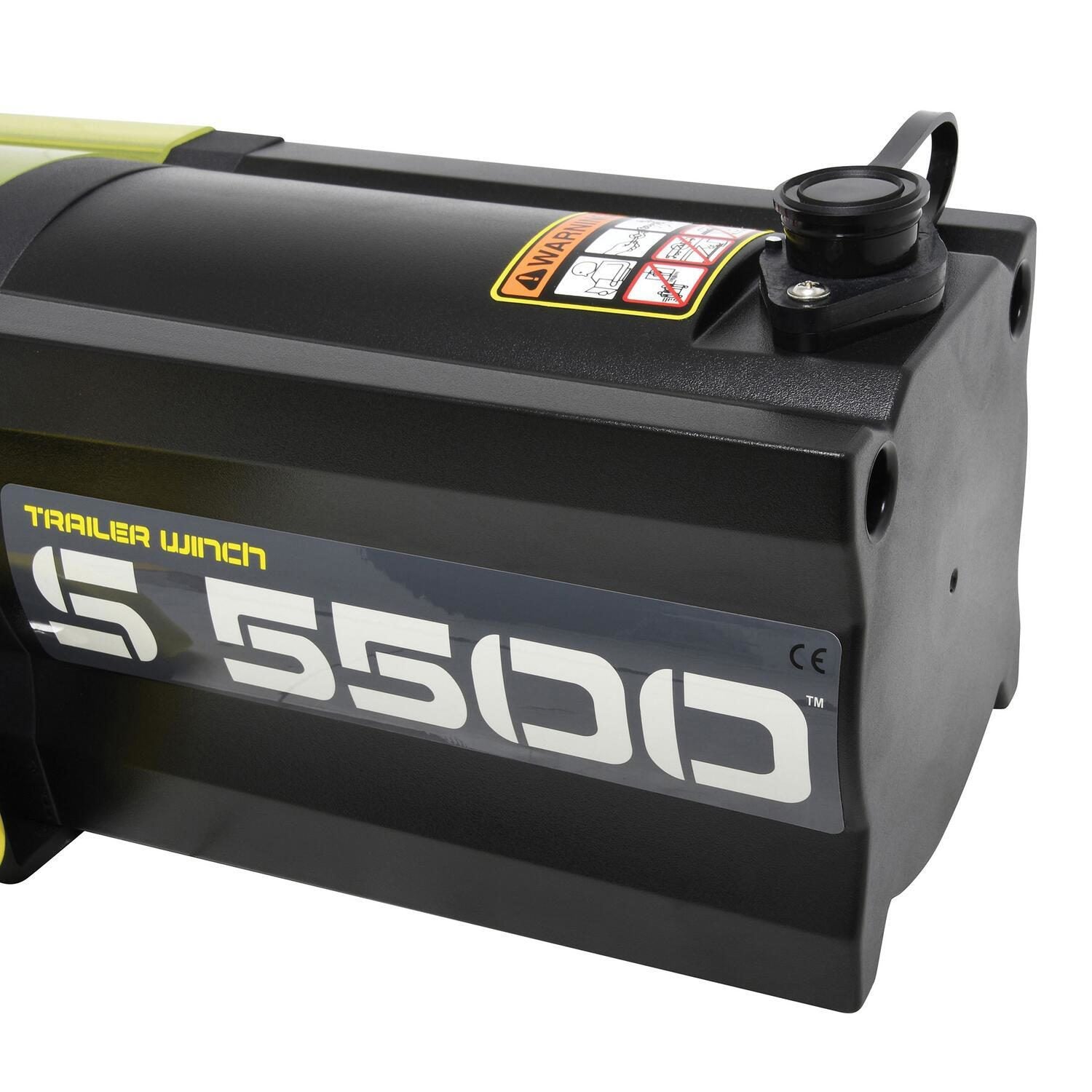

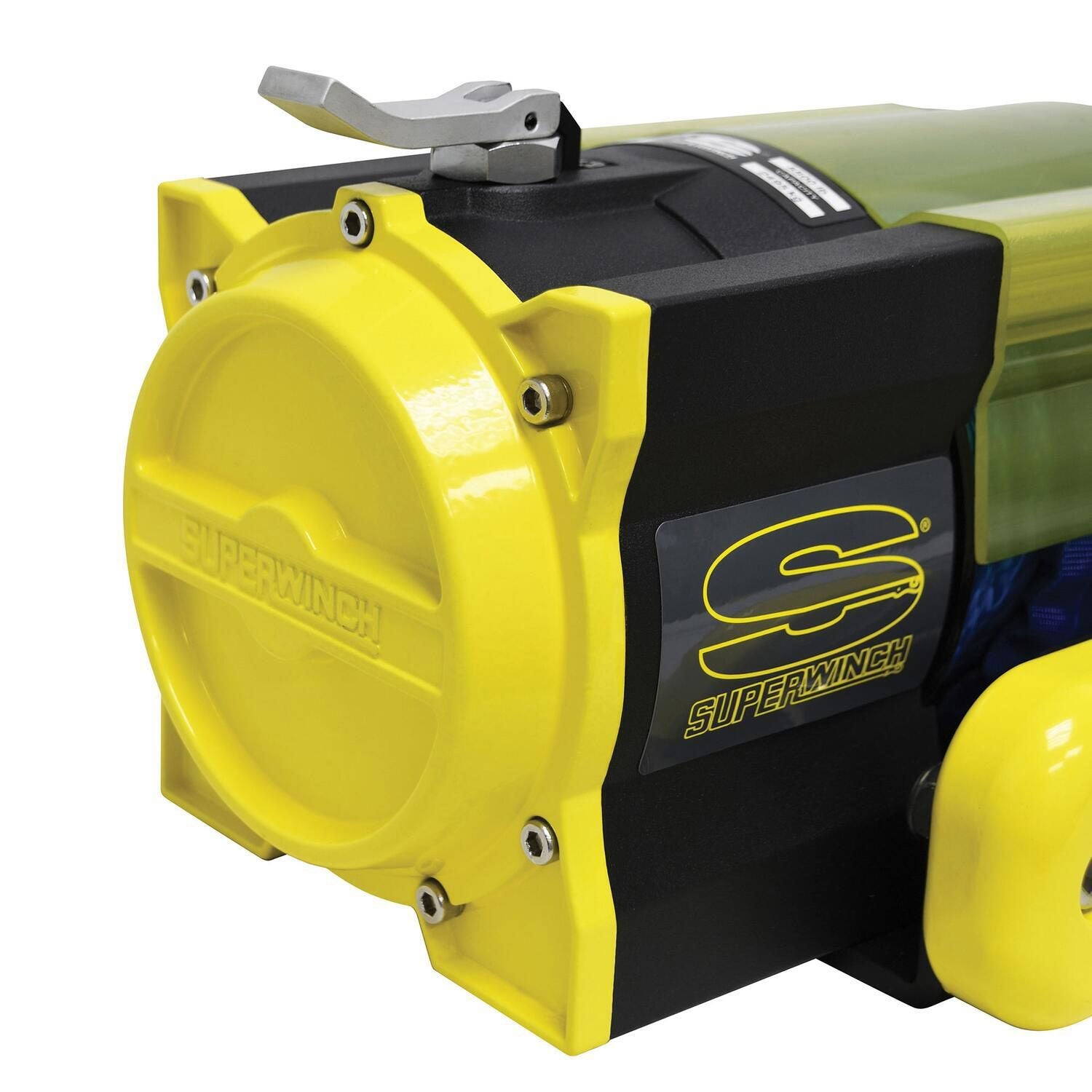

The S5500 Winch continues Superwinch’s dominance as the leader in trailer-specific winching. The S5500 trailer winch easily pulls 5,500 lbs powered by its 3.6 hp permanent magnet motor, and its all steel 3-stage planetary gear box. The S5500 includes a safety tinted protective cover which protects the cable, drum and operators fingers. The machined aluminum free-spool lever can also be operated easily by foot.
- 5,500 lbs. capacity
- 3.6 Hp Permanent Magnet Motor Provides Dynamic Braking
- 3-Stage Planetary Gearing With 159:1 Ratio
- Sealed Solenoid
- Lever Style Freespool Allows Hand Or Foot Operation
- Steel Cut Gears For Better Engagement And Longevity
- Automatic load holding brake

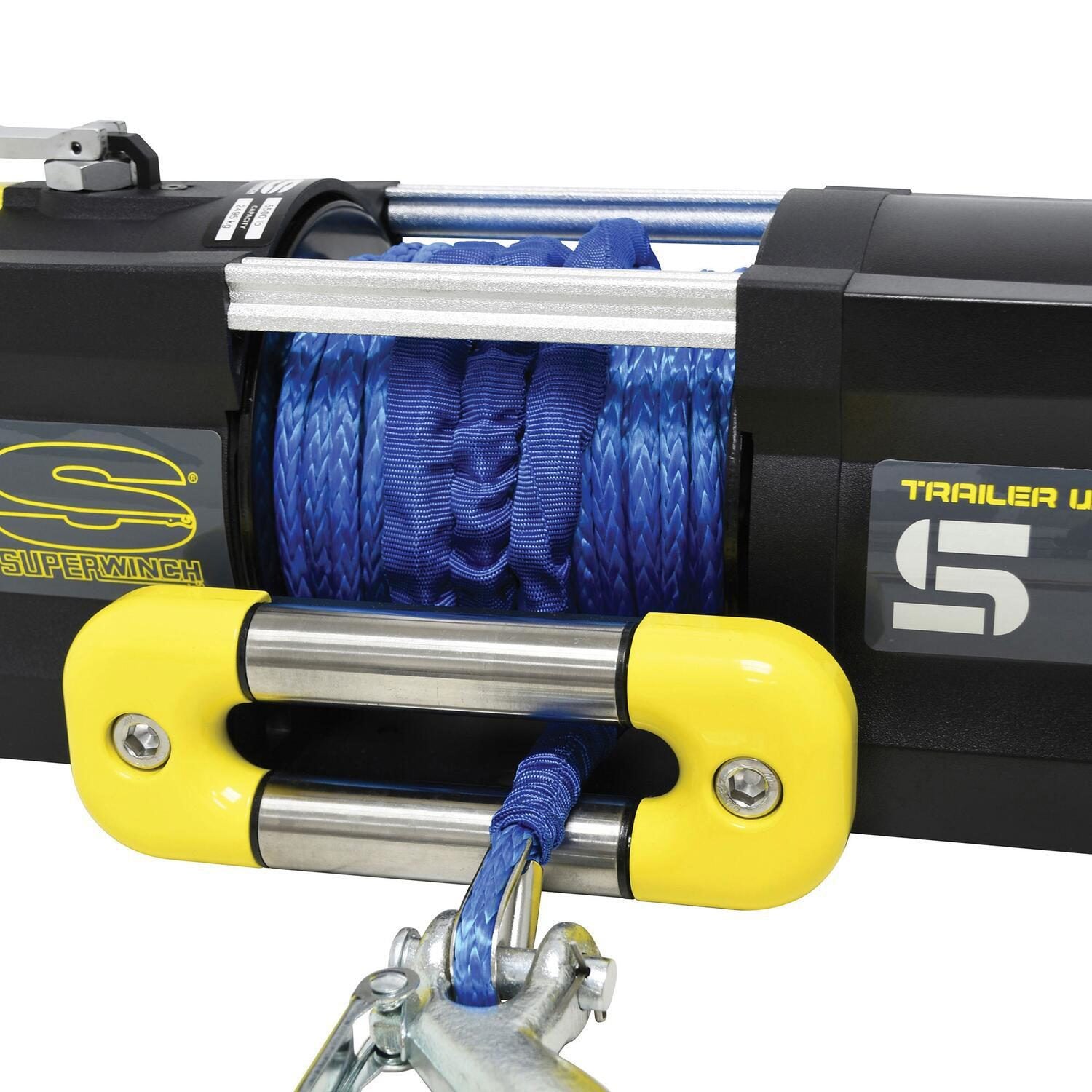

- Stainless steel 2-way roller fairlead

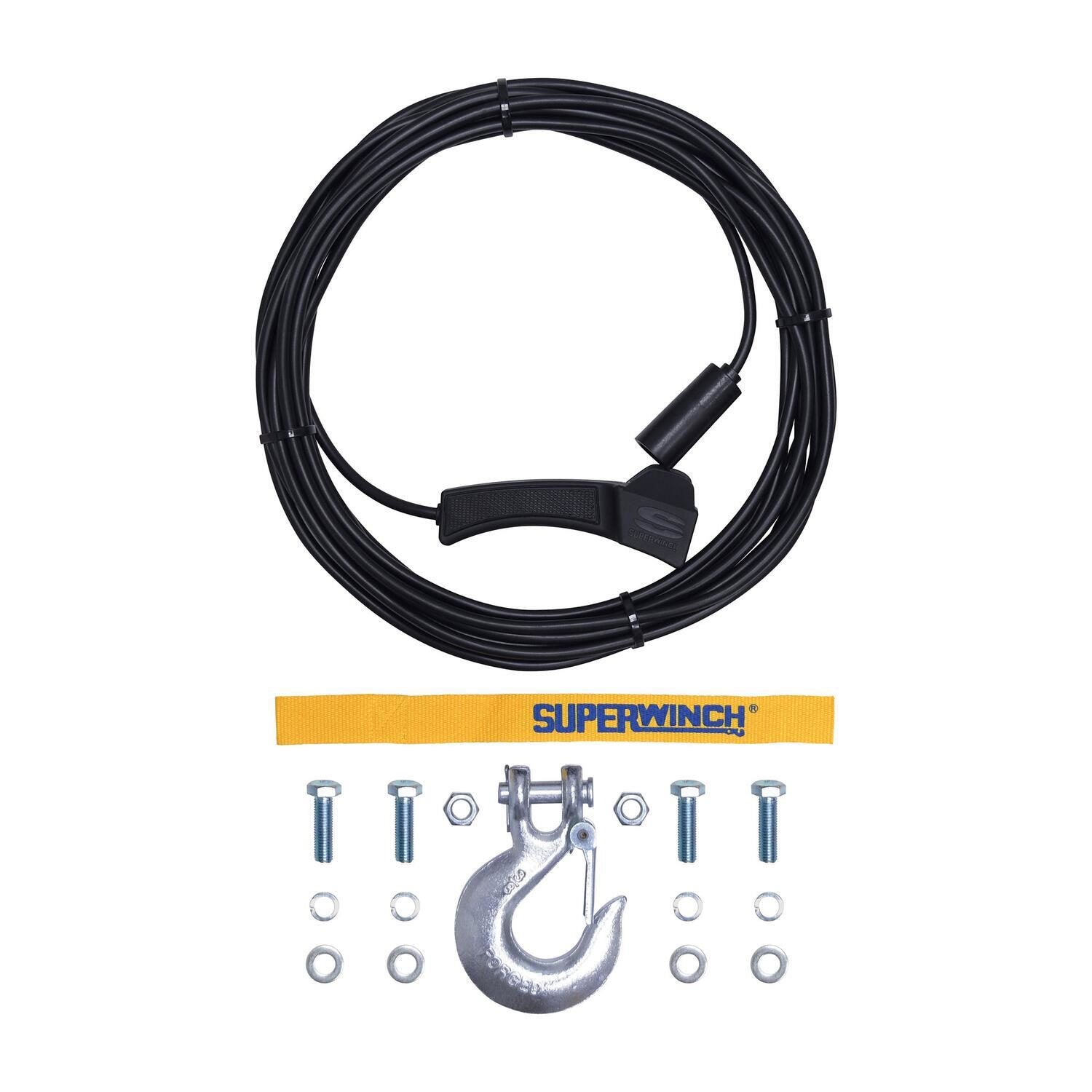

- 30 ft. wire remote
Brake System: Mechanical, Automatic Load Holding, Outside Drum
Mounting Bolt Pattern: 4 bolt
Winch Hook: Heavy-Duty, Clevis Pinned Latched
Warranty: 2 Year Limited Manufacturer

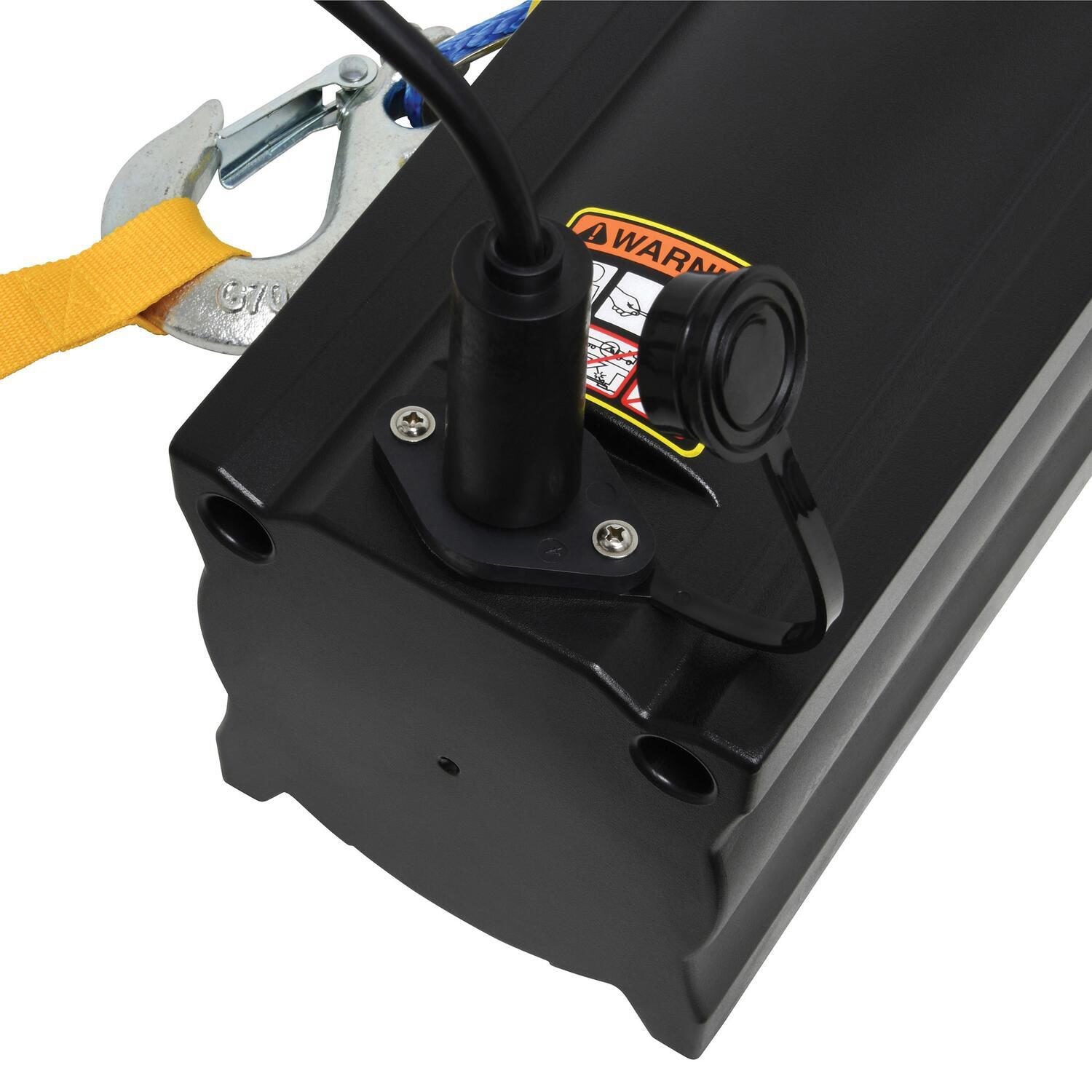

Solenoid: VS4 (sealed submersible vented)

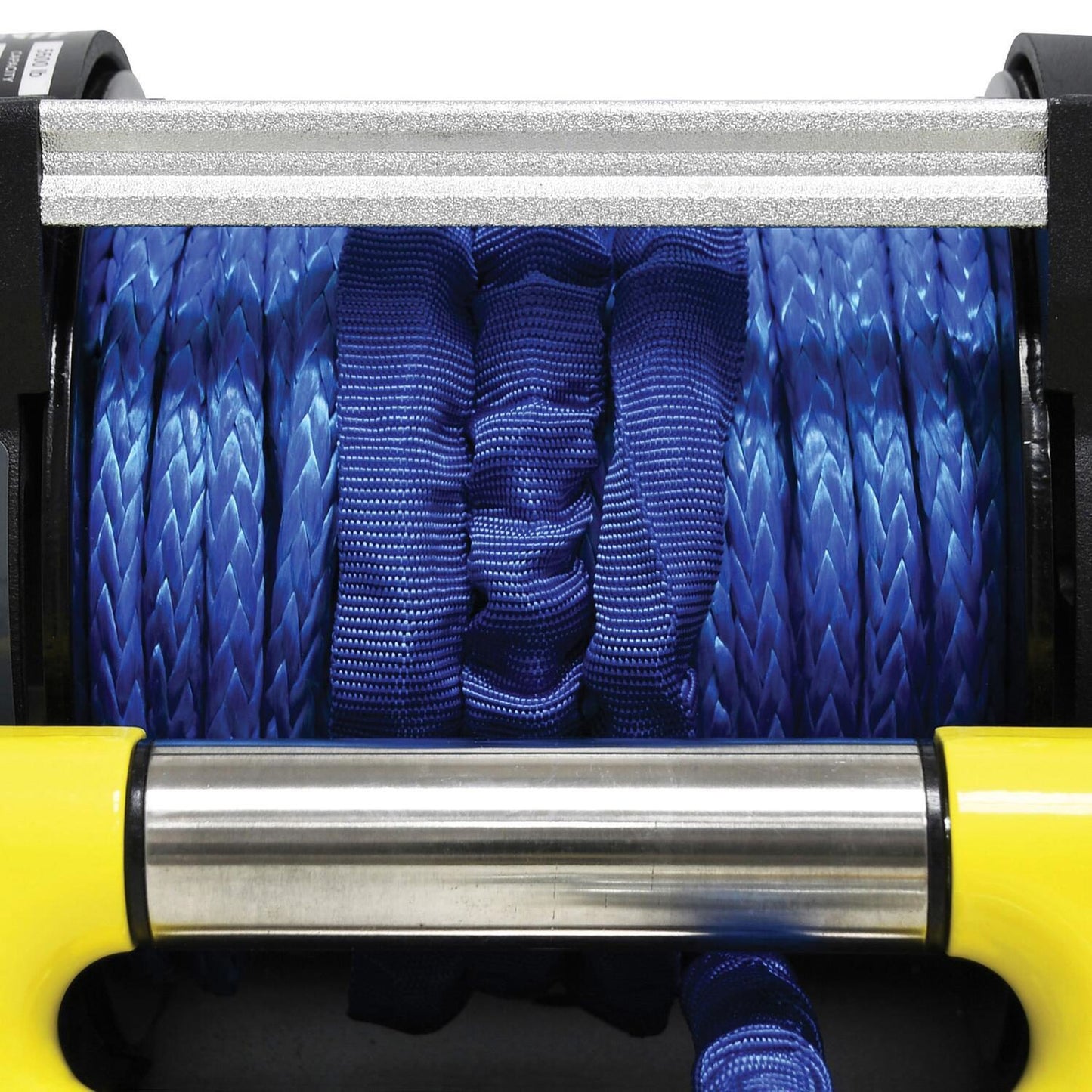

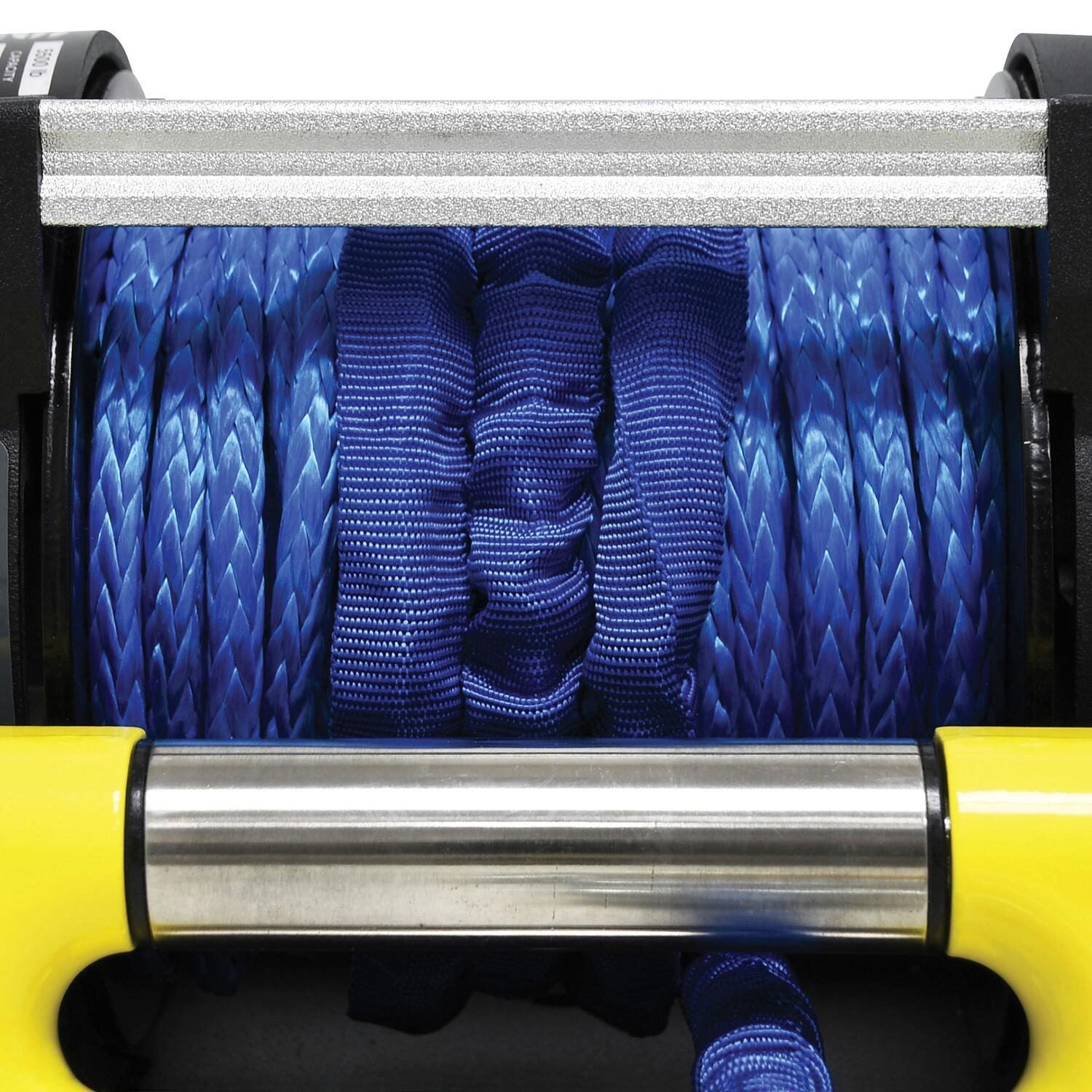

Rope Material: Synthetic
Rope Length: 1/4 in x 60 ft (6.35mm x 18.3m)
Remote Type: Wire
Remote Control: 12 ft Rubber Sealed Hand-held
Rated Single Line Pull (Lbs): 5500
Net. Weight: 42 lbs (19kgs)
Motor: 3.6 HP, pemanent magnet motor, 12V DC
Can Ship By Ground Delivery: Yes
Material: Steel
Line Speed: 80 Amps Motor Draw/19 FPM (5.8 MPM)
Gear System: 3-stage planetary
Gear Ratio: 159:1
Finish: Powder Coated
Fairlead: Strong roller-coaster fairlead/hawse hybrid
EN Compliant: No
Dimensions: 19.1in L x 6.6in D x 8.2in H (485mm L x 167mm D x 208mm H)
Color: Yellow
Clutch: Kick-n-flip
Winch Model: S 5500 Series
