Superwinch - 1331200

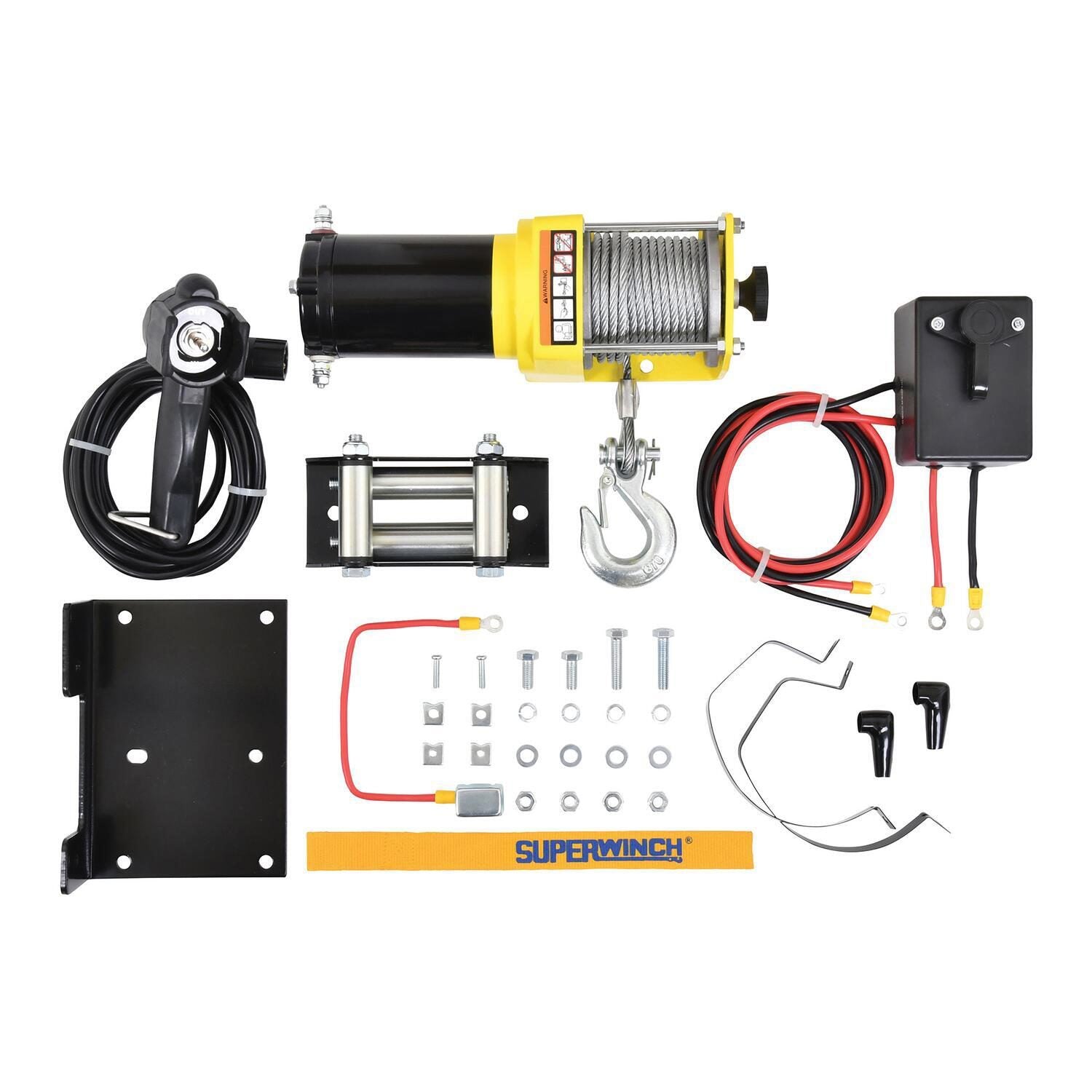

Winch - UT3000 - 3000 lb Capacity - Roller Fairlead - 12 ft Remote - 3/16 in x 40 ft Steel Rope - 12V - Kit
UT3000 Winch; 3000 lbs; 12 Vdc; 3/16 In X 40 ft Steel Rope; Circuit Breaker; Remote Control; 1.2 hp; Dynamic Brake; 1-Stage Planetary; 153:1 Gear Ratio; 4-Way Roller Fairlead;

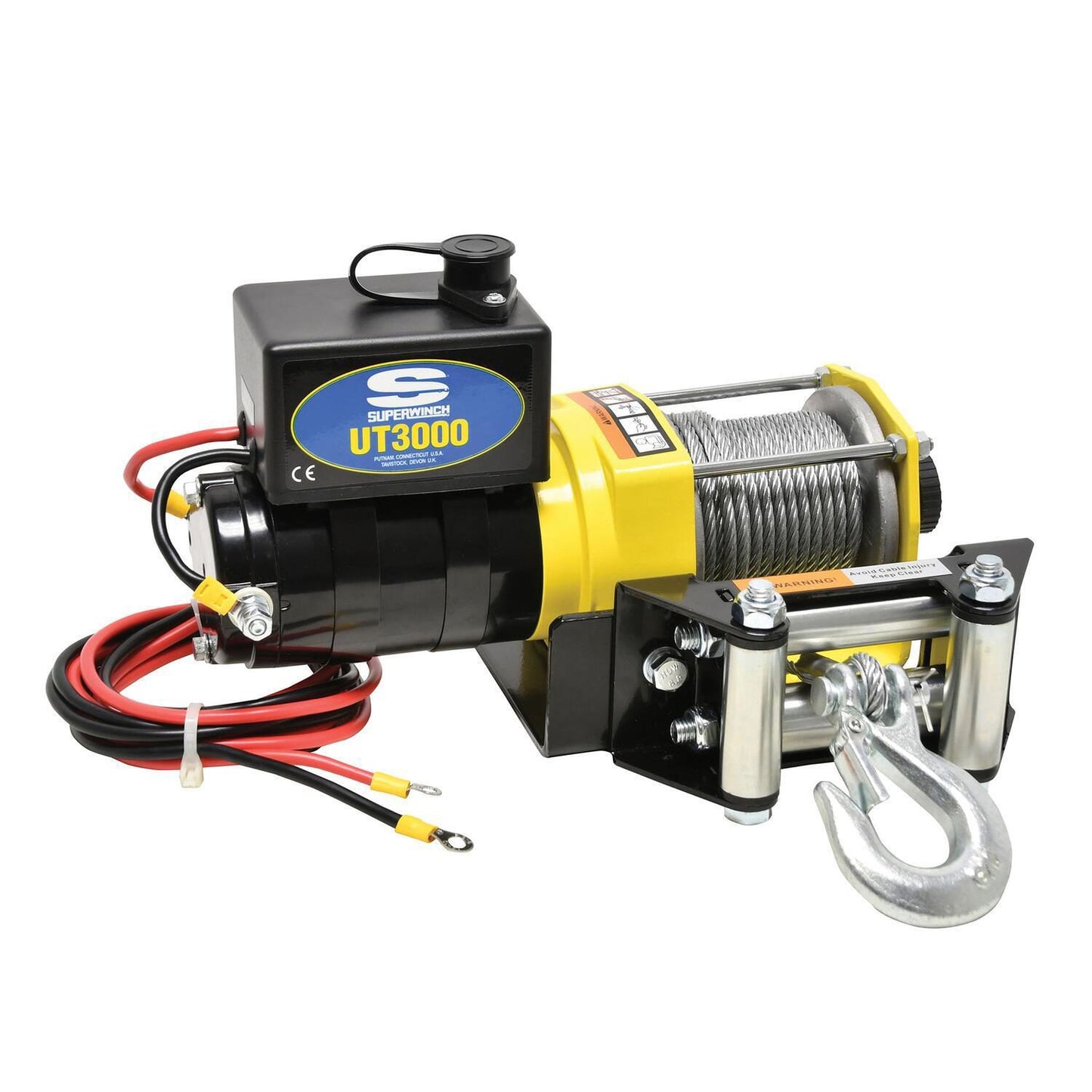

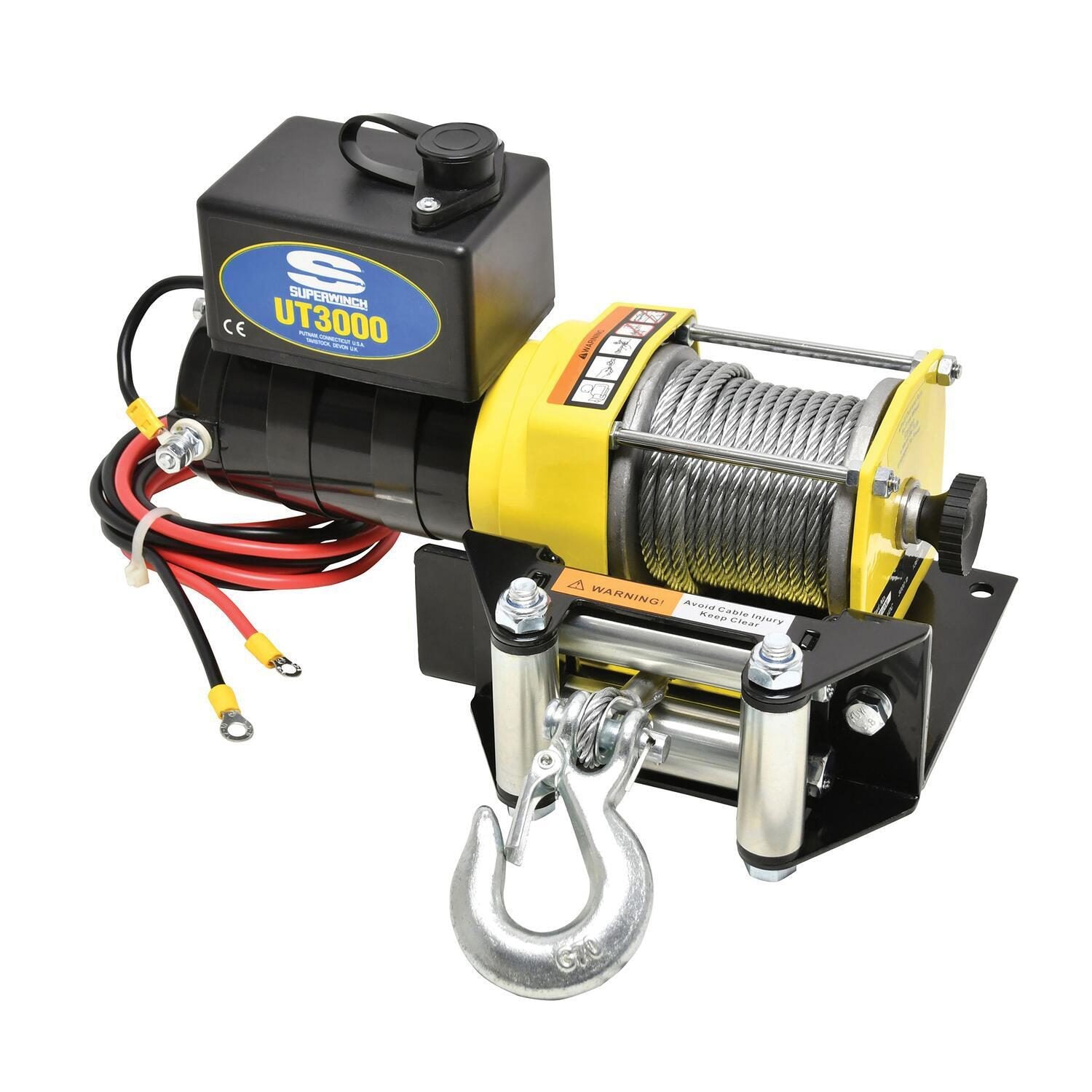

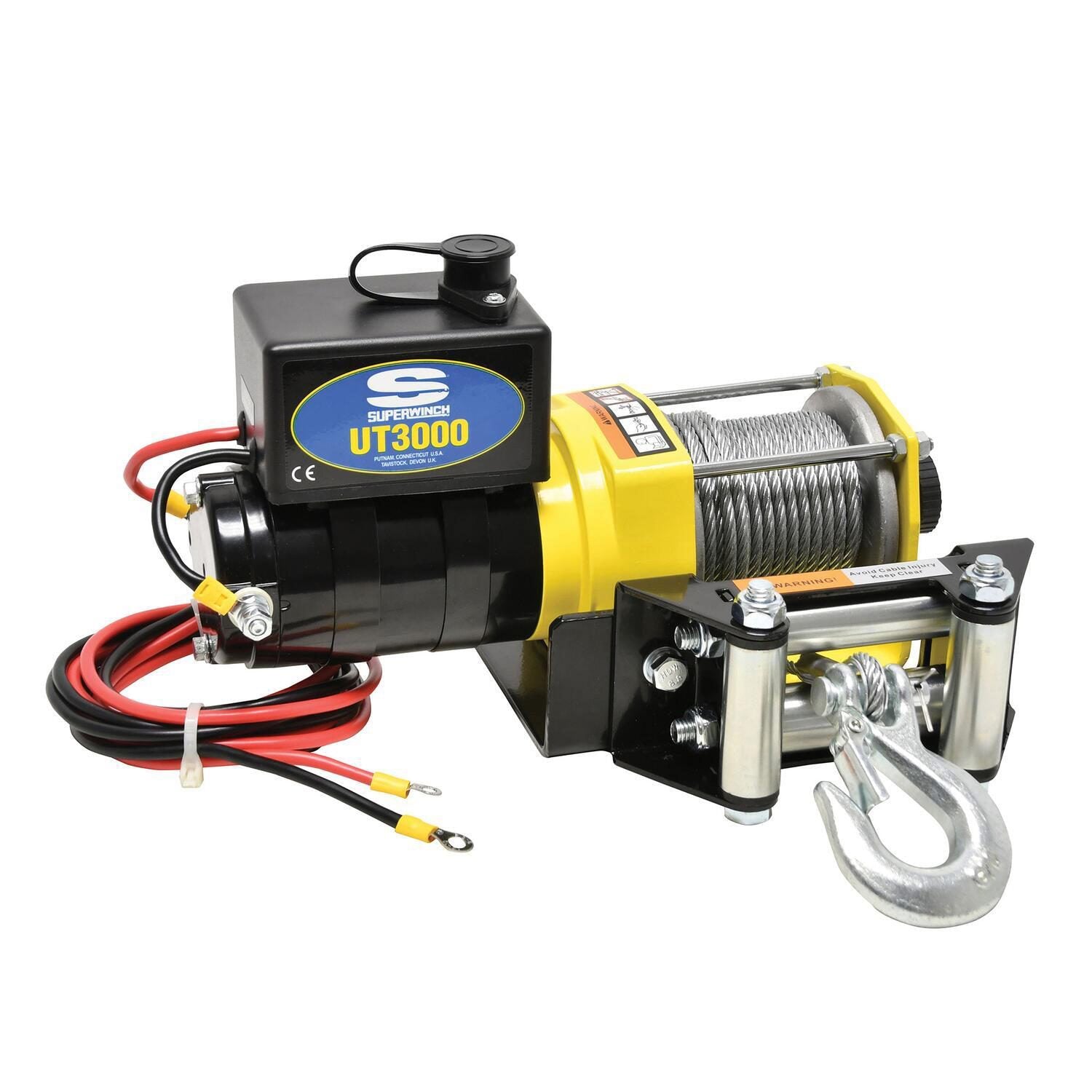

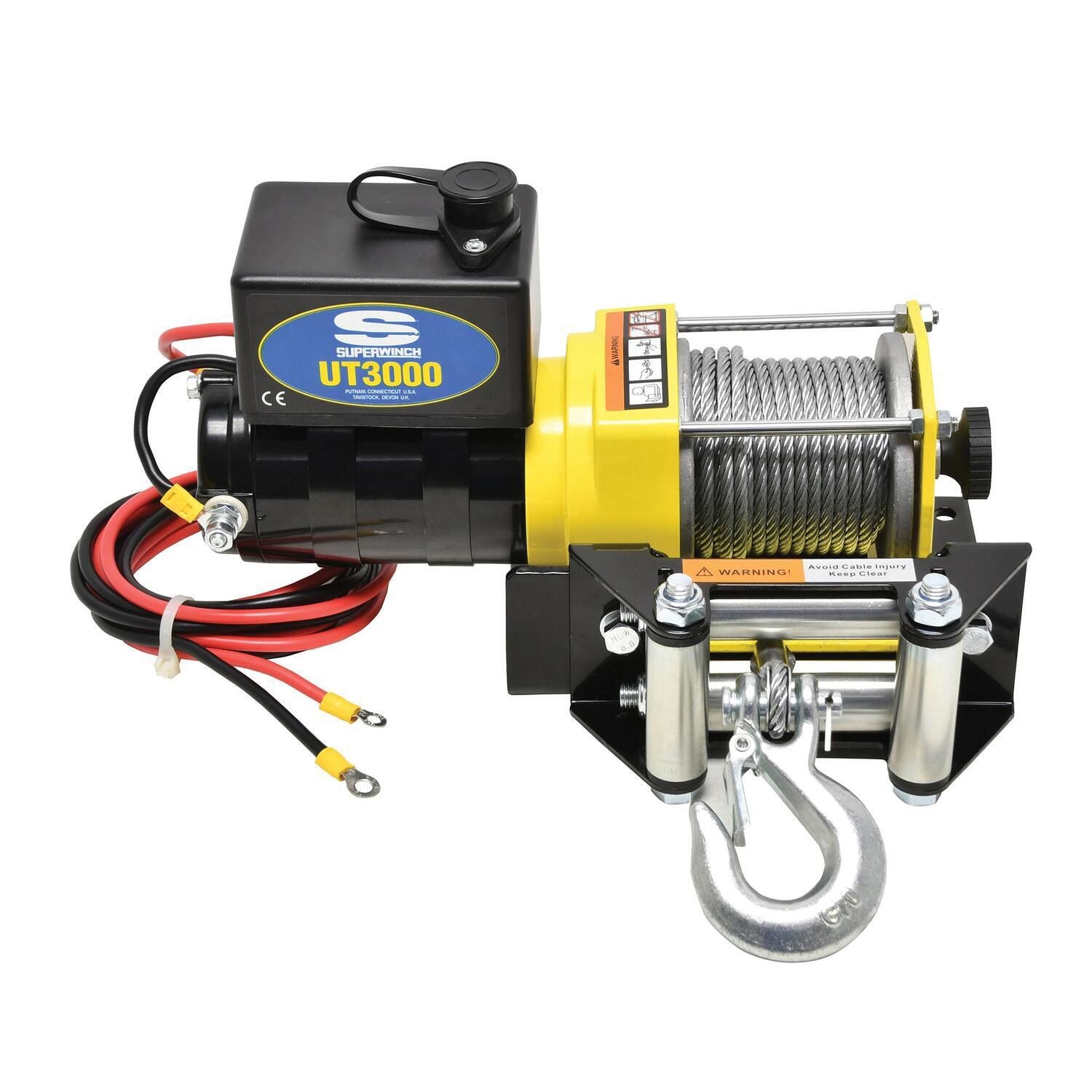

The Superwinch UT3000 Winch provides 3,000 lbs of pulling capacity, freespool control and cable tensioner to keep your cable wrap tight. Controller and roller fairlead on a mount plate makes this winch a great choice for simple jobs around the house or worksite.
- 3,000 lbs. capacity

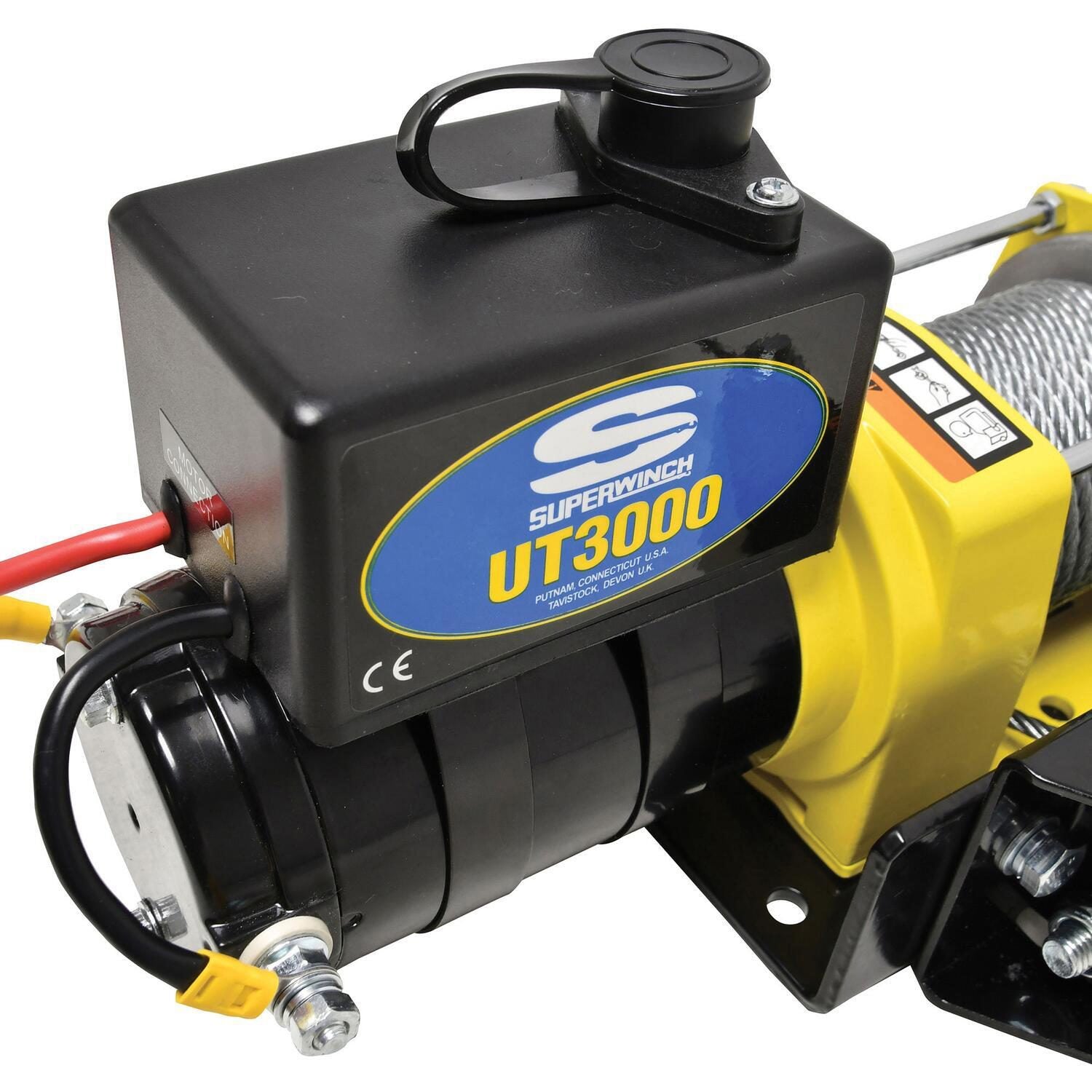

- 1.2 Hp Permanent Magnet Motor Provides Dynamic Braking
- 1-Stage Planetary Gearing With 153:1 Ratio
- Circuit Breaker Protected
- Cam-style clutch control knob

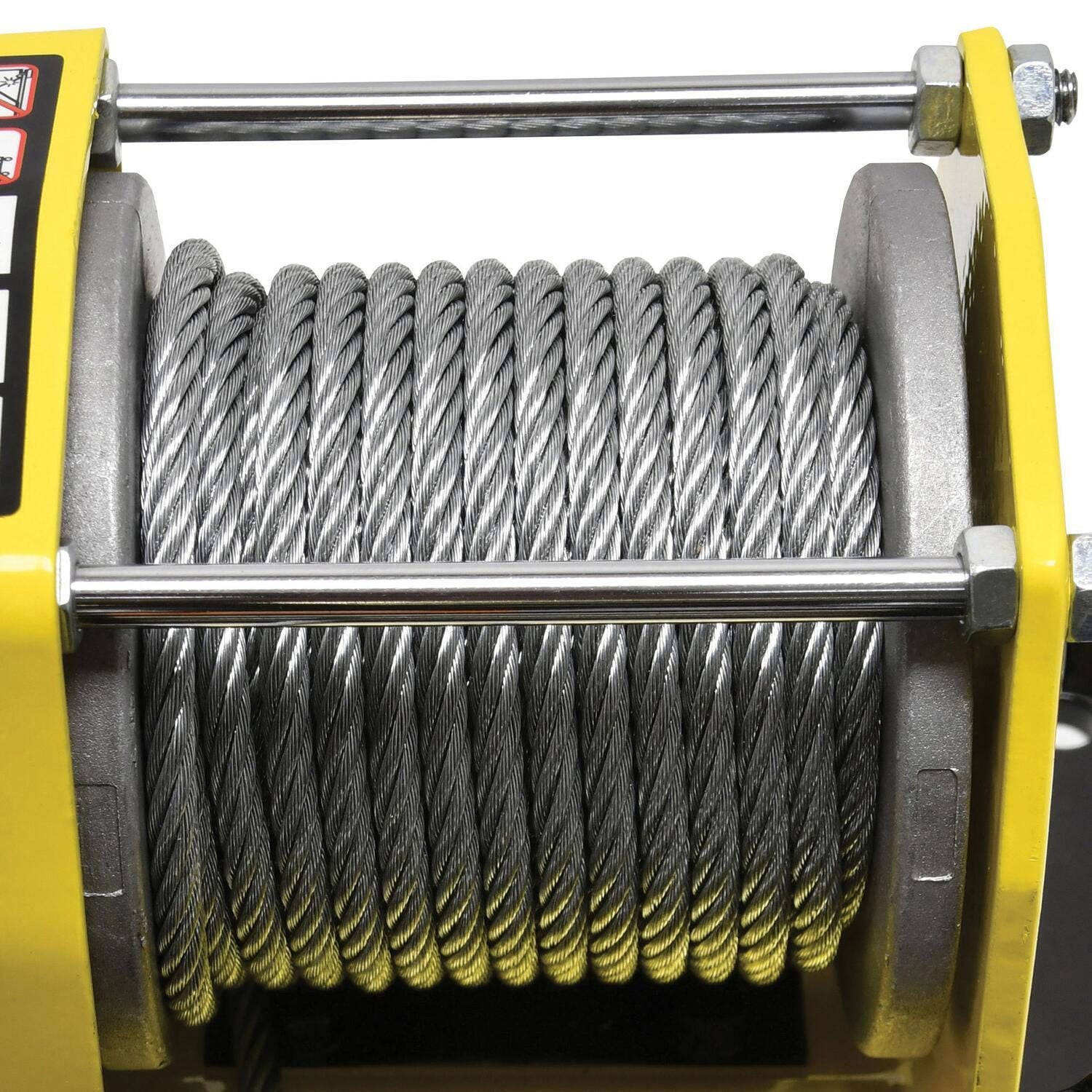

- 3/16 in. - 40 ft. wire rope

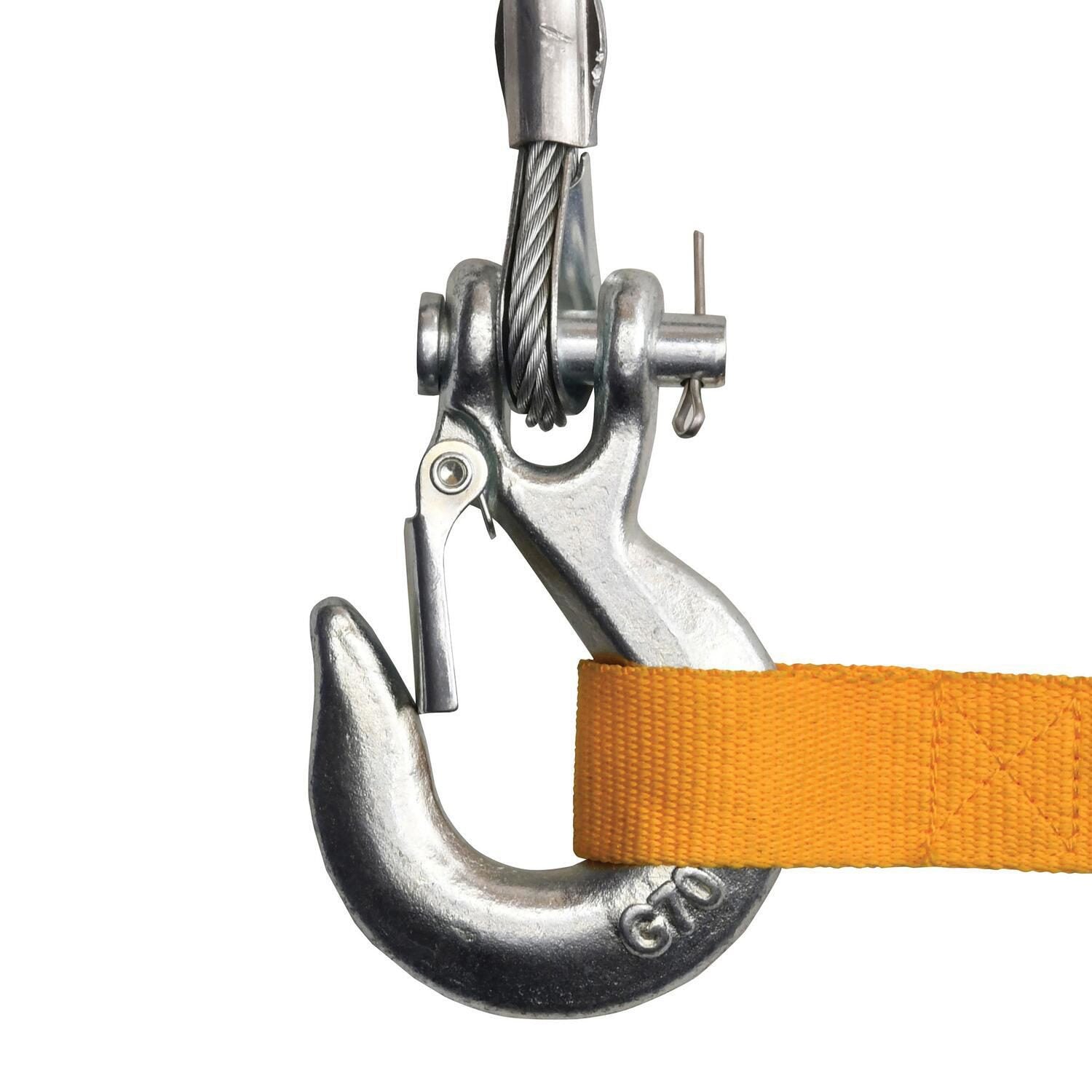

- Clevis Pinned Hook
- Zinc plated fairlead
- 12 Ft. Wired Hand-Held Remote
Brake System: Dynamic
Motor: 1.2 HP/.89KW 12V DC
Winch Hook: Removable Clevis Pinned
Warranty: 1 Year Limited Manufacturer
Solenoid: Circuit Breaker Protected
Rope Material: Steel Wire
Rope Length: 3/16 in x 40 ft (4.8mm x 12.2m)
Remote Type: Wire

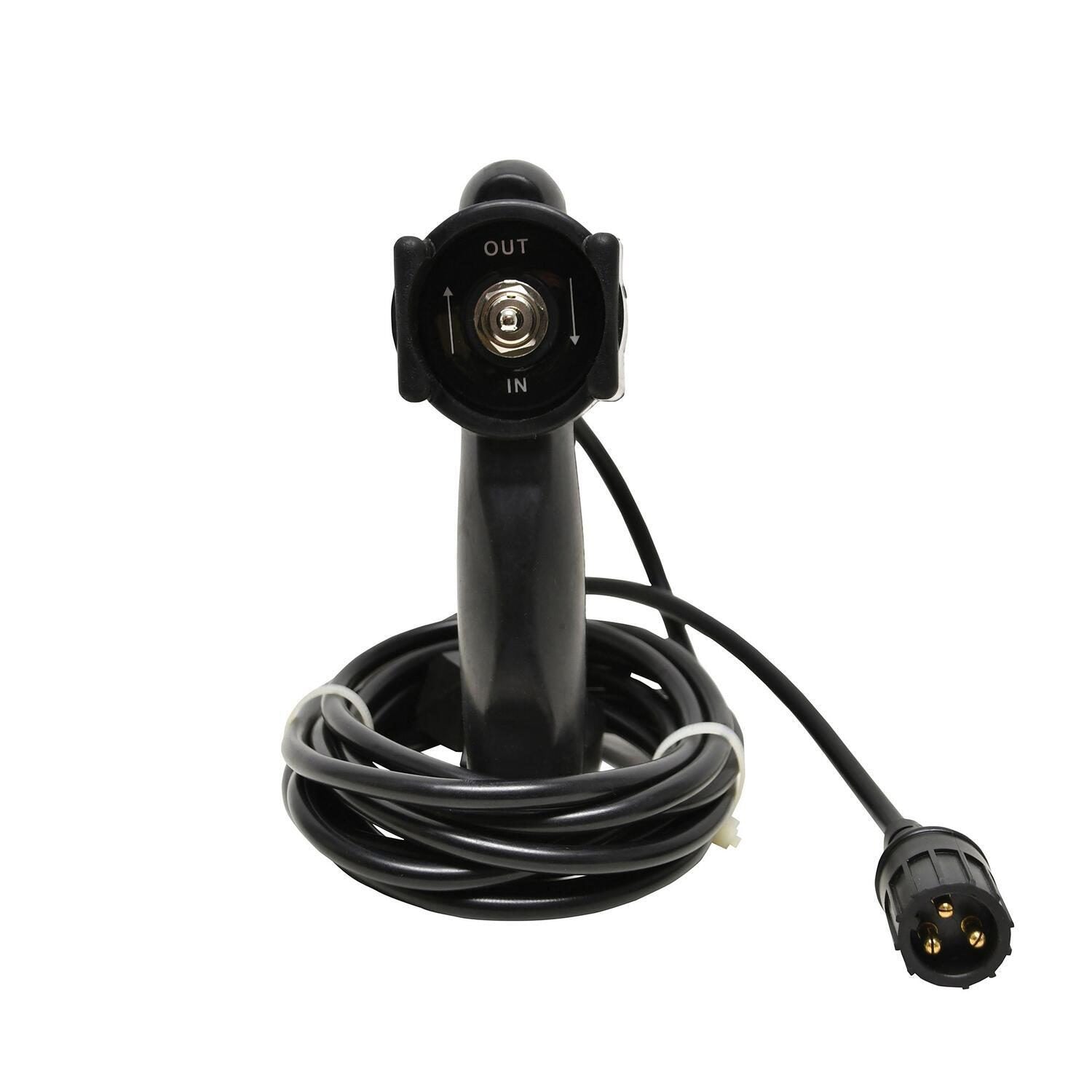

Remote Control: 12 ft Rubber Sealed Hand-held
Rated Single Line Pull (Lbs): 3000
Net. Weight: 19.5 lbs (8.84kgs)
Mounting Bolt Pattern: 2 Hole, 3.15in (80mm) on Center
Material: Steel
Can Ship By Ground Delivery: Yes
Line Speed: 5 Amps Motor Draw/8.5 FPM (2.58 MPM)
Gear System: 1-stage planetary
Gear Ratio: 153:1
Finish: Powder Coated
Fairlead: 4-Way Roller
EN Compliant: No
Drum Length (in.): 2.83
Drum Diameter (in.): 1.25
Dimensions: 11.7in L x 6.9in D x 4.1in H (298mm L x 175mm D x 105mm H)
Color: Black
Clutch: Free-Spooling, Pull and Turn
Winch Model: UT 3000 Series
