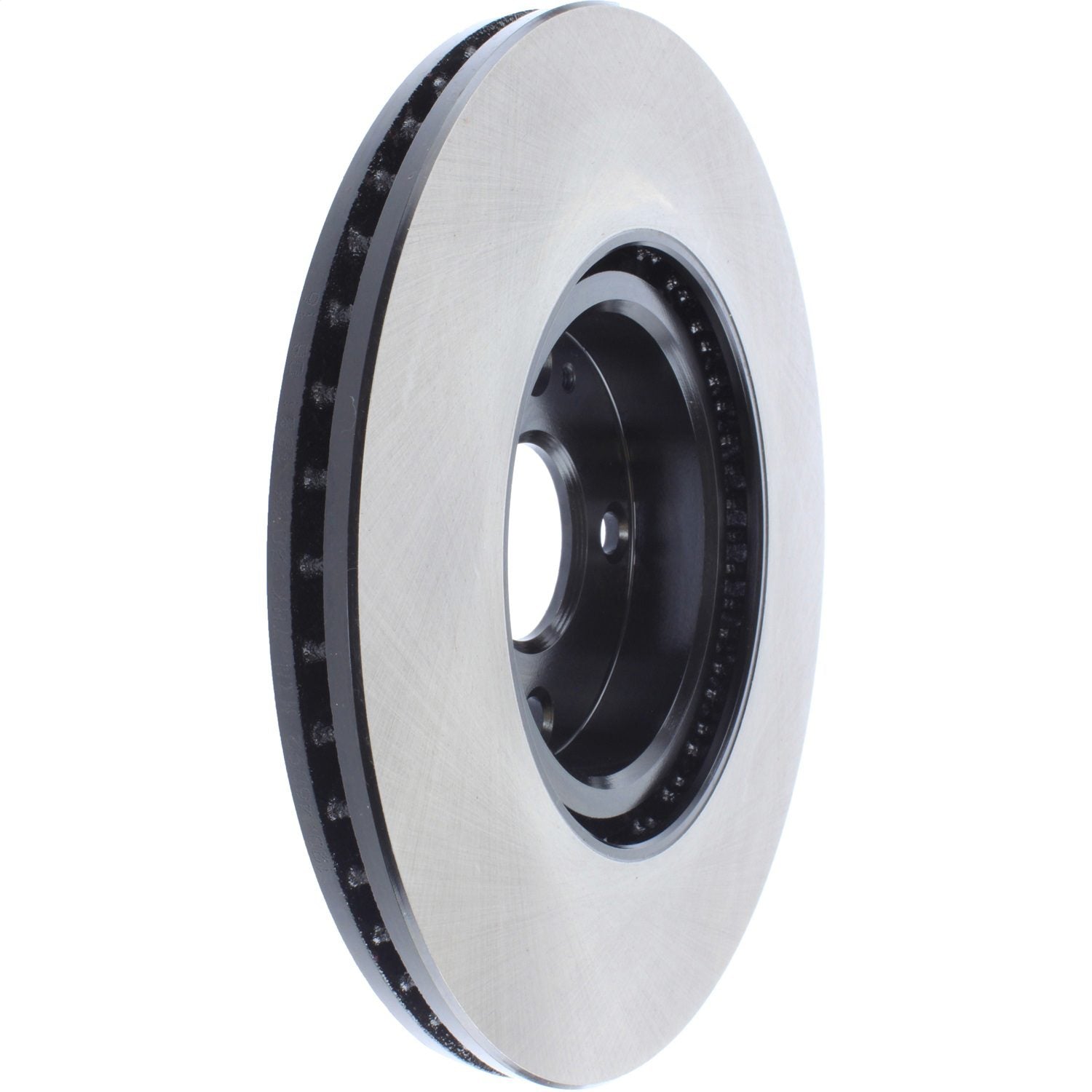

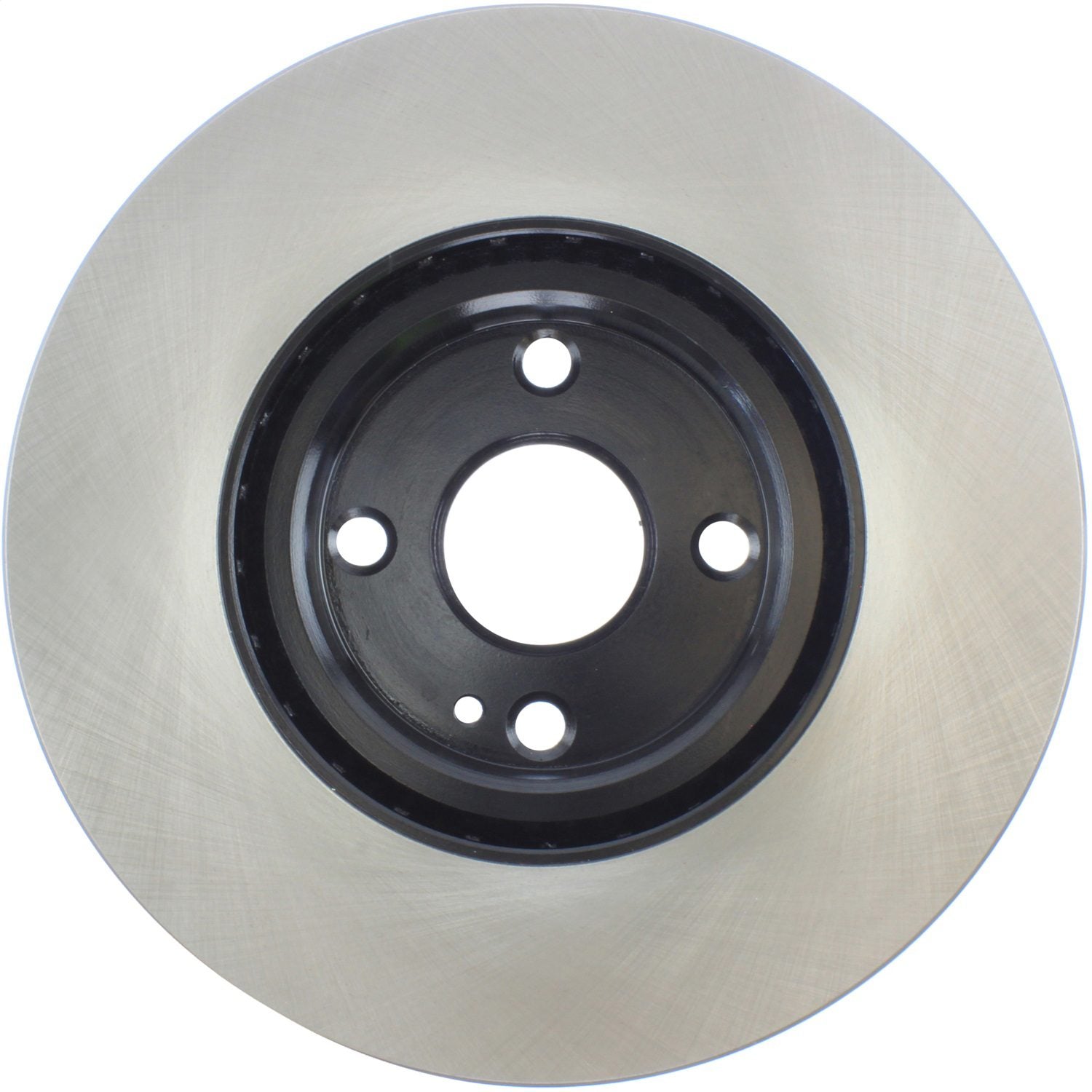

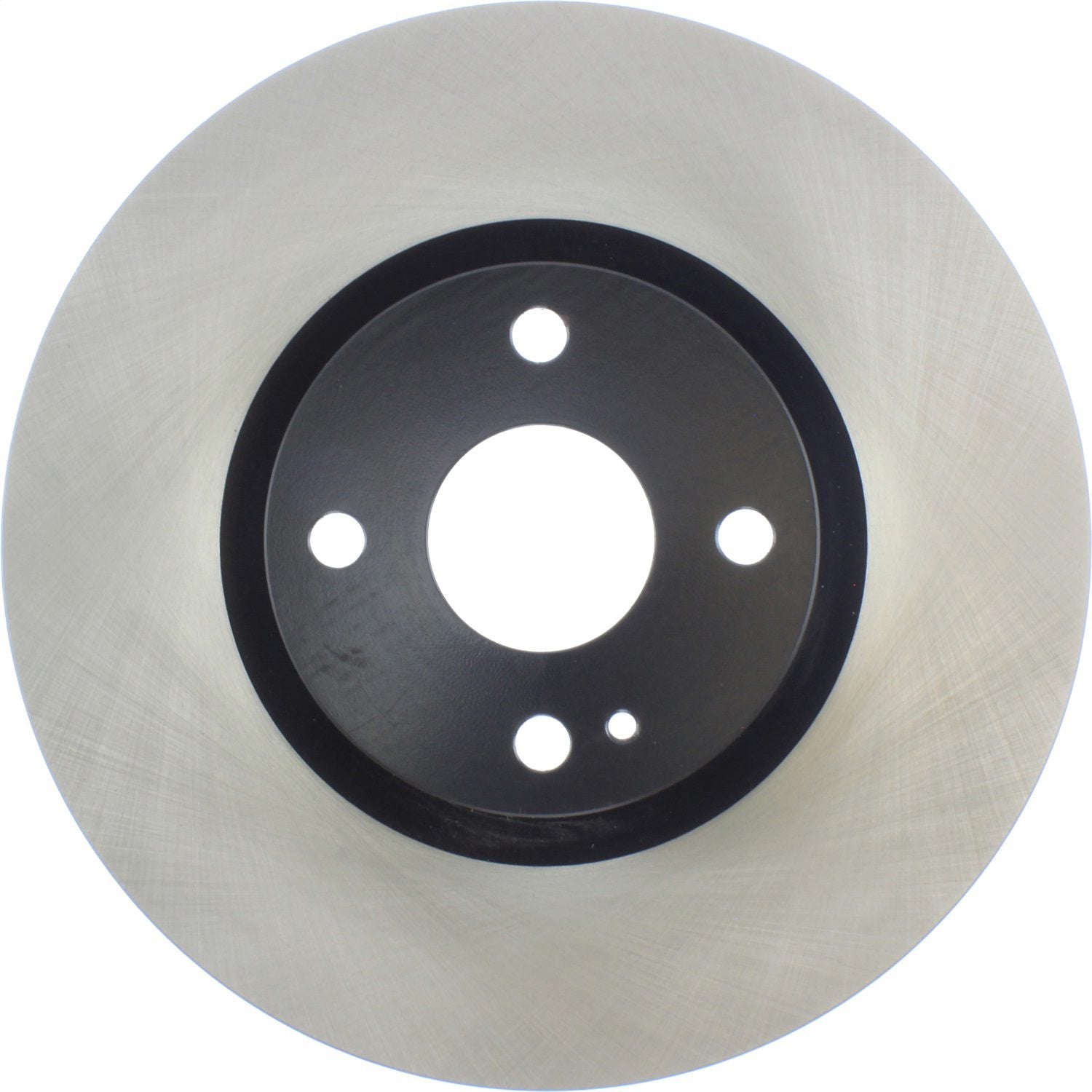

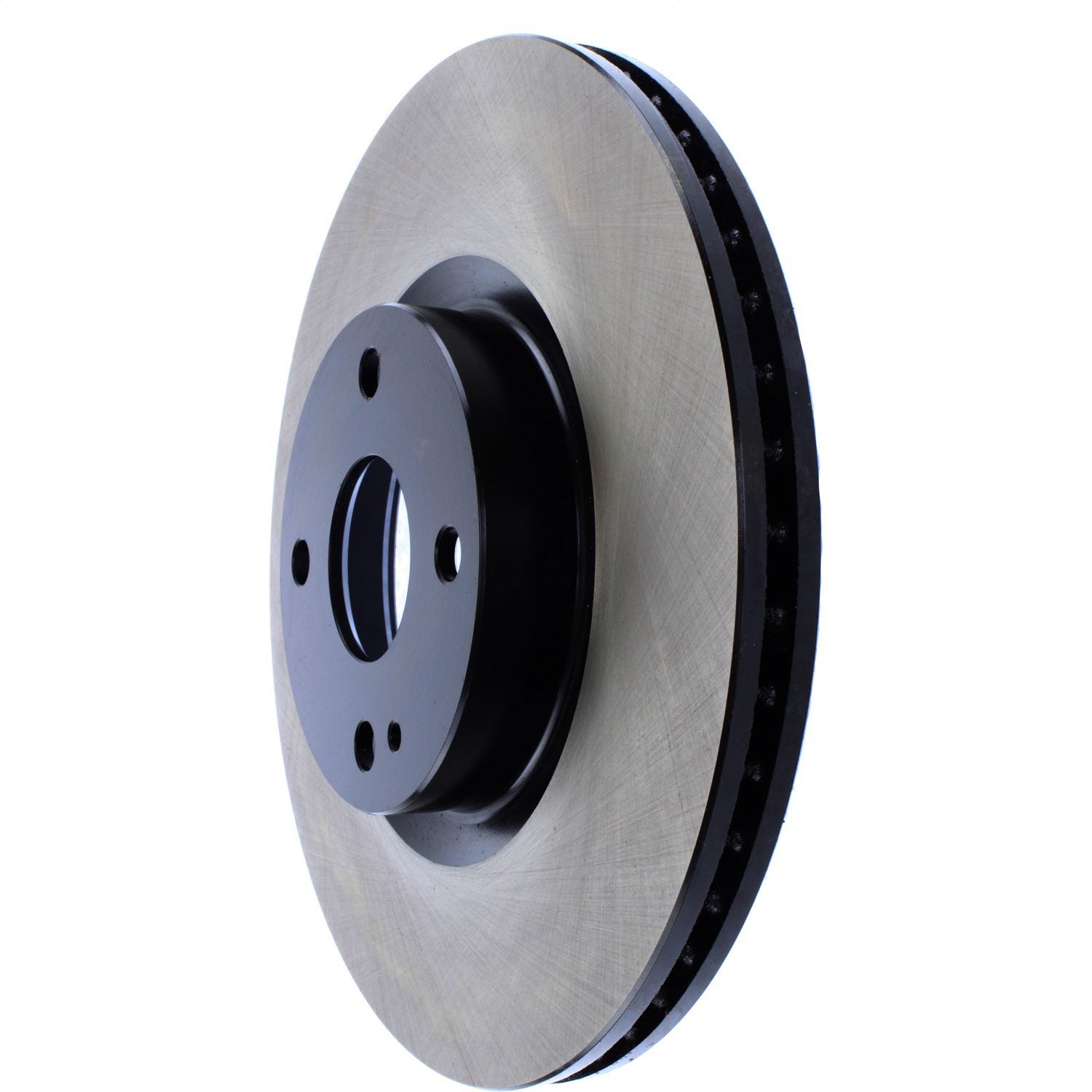

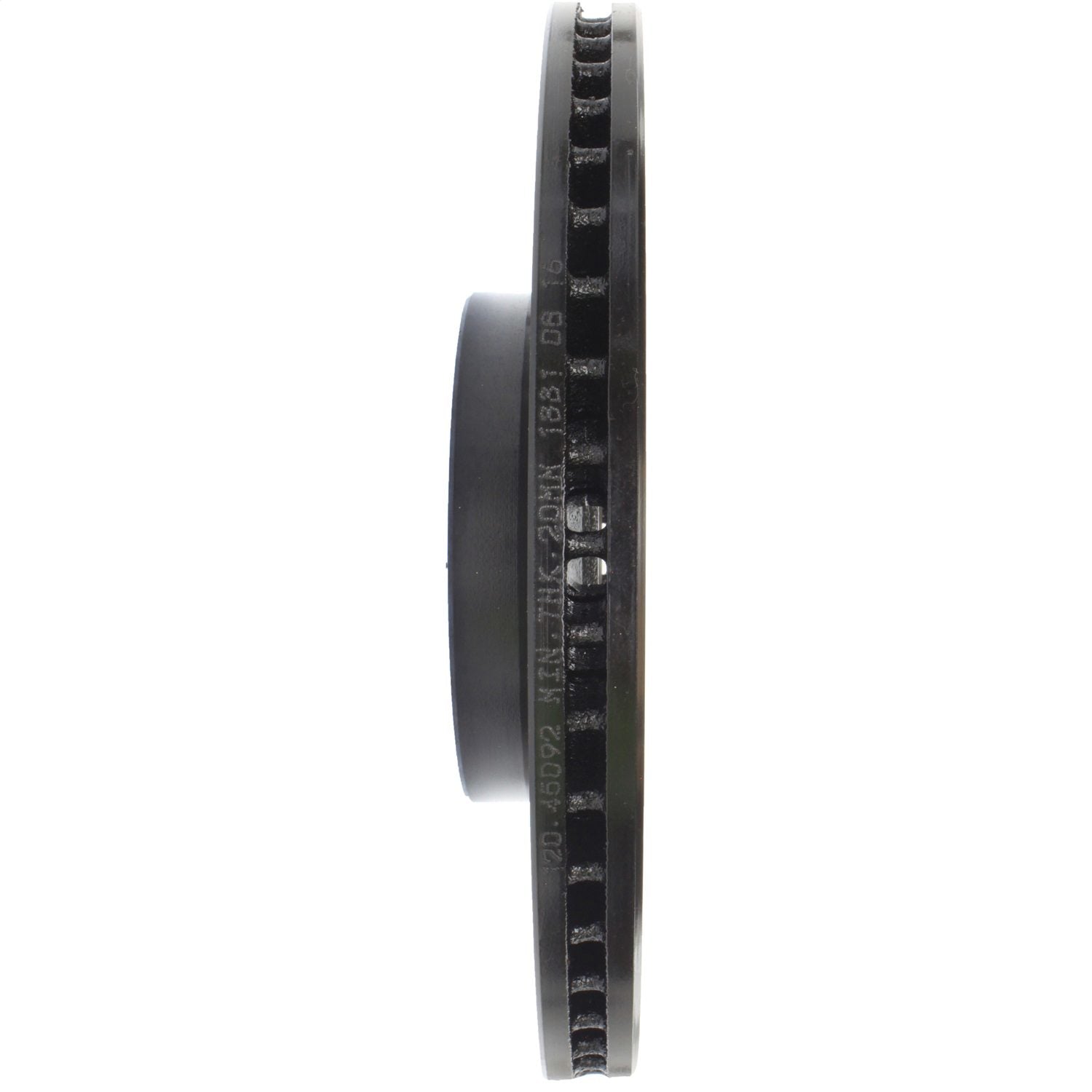

StopTech 120.45092CRY - 16-18 Mazda MX-5 Front Premium Brake Cryo Rotor

StopTech 120.45092CRY - 16-18 Mazda MX-5 Front Premium Brake Cryo Rotor

StopTech | 120.45092CRY
SKU: FLMN-120.45092CRY
Regular price $0.00 USD
Regular price $0.00 USD Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Quantity

StopTech 120.45092CRY - 16-18 Mazda MX-5 Front Premium Brake Cryo Rotor

StopTech Premium Cryostop Blank Rotor

Symmetric vane; split-core castings for uniform heat distribution. Black E-Coat anti-corrosive coating protects much better than competitors spray paint. Double disc ground friction surface for optimal performance and serviced life

StopTech Sport Rotors are also available with an optional cryogenic treatment. Although cryogenic treatment is invisible to the naked eye; many fleet customers are sold on its ability to extend the service life of the brake rotor. Deep cryogenic treatment is a one-time process that permanently improves the performance and wear characteristics of metal components; from brake rotors and engine parts to machine tools and gear sets. All new StopTech Sport Rotors may be ordered with cryogenic treatment for an additional fee.

  • Cryogenic Treatment Reduces Residual Stress
  • Slots Helps Evacuate Gasses/Dust/Heat
  • Directional Curve Vane Designs On Selected Apps
  • Black E-Coated Non-Friction - Corrosion Protection
  • Increased Initial bite and Wet Weather Response
  • Superior Resistance To Cracks From Thermal Stress
  • Double Disk Ground For Consistent Friction Surface
  • Direct OE Replacement
Hat ID [cntrc] mm: 124.900
Hat ID [cntrc] in: 4.917
Weight [cntrc] lbs: 13.650
Weight [cntrc] kgs: 6.200
Vane Style [cntrc]: Straight
Center Hole Diameter: 2.165
OEM Vane Count [cntrc]: 50
Misc Holes [cntrc]: 1
Disc Mounting [cntrc]: Floating
Discard Thickness: 20.000
Mounting Bolt Hole Circle Diameter: 100.000
Outside Diameter: 280.000
Outside Diameter: 11.024
Stud/Lug Hole Diameter: 0.516
Overall Height: 44.000
Nominal Thickness: 22.000
Stud/Lug Hole Diameter: 13.100
Solid Or Vented Type Rotor: Vented
Nominal Thickness: 0.866
Hat Finish: Coated
ABS Tone Ring Included: No
Surface Type: Smooth
Discard Thickness: 0.787
Mounting Bolt Hole Circle Diameter: 3.937
Stud/Lug Hole Quantity: 4
Overall Height: 1.732
Bearings Included: No
Center Hole Diameter: 55.000
